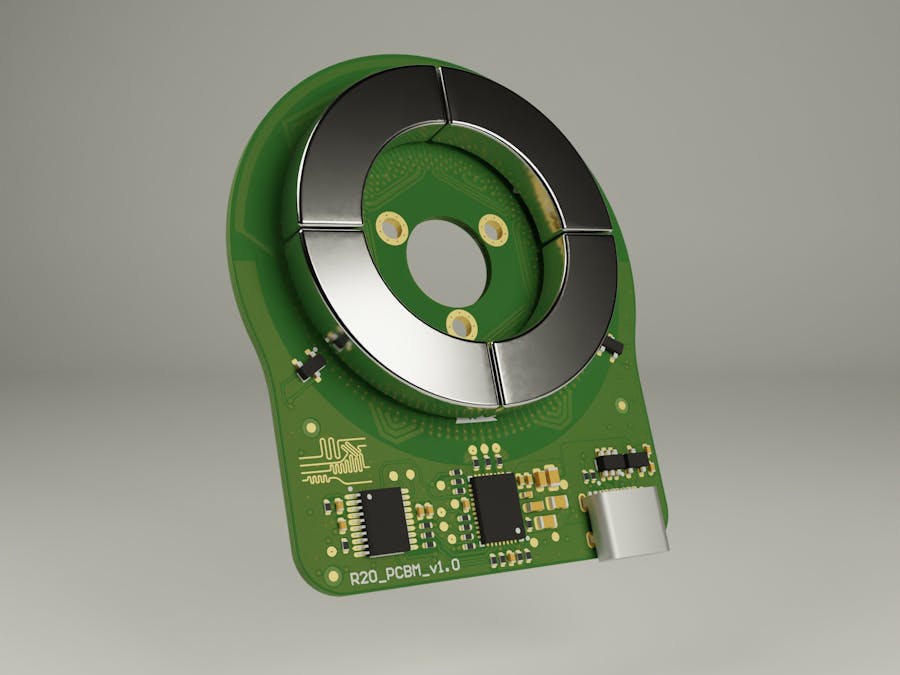

Comb PCB Motor

The Comb PCB motor redefines what’s possible in accessible, efficient, and versatile motor solutions.

• USB-C Powered: Powered through a standard USB-C connection, making it incredibly user-friendly and compatible with modern power sources.
• Cost-Effective Manufacturing: Designed with simplicity and scalability in mind, it is extremely affordable to produce. Perfect for hobbyists and large-scale applications alike.
• Efficient: The comb-shaped stator maximizes efficiency by eliminating torque loss, ensuring optimal performance even under demanding conditions.
• Seamless Integration: Fully customizable, the motor can be easily modified or directly integrated into any project requiring a compact, inexpensive motor solution.
• Advanced Control Capabilities: Built-in position, velocity, and torque control offer a level of precision and flexibility typically reserved for far more expensive systems.

In short, this PCB motor combines cutting-edge design with practicality, making it an ideal choice for engineers, makers, and innovators everywhere.

Layout

The Comb PCB Motor is built on a 4-layer PCB structure.

The comb design ensures that the entire copper area under the magnets contributes to producing torque, increasing efficiency and torque density.

A simple and efficient motor control circuit is integrated on the same PCB, including:

• Hall sensing for precise commutation and efficient low-speed operation.
• A microcontroller to allow advanced control actions like closed-loop position and velocity control.
• Full customizability of the layout allows tailoring the motor's target speed, torque, and operating voltage/current to each specific application.

Simulations

Before manufacturing any hardware, extensive simulations guided the design:

PDN Simulation: Several iterations of PDN simulations were performed to optimize copper usage. The first iteration showed that the copper distribution was not optimal (red areas should be made thicker) and vias were carrying too much current.

Doubling the number of vias and increasing the trace width of some critical parts showed promising results.

Resistance and Current Handling: DC resistance was estimated from PDN results (770 mΩ predicted).

FEMM Magnetic Simulations: FEMM was used to model the magnetic field experienced by the stator traces.

Lorentz Force and Torque Simulations: FEMM data was imported into MATLAB, where Lorentz forces and resulting torque were computed.

Estimated constants:

• Kt: 1.48 mNm/A
• Kv: 6452 RPM/V

Mechanical Design

The mechanical structure is simple:

• Stator: The PCB itself.
• Bearing Holder: 3D printed and screws into the PCB.
• Rotor: 3D printed, holds the magnets and is press-fitted into the bearing.

Results

Thanks to the hackster and PCBWay teams the PCBs and mechanical parts were manufactured, received and assembled.

First tests revealed several lessons:

• Ferromagnetic Screws: Caused cogging torque; switched to stainless steel/CA glue.
• Bearing Play: Only one bearing caused axial play; future versions will use two.
• Hall Sensors: Two were swapped; corrected after rework.

These early tests confirmed the basic viability of the motor while pointing out mechanical details to refine in future versions.

Tests

Once manufactured, the motor was fully characterized to validate the design and simulation methods used.

• Kv Test: 6450 RPM/V measured, very closely matching simulations. This positive result highlights how customizable a PCB motor can be.

• Resistance Test: 651 mΩ measured. A bit lower than simulated, this variation is expected due to final copper thickness variability of the PCB manufacturing process.

Inductance Test: 2 µH measured. PCB motors are usually low inductance, and the driving circuit was designed to handle these characteristics without issue.

Control

The Comb PCB Motor includes basic yet powerful control modes made possible thanks to the integrated hall sensors and microcontroller.

• Velocity Control Mode: Closed-loop speed control. In this mode, the motor adjusts its drive signal based on feedback to match the desired speed, providing smooth and stable motion even under load changes.

Position Control Mode: Simple closed-loop position control. The motor moves to and holds specified rotor positions, making it useful for robotics and actuator applications.

These control results demonstrate the strong capabilities of the design, paving the way for even more advanced closed-loop applications in the future.

Firmware

The firmware running on the motor is based on an STM32 microcontroller and was developed entirely from scratch. It performs several key tasks:

• Reading Hall Sensors: It continuously reads the hall sensor states to decode rotor position and estimate motor speed.
• Commutation and Control: Based on the decoded position, the MCU manages commutation patterns and applies control laws.
• Power Stage Interface: It communicates with the power stage IC through gate control signals and SPI communication.
• Closed-Loop Control: Both speed and position loops are closed at 1 kHz update rate, enabling smooth dynamic response and precision actuation.

Assembly Instructions

Follow these steps to assemble the Comb PCB Motor:

• Order PCBs: Purchase the motor PCBs from PCBWay using the provided manufacturing files or through the project link.
• Prepare Mechanical Parts: 3D print the rotor and bearing holder using standard FDM or resin printers. Alternatively, you can order high-quality 3D prints directly through PCBWay’s 3D printing service.
• Attach Magnets to Rotor: Carefully glue the magnets onto the rotor.
• Mount the Bearing: Glue the bearing into the bearing holder. Make sure it sits flat and is fully secured.
• Secure Bearing Holder to PCB: Use non-ferrous screws and nuts (e.g., stainless steel or nylon) to attach the bearing holder to the PCB. Avoid magnetic materials to prevent cogging or interference with motor function.
• Assemble the Rotor: Press-fit the rotor (with magnets) into the bearing. Ensure smooth rotation.
• Program the Firmware: Connect the PCB to your computer via USB-C. Use STM32CubeProgrammer to flash the latest firmware onto the microcontroller. Firmware is available from the github repository.
