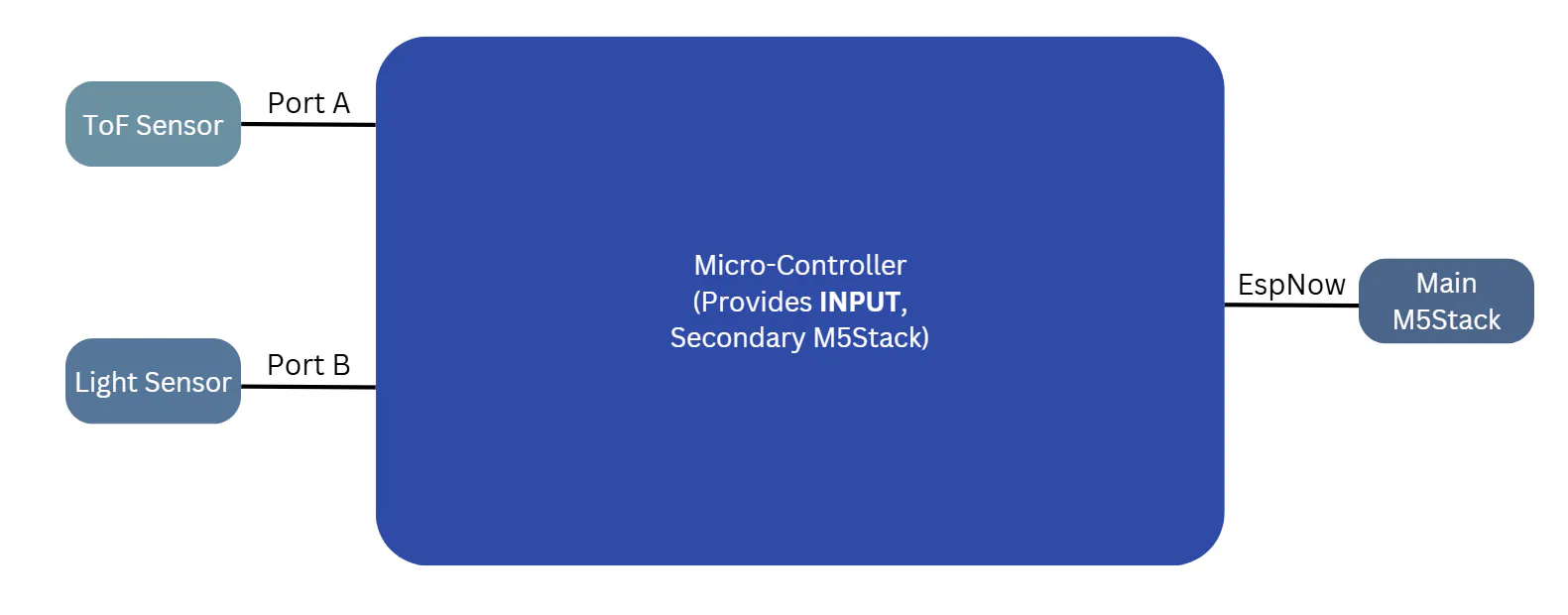

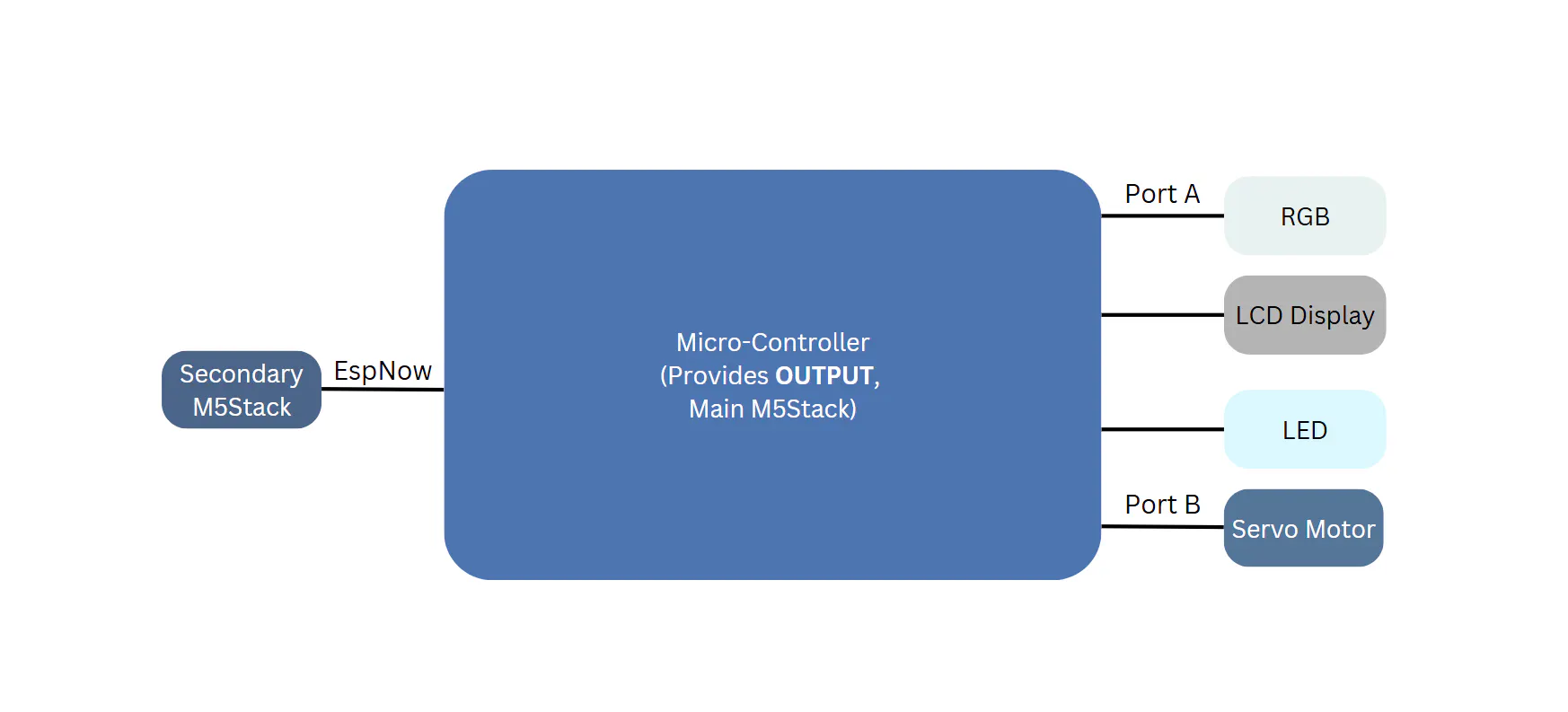

Schematics
Code
Credits
Comments(0)

Team Group 1:

•

•

•

Created January 13, 2025

Smart Factory

Our aim is to reduce workplace hazards, operational downtime, and costs associated with injuries and repairs, creating a safer environment.

Things used in this project

Hardware components

M5Stack FIRE IoT Development Kit (PSRAM 2.0)

M5Stack Time-of-Flight (ToF) VL53L0X Laser Ranging Unit (MCP4725/)

M5Stack Light Unit with Photo-resistance

M5Stack RGB Unit with NeoPixel RGB LED (SK6812)

SG90 Micro-servo motor

Software apps and online services

M5Stack UIFlow-Desktop-IDE

Hand tools and fabrication machines

Cardboard

Scissors, Free Fall

Hot glue gun (generic)

Blu Tack

String

Story

Done By: Gracia Han, Teh Shun Yuan, Joycelyn Wong, Xavier Leong

Description:

This project focuses on improving worker safety near conveyor belts commonly used in logistics and warehouses. Using M5Stack components, the system monitors worker proximity, detects motion, and activates barriers to prevent accidents. Visual and auditory alerts signal danger zones, while optional environmental monitoring addresses conditions like humidity and dust.

Our Aim:

Design a sustainable technology solution to enhance workers' safety in logistics and warehousing environments using smart factory principles.
Reduces workplace hazards, operational downtime, and costs associated with injuries and repairs, creating a safer and more efficient work environment.

Research:

Warehouses and logistics centers heavily depend on conveyor belts for efficient operations. However, worker safety remains a significant challenge, with risks including:

High Rate of Conveyor Belt Injuries - Accidents can result in worker harm and financial losses.
Reactive Safety Measures - Existing solutions only respond to incidents, rather than preventing them.
Human Error & Monitoring Limitations - Manual oversight is inconsistent and inefficient.
Compliance with Safety Regulations - Companies must adopt modern safety technologies to meet standards.

Project:

Presence Sensor - Using a TOF Sensor, it could detect if any workers got too close to the conveyor belt.
Servo Motor - Using a Servo Motor, it can deploy safety measures to prevent workers from getting injured.
Environment Checker - By using a Light Sensor, it helps to check if the environment is safe for workers.
Warning System - Using RGB LED, it remains green if workers are keeping a safe distance away from the conveyor belt but turns red if they get too close.

YouTube Video:

Presentation & demo

Link to our Slides: E1_Group1.pptx

Prototype Pictures:

Conveyor belt is running, LED is green

Conveyor belt stopped running because of object detected in front of the sensor(s), LED turns red

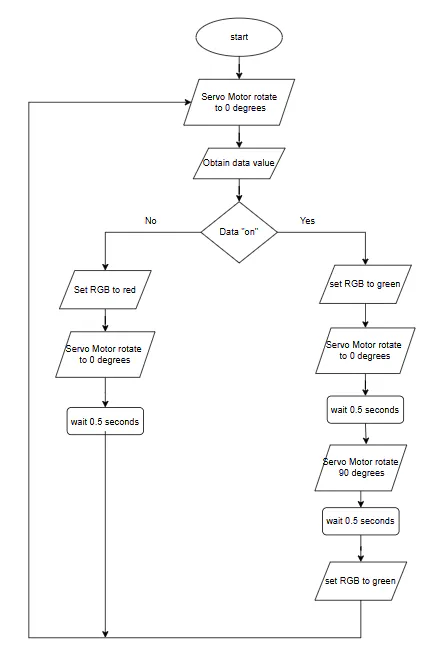

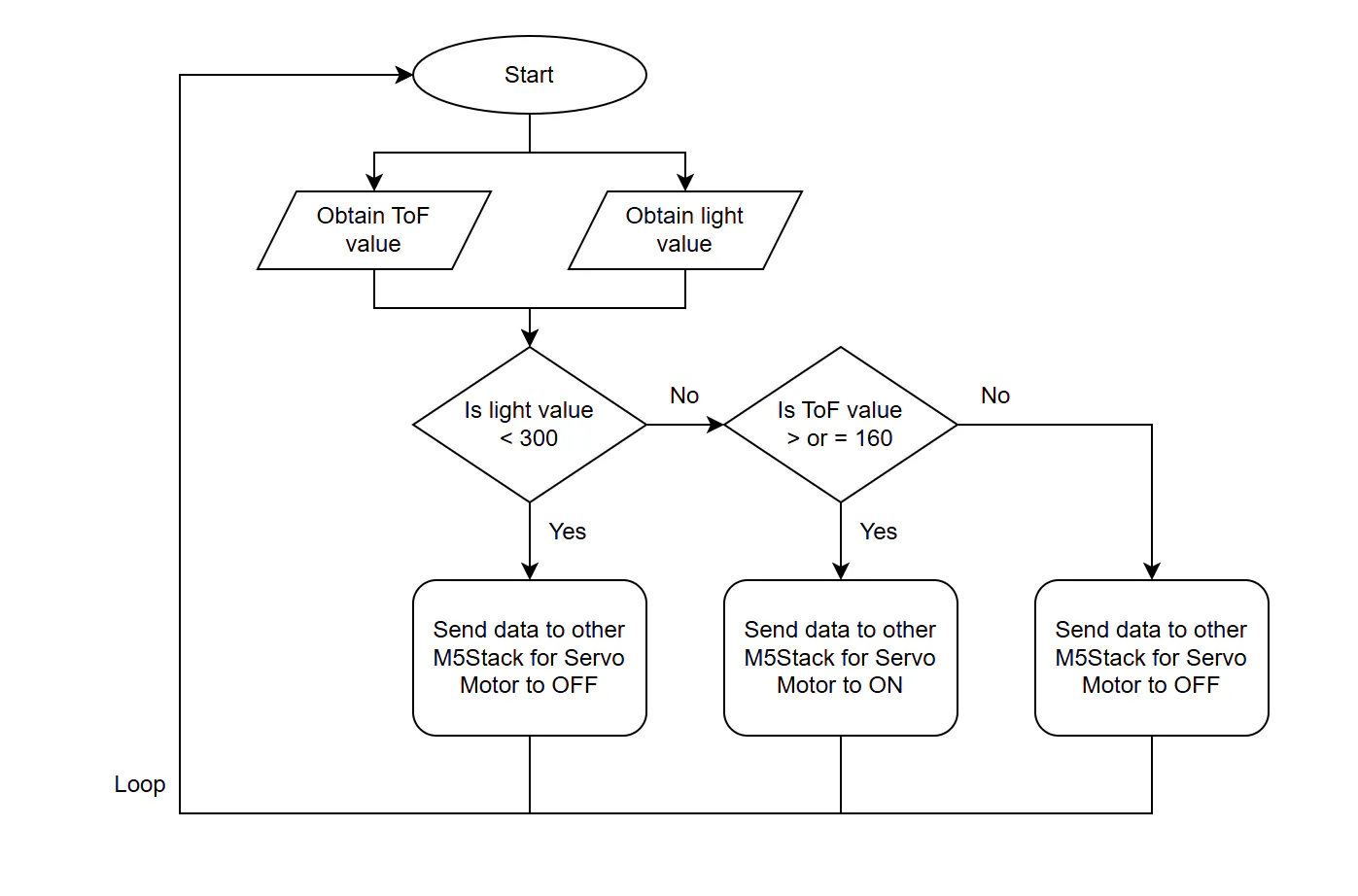

Code

from m5stack import *
from m5ui import *
from uiflow import *
import espnow
import wifiCfg
import time
import unit

setScreenColor(0x222222)
servo2 = unit.get(unit.SERVO, unit.PORTB)
rgb_0 = unit.get(unit.RGB, unit.PORTA)


mac_add = None
receive_data = None

wifiCfg.wlan_ap.active(True)
wifiCfg.wlan_sta.active(True)
espnow.init()

label10 = M5TextBox(132, 90, "Text", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label11 = M5TextBox(132, 40, "Text", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label7 = M5TextBox(27, 90, "Conveyor:", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label6 = M5TextBox(24, 40, "Mac Address:", lcd.FONT_Default, 0xFFFFFF, rotate=0)




def recv_cb(_):
  global mac_add,receive_data
  mac_add, _, receive_data = espnow.recv_data(encoder='str')

  pass
espnow.recv_cb(recv_cb)



label11.setText(str(espnow.get_mac_addr()))
servo2.write_angle(0)
while True:
  if receive_data == 'On':
    rgb_0.setColorAll(0x009900)
    servo2.write_angle(0)
    wait(0.5)
    servo2.write_angle(90)
    wait(0.5)
    rgb_0.setColorAll(0x009900)
  elif receive_data == 'Off':
    rgb_0.setColorAll(0xff0000)
    servo2.write_angle(0)
    wait(0.5)
  wait_ms(2)

from m5stack import *
from m5ui import *
from uiflow import *
import espnow
import wifiCfg
import unit

setScreenColor(0x222222)
tof_2 = unit.get(unit.TOF, unit.PORTA)
light_0 = unit.get(unit.LIGHT, unit.PORTB)


ToF = None
light = None
receive_data = None

wifiCfg.wlan_ap.active(True)
wifiCfg.wlan_sta.active(True)
espnow.init()

label1 = M5TextBox(12, 123, "ToF Sensor:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
Input = M5Title(title="Input (Secondary M5Stack)", x=6, fgcolor=0xFFFFFF, bgcolor=0x0000FF)
label2 = M5TextBox(12, 75, "Light Sensor:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label0 = M5TextBox(0, 219, "Data:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label5 = M5TextBox(186, 80, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label6 = M5TextBox(186, 128, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)




espnow.add_peer('2c:bc:bb:81:fe:b9', id=1)
label0.setText(str(receive_data))
while True:
  ToF = int(((tof_2.distance) + 10))
  light = light_0.analogValue
  label5.setText(str(light))
  label6.setText(str(ToF))
  if light < 300:
    receive_data = 'Off'
    espnow.send(id=1, data=str(receive_data))
  elif light >= 300 and ToF >= 160:
    receive_data = 'On'
    espnow.send(id=1, data=str(receive_data))
  else:
    receive_data = 'Off'
    espnow.send(id=1, data=str(receive_data))
  wait_ms(2)


def send_cb(flag):
  global receive_data,ToF,light
  receive_data = flag
  label0.setText('Data Sent')

  pass
espnow.send_cb(send_cb)
