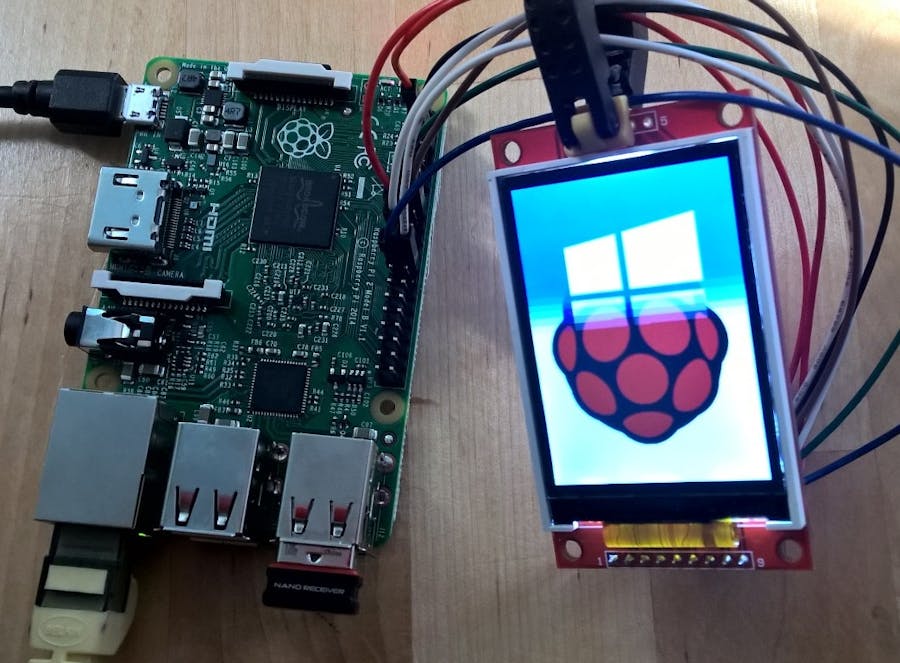

Windows 10 ILI9341 TFT LCD spi display

Interface sample application that drives the ILI9341 controller displays.

BeginnerFull instructions provided21,166
Windows 10 ILI9341 TFT LCD spi display

Things used in this project

Hardware components

Raspberry Pi 2 Model B
Raspberry Pi 2 Model B
×1
2.2 Inch Serial TFT SPI LCD Screen Module HD 240 x 320 5110 Compatible
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

Windows 10 IoT Core
Microsoft Windows 10 IoT Core

Story

Read more

Schematics

LCD pin out

Raspberry Pi pin out

TFT LCD

Code

SpiDisplayDriver

C#
The bulk of the code
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Windows.Devices.Enumeration;
using Windows.Devices.Spi;
using Windows.Devices.Gpio;
using Windows.Graphics;

namespace LCDDisplay
{
    public class SpiDisplayDriver
    {
        private const string SPI_CONTROLLER_NAME = "SPI0";  /* For Raspberry Pi 2, use SPI0                             */
        private const Int32 SPI_CHIP_SELECT_LINE = 0;       /* Line 0 maps to physical pin number 24 on the Rpi2        */
        private const Int32 DATA_COMMAND_PIN = 22;          /* We use GPIO 22 since it's conveniently near the SPI pins */
        private const Int32 RESET_PIN = 23;                 /* We use GPIO 23 since it's conveniently near the SPI pins */

        public const uint LCD_W = 240;
        public const uint LCD_H = 320;
        private const uint LINE_HEIGHT = 32;

        private static readonly byte[] CMD_SLEEP_OUT = { 0x11 };
        private static readonly byte[] CMD_DISPLAY_ON = { 0x29 };
        private static readonly byte[] CMD_MEMORY_WRITE_MODE = { 0x2C };
        private static readonly byte[] CMD_DISPLAY_OFF = { 0x28 };
        private static readonly byte[] CMD_ENTER_SLEEP = { 0x10 };

        private static readonly byte[] CMD_COLUMN_ADDRESS_SET = { 0x2a };
        private static readonly byte[] CMD_PAGE_ADDRESS_SET = { 0x2b };
        private static readonly byte[] CMD_POWER_CONTROL_A = { 0xcb };
        private static readonly byte[] CMD_POWER_CONTROL_B = { 0xcf };
        private static readonly byte[] CMD_DRIVER_TIMING_CONTROL_A = { 0xe8 };
        private static readonly byte[] CMD_DRIVER_TIMING_CONTROL_B = { 0xea };
        private static readonly byte[] CMD_POWER_ON_SEQUENCE_CONTROL = { 0xed };
        private static readonly byte[] CMD_PUMP_RATIO_CONTROL = { 0xf7 };
        private static readonly byte[] CMD_POWER_CONTROL_1 = { 0xc0 };
        private static readonly byte[] CMD_POWER_CONTROL_2 = { 0xc1 };
        private static readonly byte[] CMD_VCOM_CONTROL_1 = { 0xc5 };
        private static readonly byte[] CMD_VCOM_CONTROL_2 = { 0xc7 };
        private static readonly byte[] CMD_MEMORY_ACCESS_CONTROL = { 0x36 };
        private static readonly byte[] CMD_PIXEL_FORMAT = { 0x3a };
        private static readonly byte[] CMD_FRAME_RATE_CONTROL = { 0xb1 };
        private static readonly byte[] CMD_DISPLAY_FUNCTION_CONTROL = { 0xb6 };
        private static readonly byte[] CMD_ENABLE_3G = { 0xf2 };
        private static readonly byte[] CMD_GAMMA_SET = { 0x26 };
        private static readonly byte[] CMD_POSITIVE_GAMMA_CORRECTION = { 0xe0 };
        private static readonly byte[] CMD_NEGATIVE_GAMMA_CORRECTION = { 0xe1 };

        private SpiDevice SpiDisplay;
        private GpioController IoController;
        private GpioPin DataCommandPin;
        private GpioPin ResetPin;

        private async Task InitHardware()
        {
            IoController = GpioController.GetDefault();
            DataCommandPin = IoController.OpenPin(DATA_COMMAND_PIN);
            DataCommandPin.Write(GpioPinValue.High);
            DataCommandPin.SetDriveMode(GpioPinDriveMode.Output);

            ResetPin = IoController.OpenPin(RESET_PIN);
            ResetPin.Write(GpioPinValue.High);
            ResetPin.SetDriveMode(GpioPinDriveMode.Output);

            var settings = new SpiConnectionSettings(SPI_CHIP_SELECT_LINE);
                settings.ClockFrequency = 10000000;      // max period for read is 150ns, write is 100ns
                settings.Mode = SpiMode.Mode3;          // data read on the rising edge - idle high
                string spiAqs = SpiDevice.GetDeviceSelector(SPI_CONTROLLER_NAME);
                var devicesInfo = await DeviceInformation.FindAllAsync(spiAqs);
                SpiDisplay = await SpiDevice.FromIdAsync(devicesInfo[0].Id, settings);
        }

        public async Task PowerOnSequence()
        {
            // assume power has just been turned on
            await InitHardware();
            await Task.Delay(5);
            ResetPin.Write(GpioPinValue.Low);   // reset
            await Task.Delay(5);                // wait 5 ms
            ResetPin.Write(GpioPinValue.High);  // out of reset
            await Task.Delay(20);
            await Wakeup();
        }

        public async Task Wakeup()
        {
            DisplaySendCommand(CMD_SLEEP_OUT);
            await Task.Delay(60);

            DisplaySendCommand(CMD_POWER_CONTROL_A);
            DisplaySendData(new byte[] { 0x39, 0x2C, 0x00, 0x34, 0x02 });
            DisplaySendCommand(CMD_POWER_CONTROL_B);
            DisplaySendData(new byte[] { 0x00, 0xC1, 0x30 });
            DisplaySendCommand(CMD_DRIVER_TIMING_CONTROL_A);
            DisplaySendData(new byte[] { 0x85, 0x00, 0x78 });
            DisplaySendCommand(CMD_DRIVER_TIMING_CONTROL_B);
            DisplaySendData(new byte[] { 0x00, 0x00 });

            DisplaySendCommand(CMD_POWER_ON_SEQUENCE_CONTROL);
            DisplaySendData(new byte[] { 0x64, 0x03, 0x12, 0x81 });
            DisplaySendCommand(CMD_PUMP_RATIO_CONTROL);
            DisplaySendData(new byte[] { 0x20 });

            DisplaySendCommand(CMD_POWER_CONTROL_1);
            DisplaySendData(new byte[] { 0x23 });
            DisplaySendCommand(CMD_POWER_CONTROL_2);
            DisplaySendData(new byte[] { 0x10 });

            DisplaySendCommand(CMD_VCOM_CONTROL_1);
            DisplaySendData(new byte[] { 0x3e, 0x28 });
            DisplaySendCommand(CMD_VCOM_CONTROL_2);
            DisplaySendData(new byte[] { 0x86 });

            DisplaySendCommand(CMD_MEMORY_ACCESS_CONTROL);
            DisplaySendData(new byte[] { 0x48 });
            DisplaySendCommand(CMD_PIXEL_FORMAT);
            DisplaySendData(new byte[] { 0x55 });
            DisplaySendCommand(CMD_FRAME_RATE_CONTROL);
            DisplaySendData(new byte[] { 0x00, 0x18 });
            DisplaySendCommand(CMD_DISPLAY_FUNCTION_CONTROL);
            DisplaySendData(new byte[] { 0x08, 0x82, 0x27});
            DisplaySendCommand(CMD_ENABLE_3G);
            DisplaySendData(new byte[] { 0x00 });
            DisplaySendCommand(CMD_GAMMA_SET);
            DisplaySendData(new byte[] { 0x01 });
            DisplaySendCommand(CMD_POSITIVE_GAMMA_CORRECTION);
            DisplaySendData(new byte[] { 0x0F, 0x31, 0x2B, 0x0C, 0x0E, 0x08, 0x4E, 0xF1, 0x37, 0x07, 0x10, 0x03, 0x0E, 0x09, 0x00 });
            DisplaySendCommand(CMD_NEGATIVE_GAMMA_CORRECTION);
            DisplaySendData(new byte[] { 0x00,0x0E,0x14,0x03,0x11,0x07,0x31,0xC1,0x48,0x08,0x0F,0x0C,0x31,0x36, 0x0F});

            DisplaySendCommand(CMD_SLEEP_OUT);
            await Task.Delay(120);
            DisplaySendCommand(CMD_DISPLAY_ON);
        }

        public void Sleep()
        {
            DisplaySendCommand(CMD_DISPLAY_OFF);
            DisplaySendCommand(CMD_ENTER_SLEEP);
        }

        public void CleanUp()
        {
            SpiDisplay.Dispose();
            ResetPin.Dispose();
            DataCommandPin.Dispose();
        }

        private void SetAddress(uint x0, uint y0, uint x1, uint y1)
        {
            DisplaySendCommand(CMD_COLUMN_ADDRESS_SET);
            DisplaySendData(new byte [] { (byte)(x0 >> 8), (byte)(x0), (byte)(x1 >> 8), (byte)(x1) });
            DisplaySendCommand(CMD_PAGE_ADDRESS_SET);
            DisplaySendData(new byte[] { (byte)(y0 >> 8), (byte)(y0), (byte)(y1 >> 8), (byte)(y1) });
            DisplaySendCommand(CMD_MEMORY_WRITE_MODE);
        }

        public static ushort RGB888ToRGB565(byte r8, byte g8, byte b8)
        {
            ushort r5 = (ushort)((r8 * 249 + 1014) >> 11);
            ushort g6 = (ushort)((g8 * 253 + 505) >> 10);
            ushort b5 = (ushort)((b8 * 249 + 1014) >> 11);
            return (ushort)(r5 << 11 | g6 << 5 | b5);
        }

        public void LCDClear(uint colour)
        {
            for(uint i=0;i< LCD_H/LINE_HEIGHT;i++)
            {
                LCDLine(colour, i);
            }
        }

        public void DrawPicture(ushort [] picture)
        {
            if (picture.Length != LCD_W * LCD_H)
                return;
            int block_size = (int)(LCD_W * LINE_HEIGHT);
            int number_of_blocks = picture.Length / block_size;

            byte[] buffer = new byte[block_size*2];
            int i = 0;
            uint line = 0;
            foreach(ushort s in picture)
            {
                buffer[i * 2] = (byte)((s >> 8) & 0xFF);
                buffer[i * 2 + 1] = (byte)(s & 0xFF);
                i++;
                if (i >= block_size)
                {
                    i = 0;
                    SetAddress(0, line * LINE_HEIGHT, LCD_W - 1, (line + 1) * LINE_HEIGHT - 1);
                    DisplaySendData(buffer);
                    line++;
                }
            }
        }

        public void LCDLine(uint colour, uint line)
        {
            byte VH = (byte)(colour >> 8);
            byte VL = (byte)(colour);
            SetAddress(0, line * LINE_HEIGHT, LCD_W - 1, (line + 1) * LINE_HEIGHT - 1);

            byte[] buffer = new byte[LCD_W * LINE_HEIGHT * 2];
            int index = 0;
            for (int i = 0; i < LCD_W; i++)
            {
                for (int j = 0; j < LINE_HEIGHT; j++)
                {
                    buffer[index++] = VH;
                    buffer[index++] = VL;
                }
            }
            DisplaySendData(buffer);
        }

        private void DisplaySendData(byte[] Data)
        {
            DataCommandPin.Write(GpioPinValue.High);
            SpiDisplay.Write(Data);
        }

        private void DisplaySendCommand(byte[] Command)
        {
            DataCommandPin.Write(GpioPinValue.Low);
            SpiDisplay.Write(Command);
        }
    }
}

Main

C#
Main that calls the driver code
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Runtime.InteropServices.WindowsRuntime;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;
using Windows.Devices.Enumeration;
using Windows.Devices.Spi;
using Windows.Devices.Gpio;
using Windows.Storage;
using Windows.Graphics.Imaging;
using Windows.Storage.Streams;

// The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=402352&clcid=0x409

namespace LCDDisplay
{
    /// <summary>
    /// An empty page that can be used on its own or navigated to within a Frame.
    /// </summary>
    public sealed partial class MainPage : Page
    {
        SpiDisplayDriver spi_driver = new SpiDisplayDriver();
        private DispatcherTimer timer;
        bool colour_red = false;
        ushort[] _rp = new ushort[SpiDisplayDriver.LCD_W * SpiDisplayDriver.LCD_H];
        ushort[] _windows = new ushort[SpiDisplayDriver.LCD_W * SpiDisplayDriver.LCD_H];

        public MainPage()
        {
            this.InitializeComponent();
            Init();
            Status.Text = "Init Success";
            timer = new DispatcherTimer();
            timer.Interval = TimeSpan.FromMilliseconds(500);
            timer.Tick += Timer_Tick;
            timer.Start();
            LoadBitmap(_rp, "ms-appx:///assets/rp.png");
            LoadBitmap(_windows, "ms-appx:///assets/windows.png");
        }

        private async void Init()
        {
            await spi_driver.PowerOnSequence();
            await spi_driver.Wakeup();
        }

        private async void LoadBitmap(ushort [] photo, string name)
        {
            StorageFile srcfile = await StorageFile.GetFileFromApplicationUriAsync(new Uri(name));

            using (IRandomAccessStream fileStream = await srcfile.OpenAsync(Windows.Storage.FileAccessMode.Read))
            {
                BitmapDecoder decoder = await BitmapDecoder.CreateAsync(fileStream);
                BitmapTransform transform = new BitmapTransform()
                {
                    ScaledWidth = Convert.ToUInt32(SpiDisplayDriver.LCD_W),
                    ScaledHeight = Convert.ToUInt32(SpiDisplayDriver.LCD_H)
                };
                PixelDataProvider pixelData = await decoder.GetPixelDataAsync(
                    BitmapPixelFormat.Bgra8,
                    BitmapAlphaMode.Straight,
                    transform,
                    ExifOrientationMode.IgnoreExifOrientation,
                    ColorManagementMode.DoNotColorManage
                );

                byte[] sourcePixels = pixelData.DetachPixelData();

                if (sourcePixels.Length != SpiDisplayDriver.LCD_W * SpiDisplayDriver.LCD_H * 4)
                    return;

                int pi = 0;
                int i = 0;
                byte red = 0, green = 0, blue = 0;
                foreach(byte b in sourcePixels)
                {
                    switch(i)
                    {
                        case 0:
                            blue = b;
                            break;
                        case 1:
                            green = b;
                            break;
                        case 2:
                            red = b;
                            break;
                        case 3:
                            photo[pi] = SpiDisplayDriver.RGB888ToRGB565(red, green, blue);
                            pi++;
                            break;
                    }
                    i = (i + 1) % 4;
                }
            }
        }


        private void Timer_Tick(object sender, object e)
        {
            if (colour_red)
            {
                spi_driver.DrawPicture(_rp);
                colour_red = !colour_red;
                Status.Text = "raspberry pi logo";
            }
            else
            {
                spi_driver.DrawPicture(_windows);
                colour_red = !colour_red;
                Status.Text = "windows logo";
            }
        }

        ~MainPage()
        {
            spi_driver.CleanUp();
        }
    }
}

LCDDisplayProject.zip

Plain text
zipped version of the project
No preview (download only).

Credits

Graham Chow

Graham Chow

14 projects • 73 followers
I'm a software developer on a long sabbatical. I've had wide experience from banking to underwater military sonar systems.

Comments
