Arduino Nano Space Invaders

/**************************************************************************
 *
 *  ARDUINO SPACE INVADERS 1.2
 *
 *  Jan/2022  Giovanni Verrua
 *
 *   This program is free software: you can redistribute it and/or modify
 *   it under the terms of the GNU General Public License as published by
 *   the Free Software Foundation, either version 3 of the License, or
 *   (at your option) any later version.
 *
 *   This program is distributed in the hope that it will be useful,
 *   but WITHOUT ANY WARRANTY; without even the implied warranty of
 *   MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
 *   GNU General Public License for more details.
 *
 *   You should have received a copy of the GNU General Public License
 *   along with this program.  If not, see <https://www.gnu.org/licenses/>.
 *
 *   Connections to Arduino Uno/Nano:
 *
 *   Connect a button to pin 12 (digital) and +5V (button Fire / Start)
 *   Connect a 100 kohm resistor between pin 12 (digital) and GND
 *
 *   If you want to use a Wheel, connect a 100 k ohm potentiomenter to:
 *           GND (left pin), +5V (right pin), A0 (middle pin)
 *
 *   If you wan to use two buttons for left and right (like the original arcade)
 *   Connect two buttons to pin 4 and +5V (but.left), and pin 5 and +5V (but.right)
 *   Connect two 100 kohm resistors between pin 5 and GND, and pin 6 and GND*
 *
 *   TV composite out:
 *   Connect  1k ohm resistor from pin 9 to TV out (+)
 *   Connect 470 ohm resistor from pin 7 to TV out (+)
 *   Connect GND                         to TV out (-)
 *
 *   Audio:
 *   Connect a speaker between pin 11 and GND
 *
 *   Release history
 *
 *  1.2 - added audio effects
 *      - added an option for using buttons or potentiometer
 *        to control the cannon (see: #define USE_WHEEL)
 *      - emproved the size of the cannon (you can go back to the
 *        old size changing cn1, cn2, cn3 with ca1, ca2, ca3
 *        (look in the cannon section below)
 *
 *  1.1 fixed some bugs
 *  1.0 initial release
 *
 **************************************************************************/

#include <TVout.h>
#include "bitmap.h"
#include <fontALL.h>

//----------------------------------------------------------------------------------

//#define USE_WHEEL  activate this if you want to use potentiometer instead of buttons

#define CANNON_SPEED  20 //higher value, slower cannon - only for button control
#define BUTTON_LEFT   4
#define BUTTON_RIGHT  5
#define BUTTON_FIRE   12

#define WHEEL_MOVE   A0  //Analog  A0 - potentiometer
#define RATIO_WHEEL  8.2 //Ratio Video X resolution Vs. potentiometer resolution

//----------------------------------------------------------------------------------

#define CAN_Y_POS 86       //Cannon Y Position
#define SHD_Y_POS 70       //Shield Y Position

#define ASHIP_SPEED 50      //higher value, slower ship   (must to be >0)
#define ALIEN_SPEED 20      //higher value, slower aliens (must to be >0)

TVout TV;

int gamSt = 0;  //0 = menu, 1 = in game, 2 = game over


//int canMove = 0; //cannon move (wheel value)
//int canShot = 0; //cannon shot (button pressed)

int canPosX = 0; //cannon position
int canOldX = 0; //cannon old position
int canFire = 0; //cannon fire 1 = bullet flying, 0 = idle

int canFirX = 0; //bullet X position
int canFirY = 0; //bullet Y position

//int lives = 3;
int aSound = 0;
int gLevel = 0;

int begiY = 0; //Y begin
int shftY = 1; //Y movement
int shftX = 0; //X movement
int direX = 1; //X direction (1 ; -1)
int corrZ = 0;
int coluR = 8; //rightmost column with at least 1 alien
int rwLow = 4; //last lower row with at least 1 alien
int alien = 5*9; //aliens still alive
int aliFire = -1; //alien fire 1 = bomb falling, 0 = idle
int aliFirX = 0; //bomb X position
int aliFirY = 0; //bomb Y position

int aMatrix[5][9] = { {0,0,0,0,0,0,0,0,0},
                      {0,0,0,0,0,0,0,0,0},
                      {0,0,0,0,0,0,0,0,0},
                      {0,0,0,0,0,0,0,0,0},
                      {0,0,0,0,0,0,0,0,0} };


//===================================================================================== SETUP
void setup() {


    //Serial.begin(9600);
    TV.begin(_PAL); //128x96 default

#ifdef USE_WHEEL
    pinMode(WHEEL_MOVE,INPUT);
#else
    pinMode(BUTTON_LEFT,INPUT);
    pinMode(BUTTON_RIGHT,INPUT);
#endif

    pinMode(BUTTON_FIRE,INPUT);
    canFire = 0;
    canOldX = -2;
    gamSt = 0;

}


//===================================================================================== AlienReset
void AlienReset() {

 for (int i=0;i<5;i++){
   for (int j=0;j<9;j++){

      aMatrix[i][j] = 1;
    }
  }

  begiY = gLevel*2; //Y begin - every level 2 pixels lower
  shftY = 1; //Y movement
  shftX = 0; //X movement
  direX = 1; //X direction (1 ; -1)
  corrZ = 0;
  coluR = 8; //rightmost column with at least 1 alien
  rwLow = 4; //last lower row with at least 1 alien
  alien = 5*9; //aliens still alive
  aliFire = -1;
}


//============================================================================= AlienCheck
void AlienCheck() {

   alien = 0;
   for (int i=0;i<5;i++){
      for (int j=0;j<9;j++){
         if (aMatrix[i][j] == 1) alien ++; //how many aliens still alive
      }
   }


  if (alien >0){  //checking what are the leftmost and rightmost columns with at least 1 alien alive

    //shift all the columns leftward if the leftmost column is all empty
   // if (shftX == 0 && direX == -1) {//solo quando sto tornando, cos evito di fare degli scatti bruschi

      if (aMatrix[0][0] == 0 && aMatrix[1][0] == 0 && aMatrix[2][0] == 0 && aMatrix[3][0] == 0 && aMatrix[4][0] == 0){
        for (int i=0;i<5;i++){
           for (int j=0;j<8;j++){
               aMatrix[i][j] = aMatrix[i][j+1] ;
           }
        }

        for (int i=0;i<5;i++){
            aMatrix[i][8] = 0;
        }
      }
    // }

    //check if the rightmost column (that at last check had at least 1 alien) is now empty
    if (aMatrix[0][coluR] == 0 && aMatrix[1][coluR] == 0 && aMatrix[2][coluR] == 0 && aMatrix[3][coluR] == 0 && aMatrix[4][coluR] == 0) coluR -- ;

    //check if the lowest row (that at lat check had at least 1 alien) is now empty
    if (aMatrix[rwLow][0] == 0 && aMatrix[rwLow][1] == 0 && aMatrix[rwLow][2] == 0 && aMatrix[rwLow][3] == 0 && aMatrix[rwLow][4] == 0 &&
        aMatrix[rwLow][5] == 0 && aMatrix[rwLow][6] == 0 && aMatrix[rwLow][7] == 0 && aMatrix[rwLow][8] == 0) rwLow -- ;

  }

}

//============================================================================= AlienDraw()
void alienDraw() {


     TV.draw_rect( 0, 00+begiY+shftY-corrZ, 127, (10*rwLow)+9, 0, 0 );  //deleting the old aliens position
      for (int j=0;j<=coluR;j++){  //drawing the columns, considering the left/rightmost columns with at least 1 alien alive

          if( shftX % 2 == 0){
           if (aMatrix[0][j] == 1) TV.bitmap((j)*10+(shftX*2), begiY+00+shftY, a3a);
           if (aMatrix[1][j] == 1) TV.bitmap((j)*10+(shftX*2), begiY+10+shftY, a2a);
           if (aMatrix[2][j] == 1) TV.bitmap((j)*10+(shftX*2), begiY+20+shftY, a2a);
           if (aMatrix[3][j] == 1) TV.bitmap((j)*10+(shftX*2), begiY+30+shftY, a1a);
           if (aMatrix[4][j] == 1) TV.bitmap((j)*10+(shftX*2), begiY+40+shftY, a1a);
          }
        else {
           if (aMatrix[0][j] == 1) TV.bitmap((j)*10+(shftX*2), begiY+00+shftY, a3b);
           if (aMatrix[1][j] == 1) TV.bitmap((j)*10+(shftX*2), begiY+10+shftY, a2b);
           if (aMatrix[2][j] == 1) TV.bitmap((j)*10+(shftX*2), begiY+20+shftY, a2b);
           if (aMatrix[3][j] == 1) TV.bitmap((j)*10+(shftX*2), begiY+30+shftY, a1b);
           if (aMatrix[4][j] == 1) TV.bitmap((j)*10+(shftX*2), begiY+40+shftY, a1b);
         }
     }

     aSound++;
     if (aSound >3) aSound = 0;
     TV.tone(100 - aSound*22,50);
     //TV.delay_frame(3);    NOOOO!!!!!!!!!! This will compromise the game speed, don't activate!
}


//============================================================================= AlienMove
void AlienMove() {

  shftX += direX;

  corrZ = 0;
  if (begiY+shftY >=2) corrZ = 2;

  if ( (shftX<= 20 + (8-coluR)*5 && direX == 1) || (shftX>=0 && direX == -1) ){  //checking the horizontal movement of the aliens, considering the left/rightmost columns with at least 1 alien alive

     alienDraw() ;
  }
  else {

    shftY = shftY + 2;
    direX = direX *-1;
    shftX += direX;  //don't remove!

    alienDraw() ;
   }

}


//============================================================================= AlienHit
void alienHit() {

  for (int j=0;j<=coluR;j++){  //drawing the columns, considering the left/rightmost columns with at least 1 alien alive
    for (int i=0;i<=4;i++){  //drawing the columns, considering the left/rightmost columns with at least 1 alien alive
      if  (canFirX >=(j)*10+(shftX*2) && canFirX <=(j)*10+(shftX*2)+8 && canFirY >= begiY+ i*10 +shftY && canFirY <= begiY+ i*10 +shftY+8) {
          aMatrix[i][j] = 0;
          j = coluR+1;
          i = 5;
          canFire = -1;
          TV.tone(2000,50);
          TV.delay_frame(1);
       }
    }
   }

   alienDraw() ;

}


//===================================================================================== LOOP
void loop() {

  unsigned long miab = millis() ;  //delay - alien bomb
  unsigned long micb = millis() ;  //delay - cannon bullet
  unsigned long mill = millis() ;  //delay - aliens
  unsigned long mish = millis() ;  //delay - ship

#ifndef USE_WHEEL
  unsigned long cand = millis() ;  //cannon delay
#endif

  int canMove = 0;
  int Score = 0;
  int lives = 3;
  int shpMove = 0;
  int shpPosX = 0;

  //-----------------------------------------------------------------------------------------------------MENU
  if (gamSt == 0){   //MENU

        TV.clear_screen();

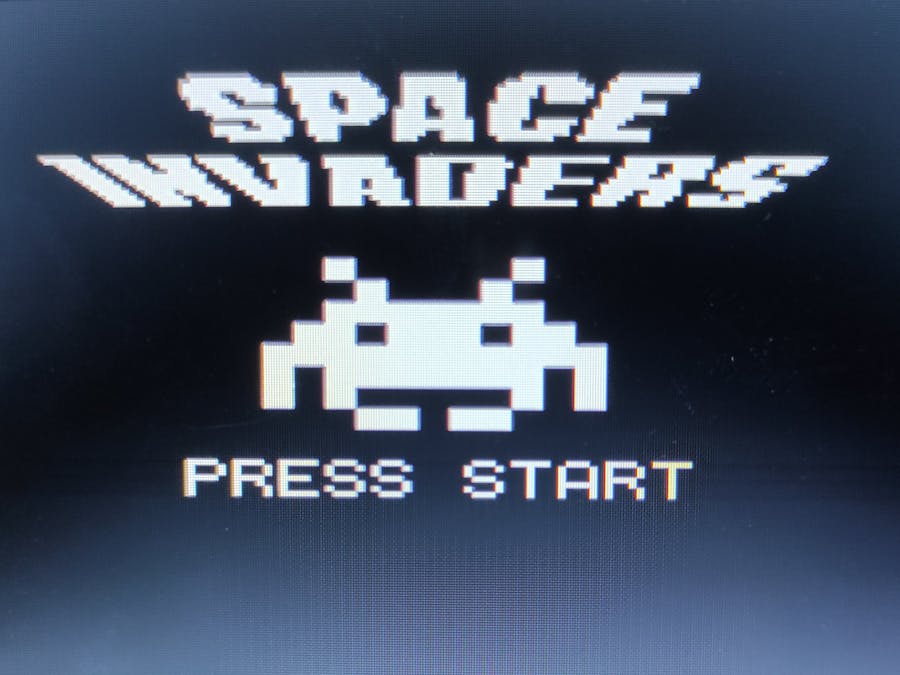

        TV.bitmap(0,  0, logo);
        TV.bitmap(0, 32, start);

        delay(500);

        while ( digitalRead(BUTTON_FIRE) == 0){
           //canShot = digitalRead(BUTTON_FIRE); //cannon shot
         }

         gamSt = 1;
         delay(300);
  }


 //-----------------------------------------------------------------------------------------------------IN GAME

  if (gamSt == 1){   // IN GAME

     Score = 0;
     lives = 3;
     canOldX = -2;
     aSound = 3;
     gLevel = 0;

     TV.clear_screen();
     TV.bitmap(10,SHD_Y_POS,shd);
     TV.bitmap(35,SHD_Y_POS,shd);
     TV.bitmap(60,SHD_Y_POS,shd);
     TV.bitmap(85,SHD_Y_POS,shd);
     AlienReset();
     AlienCheck();

     delay(50);

/* shouldn't be needed....
#ifdef USE_WHEEL
     canMove = analogRead(WHEEL_MOVE); //cannon move
#endif

     canShot = digitalRead(BUTTON_FIRE); //cannon shot
*/

     shftY = 0 ;
     //-----------------------------------------------------------------------------------------------------Main Cycle-begin-\

     while (  (shftY/2  < 19 + (4 - rwLow)*5) && gamSt != 2 ) {  //Vertical moving.


        //-------------------------------------------------------------Cannon-begin-\



        //-----------------------------------cannon move

#ifdef USE_WHEEL     //------------------------------------- using potentiometer -----------------------------------------------|
        canMove = analogRead(WHEEL_MOVE); //cannon move
        canPosX = canMove / RATIO_WHEEL ;

        if (canPosX -1 == canOldX || canPosX + 1 == canOldX) canPosX = canOldX; //Avoiding flickering

#else               //------------------------------------- using buttons left and right----------------------------------------|

        if (cand + CANNON_SPEED < millis()) {
          cand = millis() ;
          if (digitalRead(BUTTON_LEFT )==1 && canPosX >0  ) canPosX-- ;
          if (digitalRead(BUTTON_RIGHT)==1 && canPosX <110) canPosX++ ;
        }
#endif             //-----------------------------------------------------------------------------------------------------------|

        if (canOldX != canPosX) {
           TV.bitmap(canOldX, CAN_Y_POS, cnn);
           if (lives == 3) TV.bitmap(canPosX, CAN_Y_POS, cn3);    //use ca3 instead of cn3 if you want a wider cannon
           if (lives == 2) TV.bitmap(canPosX, CAN_Y_POS, cn2);    //use ca2 instead of cn2 if you want a wider cannon
           if (lives == 1) TV.bitmap(canPosX, CAN_Y_POS, cn1);    //use ca1 instead of cn1 if you want a wider cannon
           canOldX = canPosX;
        }


        //-----------------------------------cannon fire

        //canShot = digitalRead(BUTTON_FIRE); //cannon shot

        if (canFire == -1){ //cannon fire 1 = bullet flying, 0 = idle -1 = Hit
           TV.draw_line(canFirX,canFirY,  canFirX,canFirY+4,0);
           canFire = 0;
        }


        if (canFire == 0){ //cannon fire 1 = bullet flying, 0 = idle
            if (digitalRead(BUTTON_FIRE) == 1 && micb < millis() ) {
                canFire = 1;
                canFirX = canPosX+8; //bullet X position
                canFirY = 81; //bullet Y position
             }
         }

        if (canFire == 1){ //cannon fire 1 = bullet flying, 0 = idle

          if (micb+10 < millis()){

             if (TV.get_pixel(canFirX,canFirY-1) == 1){

                 if (shpMove == 1 && canFirY < 10) {
                    //hit the ship
                     TV.tone(2000,50);
                     Score += 10;
                     shpMove = 0;
                     canFire = -1;
                     TV.draw_rect(00,00,128,9,0,0);
                     TV.draw_line(canFirX,canFirY-2,canFirX,canFirY+4,0);
                     //micb = millis() + 200; //delay before next shot

                 }
                 else {

                    if (canFirY <=begiY+(10*rwLow)+9+shftY){
                       //hit an alien
                       alienHit();
                       Score ++;
                       //micb = millis() + 200;  //delay before next shot

                       if ((00+begiY+shftY-corrZ) > 4 && shpMove == 0){
                            TV.select_font(font4x6);
                            TV.print(00,00,"SCORE:");
                            TV.print(40,00,Score);
                          }

                    }
                    else{
                       //hit the shield
                       canFire = -1;
                       TV.draw_line(canFirX,canFirY-2,canFirX,canFirY+4,0);
                       //micb = millis() + 200; //delay before next shot
                    }
                 }

               micb = millis() + 200; //delay before next shot
               TV.draw_line(canFirX,canFirY,canFirX,canFirY+4,0);
               canFire = -1; //error trap
              }
             else
              {
               canFirY --;
               micb = millis();
               if (canFirY <= 0){
                  canFire = 0;
                  TV.draw_line(canFirX,canFirY,canFirX,canFirY+4,0);
                  micb = millis() + 200; //delay before next shot
               }

             }

             if (canFire == 1){
                TV.draw_line(canFirX,canFirY+1,canFirX,canFirY+4,0);
                TV.draw_line(canFirX,canFirY,  canFirX,canFirY+3,1);
               }
           }

        }

        if (alien == 0){
          gLevel++;
          TV.clear_screen();
          AlienReset();
          TV.bitmap(10,SHD_Y_POS,shd);
          TV.bitmap(35,SHD_Y_POS,shd);
          TV.bitmap(60,SHD_Y_POS,shd);
          TV.bitmap(85,SHD_Y_POS,shd);
          canFire = 0;
          canOldX = -2;
        }

        //-------------------------------------------------------------Cannon-end---/

        //-------------------------------------------------------------Ship begin--\

        if ((00+begiY+shftY-corrZ) > 8 ){   //if there's enough space in the upper part of the screen

           if (shpMove == 0){
              if (mish + 15000+random(10000,25000) < millis()){  //every 25-40 seconds
                 shpMove = 1;
                 TV.draw_rect(00,00,128,9,0,0);
                 mish = millis() - ASHIP_SPEED - 1 ;
                 shpPosX = 1;  //not = 0!
              }
           }

           if (shpMove == 1){
              if (mish + ASHIP_SPEED < millis()){
                 TV.bitmap(shpPosX-1,0,cnn);
                 TV.bitmap(shpPosX,0,shp);
                 shpPosX++ ;
                 mish = millis();

                 if (shpPosX >= 112){
                     shpMove = 0;
                     TV.draw_rect(00,00,128,9,0,0);
                 }
              }
           }


        }


        //-------------------------------------------------------------Aliens-begin-\

        if (mill + ALIEN_SPEED*alien < millis()){
           mill = millis();
           AlienCheck();
           AlienMove();

           if ((00+begiY+shftY-corrZ) > 4  && shpMove == 0){

               TV.select_font(font4x6);
               TV.print(00,00,"SCORE:");
               TV.print(40,00,Score);
            }

        }

        //-------------------------------------------------------------Aliens-end---/

        //--------------------------------------------------------Aliens bomb-begin-\

        //----------------------------------------------------
        if (aliFire == -1){  // end of bomb fall
          //TV.draw_line(aliFirX,aliFirY,  aliFirX,aliFirY+4,0);
           aliFire = 0;
           miab = millis() + 40*alien ;
        }

        //----------------------------------------------------
        if (aliFire == 0){   //0 = idle - waiting for the next bomb

           if (miab+10 < millis()){  //drop the bomb at the right time

             aliFirY = begiY+(10*rwLow)+9+shftY; //bomb Y position
             aliFire = 1;

             //to be improved: should not drop bomb from an empty column
             if (canPosX >=(shftX*2) && canPosX <=10*coluR+(shftX*2)){ //the cannon is below the aliens
                 aliFirX = canPosX+8+random(-4,+4); //bomb X position = center of cannon
              }

             if (canPosX < shftX*2){ //drop the bomb as closest as possible to the cannon
                aliFirX = shftX*2;
              }

              if (canPosX > 10*coluR+(shftX*2)){ //drop the bomb as closest as possible to the cannon
                aliFirX = 10*coluR+(shftX*2);
              }

              //check if there's at least an alien over it
              int fndAlien = 0;

              for (int i=aliFirY;i >begiY+9+shftY;i-=3){
                  if (TV.get_pixel(aliFirX,i) == 1) fndAlien = 1;
              }

              if (fndAlien==0){  //the cannon is under an empty column, so there's no need to drop a bomb
                 aliFire = 0;
              }

            }
         }

        //----------------------------------------------------
        if (aliFire == 1){   //bomb dropping
          if (miab+10 < millis()){

             TV.draw_line(aliFirX,aliFirY-1,aliFirX,aliFirY-4,0);
             TV.draw_line(aliFirX,aliFirY,aliFirX,aliFirY-3,1);

             if (TV.get_pixel(aliFirX,aliFirY+1) == 1){

                 aliFire = -1;
                 TV.draw_line(aliFirX,aliFirY,aliFirX,aliFirY-3,0);

                 if (aliFirY+1 >=CAN_Y_POS) {

                    //hit the cannon.
                    for (int i=0;i<27;i++){
                        TV.tone(70,10);
                        TV.delay_frame(1);
                        TV.bitmap(canPosX, CAN_Y_POS, hit);
                        delay(5);
                        TV.tone(40,10);
                        TV.delay_frame(1);
                        if (lives == 3) TV.bitmap(canPosX, CAN_Y_POS, cn3);    //use ca3 instead of cn3 if you want a wider cannon
                        if (lives == 2) TV.bitmap(canPosX, CAN_Y_POS, cn2);    //use ca2 instead of cn2 if you want a wider cannon
                        if (lives == 1) TV.bitmap(canPosX, CAN_Y_POS, cn1);    //use ca1 instead of cn1 if you want a wider cannon
                        delay(5);
                    }

                    lives --;

                    delay(500);

                    if (lives <=0) gamSt = 2;
                    if (lives == 3) TV.bitmap(canPosX, CAN_Y_POS, cn3);    //use ca3 instead of cn3 if you want a wider cannon
                    if (lives == 2) TV.bitmap(canPosX, CAN_Y_POS, cn2);    //use ca2 instead of cn2 if you want a wider cannon
                    if (lives == 1) TV.bitmap(canPosX, CAN_Y_POS, cn1);    //use ca1 instead of cn1 if you want a wider cannon

                  }
                 else {
                   //hit the shield. Just open an hole.
                   TV.draw_line(aliFirX,aliFirY+2,aliFirX,aliFirY-3,0);
                 }
              }
             else
              {
               aliFirY ++;
               miab = millis();
               if (aliFirY >= 92){
                  aliFire = -1;
                  TV.draw_line(aliFirX,aliFirY,aliFirX,aliFirY-4,0);
               }
             }
           }
        }

        //--------------------------------------------------------Aliens bomb-end---/
     }
     //-----------------------------------------------------------------------------------------------------Main Cycle-end--- /
     gamSt = 2 ;
   }

      //-----------------------------------------------------------------------------------------------------GAME OVER
      if (gamSt == 2){  //GAME OVER
        gamSt = 0;
        TV.clear_screen();
        TV.bitmap(0,  0, logo);
        TV.bitmap(0, 32, over);
        TV.select_font(font6x8);
        TV.print(40,90,"SCORE:");
        TV.print(76,90,Score);
        delay(1000);

        //must to release and press again the button before to continue
        while ( digitalRead(BUTTON_FIRE) == 1){
           //canShot = digitalRead(BUTTON_FIRE); //cannon shot
         }

        while ( digitalRead(BUTTON_FIRE) == 0){
           //canShot = digitalRead(BUTTON_FIRE); //cannon shot
         }

      }

}
