BLE LED Controller | Feather 32u4 Bluefruit LE + MIT App Inv

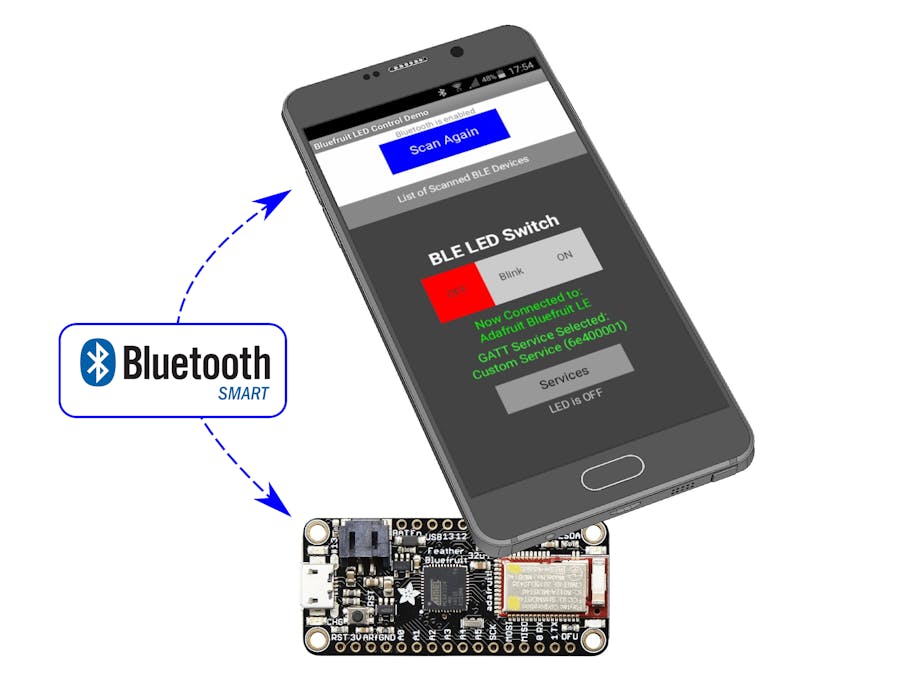

A smartphone App that uses new MIT App Inventor BLE extension to connect with a Feather 32u4 Bluefruit LE and control onboard LED

IntermediateProtip2 hours5,728
BLE LED Controller | Feather 32u4 Bluefruit LE + MIT App Inv

Things used in this project

Hardware components

Adafruit Feather 32u4 Bluefruit LE
×1

Software apps and online services

Arduino IDE
Arduino IDE
MIT App Inventor
MIT App Inventor

Story

Read more

Code

BluefruitLEDcontroller.aia

Java
MIT App Inventor aia file. Use "import project" within App Inventor IDE to upload.
No preview (download only).

Adafruit_bleuartLEDcontrol_APPinventor.ino

Arduino
This code also needs to have the "config.h" file saved in the same directory
/*********************************************************************
 This is an example for our nRF51822 based Bluefruit LE modules

 Pick one up today in the adafruit shop!

 Adafruit invests time and resources providing this open source code,
 please support Adafruit and open-source hardware by purchasing
 products from Adafruit!

 MIT license, check LICENSE for more information
 All text above, and the splash screen below must be included in
 any redistribution
*********************************************************************/

#include <Arduino.h>
#include <SPI.h>
#if not defined (_VARIANT_ARDUINO_DUE_X_) && not defined (_VARIANT_ARDUINO_ZERO_)
  #include <SoftwareSerial.h>
#endif

#include "Adafruit_BLE.h"
#include "Adafruit_BluefruitLE_SPI.h"
#include "Adafruit_BluefruitLE_UART.h"

#include "BluefruitConfig.h"

/*=========================================================================
    APPLICATION SETTINGS

  FACTORYRESET_ENABLE     Perform a factory reset when running this sketch

                            Enabling this will put your Bluefruit LE module
                              in a 'known good' state and clear any config
                              data set in previous sketches or projects, so
                            running this at least once is a good idea.

                            When deploying your project, however, you will
                              want to disable factory reset by setting this
                              value to 0. If you are making changes to your
                            Bluefruit LE device via AT commands, and those
                              changes aren't persisting across resets, this
                              is the reason why. Factory reset will erase
                              the non-volatile memory where config data is
                              stored, setting it back to factory default
                              values.

                            Some sketches that require you to bond to a
                              central device (HID mouse, keyboard, etc.)
                              won't work at all with this feature enabled
                              since the factory reset will clear all of the
                              bonding data stored on the chip, meaning the
                              central device won't be able to reconnect.
    MINIMUM_FIRMWARE_VERSION  Minimum firmware version to have some new features
    MODE_LED_BEHAVIOUR        LED activity, valid options are
                              "DISABLE" or "MODE" or "BLEUART" or
                              "HWUART"  or "SPI"  or "MANUAL"
    -----------------------------------------------------------------------*/
    #define FACTORYRESET_ENABLE         1
    #define MINIMUM_FIRMWARE_VERSION    "0.6.6"
    #define MODE_LED_BEHAVIOUR          "MODE"
/*=========================================================================*/

// Pin Configuration and Firmware Declarations

#define LED_PIN       13

const unsigned long
  BLINKTIME =         1000;

unsigned long
  t_blink =           0L;

int
  blinkState =        LOW;

// Create the bluefruit object, either software serial...uncomment these lines
/*
SoftwareSerial bluefruitSS = SoftwareSerial(BLUEFRUIT_SWUART_TXD_PIN, BLUEFRUIT_SWUART_RXD_PIN);

Adafruit_BluefruitLE_UART ble(bluefruitSS, BLUEFRUIT_UART_MODE_PIN,
                      BLUEFRUIT_UART_CTS_PIN, BLUEFRUIT_UART_RTS_PIN);
*/

/* ...or hardware serial, which does not need the RTS/CTS pins. Uncomment this line */
// Adafruit_BluefruitLE_UART ble(Serial1, BLUEFRUIT_UART_MODE_PIN);

/* ...hardware SPI, using SCK/MOSI/MISO hardware SPI pins and then user selected CS/IRQ/RST */
Adafruit_BluefruitLE_SPI ble(BLUEFRUIT_SPI_CS, BLUEFRUIT_SPI_IRQ, BLUEFRUIT_SPI_RST);

/* ...software SPI, using SCK/MOSI/MISO user-defined SPI pins and then user selected CS/IRQ/RST */
//Adafruit_BluefruitLE_SPI ble(BLUEFRUIT_SPI_SCK, BLUEFRUIT_SPI_MISO,
//                             BLUEFRUIT_SPI_MOSI, BLUEFRUIT_SPI_CS,
//                             BLUEFRUIT_SPI_IRQ, BLUEFRUIT_SPI_RST);


// A small helper
void error(const __FlashStringHelper*err) {
  Serial.println(err);
  while (1);
}

/**************************************************************************/
/*!
    @brief  Sets up the HW an the BLE module (this function is called
            automatically on startup)
*/
/**************************************************************************/
void setup(void)
{
  pinMode(LED_PIN, OUTPUT);

  while (!Serial);  // required for Flora & Micro
  delay(500);

  Serial.begin(115200);
  Serial.println(F("Adafruit Bluefruit Command Mode Example"));
  Serial.println(F("---------------------------------------"));

  /* Initialise the module */
  Serial.print(F("Initialising the Bluefruit LE module: "));

  if ( !ble.begin() )
  {
    error(F("Couldn't find Bluefruit, make sure it's in CoMmanD mode & check wiring?"));
  }
  Serial.println( F("OK!") );

  if ( FACTORYRESET_ENABLE )
  {
    /* Perform a factory reset to make sure everything is in a known state */
    Serial.println(F("Performing a factory reset: "));
    if ( ! ble.factoryReset() ){
      error(F("Couldn't factory reset"));
    }
  }

  /* Disable command echo from Bluefruit */
  ble.echo(false);

  Serial.println("Requesting Bluefruit info:");
  /* Print Bluefruit information */
  ble.info();

  Serial.println(F("Please use Adafruit Bluefruit LE app to connect in UART mode"));
  Serial.println(F("Then Enter characters to send to Bluefruit"));
  Serial.println();

  ble.verbose(false);  // debug info is a little annoying after this point!

  /* Wait for connection */
  while (! ble.isConnected()) {
      delay(500);
  }

  // LED Activity command is only supported from 0.6.6
  if ( ble.isVersionAtLeast(MINIMUM_FIRMWARE_VERSION) )
  {
    // Change Mode LED Activity
    Serial.println(F("******************************"));
    Serial.println(F("Change LED activity to " MODE_LED_BEHAVIOUR));
    ble.sendCommandCheckOK("AT+HWModeLED=" MODE_LED_BEHAVIOUR);
    Serial.println(F("******************************"));
  }
}

/**************************************************************************/
/*!
    @brief  Constantly poll for new command or response data
*/
/**************************************************************************/
void loop(void)
{
  // Now Check for incoming characters from Bluefruit
  ble.println("AT+BLEUARTRX");
  ble.readline();
  ble.waitForOK();

  String BLEbuffer = ble.buffer;

  if (BLEbuffer.length() && BLEbuffer.indexOf("OK") == -1)
    Serial.print(F("[Recv] ")); Serial.println(BLEbuffer);


  if (BLEbuffer.indexOf("Status") >= 0) {
    Serial.println(F("Status Request Received"));
    ble.print("AT+BLEUARTTX=");
    if (t_blink) {
      ble.println("BLNK");
    }
    else {
      if (blinkState)
        ble.println("ON");
      else
        ble.println("OFF");
    }

    // check response stastus
    if (! ble.waitForOK() ) {
      Serial.println(F("Failed to get response"));
    }

    ble.println("AT+BLEUARTRX");

  }
  else if (BLEbuffer.indexOf("ON") >= 0) {
    blinkState = HIGH;
    digitalWrite(LED_PIN, blinkState);
    t_blink = 0;
    ble.print("AT+BLEUARTTX=");
    ble.println("ON");
    Serial.println(F("ON Request Received"));
    ble.println("AT+BLEUARTRX");
  }
  else if (BLEbuffer.indexOf("OFF") >= 0) {
    blinkState = LOW;
    digitalWrite(LED_PIN, blinkState);
    t_blink = 0;
    ble.print("AT+BLEUARTTX=");
    ble.println("OFF");
    Serial.println(F("OFF Request Received"));
    ble.println("AT+BLEUARTRX");
  }
  else if (BLEbuffer.indexOf("BLNK") >= 0) {
    if (!t_blink) t_blink = millis();
    ble.print("AT+BLEUARTTX=");
    ble.println("BLNK");
    Serial.println(F("BLINK Request Received"));
    ble.println("AT+BLEUARTRX");
  }
  BLEbuffer = "";

  if (t_blink) {
    if (t_blink > millis()) t_blink = millis();
    if ((millis() - t_blink) > BLINKTIME) {
      blinkState = !blinkState;
      digitalWrite(LED_PIN, blinkState);
      t_blink = millis();
    }
  }
}

BluefruitConfig.h

C/C++
Save this file in the same project folder as the Arduino Code.
// COMMON SETTINGS
// ----------------------------------------------------------------------------------------------
// These settings are used in both SW UART, HW UART and SPI mode
// ----------------------------------------------------------------------------------------------
#define BUFSIZE                        128   // Size of the read buffer for incoming data
#define VERBOSE_MODE                   true  // If set to 'true' enables debug output


// SOFTWARE UART SETTINGS
// ----------------------------------------------------------------------------------------------
// The following macros declare the pins that will be used for 'SW' serial.
// You should use this option if you are connecting the UART Friend to an UNO
// ----------------------------------------------------------------------------------------------
#define BLUEFRUIT_SWUART_RXD_PIN       9    // Required for software serial!
#define BLUEFRUIT_SWUART_TXD_PIN       10   // Required for software serial!
#define BLUEFRUIT_UART_CTS_PIN         11   // Required for software serial!
#define BLUEFRUIT_UART_RTS_PIN         -1   // Optional, set to -1 if unused


// HARDWARE UART SETTINGS
// ----------------------------------------------------------------------------------------------
// The following macros declare the HW serial port you are using. Uncomment
// this line if you are connecting the BLE to Leonardo/Micro or Flora
// ----------------------------------------------------------------------------------------------
#ifdef Serial1    // this makes it not complain on compilation if there's no Serial1
  #define BLUEFRUIT_HWSERIAL_NAME      Serial1
#endif


// SHARED UART SETTINGS
// ----------------------------------------------------------------------------------------------
// The following sets the optional Mode pin, its recommended but not required
// ----------------------------------------------------------------------------------------------
#define BLUEFRUIT_UART_MODE_PIN        12    // Set to -1 if unused


// SHARED SPI SETTINGS
// ----------------------------------------------------------------------------------------------
// The following macros declare the pins to use for HW and SW SPI communication.
// SCK, MISO and MOSI should be connected to the HW SPI pins on the Uno when
// using HW SPI.  This should be used with nRF51822 based Bluefruit LE modules
// that use SPI (Bluefruit LE SPI Friend).
// ----------------------------------------------------------------------------------------------
#define BLUEFRUIT_SPI_CS               8
#define BLUEFRUIT_SPI_IRQ              7
#define BLUEFRUIT_SPI_RST              4    // Optional but recommended, set to -1 if unused

// SOFTWARE SPI SETTINGS
// ----------------------------------------------------------------------------------------------
// The following macros declare the pins to use for SW SPI communication.
// This should be used with nRF51822 based Bluefruit LE modules that use SPI
// (Bluefruit LE SPI Friend).
// ----------------------------------------------------------------------------------------------
#define BLUEFRUIT_SPI_SCK              13
#define BLUEFRUIT_SPI_MISO             12
#define BLUEFRUIT_SPI_MOSI             11
