Traffic light

This project is a very easy method which will work for anyone who ever tries it and also this is my first project in arduino hub

BeginnerFull instructions provided260
Traffic light

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Breadboard (generic)
Breadboard (generic)
×1
Male/Male Jumper Wires
×1
USB-A to Mini-USB Cable
USB-A to Mini-USB Cable
×1
5 mm LED: Red
5 mm LED: Red
×1
5 mm LED: Green
5 mm LED: Green
×1
5 mm LED: Yellow
5 mm LED: Yellow
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Custom parts and enclosures

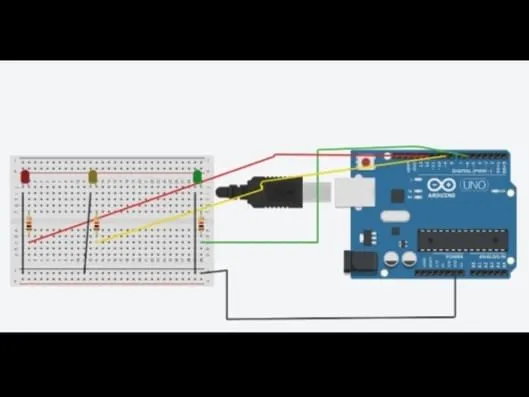

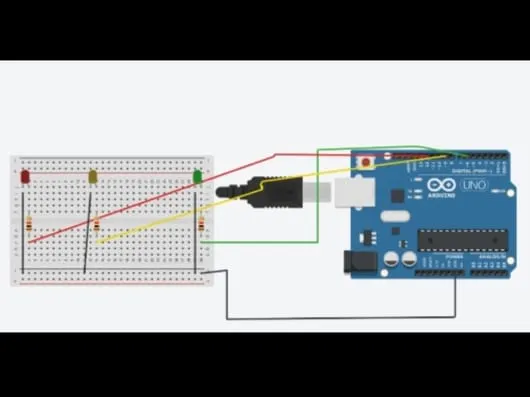

It is traffic light
it is use for any place where if they have given projects of traffic light

Code

Traffic light

Arduino
It is a traffic light system
it can be use full for any traffic light project with code
void setup()
{
  pinMode(6, OUTPUT);
  pinMode(9, OUTPUT);
  pinMode(12, OUTPUT);
}


void loop()
{
  digitalWrite(6, LOW);
  digitalWrite(9, LOW);
  digitalWrite(12, HIGH);
  delay(6000);
  digitalWrite(6, LOW);
  digitalWrite(9, HIGH);
  digitalWrite(12, LOW);
  delay(2000);
  digitalWrite(6, HIGH);
  digitalWrite(9, LOW);
  digitalWrite(12, LOW);
  delay(1000);

}

Traffic light

Arduino
IT is a traffic light project
void setup()
{
  pinMode(6, OUTPUT);
  pinMode(9, OUTPUT);
  pinMode(12, OUTPUT);
}


void loop()
{
  digitalWrite(6, LOW);
  digitalWrite(9, LOW);
  digitalWrite(12, HIGH);
  delay(6000);
  digitalWrite(6, LOW);
  digitalWrite(9, HIGH);
  digitalWrite(12, LOW);
  delay(2000);
  digitalWrite(6, HIGH);
  digitalWrite(9, LOW);
  digitalWrite(12, LOW);
  delay(1000);

}
