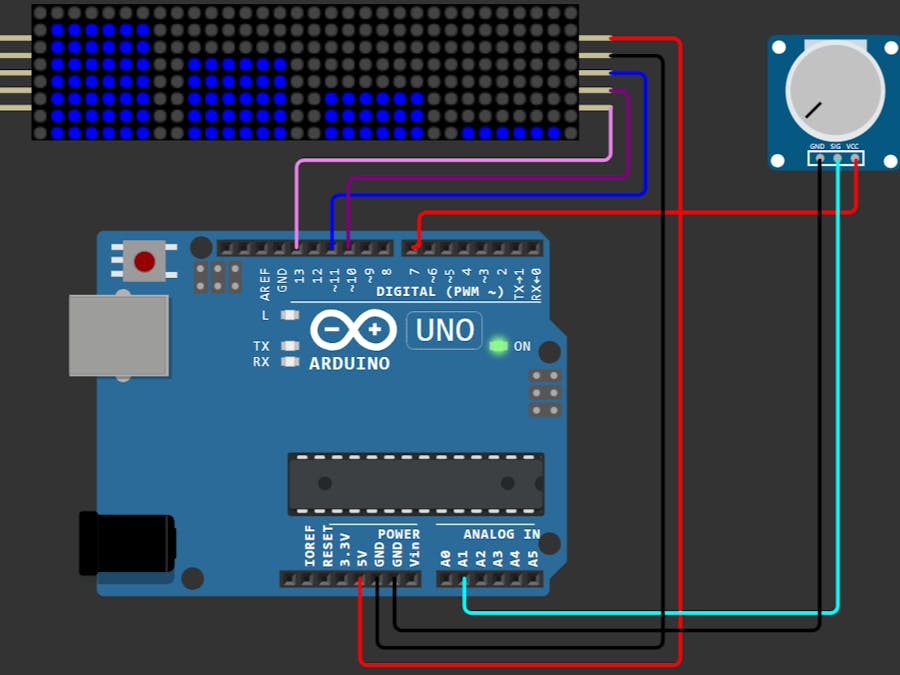

Audio Spectrum in a LED matrix - Wokwi

#include <SPI.h>
#include "fix_fft.h"


#define CLK_PIN   13
#define DATA_PIN  11
#define CS_PIN    10

#define inAudio A0
#define inPot A1

char re[128], im[128];





void modLine(int line, int val1, int val2, int val3, int val4){
  digitalWrite(CS_PIN, LOW);

  /* The standard LED matrix is 8x8;
  For some reason, Wokwi uses an 8x32 matrix, so it's as if there are 4 modules connected together.
  Therefore, for every 8 columns, a new HEX value must be sent to control the next module.
  It's not possible to use a loop or skip modules; each module must be updated every frame,
  or the last modules will be treated as non-existent.*/

  SPI.transfer(line);
  SPI.transfer(val4);       // Last 8x8 module

  SPI.transfer(line);
  SPI.transfer(val3);

  SPI.transfer(line);
  SPI.transfer(val2);

  SPI.transfer(line);
  SPI.transfer(val1);       // First 8x8 module

  digitalWrite(CS_PIN, HIGH);
}





void setup(){
  Serial.begin(6900);
  pinMode(CS_PIN, OUTPUT);
  SPI.begin();
}

void loop(){
  int i=0, j=0;

  /*This is a conversion of the values I have to apply to the FFT;
  FFT: "Fast Fourier Transform";
  Basically, it's mathematics (i.e., magic) that converts a signal into sound frequency.*/

  //Serial.println(analogRead(inAudio));        //Uncomment accordantly to visualize the frequency input
  //Serial.println(analogRead(inPot));        //Uncomment accordantly to visualize the frequency input
  for (i = 0; i < 128; i++){
    int mic1 = analogRead(inPot);       //Potentiometer so we can emulate a microphone

    re[i] = mic1 / 4 - 128;       // AnalogRead returns  value from 0 to 1023, here, we convert it to go from -128 to 127
    im[i] = 0;        // Imaginary part of the FFT
  }

  /* Eu vou dar um BEIJO em quem criou essa bib.h*/
  fix_fft(re, im, 7, 0);

  int height[4] = {0, 0, 0, 0};       //Height for every column
  static int prevHeight[4] = {0, 0, 0, 0};       //This for the climb/drop animation of the column of LEDS
  int magnitude=0;

  for (j = i * 16; j < (i + 1) * 16; j++){        //Considers only the first 64 frequencies
    magnitude = magnitude + sqrt(re[j] * re[j] + im[i] * im[i]);
  }
  //Serial.println(magnitude);    //Uncomment to see the resulting magnitude

  for (i = 0; i < 4; i++) {
    height[i] = map(magnitude * (i + 1) / 4, 0, 2080, 0, 8);        //Divides and maps the frequency into 4 major groups that go from 0 to 8 each
    height[i] = constrain(height[i], 0, 8);       // Guarantees that the value is between 0 e 8
    //Serial.println(height[i]);        //Uncomment to see the height of each column
  }





  for (int i = 0; i < 4; i++) {       //Here were doing the animation previously mentioned
    while (prevHeight[i] != height[i]) {
        if (prevHeight[i] < height[i]) {
            prevHeight[i]++;
        } else {
            prevHeight[i]--;
        }

        for (int j = 0; j < 8; j++) {
            int line = 8 - j;
            int val1 = (j < prevHeight[0]) ? 0x7E : 0x00;
            int val2 = (j < prevHeight[1]) ? 0x7E : 0x00;
            int val3 = (j < prevHeight[2]) ? 0x7E : 0x00;
            int val4 = (j < prevHeight[3]) ? 0x7E : 0x00;

            modLine(line, val1, val2, val3, val4);
        }
        delay(10);        //Slows down the process so that the animation is smoother
    }
}
}
