Group 5 FlourishTech EEP project

Imagine fixing all your hydroponics solutions with a simple M5 stack

IntermediateFull instructions provided161

Things used in this project

Hardware components

M5Stack FIRE IoT Development Kit (PSRAM 2.0)

M5Stack Earth Module Grove Compatible Soil monitoring

M5Stack RGB Unit with NeoPixel RGB LED (SK6812)

M5Stack Light Unit with Photo-resistance

M5Stack I2C Hub 1 to 6 Expansion TCA9548A Module

M5Stack ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30+QMP6988)

ENV II not III

SG90 Micro-servo motor

Hand tools and fabrication machines

Hot glue gun (generic)

Tape, Scotch

Scissors, Free Fall

Story

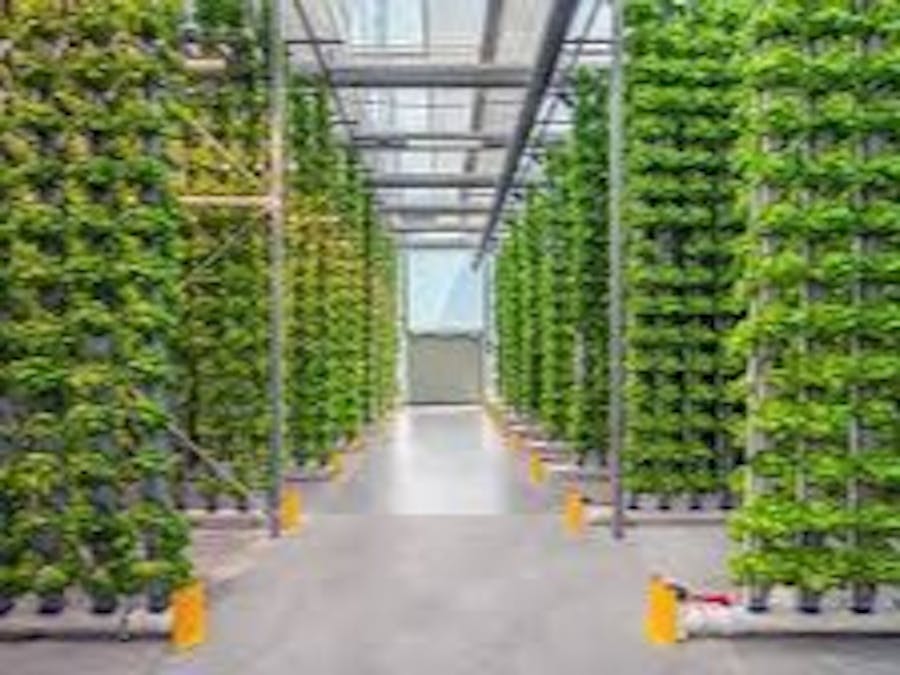

Plant development is impacted by unpredictable weather and climate change, which provide issues for urban farming in Singapore. In order to solve this, we suggest a project that, when required, moves plants within a certain radius to better circumstances using servo motors. Although hydroponics provides a controlled environment for plant development, various portions may experience varied light, humidity, and temperature levels. What if plants could just relocate to the ideal circumstances on their own, without the need for intricate climate control systems?

This project uses a motorized platform to automate the movement of hydroponic plants using the M5GO, a potent and small IoT development kit. Environmental factors including temperature, humidity, and light intensity are continually monitored by the system. The plants are moved to a better setting if the existing one is not appropriate, guaranteeing that they always have the best circumstances for growth.

This technology may maximize plant development, minimize resource waste, and increase production efficiency by dynamically adjusting to changes in the environment. Whether making adjustments for fluctuating sunlight or compensating for temperature shifts, this approach aims to simplify hydroponic farming while maintaining plant health and minimising human intervention

Block Diagram

Front View of Prototype

Side/Back view of Prototype

Flowchart

from m5stack import *
from m5ui import *
from uiflow import *
import espnow
import wifiCfg
import time
import unit

setScreenColor(0x222222)
servo0 = unit.get(unit.SERVO, unit.PORTB)


mac = None
Data_send = None

wifiCfg.wlan_ap.active(True)
wifiCfg.wlan_sta.active(True)
espnow.init()

label0 = M5TextBox(155, 49, "Text", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label1 = M5TextBox(170, 125, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
title0 = M5Title(title="DataReceive", x=3, fgcolor=0xFFFFFF, bgcolor=0xff0047)
label2 = M5TextBox(5, 49, "Mac Address:", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label3 = M5TextBox(5, 125, "Data Received:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)




def recv_cb(_):
  global mac,Data_send
  mac, _, Data_send = espnow.recv_data(encoder='str')
  label1.setText(str(Data_send))
  if Data_send == 'Turn on Motor':
    servo0.write_angle(180)
    wait(1)
  elif Data_send == 'Stop Motor':
    servo0.write_angle(0)
    wait(1)

  pass
espnow.recv_cb(recv_cb)



label0.setText(str(espnow.get_mac_addr()))

from m5stack import *
from m5ui import *
from uiflow import *
import espnow
import wifiCfg
import time
import unit

setScreenColor(0x222222)
env2_1 = unit.get(unit.ENV2, unit.PORTA)
light_1 = unit.get(unit.LIGHT, unit.PORTB)
pbhub_3 = unit.get(unit.PBHUB, unit.PORTA)
earth_1 = unit.get(unit.EARTH, unit.PORTB)


Data_send = None

wifiCfg.wlan_ap.active(True)
wifiCfg.wlan_sta.active(True)
espnow.init()

label0 = M5TextBox(156, 39, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label1 = M5TextBox(122, 65, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label2 = M5TextBox(12, 39, "Sending data:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label3 = M5TextBox(12, 65, "Data Sent:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label4 = M5TextBox(122, 174, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label5 = M5TextBox(78, 121, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label6 = M5TextBox(146, 148, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label7 = M5TextBox(12, 148, "Temperatue:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label10 = M5TextBox(12, 174, "Humidity:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label8 = M5TextBox(12, 121, "Light:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)




espnow.add_peer('78:21:84:93:b2:b5', id=1)
label0.setText(str(Data_send))
while True:
  if (env2_1.temperature) > 30:
    Data_send = 'Turn on Motor'
    label0.setText(str(Data_send))
    espnow.send(id=1, data=str('Turn on Motor'))
    wait(3)
  else:
    espnow.send(id=1, data=str('Stop Motor'))
    label0.setText(str(Data_send))
    wait(3)
  if (env2_1.humidity) < 20:
    Data_send = 'Turn on Motor'
    label0.setText(str(Data_send))
    espnow.send(id=1, data=str('Turn on Motor'))
    wait(3)
  else:
    espnow.send(id=1, data=str('Stop Motor'))
    label0.setText(str(Data_send))
    wait(3)
  if (light_1.analogValue) < 100:
    espnow.send(id=1, data=str('Turn on Motor'))
    label0.setText(str(Data_send))
    wait(3)
  else:
    espnow.send(id=1, data=str('Stop Motor'))
    label0.setText(str(Data_send))
    wait(3)
  wait_ms(2)
