Things used in this project

Hardware components:
A000053 iso both1
Arduino Arduino Micro & Genuino Micro
×1
Adafruit nRF8001 Bluetooth LE
×1
Adafruit MMA8451 Accelerometer Breakout
×1
Adafruit PowerBoost 500 Basic
×1
Adafruit 1.8 TFT LCD with MicroSd Card Breakout ST7735R
×1
Lithium Ion Polymer Battery- 3.7V 1200MAh
×1

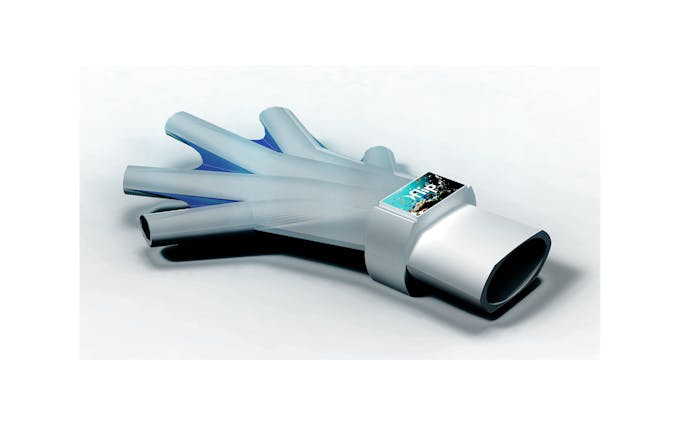

Pair of Pre-made Silicone Glove Fins
×1
Spandex Fabric (ft)
×2
Velcro Pads (pkg)
×2
Velcro Strips
×1
Zip Ties
×2
Jumper Cables
×22

Code

fins.inoPlain text
Arduino code
#include <SPI.h>
// For Bluetooth
#include <Adafruit_BLE_UART.h>
// For Accelerometer
#include <Wire.h>
#include <Adafruit_MMA8451.h>
#include <Adafruit_Sensor.h>
// For OLED Screen
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1331.h>

// Accelerometer
Adafruit_MMA8451 accelerometer = Adafruit_MMA8451();

// Bluetooth LE
#define ADAFRUITBLE_REQ 10
#define ADAFRUITBLE_RDY 1
#define ADAFRUITBLE_RST 9

Adafruit_BLE_UART BLEserial = Adafruit_BLE_UART(ADAFRUITBLE_REQ, ADAFRUITBLE_RDY, ADAFRUITBLE_RST);

// OLED Screen
#define OLED_SCLK A0
#define OLED_MOSI A1
#define OLED_CS   8
#define OLED_RST  7
#define OLED_DC   6

// Color definitions
#define BLACK           0x0000
#define RED             0xF800
#define CYAN            0x07FF
#define YELLOW          0xFFE0
#define WHITE           0xFFFF

Adafruit_SSD1331 display = Adafruit_SSD1331(OLED_CS, OLED_DC, OLED_MOSI, OLED_SCLK, OLED_RST);

void setup(void)
{
  Serial.begin(9600);

  // Setup OLED
  display.begin();

  drawFlip();

  // Setup BLE
  BLEserial.setDeviceName("Flip"); // 7 Characters Max
  BLEserial.begin();

  // Setup Accelerometer
  if (!accelerometer.begin()) {
    Serial.println("Couldn't Start");
    while (1);
  }
  Serial.println("Accelerometer Found");

  accelerometer.setRange(MMA8451_RANGE_2_G);
  Serial.print("Range = "); Serial.print(2 << accelerometer.getRange());
}

aci_evt_opcode_t laststatus = ACI_EVT_DISCONNECTED;
int counter = 0;
String lastMovement = "";
uint16_t time = millis();
String accel_buffer[10];
boolean sent = false;

void loop()
{
  // Tell the nRF8001 to do whatever it should be working on.
  BLEserial.pollACI();

  // Ask what is our current status
  aci_evt_opcode_t status = BLEserial.getState();

  // If the status changed.
  if (status != laststatus) {
    if (status == ACI_EVT_DEVICE_STARTED) {
      Serial.println(F("* Advertising started"));
    }

    if (status == ACI_EVT_CONNECTED) {
      Serial.println(F("* Connected!"));
    }

    if (status == ACI_EVT_DISCONNECTED) {
      Serial.println(F("* Disconnected or advertising timed out"));
    }

    laststatus = status;
  }

  if (status == ACI_EVT_CONNECTED) {
    // Check for data
    if (BLEserial.available()) {
      Serial.print("* ");
      Serial.print(BLEserial.available());
      Serial.println(F(" bytes available from BTLE"));
    }

    // While there is something to read, read the next char
    while (BLEserial.available()) {
      char c = BLEserial.read();
      Serial.print(c);
    }

    Serial.setTimeout(100);

    if (!sent) {
      bleSend();
    }

    // Print for Debugging
    // Serial.print(F("\n* Sending -> \""));
    // Serial.print((char *)sendbuffer);
    // Serial.println("\"");
  } else {
    int index = counter % 10;
    accel_buffer[index] = getAcceleration();
    counter += 1;

    if (counter == 10) {
      counter = 0;
    }

    if (isMoving()) {
      if (lastMovement != "m") {
        drawFish();
        lastMovement = "m";
        time = millis();
      }
    } else {
      if (lastMovement != "s" && (millis() - time > 2500)) {
        drawStarfish();
        lastMovement = "s";
      }
    }
  }

  delay(1000);
}

void bleSend()
{
  int k;
  for (k = 0; k < 10; k += 1) {
    // Get buffer length
    uint8_t sendbuffer[20];
    accel_buffer[k].getBytes(sendbuffer, 20);
    char sendbuffersize = min(20, accel_buffer[k].length());

    // Write to BLE buffer
    BLEserial.write(sendbuffer, sendbuffersize);
    delay(200);
  }

  sent = true;
}

// Get Accelerometer Acceleration
String getAcceleration()
{
  // Read the 'raw' data in 14-bit counts
  accelerometer.read();
  // Get a new sensor event
  sensors_event_t event;
  accelerometer.getEvent(&event);
  // Get acceleration in m/(s^2)
  float accel_x = event.acceleration.x;
  float accel_y = event.acceleration.y;
  float accel_z = event.acceleration.z;

  String x = String(accel_x, 2);
  String y = String(accel_y, 2);

  String data = x + "," + y + "," + z + "\n";
  return data;
}

boolean isMoving()
{
  accelerometer.read();
  // Get a new sensor event
  sensors_event_t event;
  accelerometer.getEvent(&event);

  float accel_x = event.acceleration.x;
  float accel_y = event.acceleration.y;

  if (abs(accel_x) > 0.15 || abs(accel_y) > 0.15) {
    return true;
  } else {
    return false;
  }
}

void drawFlip(void) {
  display.fillScreen(BLACK);

  display.drawFastVLine(21, 17, 4, CYAN);
  display.drawFastVLine(21, 40, 3, CYAN);
  display.drawFastVLine(22, 17, 4, CYAN);
  display.drawFastVLine(22, 40, 3, CYAN);
  display.drawFastVLine(23, 18, 5, CYAN);
  display.drawFastVLine(23, 36, 6, CYAN);
  display.drawFastVLine(24, 20, 8, CYAN);
  display.drawFastVLine(24, 31, 9, CYAN);
  display.drawFastVLine(25, 20, 20, CYAN);
  display.drawFastVLine(26, 21, 17, CYAN);
  display.drawFastVLine(27, 25, 8, CYAN);
  display.fillRect(28, 28, 14, 4, CYAN);
  display.fillRect(32, 20, 5, 22, CYAN);
  display.fillRect(34, 18, 9, 2, CYAN);
  display.drawFastHLine(35, 17, 8, CYAN);
  display.drawFastHLine(37, 16, 5, CYAN);
  display.fillRect(46, 17, 4, 25, CYAN);
  display.fillRect(53, 17, 4, 5, CYAN);
  display.fillRect(53, 25, 4, 17, CYAN);
  display.fillRect(61, 27, 4, 26, CYAN);
  display.fillRect(65, 28, 2, 14, CYAN);
  display.fillRect(67, 27, 2, 14, CYAN);
  display.fillRect(67, 27, 7, 4, CYAN);
  display.fillRect(67, 39, 7, 4, CYAN);
  display.fillRect(73, 30, 3, 10, CYAN);
  display.fillRect(72, 28, 3, 4, CYAN);
  display.drawFastVLine(76, 32, 6, CYAN);

  delay(2000);
}

void drawFish(void) {
  display.fillScreen(BLACK);

  display.fillRect(22, 31, 67, 5, YELLOW);

  display.fillRect(23, 28, 65, 3, YELLOW);
  display.fillRect(23, 36, 65, 3, YELLOW);

  display.fillRect(24, 26, 63, 2, YELLOW);
  display.fillRect(24, 39, 63, 2, YELLOW);

  display.fillRect(25, 24, 60, 2, YELLOW);
  display.fillRect(25, 41, 60, 2, YELLOW);

  display.fillRect(27, 22, 56, 2, YELLOW);
  display.fillRect(27, 43, 56, 2, YELLOW);

  display.fillRect(30, 20, 51, 2, YELLOW);
  display.fillRect(30, 45, 51, 2, YELLOW);

  display.drawFastHLine(33, 19, 45, YELLOW);
  display.drawFastHLine(33, 47, 45, YELLOW);

  display.drawFastHLine(35, 18, 41, YELLOW);
  display.drawFastHLine(35, 48, 41, YELLOW);

  display.drawFastHLine(38, 17, 35, YELLOW);
  display.drawFastHLine(38, 49, 35, YELLOW);

  display.drawFastHLine(43, 16, 25, YELLOW);
  display.drawFastHLine(43, 50, 25, YELLOW);

  display.drawFastHLine(50, 15, 11, YELLOW);
  display.drawFastHLine(50, 51, 11, YELLOW);

  display.fillTriangle(10, 16, 28, 33, 10, 50, YELLOW);
  delay(500);
}

void drawStarfish(void) {
  display.fillScreen(BLACK);

  display.fillRect(40, 24, 21, 20, RED);

  display.fillRect(45, 9, 4, 15, RED);
  display.drawPixel(41, 23, RED);
  display.drawFastVLine(42, 19, 5, RED);
  display.drawFastVLine(43, 15, 9, RED);
  display.drawFastVLine(44, 13, 11, RED);
  display.fillRect(46, 7, 2, 2, RED);
  display.drawFastVLine(49, 11, 13, RED);
  display.drawFastVLine(50, 15, 9, RED);
  display.drawFastVLine(51, 18, 6, RED);
  display.drawFastVLine(52, 22, 2, RED);

  display.drawPixel(60, 23, RED);
  display.fillRect(61, 23, 3, 10, RED);
  display.fillRect(64, 22, 3, 9, RED);
  display.drawFastVLine(67, 21, 9, RED);
  display.fillRect(68, 20, 2, 9, RED);
  display.drawFastVLine(70, 19, 9, RED);
  display.drawFastVLine(71, 19, 7, RED);
  display.drawPixel(66, 21, RED);
  display.drawFastVLine(61, 33, 2, RED);
  display.fillRect(72, 18, 2, 5, RED);
  display.drawFastVLine(74, 18, 3, RED);

  display.fillRect(56, 44, 14, 4, RED);
  display.drawFastVLine(61, 38, 6, RED);
  display.fillRect(62, 41, 3, 3, RED);
  display.drawFastHLine(65, 43, 3, RED);
  display.fillRect(70, 45, 2, 3, RED);
  display.drawFastVLine(72, 46, 3, RED);
  display.fillRect(60, 48, 12, 2, RED);
  display.drawFastHLine(53, 44, 3, RED);
  display.drawFastHLine(54, 45, 2, RED);
  display.drawFastHLine(57, 48, 3, RED);
  display.drawFastHLine(64, 50, 4, RED);

  display.fillRect(39, 44, 9, 7, RED);
  display.fillRect(37, 51, 8, 4, RED);
  display.drawFastVLine(39, 41, 3, RED);
  display.drawFastVLine(38, 45, 6, RED);
  display.drawFastVLine(48, 44, 4, RED);
  display.drawFastHLine(45, 51, 2, RED);
  display.drawFastHLine(36, 55, 8, RED);
  display.drawFastHLine(36, 56, 5, RED);
  display.drawFastHLine(37, 57, 2, RED);

  display.fillRect(34, 27, 6, 8, RED);
  display.fillRect(29, 26, 5, 6, RED);
  display.fillRect(25, 25, 4, 4, RED);
  display.drawFastHLine(37, 35, 3, RED);
  display.drawFastHLine(31, 32, 3, RED);
  display.drawFastHLine(26, 29, 3, RED);
  display.drawFastVLine(24, 26, 3, RED);
  display.drawPixel(39, 36, RED);
  display.drawPixel(33, 33, RED);
  display.drawPixel(28, 30, RED);
  display.drawPixel(29, 25, RED);
  display.drawPixel(39, 26, RED);
  delay(500);
}
Bluetooth LE ServiceJava
A snippet of the Android code
package prov2.flip;

import android.app.Service;
import android.bluetooth.BluetoothAdapter;
import android.bluetooth.BluetoothDevice;
import android.bluetooth.BluetoothGatt;
import android.bluetooth.BluetoothGattCallback;
import android.bluetooth.BluetoothGattCharacteristic;
import android.bluetooth.BluetoothGattDescriptor;
import android.bluetooth.BluetoothGattService;
import android.bluetooth.BluetoothManager;
import android.bluetooth.BluetoothProfile;
import android.content.Context;
import android.content.Intent;
import android.os.Binder;
import android.os.IBinder;
import android.support.v4.content.LocalBroadcastManager;
import android.util.Log;

import java.util.List;
import java.util.UUID;

public class BLEService extends Service {
    private final static String TAG = BLEService.class.getSimpleName();

    private BluetoothManager mBluetoothManager;
    private BluetoothAdapter mBluetoothAdapter;
    private String mBluetoothDeviceAddress;
    private BluetoothGatt mBluetoothGatt;
    private int mConnectionState = STATE_DISCONNECTED;

    private static final int STATE_DISCONNECTED = 0;
    private static final int STATE_CONNECTING = 1;
    private static final int STATE_CONNECTED = 2;

    public final static String ACTION_GATT_CONNECTED =
            "prov2.flip.ACTION_GATT_CONNECTED";
    public final static String ACTION_GATT_DISCONNECTED =
            "prov2.flip.ACTION_GATT_DISCONNECTED";
    public final static String ACTION_GATT_SERVICES_DISCOVERED =
            "prov2.flip.ACTION_GATT_SERVICES_DISCOVERED";
    public final static String ACTION_DATA_AVAILABLE =
            "prov2.flip.ACTION_DATA_AVAILABLE";
    public final static String EXTRA_DATA =
            "prov2.flip.EXTRA_DATA";
    public final static String DEVICE_DOES_NOT_SUPPORT_UART =
            "prov2.flip.DEVICE_DOES_NOT_SUPPORT_UART";

    public static final UUID TX_POWER_UUID = UUID.fromString("00001804-0000-1000-8000-00805f9b34fb");
    public static final UUID TX_POWER_LEVEL_UUID = UUID.fromString("00002a07-0000-1000-8000-00805f9b34fb");
    public static final UUID CCCD = UUID.fromString("00002902-0000-1000-8000-00805f9b34fb");
    public static final UUID FIRMWARE_REVISON_UUID = UUID.fromString("00002a26-0000-1000-8000-00805f9b34fb");
    public static final UUID DIS_UUID = UUID.fromString("0000180a-0000-1000-8000-00805f9b34fb");
    public static final UUID RX_SERVICE_UUID = UUID.fromString("6e400001-b5a3-f393-e0a9-e50e24dcca9e");
    public static final UUID RX_CHAR_UUID = UUID.fromString("6e400002-b5a3-f393-e0a9-e50e24dcca9e");
    public static final UUID TX_CHAR_UUID = UUID.fromString("6e400003-b5a3-f393-e0a9-e50e24dcca9e");


    // Implements callback methods for GATT events that the app cares about.  For example,
    // connection change and services discovered.
    private final BluetoothGattCallback mGattCallback = new BluetoothGattCallback() {
        @Override
        public void onConnectionStateChange(BluetoothGatt gatt, int status, int newState) {
            String intentAction;

            if (newState == BluetoothProfile.STATE_CONNECTED) {
                intentAction = ACTION_GATT_CONNECTED;
                mConnectionState = STATE_CONNECTED;
                broadcastUpdate(intentAction);
                Log.i(TAG, "Connected to GATT server.");
                // Attempts to discover services after successful connection.
                Log.i(TAG, "Attempting to start service discovery:" +
                        mBluetoothGatt.discoverServices());

            } else if (newState == BluetoothProfile.STATE_DISCONNECTED) {
                intentAction = ACTION_GATT_DISCONNECTED;
                mConnectionState = STATE_DISCONNECTED;
                Log.i(TAG, "Disconnected from GATT server.");
                broadcastUpdate(intentAction);
            }
        }

        @Override
        public void onServicesDiscovered(BluetoothGatt gatt, int status) {
            if (status == BluetoothGatt.GATT_SUCCESS) {
                Log.w(TAG, "mBluetoothGatt = " + mBluetoothGatt );

                broadcastUpdate(ACTION_GATT_SERVICES_DISCOVERED);
            } else {
                Log.w(TAG, "onServicesDiscovered received: " + status);
            }
        }

        @Override
        public void onCharacteristicRead(BluetoothGatt gatt,
                                         BluetoothGattCharacteristic characteristic,
                                         int status) {
            if (status == BluetoothGatt.GATT_SUCCESS) {
                broadcastUpdate(ACTION_DATA_AVAILABLE, characteristic);
            }
        }

        @Override
        public void onCharacteristicChanged(BluetoothGatt gatt,
                                            BluetoothGattCharacteristic characteristic) {
            broadcastUpdate(ACTION_DATA_AVAILABLE, characteristic);
        }
    };

    private void broadcastUpdate(final String action) {
        final Intent intent = new Intent(action);
        LocalBroadcastManager.getInstance(this).sendBroadcast(intent);
    }

    private void broadcastUpdate(final String action,
                                 final BluetoothGattCharacteristic characteristic) {
        final Intent intent = new Intent(action);

        // This is special handling for the Heart Rate Measurement profile.  Data parsing is
        // carried out as per profile specifications:
        // http://developer.bluetooth.org/gatt/characteristics/Pages/CharacteristicViewer.aspx?u=org.bluetooth.characteristic.heart_rate_measurement.xml
        if (TX_CHAR_UUID.equals(characteristic.getUuid())) {

            // Log.d(TAG, String.format("Received TX: %d",characteristic.getValue() ));
            intent.putExtra(EXTRA_DATA, characteristic.getValue());
        } else {

        }
        LocalBroadcastManager.getInstance(this).sendBroadcast(intent);
    }

    public class LocalBinder extends Binder {
        BLEService getService() {
            return BLEService.this;
        }
    }

    @Override
    public IBinder onBind(Intent intent) {
        return mBinder;
    }

    @Override
    public boolean onUnbind(Intent intent) {
        // After using a given device, you should make sure that BluetoothGatt.close() is called
        // such that resources are cleaned up properly.  In this particular example, close() is
        // invoked when the UI is disconnected from the Service.
        close();
        return super.onUnbind(intent);
    }

    private final IBinder mBinder = new LocalBinder();

    /**
     * Initializes a reference to the local Bluetooth adapter.
     *
     * @return Return true if the initialization is successful.
     */
    public boolean initialize() {
        // For API level 18 and above, get a reference to BluetoothAdapter through
        // BluetoothManager.
        if (mBluetoothManager == null) {
            mBluetoothManager = (BluetoothManager) getSystemService(Context.BLUETOOTH_SERVICE);
            if (mBluetoothManager == null) {
                Log.e(TAG, "Unable to initialize BluetoothManager.");
                return false;
            }
        }

        mBluetoothAdapter = mBluetoothManager.getAdapter();
        if (mBluetoothAdapter == null) {
            Log.e(TAG, "Unable to obtain a BluetoothAdapter.");
            return false;
        }

        return true;
    }

    /**
     * Connects to the GATT server hosted on the Bluetooth LE device.
     *
     * @param address The device address of the destination device.
     *
     * @return Return true if the connection is initiated successfully. The connection result
     *         is reported asynchronously through the
     *         {@code BluetoothGattCallback#onConnectionStateChange(android.bluetooth.BluetoothGatt, int, int)}
     *         callback.
     */
    public boolean connect(final String address) {
        if (mBluetoothAdapter == null || address == null) {
            Log.w(TAG, "BluetoothAdapter not initialized or unspecified address.");
            return false;
        }

        // Previously connected device.  Try to reconnect.
        if (mBluetoothDeviceAddress != null && address.equals(mBluetoothDeviceAddress)
                && mBluetoothGatt != null) {
            Log.d(TAG, "Trying to use an existing mBluetoothGatt for connection.");
            if (mBluetoothGatt.connect()) {
                mConnectionState = STATE_CONNECTING;
                return true;
            } else {
                return false;
            }
        }

        final BluetoothDevice device = mBluetoothAdapter.getRemoteDevice(address);
        if (device == null) {
            Log.w(TAG, "Device not found.  Unable to connect.");
            return false;
        }
        // We want to directly connect to the device, so we are setting the autoConnect
        // parameter to false.
        mBluetoothGatt = device.connectGatt(this, false, mGattCallback);
        Log.d(TAG, "Trying to create a new connection.");
        mBluetoothDeviceAddress = address;
        mConnectionState = STATE_CONNECTING;
        return true;
    }

    /**
     * Disconnects an existing connection or cancel a pending connection. The disconnection result
     * is reported asynchronously through the
     * {@code BluetoothGattCallback#onConnectionStateChange(android.bluetooth.BluetoothGatt, int, int)}
     * callback.
     */
    public void disconnect() {
        if (mBluetoothAdapter == null || mBluetoothGatt == null) {
            Log.w(TAG, "BluetoothAdapter not initialized");
            return;
        }
        mBluetoothGatt.disconnect();
        // mBluetoothGatt.close();
    }

    /**
     * After using a given BLE device, the app must call this method to ensure resources are
     * released properly.
     */
    public void close() {
        if (mBluetoothGatt == null) {
            return;
        }
        Log.w(TAG, "mBluetoothGatt closed");
        mBluetoothDeviceAddress = null;
        mBluetoothGatt.close();
        mBluetoothGatt = null;
    }

    /**
     * Request a read on a given {@code BluetoothGattCharacteristic}. The read result is reported
     * asynchronously through the {@code BluetoothGattCallback#onCharacteristicRead(android.bluetooth.BluetoothGatt, android.bluetooth.BluetoothGattCharacteristic, int)}
     * callback.
     *
     * @param characteristic The characteristic to read from.
     */
    public void readCharacteristic(BluetoothGattCharacteristic characteristic) {
        if (mBluetoothAdapter == null || mBluetoothGatt == null) {
            Log.w(TAG, "BluetoothAdapter not initialized");
            return;
        }
        mBluetoothGatt.readCharacteristic(characteristic);
    }

    /**
     * Enables or disables notification on a give characteristic.
     *
     * @param characteristic Characteristic to act on.
     * @param enabled If true, enable notification.  False otherwise.
     */
    /*
    public void setCharacteristicNotification(BluetoothGattCharacteristic characteristic,
                                              boolean enabled) {
        if (mBluetoothAdapter == null || mBluetoothGatt == null) {
            Log.w(TAG, "BluetoothAdapter not initialized");
            return;
        }
        mBluetoothGatt.setCharacteristicNotification(characteristic, enabled);
        if (UUID_HEART_RATE_MEASUREMENT.equals(characteristic.getUuid())) {
            BluetoothGattDescriptor descriptor = characteristic.getDescriptor(
                    UUID.fromString(SampleGattAttributes.CLIENT_CHARACTERISTIC_CONFIG));
            descriptor.setValue(BluetoothGattDescriptor.ENABLE_NOTIFICATION_VALUE);
            mBluetoothGatt.writeDescriptor(descriptor);
        }
    }*/

    /**
     * Enable TXNotification
     *
     * @return
     */
    public void enableTXNotification()
    {
    	/*
    	if (mBluetoothGatt == null) {
    		showMessage("mBluetoothGatt null" + mBluetoothGatt);
    		broadcastUpdate(DEVICE_DOES_NOT_SUPPORT_UART);
    		return;
    	}
    		*/
        BluetoothGattService RxService = mBluetoothGatt.getService(RX_SERVICE_UUID);
        if (RxService == null) {
            showMessage("Rx service not found!");
            broadcastUpdate(DEVICE_DOES_NOT_SUPPORT_UART);
            return;
        }
        BluetoothGattCharacteristic TxChar = RxService.getCharacteristic(TX_CHAR_UUID);
        if (TxChar == null) {
            showMessage("Tx charateristic not found!");
            broadcastUpdate(DEVICE_DOES_NOT_SUPPORT_UART);
            return;
        }
        mBluetoothGatt.setCharacteristicNotification(TxChar,true);

        BluetoothGattDescriptor descriptor = TxChar.getDescriptor(CCCD);
        descriptor.setValue(BluetoothGattDescriptor.ENABLE_NOTIFICATION_VALUE);
        mBluetoothGatt.writeDescriptor(descriptor);

    }

    public void writeRXCharacteristic(byte[] value)
    {


        BluetoothGattService RxService = mBluetoothGatt.getService(RX_SERVICE_UUID);
        showMessage("mBluetoothGatt null"+ mBluetoothGatt);
        if (RxService == null) {
            showMessage("Rx service not found!");
            broadcastUpdate(DEVICE_DOES_NOT_SUPPORT_UART);
            return;
        }
        BluetoothGattCharacteristic RxChar = RxService.getCharacteristic(RX_CHAR_UUID);
        if (RxChar == null) {
            showMessage("Rx charateristic not found!");
            broadcastUpdate(DEVICE_DOES_NOT_SUPPORT_UART);
            return;
        }
        RxChar.setValue(value);
        boolean status = mBluetoothGatt.writeCharacteristic(RxChar);

        Log.d(TAG, "write TXchar - status=" + status);
    }

    private void showMessage(String msg) {
        Log.e(TAG, msg);
    }
    /**
     * Retrieves a list of supported GATT services on the connected device. This should be
     * invoked only after {@code BluetoothGatt#discoverServices()} completes successfully.
     *
     * @return A {@code List} of supported services.
     */
    public List<BluetoothGattService> getSupportedGattServices() {
        if (mBluetoothGatt == null) return null;

        return mBluetoothGatt.getServices();
    }
}
flip
Android app and Bluetooth LE code for interacting with Arduino Micro

Credits

Replications

Did you replicate this project? Share it!

I made one

Love this project? Think it could be improved? Tell us what you think!

Give feedback

Comments

Similar projects you might like

Pour Water In the Cup To Run The Fan
  • 13
  • 0

Pouring water in these cups will run the fan.

Picture The Weather
  • 30,558
  • 86

Full instructions

In this sample, we will connect an RGB LED strip to an Arduino and control it to indicate the weather forecast behind a picture.

WiFi Weather Station
  • 15,844
  • 43

Work in progress

An Arduino powered internet connected weather station sending data to weather underground for storage and viewing.

Toothbrush machine
  • 7,081
  • 63

Full instructions

Because knowing how to build something doesn't always mean you should.

Arduino and Android Based Bluetooth Password Lock
  • 10,036
  • 26

Full instructions

We everybody are concerned about the security of our home. World becoming smarter and smarter everyday and we want to control and secured...

LED Drawing with Virtual Shields
  • 4,883
  • 23

Full instructions

In this sample, we will connect an RGB LED strip to an Arduino and hand draw the lights through a Windows 10 phone over Bluetooth.

Sign up / LoginProjectsPlatformsTopicsContestsLiveAppsBetaFree StoreBlog
