Like many people, I like to sleep with noise, but most of the time once I am already in bed I'll forget to switch on the fan and then it becomes a back and forth of "Do I really want to turn on the fan or not?" So I decided since I have the time and parts, why not just make an Arduino controlled fan, this project involves high voltage! (Please be careful!!) The fan works by using a IR receiver and relays to control the speed of the fan. Here is a link to how the fan was built!
STEP 1: Button AssignmentFind out your remote control's button assignment. Each remote control has its own code for what each button does, for example if you press the volume down key on your remote then you will send a code to your TV, that code is then executed in the program to decrease the volume on your TV.
#include <IRremote.h>
int RECV_PIN = 12; // the pin where you connect the output pin of IR sensor (CHANGE Depending on your Arduino)
IRrecv irrecv(RECV_PIN);
decode_results results;
void setup()
{
Serial.begin(9600);
irrecv.enableIRIn();
{
void loop()
{
if (irrecv.decode(&results))
{
int results.value = results;
Serial.println(" ");
Serial.print("Code: ");
Serial.println(results.value);
Serial.println(" ");
irrecv.resume();
}
We use the code above to find out each of the button's code in Decimal format with the Serial Monitor. Keep these values safe! I would suggest you plan out what you want each button to do and make a table with the button and it's ID.
STEP 2: MaterialsGather your materials,
Once you have gathered your materials you must acknowledge that you are going to be working with high voltage!
STEP 3: Find out your fan's wire codeFirst you must understand how your fan works:
Electric fans have a motor that runs on electricity and is connected to the fan blades through a shaft. The motor drives this rotor shaft, which turns the fan blades at various speeds based on the motor's speed setting. Depending on the kind of electric fan, the number of blades and the motor's general revolutions per minute can vary significantly.
Each fan has a different wiring code, for example my fan has 4 different wires including a Blue, Red, Orange, and a Gray. Each of these wires does something, in my case the Blue wire is common (neutral), the Red wire is for speed 3 (connected to live), the Orange wire is for speed 2 (connected to live) and at last there is a Gray wire that is for speed 1 (connected to live). Here is an image:
NOTE: You may have another wire that is for automatic oscillation motor
STEP 4: WiringOnce you have identified your fan's wire color codes, then you may begin to hook up the electronics part of the fan, You should attach the fans speed wires directly to the relay's NO terminals as shown in the video, the relay's COM terminals will be connected together and attached to the live wire.
STEP 5: ElectronicsAfter all of the fan's speed wires are connected to the relay, then you can proceed to the Arduino wiring of the fan! Connect the fan exactly to the Schematic provided below:
Once all of the electronics have been wired up, then you can move on to the code!
Here is the code:
#include <LiquidCrystal.h>
#include <IRremote.h>
int RECV_PIN = 12; // Pin no. on Arduino (Change depending on your Arduino)
int Speed1 = 8; // Pin no. on Arduino (Change depending on your Arduino)
int Speed2 = 9; // Pin no. on Arduino (Change depending on your Arduino)
int Speed3 = 10; // Pin no. on Arduino (Change depending on your Arduino)
int OSC = 11; // Pin no. on Arduino (Change depending on your Arduino)
int relay[] = {0,0,0,0,0}; // no. of relays present / the state of the relay
const int rs = 7, en = 6, d4 = 2, d5 = 3, d6 = 4, d7 = 5; // Pin no. on Arduino (Change depending on your Arduino)
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);
The code above first declares all of the necessary libraries needed in order for the program to work successfully, all of these programs can be found with the library manager in the Arduino IDE shown below:
the next part of the code declares all of the pins used in the Arduino
#define speed1 ________ // button code for speed no.1 (CHANGE Depending on your Button Code)
#define speed2 ________ // button code for speed no.2 (CHANGE Depending on your Button Code)
#define speed3 ________ // button code for speed no.3 (CHANGE Depending on your Button Code)
#define power ________ // button code for ON/OFF (CHANGE Depending on your Button Code)
#define Osc ________ // button code for Oscilation (CHANGE Depending on your Button Code)
IRrecv irrecv(RECV_PIN);
decode_results results;
The next part defines all of the button codes that were previously found. Replace the dashes with your code!
In order for the relay to work we have to use the switch statements and case statements:
if (irrecv.decode(&results)) {
unsigned int value = results.value;
switch(value) {
case speed1:
lcd.print(""); // clears the LCD
lcd.setCursor(1, 1); // sets the cursor
lcd.print("# 1"); // prints speed 1
if(relay[1] == 0) {
digitalWrite(Speed1, HIGH); // Sets the speed to 1
digitalWrite(Speed2, LOW); // makes sure that all other speeds are turned off to prevent multiple voltages going to the fan
digitalWrite(Speed3, LOW); // makes sure that all other speeds are turned off to prevent multiple voltages going to the fan
relay[1] == 1; // just an indicator for the program that speed 1 is currently ON
}
Happy Making and good luck on your project and be very careful handling mains voltage!

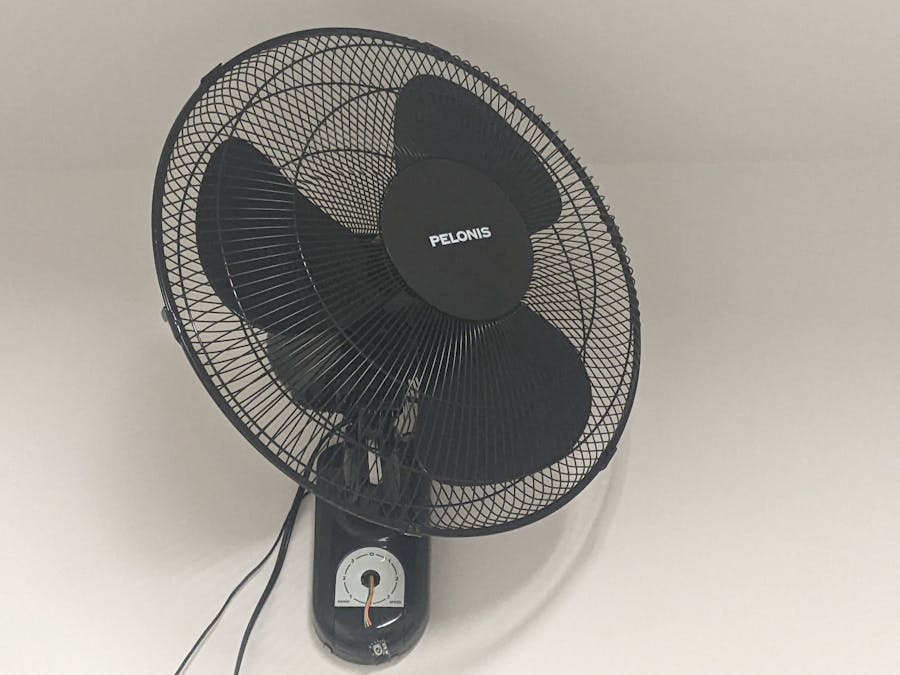

Final Product:
