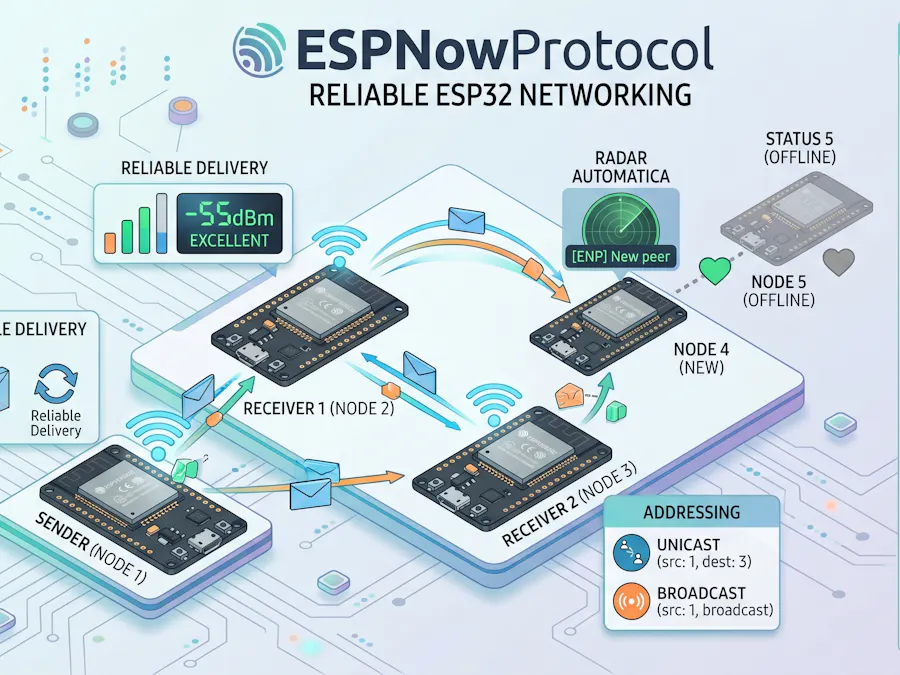

ESPNowProtocol

If you've ever worked with ESP32 and ESP-NOW, you probably realized something quickly:

ESP-NOW is powerful… but building a reliable and scalable system on top of it is not trivial. ESP-NOW is powerful… but building a reliable and scalable system on top of it is not trivial.

Handling acknowledgments, retries, multiple devices, and network state quickly turns into repetitive and error-prone work.

That’s exactly why ESPNowProtocol was created.

What is ESPNowProtocol?

ESPNowProtocol is a lightweight communication layer built on top of ESP-NOW, designed to simplify and standardize device-to-device communication between ESP32 boards.

Instead of dealing with low-level packet handling, you get a structured and reliable system with features typically found in higher-level protocols.

It provides a complete solution for device-to-device communication, including:

• Generic payload messaging
• Reliable delivery (ACK + retry)
• Message queue (non-blocking)
• Multi-device networking
• Automatic peer discovery
• Device lifecycle management (online/offline)
• Link diagnostics (RSSI + quality)

How It Works

The communication flow is simple:

ESP32 (Sender) → ESP-NOW → ESP32 (Receiver)

But internally, ESPNowProtocol adds:

• Message types (DATA, ACK, HELLO, HEARTBEAT)
• Sequence control
• Logical addressing (node IDs)
• Network awareness

Key Features

1. Reliable Communication

Each message can be sent using ACK + retry:

protocol.sendReliable(dest, msg_id, data, len);

This ensures delivery even in noisy environments.

2. Logical Addressing System

Each device has a node ID, independent of MAC address:

src → sender
dest → receiver (255 = broadcast)

This makes your application logic much cleaner.

3. Auto Discovery (Plug & Play Network)

Devices can automatically discover each other:

protocol.enableAutoDiscovery(true);

No need to manually register every peer.

4. Device Lifecycle Management

The library tracks:

• When a device comes online
• When it goes offline (timeout detection)

Example logs:

[ENP] New peer: 23
[ENP] Peer offline: 23

5. Link Quality Monitoring

Each packet includes RSSI:

int8_t rssi;

You can also query:

protocol.getPeerRSSI(id);
protocol.getLinkQuality(id);

This is extremely useful for:

• Diagnostics
• Adaptive systems
• Signal quality analysis

6. Non-Blocking Architecture

The internal queue ensures your application doesn’t freeze.

Just make sure to call:

protocol.loop();

continuously.

Quick Start

Step 1 — Install the Library

Using Arduino IDE:

• Go to Library Manager
• Search for ESPNowProtocol
• Install

Step 2 — Basic Sender

#include <ESPNowProtocol.h>

ESPNowProtocol protocol;

uint8_t peer[] = {0x10,0x52,0x1C,0x68,0x15,0x28};

void setup()
{
  Serial.begin(115200);

  protocol.begin();
  protocol.setNodeId(1);

  protocol.addPeer(2, peer);
}

void loop()
{
  protocol.loop();

  int value = 42;
  protocol.sendReliable(2, 1, (uint8_t*)&value, sizeof(value));
}

Step 3 — Basic Receiver

#include <ESPNowProtocol.h>

ESPNowProtocol protocol;

void onData(uint8_t src, uint8_t id, const uint8_t *data, uint8_t len, int8_t rssi)
{
  int value;
  memcpy(&value, data, sizeof(value));

  Serial.print("From: ");
  Serial.print(src);
  Serial.print(" | RSSI: ");
  Serial.println(rssi);

  Serial.println(value);
}

void setup()
{
  Serial.begin(115200);

  protocol.begin();
  protocol.setNodeId(2);

  protocol.onReceive(onData);
}

void loop()
{
  protocol.loop();
}

Use Cases

ESPNowProtocol is especially useful for:

• Wireless sensor networks
• Distributed embedded systems
• Remote control applications
• Real-time telemetry
• ESP32 clusters

Important Notes

• protocol.loop() must run continuously
• Avoid blocking delays
• Max payload: 32 bytes
• Each device must have a unique nodeId

What Makes This Library Stand Out

What really differentiates ESPNowProtocol is that it treats ESP-NOW like a real network, not just a packet pipe.

You get:

• Network formation
• Device awareness
• Communication reliability
• Diagnostics

All without Wi-Fi infrastructure.

Roadmap

Planned features include:

• Peer event callbacks (online/offline)
• Advanced link metrics (latency, packet loss)
• Automatic best-peer selection
• Mesh routing (multi-hop)

Final Thoughts

ESPNowProtocol removes a lot of the friction when building real-world ESP-NOW systems.

Instead of reinventing the wheel every time, you can focus on what actually matters:

your application logic.

If you're building anything beyond a simple point-to-point ESP-NOW demo, this library is worth trying.
