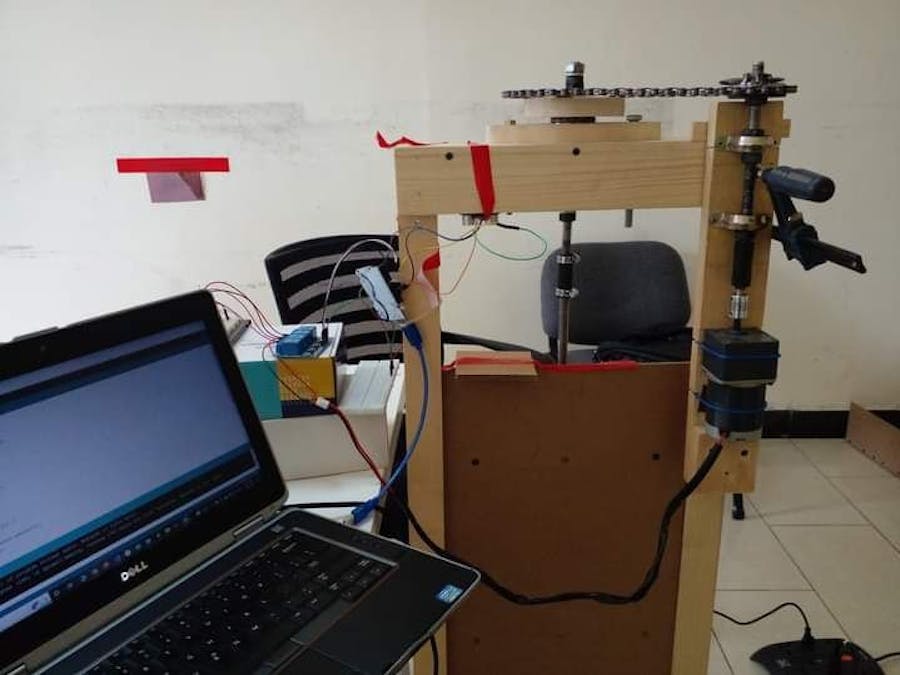

Automatic gate control for agricalture purpose

/** LIBRARIES**/
#include <Arduino.h>
#include <WiFi.h>
#include <WiFiMulti.h>
#include <WiFiClientSecure.h>
#include <WebSocketsClient.h>
#include <ArduinoJson.h>
#include "HX710B.h"
#include "FS.h"
#include "SD.h"
#include <SPI.h>
#include <NTPClient.h>
#include <WiFiUdp.h>
/** LIBRARIES**/

/**SD CARD**/
uint64_t uS_TO_S_FACTOR = 1000000;
uint64_t TIME_TO_SLEEP = 300;
#define SD_CS 5
RTC_DATA_ATTR int sensor_data = 0;
String Data;
WiFiUDP ntpUDP;
NTPClient timeClient(ntpUDP);
String Date;
String day;
String Time;
/** SD CARD**/

/** WEBSOCKET INITALIZATION**/
WiFiMulti WiFiMulti;
WebSocketsClient webSocket;
WebSocketsClient webSocket3;
/** WEBSOCKET INITALIZATION**/

/**  PIN DECLARATION FOR PRESSURE AND ULTRASONIC RESPECTIVE**/
const int DOUT = 22;   //sensor data pin
const int SCLK  = 24;   //sensor clock pin
float pressure;
float fixed_pressure=549.7;
HX710B pressure_sensor;

static int sensorVal = 0;

/**  PIN DECLARATION FOR PRESSURE AND ULTRASONIC RESPECTIVE**/
const int trigPin = 5;
const int echoPin = 18;
long duration;
float distanceMm;
#define SOUND_SPEED 0.034
int inputHeight=10;
int heightTolorance=1;
int fixedHeight=46;
//int openingHeight;
//int userOpeningdifference;

/** calculation to control the motor**/
int openingHeight=fixedHeight-distanceMm;
int userOpeningdifference=inputHeight-openingHeight;
 /** calculation to control the motor**/
/**  PIN DECLARATION FOR PRESSURE AND ULTRASONIC RESPECTIVE**/

/** FOR PRESSURE **/
//float pressure;
float inputpressure=10;
float pressureTolorance=1;
float fixedpressure=46;

/** calculation to control the motor**/
int openingpressure=fixedpressure-pressure;
int userOpeningDifferencep=inputHeight-openingpressure;
/** FOR RELAY**/
#define CW 14 //CW is defined as pin #7//
#define CCW 15 //CCW is defined as pin #8//

//for limit switch
int Lswitch = 2;

// CHANGE THIS TO ADD YOUR WIFI USERNAME/PASSWORD
const char * WIFI_SSID = "TP-Link_27ED";
const char * WIFI_PASS = "19202122";

//Initialize the JSON data we send to our websocket server
const int capacity = JSON_OBJECT_SIZE(3);
StaticJsonDocument<capacity> doc;
StaticJsonDocument<1024> rx_doc;

 /** FOR DEVICE TEMPERATURE READING**/
#define USE_SERIAL Serial

 #ifdef __cplusplus

extern "C" {

#endif

uint8_t temprature_sens_read();

#ifdef __cplusplus

}

#endif

uint8_t temprature_sens_read();
void webSocketEvent(WStype_t type, uint8_t *payload, size_t length)
{

  switch(type)
  {
  case WStype_DISCONNECTED:
    USE_SERIAL.printf("[WSc] Disconnected!\n");
    break;
  case WStype_CONNECTED:
    USE_SERIAL.printf("[WSc] Connected to url: %s\n", payload);
    break;
  case WStype_TEXT:
    USE_SERIAL.printf("[WSc] get text: %s\n", payload);
    // deserializeJson(rx_doc,payload);
    // // String height = rx_doc["height"];
    // USE_SERIAL.println(rx_doc["height"]);
    break;
  case WStype_BIN:
    USE_SERIAL.printf("[WSc] get binary length: %u\n", length);
    break;
  case WStype_ERROR:
//   case WStype_FRAGMENT_TEXT_START:
  case WStype_FRAGMENT_BIN_START:
  case WStype_FRAGMENT:
  case WStype_FRAGMENT_FIN:
  case WStype_PING:
  case WStype_PONG:
    break;
  }
}
/** FOR DEVICE TEMPERATURE READING**/

void setup()
{
  //Set the baud rate
  USE_SERIAL.begin(115200);
  USE_SERIAL.printf("Begin websocket client program....");
 /** FOR WIFI CONNECTION **/
  USE_SERIAL.println();
 WiFi.mode(WIFI_STA);
  WiFi.begin(WIFI_SSID, WIFI_PASS);
  Serial.print("Connecting to WiFi ..");
  while (WiFi.status() != WL_CONNECTED) {
    Serial.print('.');
    delay(1000);
  }
/** FOR WIFI CONNECTION **/

  Serial.println(WiFi.localIP());
//   for (uint8_t t = 4; t > 0; t--)
//   {
//     USE_SERIAL.printf("[SETUP] BOOT WAIT %d...\n", t);
//     USE_SERIAL.flush();
//     delay(1000);
//   }

//   WiFiMulti.addAP(WIFI_SSID, WIFI_PASS);

  // WiFi.disconnect();
  USE_SERIAL.printf("Connecting");
//   while (WiFiMulti.run() != WL_CONNECTED)
//   {
//     USE_SERIAL.printf(".");
//     delay(100);
//   }
  USE_SERIAL.printf("Connected!");

  // server address, port and URL
  webSocket.begin("192.168.0.141", 8085, "/sendSensorData");
  webSocket3.begin("192.168.0.141", 8085, "/request");

  // event handler
  webSocket.onEvent(webSocketEvent);
 webSocket3.onEvent(webSocketEvent);
  // use HTTP Basic Authorization this is optional remove if not needed
  // webSocket.setAuthorization("user", "Password");

  // try ever 5000 again if connection has failed
  webSocket.setReconnectInterval(5000);
  webSocket3.setReconnectInterval(10000);


  // // Set the resolution values
  // analogReadResolution(RESOLUTION);
  pinMode(Lswitch, INPUT);

  /**SD CARD**/
   timeClient.begin();
  timeClient.setTimeOffset(18000);

  if(!SD.begin()) {
    Serial.println("Card Mount Failed");
    return;
  }
  uint8_t cardType = SD.cardType();
  if(cardType == CARD_NONE) {
    Serial.println("No SD card attached");
    return;
  }
  Serial.println("Initializing SD card...");
  if (!SD.begin()) {
    Serial.println("SD card initialization failed!");
    return;
  }

  File file = SD.open("/sensor_readings.txt");
  if(!file) {
    Serial.println("File does not exist");
    Serial.println("Creating file...");
    writeFile(SD, "/temperature_readings.txt", "Reading Number, Date, Hour, Temperature \r\n");
  }
  else {
    Serial.println("File exists");
  }
  file.close();

  esp_sleep_enable_timer_wakeup(TIME_TO_SLEEP * uS_TO_S_FACTOR);
/**  sensors.begin();
  obtainReadings();
  obtain_Date_Time();
  data_logging();**/
 Serial.println("Sensor data logged successfully! Going to sleep");
  esp_deep_sleep_start();
    pressure_sensor.begin(DOUT, SCLK);
}

void presssurereading()
{
  if (pressure_sensor.is_ready())
{
    Serial.print("mmh20: ");
    pressure=(pressure_sensor.pascal()-fixed_pressure)*2.469;
    Serial.println(pressure);
}
}

void lmitswitch()
{
  if(digitalRead(Lswitch) == LOW)
  {
    digitalWrite(CW,LOW); //Motor runs clockwise
  }

  else if(digitalRead(Lswitch) == HIGH)
  {
   digitalWrite(CW,HIGH); //Motor runs clockwise/
  }
}

void readDistanceValue()
{
pinMode(trigPin, OUTPUT); // Sets the trigPin as an Output
pinMode(echoPin, INPUT); // Sets the echoPin as an Input

digitalWrite(trigPin, LOW);
  delayMicroseconds(2);
  // Sets the trigPin on HIGH state for 10 micro seconds
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);

   // Reads the echoPin, returns the sound wave travel time in microseconds
  duration = pulseIn(echoPin, HIGH);

  // Calculate the distance
  distanceMm = (duration * SOUND_SPEED/2)*10;

  // Prints the distance in the Serial Monitor
  Serial.print("Distance (Mm): ");
  USE_SERIAL.println(distanceMm);
   // Check if value read is different then send a websocket message to the server
 if (distanceMm != sensorVal)
  {
    sensorVal = distanceMm;
 //send JSON message in this format {"value": 100}
    doc["Distance"] = distanceMm;
 // Declare a buffer to hold the result

    char output[50];
 serializeJson(doc, output);

    // send message to server when Connected
    webSocket.sendTXT(output);
  }
 // sleep for some time before next read
  delay(100);
}

void readPressureValue()
{

 pressure_sensor.begin(DOUT, SCLK);

 if (pressure_sensor.is_ready())
{
    Serial.print("mmh20: ");
    pressure=(pressure_sensor.pascal()-fixed_pressure)*2.469;
    Serial.println(pressure);
}
  // Check if value read is different then send a websocket message to the server
  if (pressure != sensorVal)
  {
    sensorVal = pressure;

    //send JSON message in this format {"value": 100}
    doc["pressure"] = pressure;


    // Declare a buffer to hold the result
    char output[50];

    serializeJson(doc, output);

    // send message to server when Connected
    webSocket.sendTXT(output);
  }

  // sleep for some time before next read
  delay(100);
}

void readDeviceTempValue()
{

Serial.print("Temperature: ");
float TempDevice=(temprature_sens_read() - 32) / 1.8;
Serial.print(TempDevice);
Serial.println(" C");
delay(1000);
  // Check if value read is different then send a websocket message to the server
  if (TempDevice != sensorVal)
  {
    sensorVal = TempDevice;

    //send JSON message in this format {"value": 100}
    doc["TempDevice"] = TempDevice;
   // Declare a buffer to hold the result
    char output[50];

    serializeJson(doc, output);

    // send message to server when Connected
    webSocket.sendTXT(output);
  }

  // sleep for some time before next read
  delay(100);
}
// This will go into loop
void clockwiserotation()
{
  if(openingHeight>inputHeight)
{
  digitalWrite(CW,HIGH); //Motor runs clockwise/
}
}
void counterclockwiserotation()
{
  if(openingHeight>inputHeight)
{
  digitalWrite(CCW, HIGH);
}
}
void motorstop()
{
  if(userOpeningdifference<heightTolorance)
{
  digitalWrite(CW, LOW); //Motor stops//
}
}
void obtain_Date_Time() {
  while(!timeClient.update()) {
    timeClient.forceUpdate();
  }
  Date = timeClient.getFormattedTime();
  Serial.println(Date);

  int split = Date.indexOf("T");
  day = Date.substring(0, split);
  Serial.println(day);
  Time = Date.substring(split+1, Date.length()-1);
  Serial.println(Time);
}

void data_logging() {
  Data = String(sensor_data) + "," + String(day) + "," + String(Time) + "," +
                String(distanceMm) + "\r\n";
  Serial.print("Save data: ");
  Serial.println(Data);
  appendFile(SD, "/temperature_readings.txt", Data.c_str());
}

void writeFile(fs::FS &fs, const char * path, const char * message) {
  Serial.printf("Writing file: %s\n", path);

  File file = fs.open(path, FILE_WRITE);
  if(!file) {
    Serial.println("Failed to open file for writing");
    return;
  }
  if(file.print(message)) {
    Serial.println("File written");
  } else {
    Serial.println("Write failed");
  }
  file.close();
}

void appendFile(fs::FS &fs, const char * path, const char * message) {
  Serial.printf("Appending to file: %s\n", path);

  File file = fs.open(path, FILE_APPEND);
  if(!file) {
    Serial.println("Failed to open file for appending");
    return;
  }
  if(file.print(message)) {
    Serial.println("Message appended");
  } else {
    Serial.println("Append failed");
  }
  file.close();
}
void loop()
{
  readDistanceValue();
  presssurereading();
  readPressureValue();
  readDeviceTempValue();
  clockwiserotation();
  counterclockwiserotation();
  motorstop();
  lmitswitch();
//  obtainReadings();
 obtain_Date_Time();
 data_logging();
 sensor_data++;
  webSocket.loop();
  webSocket3.loop();
}
