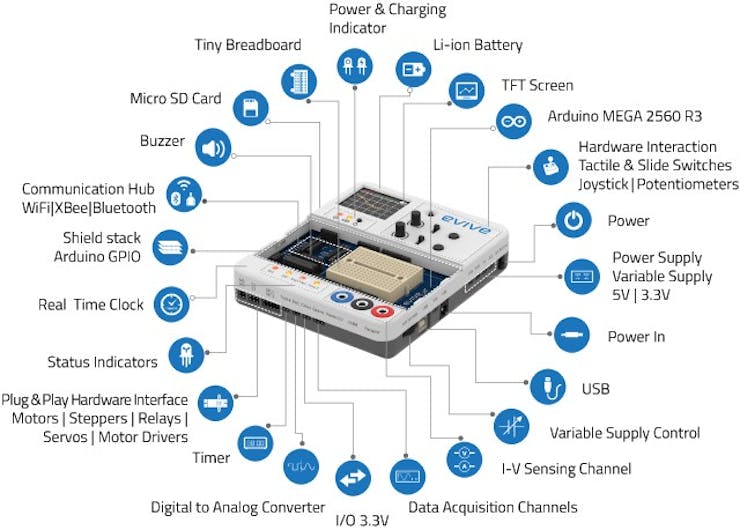

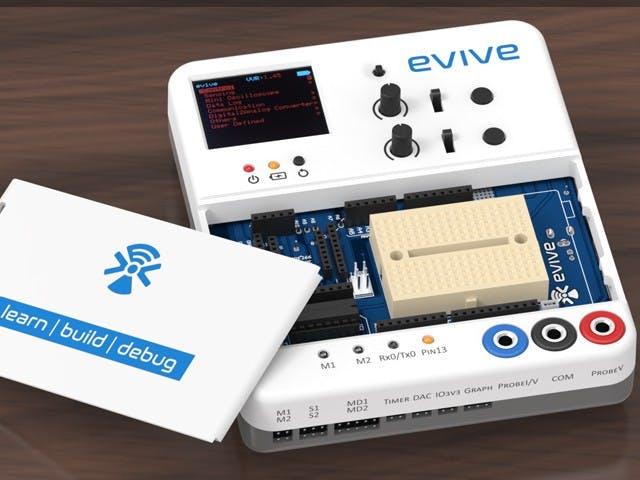

Things used in this project

Hardware components:
Ardgen mega
Arduino Mega 2560 & Genuino Mega 2560
Micro-Controller
×1
Texas Instruments LM2596 5V
Buck Converter
×1
Texas Instruments LM2596 ADJ
Buck Converter for Variable Voltage
×1
Texas Instruments LM1117 3V3
Electronic Components / Misc. Electronic Components
×1
2600mAh Lithium-ion Battery
18650 Type
×1
Texas Instruments SN754410NE
Interface and IO ICs / Peripheral Drivers and Actuators (Motor Driver)
×1
4243157
Texas Instruments Level Shifter
Logic ICs / Receivers, Transceivers
×1
NXP PCF8563
Clock and Timer ICs / Real-Time Clocks
×1
Microchip MCP4725
Data Converters / Digital to Analog Converters (DACs)
×1
Mouser ADE7912
Dual channel 24-bit Isolated ADC
×1
TFT 1.8" Screen
ST7735R driver, SPI Communication
×1
Digital Joystick
5-way Navigation Key
×1
SD Card Slot
Micro SD card
×1
Esp12e
Everything ESP ESP8266 ESP-12E
Inbuilt ESP8266 ESP-12E 2mm pitch headers
×1
11373 01
SparkFun XBee Explorer Regulated
Inbuilt XBee/Zig-Bee 2mm pitch headers
×1
HC-05 Adapter
Inbuilt HC-05 0.1" pitch headers
×1
Potentiometers
×2
3 Position Slide Switch
×2
Tactile Switch
×2
Adafruit industries ada64 image 75px
Solderless Breadboard Half Size
×1
Te connectivity 4 103741 0 image 75px
Male Header 40 Position 1 Row (0.1")
×1
3m 969102 0000 da image 75px
Generic Jumper (0.1")
×2
2471 10
Adafruit HUZZAH ESP8266 Breakout
Inbuilt ESP8266 Breakout Jumper Pins for model ESP-12E
×1
Software apps and online services:
Ide web
Arduino IDE

Custom parts and enclosures

evive's CAD model
It includes full CAD model of evive with all electronics components and casing.

Schematics

evive's user-friendly schematic diagram
It includes a very user-friendly schematic showing the necessary connections, I/O pins, ICs etc.

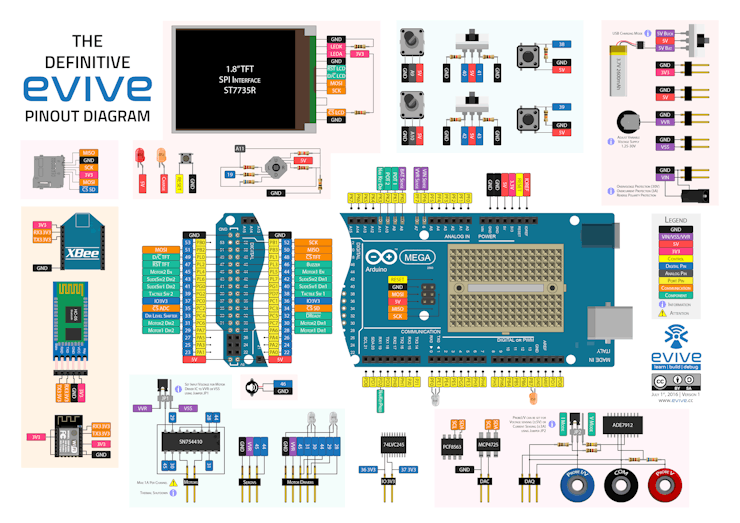

Eviveschematicpinoutdiagram

Code

evive software
This repo contains Arduino and C++ based libraries and files for uploading to evive. It contains a menu based function for list (control, sensing, mini oscilloscope, etc.) and user defined functions section. All the necessary libraries like TFT library etc are included. (Under development)
