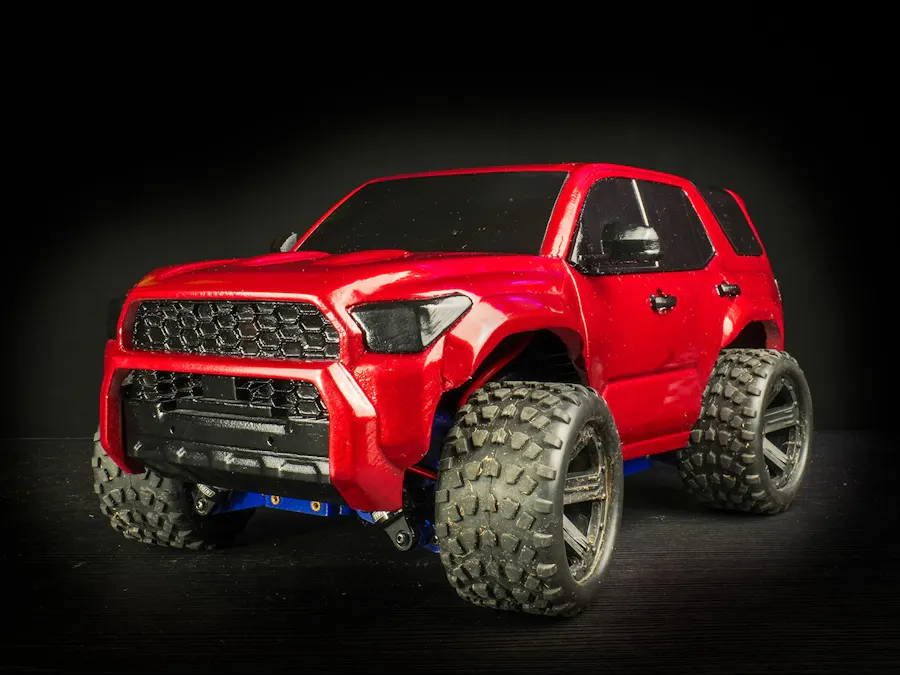

Engineering a Durable 3D Printed 4WD RC Platform

Let’s be honest.

Most 3D printed RC cars look amazing… until you actually drive them.

Then something strips.

Or melts.

Or snaps.

This project took me about a year of breaking parts to get right.

What started as a simple idea turned into a full redesign of almost every critical component. Differentials failed. Arms cracked. Gears softened. Cooling didn’t work. Steering geometry was wrong more times than I want to admit.

But eventually, it became a reliable four wheel drive platform that runs around 35 km/h and survives about 30 minutes on 3S.

Here’s what actually happened.

The Drivetrain Reality Check

I began with fully 3D-printed differentials.

I tested multiple designs. Different tooth profiles. Different materials. Different infill strategies.

They all failed.

At this scale, once you add real torque, plastic gears just do not hold up long term.

So I made a decision I should have made earlier. Critical torque components need to be metal.

Instead of hunting for tiny 1/18 scale options with questionable durability, I used steel differential gears designed for a 1/10 platform. Overkill? Maybe. Reliable? Yes.

Since this is four wheel drive, I needed two of them.

I designed custom printable housings to hold and protect them, and I switched to threaded inserts because I was tired of destroying plastic threads every time I disassembled the car.

That alone made future iterations much easier.

Suspension Took Multiple Casualties

The suspension arms did not survive first contact. Early versions cracked at the pivots. Shock mounts failed. Stress collected in exactly the places I should have predicted.

So I redesigned them.Then redesigned them again.Then again.

Oil shocks helped absorb impact loads and protect the arms.

Adding bearings to the wheel hubs made a huge difference too. In earlier projects, I literally melted plastic from friction. I did not want to repeat that mistake.

One thing became clear during this phase. You cannot just make parts thicker and hope for the best. Geometry matters more than brute material.

More Power, More Problems

Most 1/18 cars use small motors. I wanted more power.

The price difference to step up was not dramatic, so I went bigger.

That created new problems immediately.

Clearances were tight. Gear alignment became critical. Mount rigidity mattered more than I expected.

Then, after about 15 minutes of testing on 3S, the motor overheated. The printed gears softened and stripped.

That was frustrating.

Heat was not a side issue. It was the real enemy.

I added a heatsink and fans. At first, the fans barely spun. Turns out the motor magnet was interfering with them because of how I positioned the cooling unit.

So I redesigned that setup. Changed spacing. Changed orientation. Adjusted airflow.

Eventually, it worked.

I stayed with a brushed ESC on purpose.

This build is about smart compromises. It does not need to be the fastest thing alive. It needs to be reliable.

Steering Was the Most Annoying Part

Small-scale steering geometry is unforgiving.

Limited space. Tight tolerances. No margin for error.

I redesigned the steering linkage at least ten times.

Arms snapped. Angles were off. Ackermann geometry was wrong. Slop developed in places it should not.

Eventually, I found a layout that was compact, strong enough, and responsive.

The next version will use metal rod ends and a stronger servo. That is the natural upgrade path.

TPU Tires vs Rubber

I printed TPU tires because I wanted everything to be printable.

Then I tested them against rubber on concrete, asphalt, and grass.

Rubber wins.

More grip. Better control. More confidence.

TPU looks cool. Rubber performs.

That one was simple.

The Ugly Box Phase

Before the 4Runner body existed, this was just a brutal test chassis.

Basically, a box on wheels.

It was built to break things fast so I could fix them faster.

Once it survived repeated abuse, I felt confident enough to design the body.

The 4Runner Shell

Modeling the Toyota 4Runner body took months.

Wide stance. Sharp lines. Aggressive proportions.

Printing it was the easy part.

Finishing it was not.

Sanding.

Filler.

Wet sanding.

Paint.

The first paint attempt failed completely.

The surface lifted.

Probably because I rushed thecuring time in a cold garage. Canada's problems.

So I sanded it all down and did it again.

The second time worked.

Clear coat.

Polishing.

Final assembly.

Now it looks good and actually survives driving.

What This Project Taught Me

• Do not print high-torque drivetrain parts in standard filament and expect them to last.
• Heat management matters more than you think.
• Bearings are not optional.
• Geometry beats thickness.
• Testing is the only honest design tool.

This is not just a decorative 3D print.

It is a platform built through failure, iteration, and mechanical reality.

And that is what makes it work.
