Raspberry Pi Bartop Arcade Cabinet

Story and build

Here is a project I did a while ago: after seeing some videos and reading some articles about people using a Raspberry Pi to play retro games, I decided to build my own custom fullsize bartop arcade cabinet.

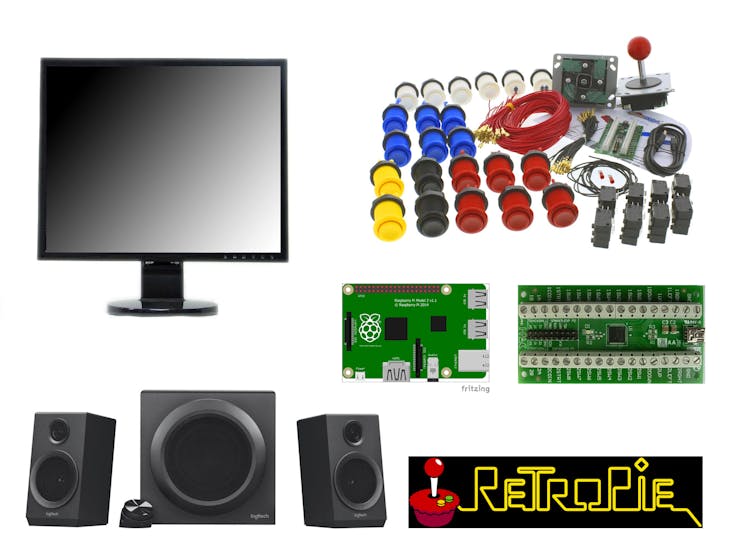

I did some research and decided I would need a Raspberry PI 2B, an I-PAC 2 interface, to connect the joysticks and buttons, and RetroPie software as the main parts to make it work.

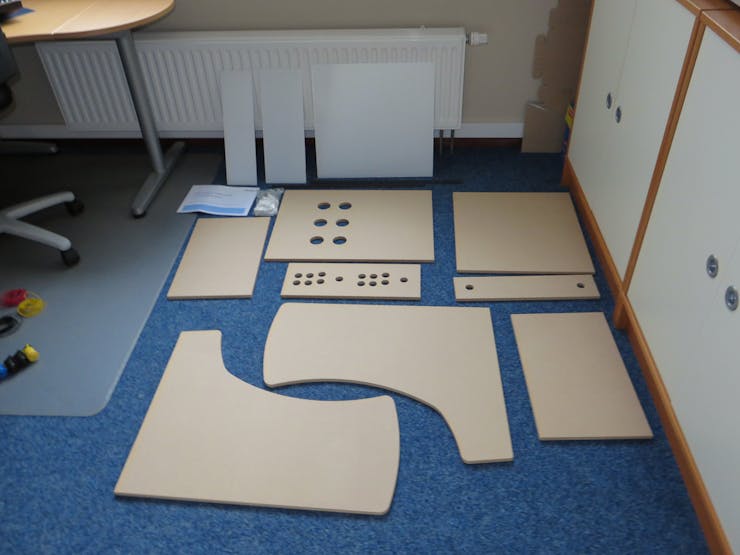

For the cabinet I decided to order pre-cut MDF panels and acrylic sheets.

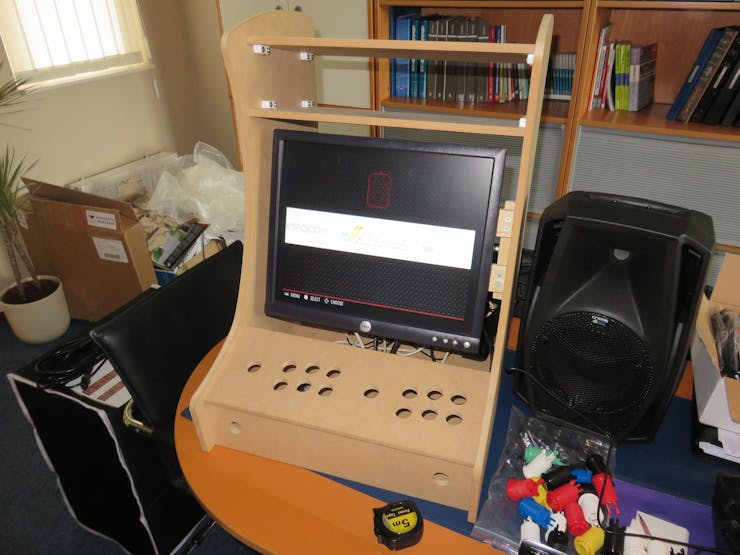

After assembling the cabinet, I did a test with the monitor and RetroPie software installed.

Note: I used a monitor with an aspect ratio of 4:3 to better match the resolution of retro games.

As this was succesful, it was time to spraypaint the cabinet.

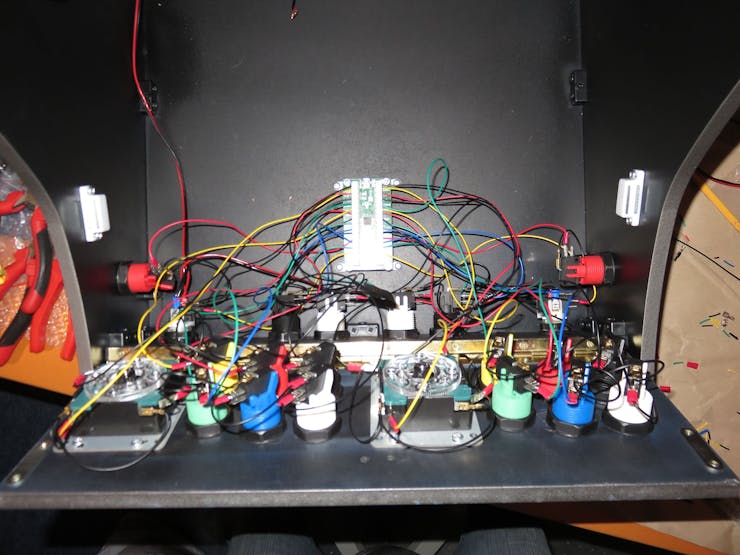

I installed the joysticks and buttons and connected them to the I-PAC2.

Then I installed the speakers and created a custom marque around the Metal Slug theme.

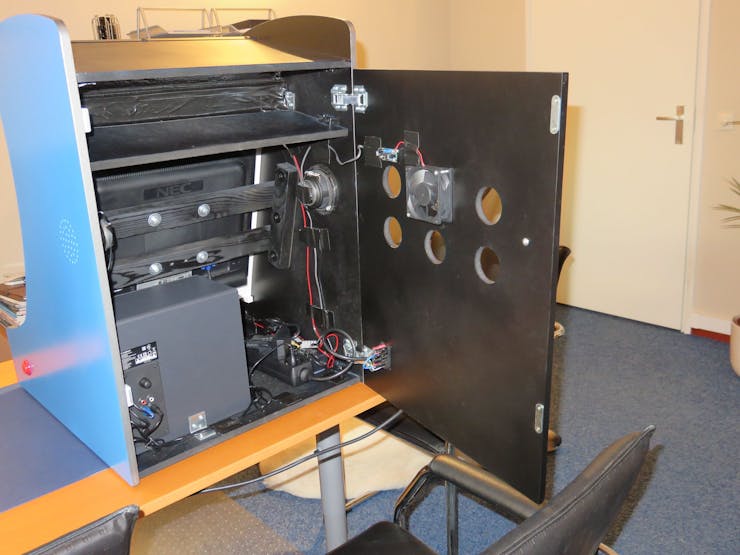

I added the marquee with backlight, a power-switch and a small fan to blow out the heat of the monitor.

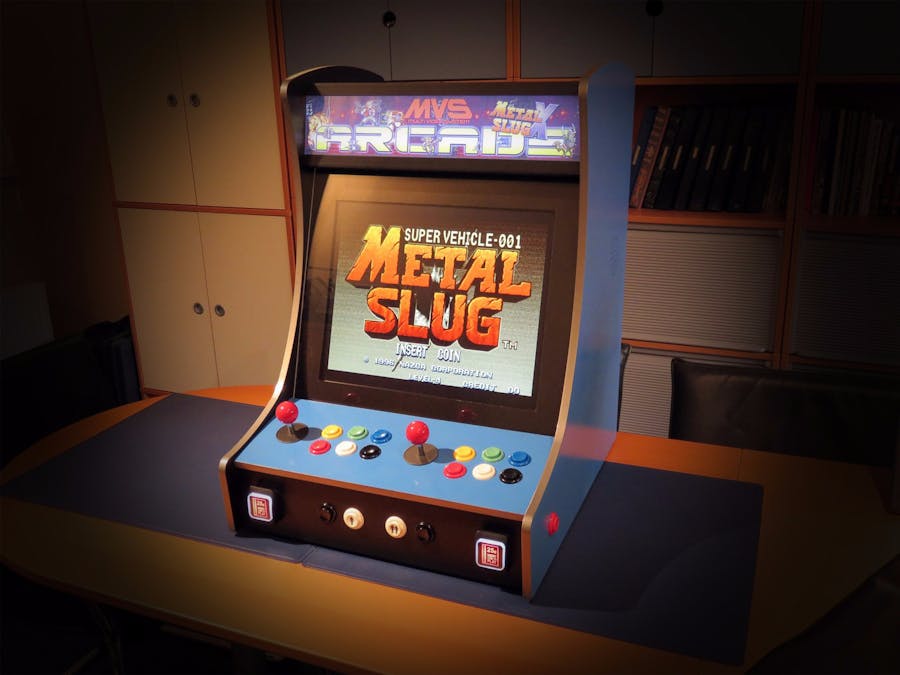

The finished project

And the project was finished! Here is a video of the building progress with a demo at the end.
