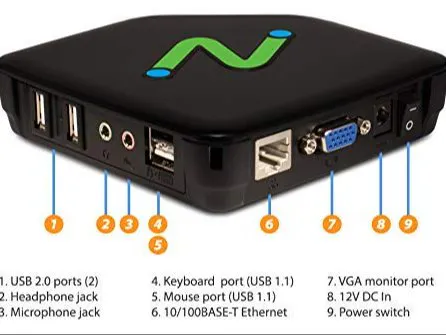

The MissionThe nComputing L300 is a robust "Zero Client" terminal that has become a common sight in e-waste bins. But as an electronics engineer, I see more than a terminal; I see a high-quality development board powered by the ST SPEAr600 Dual-Core ARM926EJ-S processor. This project is a technical journey to liberate this hardware from its proprietary cage.
The Teardown & DiscoveryThis project documents the complete hardware analysis of the L300, including:

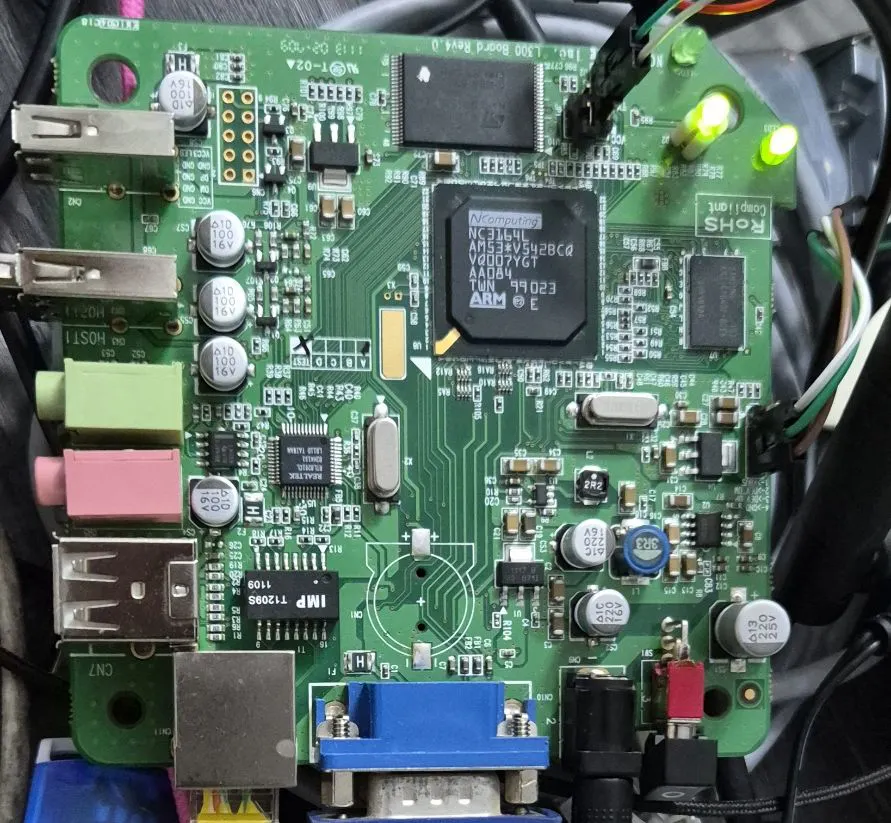

PCB Reverse Engineering: Identifying the UART headers, JTAG pads, and boot-mode pins.
- PCB Reverse Engineering: Identifying the UART headers, JTAG pads, and boot-mode pins.
Component Deep-Dive: Exploring the interaction between the SPEAr600 SoC, onboard DDR2 RAM, and SPI Flash.
- Component Deep-Dive: Exploring the interaction between the SPEAr600 SoC, onboard DDR2 RAM, and SPI Flash.
Console Access: Brute-forcing the serial communication to intercept the bootloader.
- Console Access: Brute-forcing the serial communication to intercept the bootloader.
Why it MattersBy unlocking the L300, we transform a $5 e-waste item into a powerful, dual-core embedded Linux node. Whether it's for IoT Gateways, custom industrial controllers, or even EtherCAT slave applications, this research provides the community with the documentation needed to give these devices a second life.
Technical Repository: All findings, pinouts, and custom U-Boot/Kernel configurations are being updated in the official Ege Robotics GitHub repository.
