Printing and Scrolling Text in LCD with 8051 in 4-bit Mode

Software Used:

As we are showing proteus simulation so FOR CODING AND SIMULATION YOU REQUIRED:

1. Keil uvision: Their are lots of product from keil. so you will be required c51 compiler. You can download that software from here.

2. Proteus Software for simulation: This is the software to show simulation. You will get lot of information to download this software.

If you are doing it in hardware then you would require one software that is flash magic to upload the code in your hardware. Remember flash magic is developed by nxp. So you can not upload all 8051 family microcontroleer through this software. So Philips based controller only you can upload.

Components Required:

Here in our demo video we are using proteus simulation but definetly if you are doing it in your hardware you will be required these components for this project:

8051 Development board: So if you have this board it will be better so that you can easily upload the code by yourself.

• LCD 16*2: This is 16*2 LCD. In this LCD we have 16 pins.

• USB to UART converter: This is 9Pin D type male Connecter For Rs232 O/p

• Jumper Wires

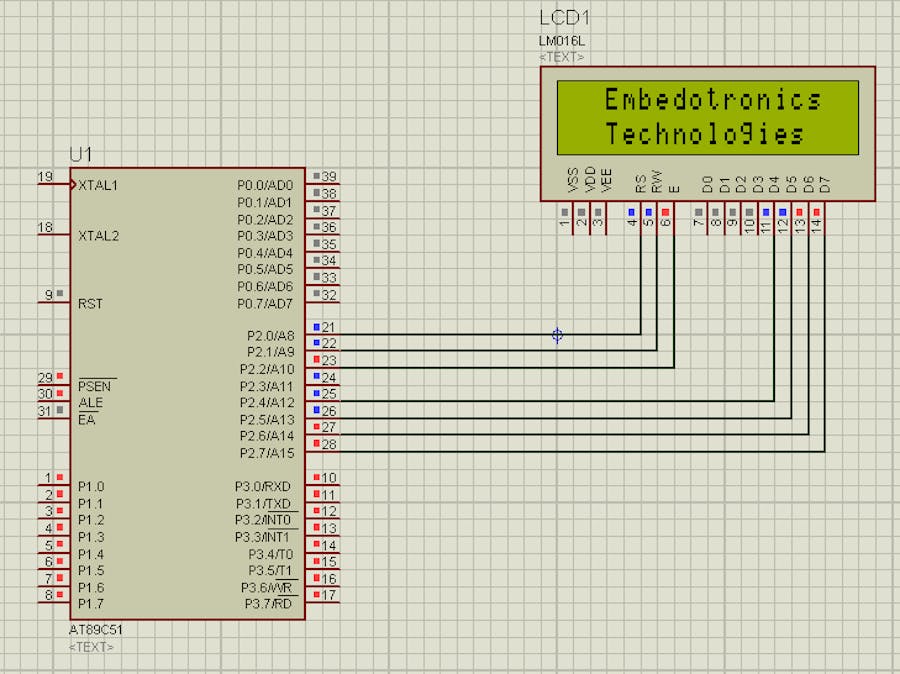

Circuit Diagram:

Working Principle of This Project:

As in 8 bit we need to connect all 8 data pins of LCD to microcontroller. So total 11 pins of microcntroller we need to use as we have 3 control pins(rs,rw,e) inlcd as well. So the advantage of LCD in 4 bit is that we are saving 4 pins of microcontroller so that we can use these pins for other work.

Now the working principle of code is very simple. First you just download the code.

Ok, now I will take one function from the code and will tell how that command or data LCD is receiving. In our code first command instruction is:

cmd(0x28);

So now it will go to it's definition:

void cmd(unsigned char a) {
unsigned char x;
x=a&0xf0;
cmd1(x);
x=(a<<4)&0xf0;
cmd1(x);
}

So in the above function you can see a is nothing but 0x28. Now through x=a&0xf0, lower nibble will become 0. As we are using AND operator with 0xf0. So in higher nibble only we have data, then through cmd1(x) we are sending 0x20 to port 2 and LCD is connected to higher bits of port 2 so it will receive 2, now immediately we need to send the next nibble which is nothing but 0x8. So for that you can see in the function x=(a<<4)&0xf0, we are shifting a value 4 times and then we are using and operation with 0xf0.

So just understand this a<<4 is nothing but 0x28<<4, which means 00101000<<4, So we will get 10000000 and we are anding with 0xf0 and we will get 0b10000000 which is 0x80, and from next function cmd1(x) we are sending that data to lcd and now it will receive 0x80 so this way we have sent the whole data 0x28.

So the same way every command and data LCD will receive.

I hope you understand this. Still you can checkout the video which is in the next step. The whole project description is given in that video.

Code and Video:

You can get the source code from our GitHub Link. The whole project description is given in the above video.

If you have any doubt regarding this project feel free to comment us below. And if you want to learn more about embedded system you can visit our YouTube channel.
