Night Light

Hi,

This code is that this LED changes automatically. Otherwise, we would have to change the wires so that it remains fixed to a color, but this code changes it automatically.

Explanation:

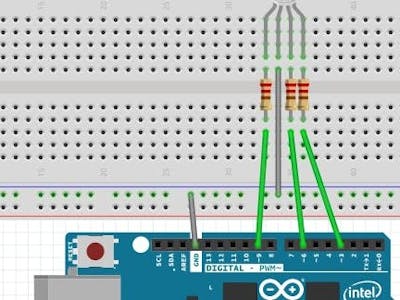

With this code, it sends power to the breadboard and to the desired LED pin.

Code:

// RGB LED

// The RGB LED will appear red, green, and blue first, then red, orange, yellow, green, blue, indigo, and purple.

// Email:support@sunfounder.com

// Website:www.sunfounder.com

// 2015.5.7

/*************************************************************************/

const int redPin = 11; // R petal on RGB LED module connected to digital pin 11

const int greenPin = 10; // G petal on RGB LED module connected to digital pin 10

const int bluePin = 9; // B petal on RGB LED module connected to digital pin 9

/**************************************************************************/

void setup()

{

pinMode(redPin, OUTPUT); // sets the redPin to be an output

pinMode(greenPin, OUTPUT); // sets the greenPin to be an output

pinMode(bluePin, OUTPUT); // sets the bluePin to be an output

}

/***************************************************************************/

void loop() // run over and over again

{

// Basic colors:

color(255, 0, 0); // turn the RGB LED red

delay(1000); // delay for 1 second

color(0, 255, 0); // turn the RGB LED green

delay(1000); // delay for 1 second

color(0, 0, 255); // turn the RGB LED blue

delay(1000); // delay for 1 second

// Example blended colors:

color(255, 0, 252); // turn the RGB LED red

delay(1000); // delay for 1 second

color(237, 109, 0); // turn the RGB LED orange

delay(1000); // delay for 1 second

color(255, 215, 0); // turn the RGB LED yellow

delay(1000); // delay for 1 second

color(34, 139, 34); // turn the RGB LED green

delay(1000); // delay for 1 second

color(0, 112, 255); // turn the RGB LED blue

delay(1000); // delay for 1 second

color(0, 46, 90); // turn the RGB LED indigo

delay(1000); // delay for 1 second

color(128, 0, 128); // turn the RGB LED purple

delay(1000); // delay for 1 second

}

/******************************************************/

void color (unsigned char red, unsigned char green, unsigned char blue)// the color generating function

{

analogWrite(redPin, red);

analogWrite(greenPin, green);

analogWrite(bluePin, blue);

}

/******************************************************/

//Controlling LED by potentiometer

//Rotate the shaft of the potentiometer and you should see the luminance of the LED change.

//Email:support@sunfounder.com

//Website:www.sunfounder.com

//2015.5.7

/******************************************/

const int analogPin = 0;//the analog input pin attach to

const int ledPin = 8;//the led attach to

int inputValue = 0;//variable to store the value coming from sensor

int outputValue = 0;//variable to store the output value

/******************************************/

Serial.begin(9600);//set the serial communication baudrate as 9600

}

/******************************************/

void loop()

{

inputValue = analogRead(analogPin);//read the value from the potentiometer

Serial.print("Input: "); //print "Input"

Serial.println(inputValue); //print inputValue

outputValue = map(inputValue, 0, 1023, 0, 255); //Convert from 0-1023 proportional to the number of a number of from 0 to 255

Serial.print("Output: "); //print "Output"

Serial.println(outputValue); //print outputValue

analogWrite(ledPin, outputValue); //turn the LED on depending on the output value

delay(1000);

}

/*******************************************/
