Remote Tester

Description

In this project, you'll learn how to make remote tester step by step.

Details

Let's Get Started!

Step 1: Take all components as shown. For example:

LED-3V

IR sensor

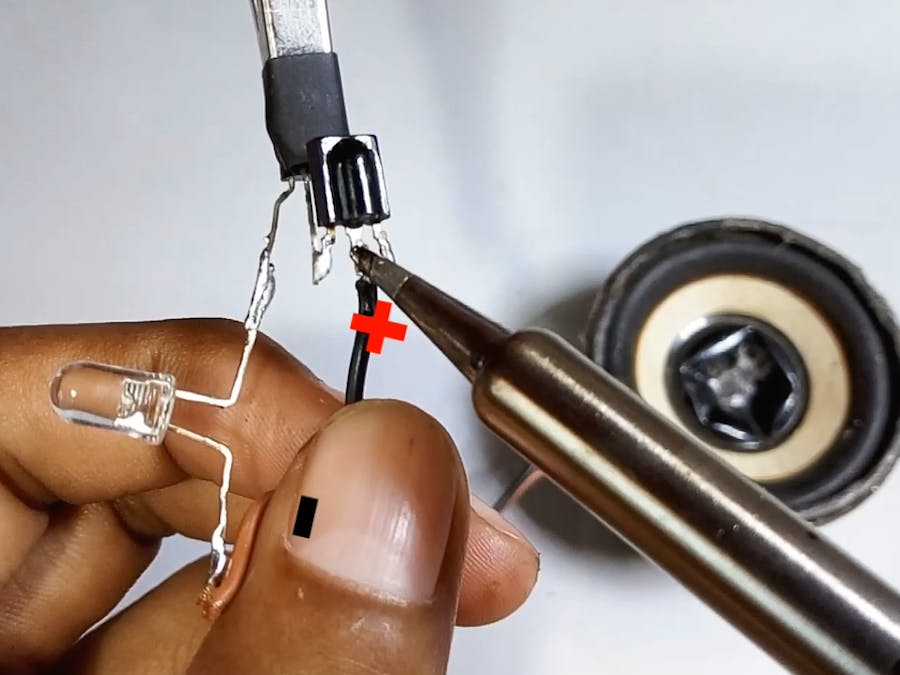

Step 2: Connect components as shown in the circuit diagram.

Step 3: Now, give power supply to the circuit. DC power supply: 3-5V

Step 4: Press any button of any remote towards IR sensor.

Step 5: Now you will observe LED is blinking and speaker gives blinking sound.

I guess it is going to work!
