Make N-Channel MOSFET 200 Watts Mono Audio Amplifier Board

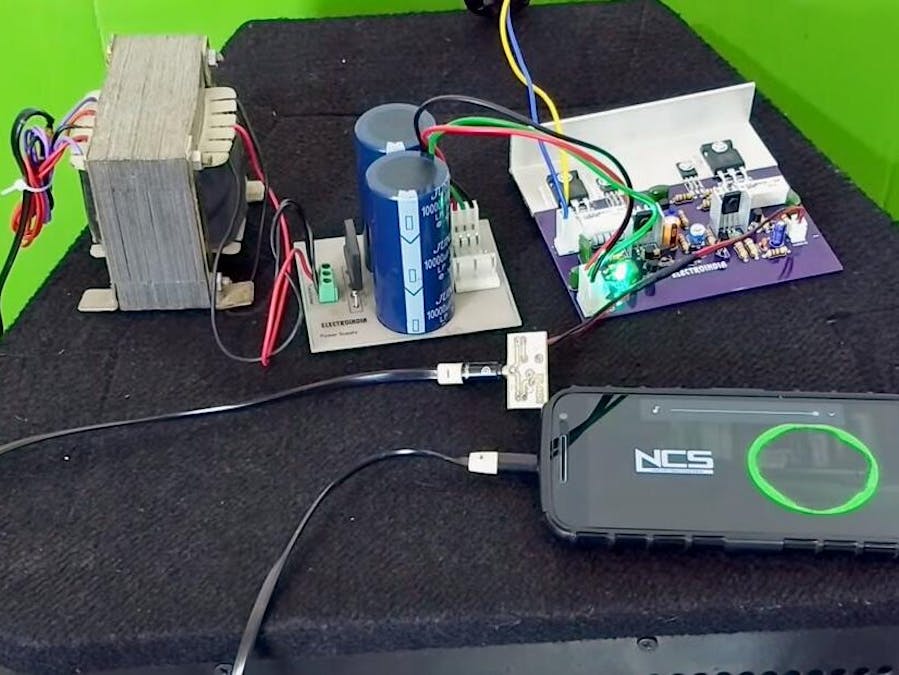

I used IRFP260N N-Channel MOSFET and 45-0-45 volt 5 AMP transformer for this project.

1. Materials we need in this project.

2. Install all the components on board.

3. Cutting, liquid flux and soldering.

4. Mark the position, drill and mount the heatsink.

5. Connecting.

6. Test it.

Product list:

1 Resistor ½ Watt 10 OHM https://www.utsource.net/itm/p/8294726.html

3 Resistor ½ Watt 100 OHM https://www.utsource.net/itm/p/8294921.html

2 Resistor ½ Watt 10K https://www.utsource.net/itm/p/8294846.html

2 Resistor ½ Watt 1K https://www.utsource.net/itm/p/8294877.html

5 Resistor ½ Watt 220 OHM

1 Resistor ½ Watt 22K https://www.utsource.net/itm/p/8294894.html

2 Resistor ½ Watt 27 OHM https://www.utsource.net/itm/p/8294870.html

2 Resistor ½ Watt 27K https://www.utsource.net/itm/p/8294964.html

1 Resistor ½ Watt 33 OHM https://www.utsource.net/itm/p/8294856.html

3 Resistor ½ Watt 47 OHM https://www.utsource.net/itm/p/8294880.html

3 Resistor ½ Watt 470 OHM https://www.utsource.net/itm/p/8294911.html

1 Resistors 2 Watt 10 OHM https://www.utsource.net/itm/p/8307326.html

2 Resistors 5 Watts 0.33 OHM https://www.utsource.net/itm/p/6482465.html

1 Capacitor 1 UF https://www.utsource.net/itm/p/6484548.html

1 Capacitor 100uf50V https://www.utsource.net/itm/p/6484543.html

1 Capacitor 10PF https://www.utsource.net/itm/p/8345032.html

1 Capacitor 47 PF https://www.utsource.net/itm/p/8345512.html

5 Capacitor 0.1uf = 104 https://www.utsource.net/itm/p/6485161.html

2 Capacitor 331 = 330 PF https://www.utsource.net/itm/p/8345900.html

1 Connector 2 Pin (2.54mm) https://www.utsource.net/itm/p/8310125.html

1 Connector 2 pin (3.96mm) https://www.utsource.net/itm/p/8309799.html

1 Connector 3 pin (3.96mm) https://www.utsource.net/itm/p/8310110.html

2 Diode 1N4148 https://www.utsource.net/itm/p/8369338.html

1 Preset 1K https://www.utsource.net/itm/p/6494032.html

1 Preset 220 OHM (or 200 Ohm) https://www.utsource.net/itm/p/8306517.html

1 LED https://www.utsource.net/itm/p/6493467.html

4 Transistor 546 https://www.utsource.net/itm/p/8412837.html

2 Transistor 556 https://www.utsource.net/itm/p/8424549.html

2 Transistor IRFP260N https://www.utsource.net/itm/p/1559815.html

2 Transistor MJE340 https://www.utsource.net/itm/p/682680.html

2 Transistor MJE350 https://www.utsource.net/itm/p/682679.html
