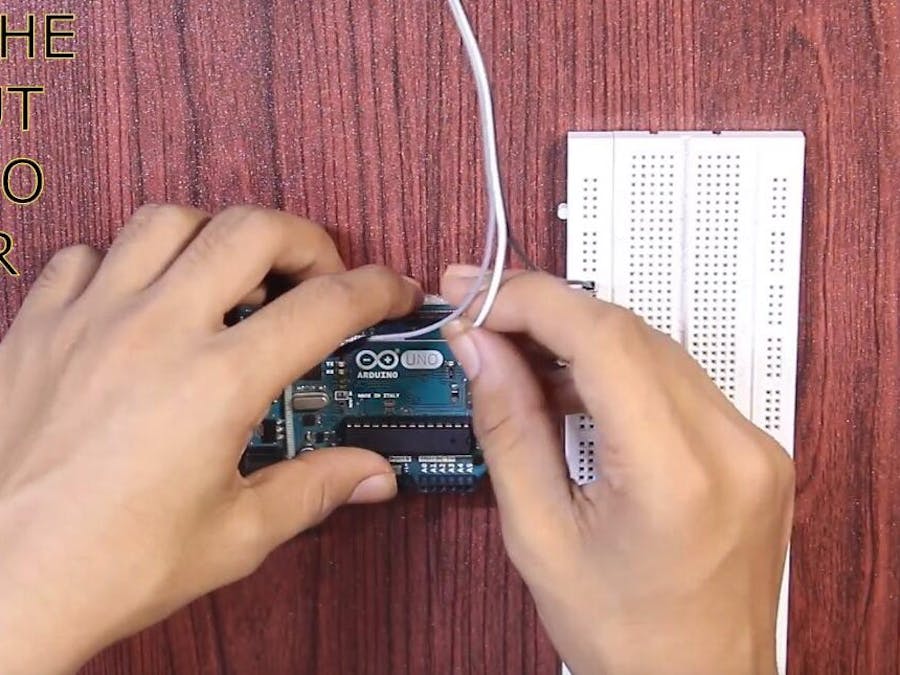

Automated Bathroom Light with Arduino

Description

In this project I will show you how to make an automated bathroom light with Arduino.

Steps

✦ Step 1: Connect the PIR sensor to Arduino vcc.

✦ Step 2: Connect the PIR output to Arduino 4 number pin.

✦ Step 3: Connect the PIR ground to Arduino ground.

✦ Step 4: Connect the relay vcc to Arduino 5V.

✦ Step 5: Connect the relay output to Arduino 2 number pin.

✦ Step 6: Connect relay ground to Arduino ground.

✦ Step 7: Connect the bulb to relay to common and no.
