GERBER PCB :
https://mega.nz/file/2I4i3a7S#ZyqEqiuIGaVajV-lcWai2gThUQszs49y31eoZpxR4wk
SCHEMATIC DIAGRAMHere we will see the schematic diagram of the project and all its values to be able to do it both on the breadboard or on the pcb

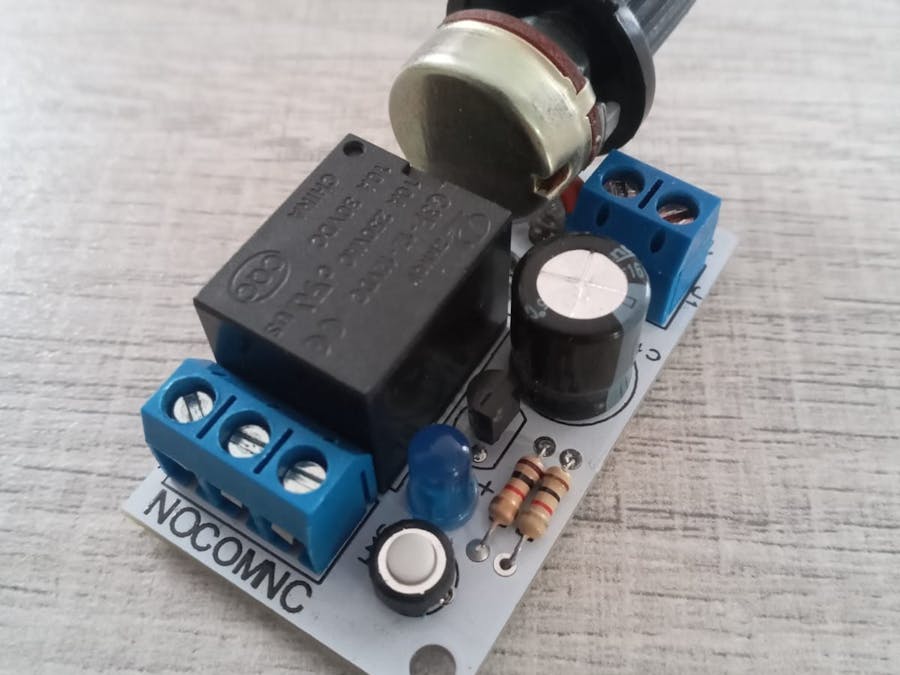

Many times we have a hard time making circuits without the data sheet of a main component. This is the case of a 555, we know that with this device we can carry out many applications, pulse generators, delay generators, etc. But what would happen if I wanted to make a disconnection time delay circuit with a single pulse? Let's put ourselves in the case that one day we don't have this integrated. Well, in this video we will learn how to make the turn-off time circuit with a single pulse, just with a few resistors and a capacitor without using the 555 or another similar component, in addition, we will be able to regulate the duration of the turn-on time after having pressed a button.
- 3 RESISTORS 1K 1/4W
- 1 DIODE 1N4148
- 1 DIODE LED 5MM BLUE
- 1 BUTTON NO 2 PIN
- 1 CAPACITOR ELECTROLITO 1000UF16V
- 1 TRANSISTOR 2N2222A
- 1 BLOCK TERMINAL BLUE 2 PIN
- 1 BLOCK TERMINAL BLUE 3 PIN
- 1 POTENTIOMETER 1M ohm
- 1 RELAY 12VDC
- 1 PCB
- VIN 12VDC
- I MAX 100mA
- AC LOAD CONTROL 10A 220VAC (OUTPUT)
- LOAD CONTROL DC 10A 30VDC (OUTPUT)
- VARIABLE TIME CONTROL
I designed my project in the proteus software here I leave the link of the design
https://mega.nz/file/vRBH3AiA#EIbYpgtVuAqIsOB8mv0B2zwa_oV1f7SwCYjsDyxZqdA
Once the pcb is designed, we will send our friends from JLCPCB to manufacture our PCB.
5pcbs only $2
JLCPCB number 1 PCB manufacturing company worldwide professional pcbs and excellent finish.
GERBER PCB:
https://mega.nz/file/2I4i3a7S#ZyqEqiuIGaVajV-lcWai2gThUQszs49y31eoZpxR4wk
you can get your pcbs in different sizes and colors.
