IoT Code Deployer-er

A code deployer-er remote for building and deploying projects, for the IoT fanatic who can't be bothered to sign into a build server.

BeginnerFull instructions provided1 hour695

Things used in this project

Hardware components

Bluz DK

Modulo Display

Modulo Knob

Modulo Base for Particle

Software apps and online services

DeployBot

Story

Here at bluz, we use DeployBot to build and deploy all our docs, websites, web apps like the Gateway Console, and everything else. It is a great little tool, but we just hate having to actually sign in to build and deploy our code! Our staging and testing servers build and deploy automatically whenever we checking, but having to go to the website and dig through all the listings to deploy to production seems so.... effortful (that, or we're just lazy!)

So, we built ourselves a little portable remote that we can deploy our code with the power of the IoT. We wanted a screen and a way to toggle through our builds, so we used the Modulo platform with their fantastic set of modular components. They have a base built specifically for the Particle platform which works perfect with bluz since it is pin-compatible. This means the remote is built completely without soldering or breadboarding, just snap the pieces together!

First, we setup the knob to scroll through the builds that we want to deploy. When we get to the one we want, a simple click brings up the confirmation screen (hey, don't deploy production code without double checking first!). One more click and the build kicks off.

Using Webhooks and Particle.publish events, we can send REST calls directly to DeployBot. They have a great API that we can kick off a build and then poll the results to get the status. If the build succeeds or fails, the remote will tell us by displaying the message on the screen. Instant feedback!

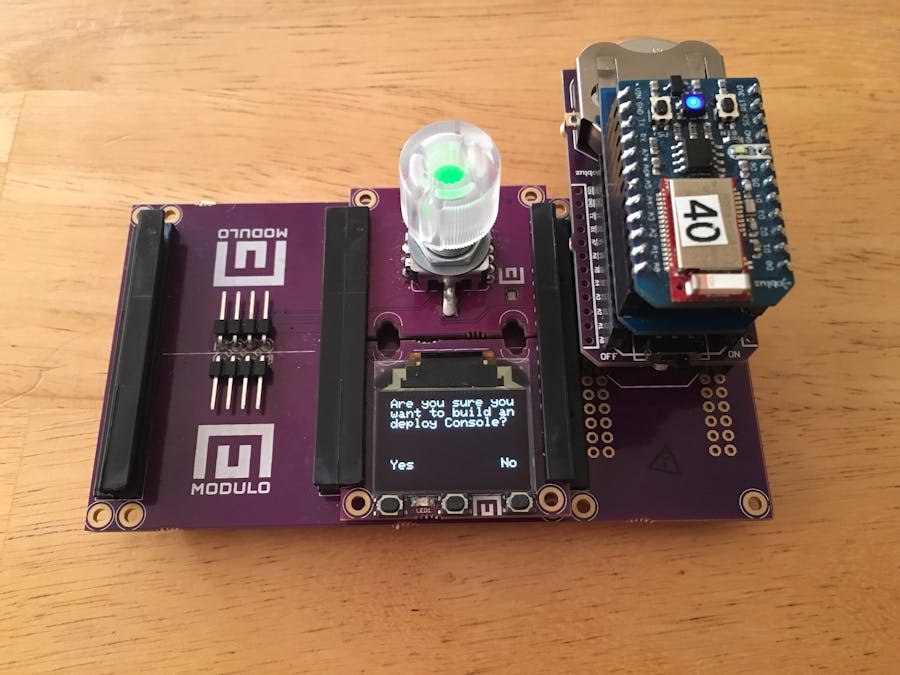

Here is the remote in progress:

With the bluz firmware, you can pretty easily customize which builds you want to deploy, just change the array which changes the list displayed on the screen. Or use the remote for any other task you want to automate (turn on lights, control your thermostat, launch Skynet, whatever!)

We use two Webhooks to DeployBot, the first is to kick off the build and the second is to poll for the status. In each case, we use the response template to format the results so we only get back the data we need. The response template lets you break apart the json response from the API and hand down only the parts you need to bluz.

For the Build Webhook, we hand back only the id of the new build and ignore all other data so we don't have to parse json responses on the microcontroller, which is much harder (and remember, we're lazy!). With that id, we send a new Webhook to get the status of the build and use the response template to hand us back only the state. We then poll that until the state hits one of the three final options: failed, skipped, or success.

Now we can just sit back and deploy our builds wherever, whenever (and most importantly, be lazy!)

{
    "url": "https://bluz.deploybot.com/api/v1/deployments",
    "deviceID": "BLUZ_DEVICE_TO_TRIGGER_WEBHOOK",
    "event": "BuildDeployBotConsole",
    "mydevices": true,
    "requestType": "POST",
    "headers": {
      "X-Api-Token": "DEPLOY_BOT_TOKEN"
    },
    "json": {
      "environment_id": "ID_OF_THE_DEPLOY_BOT_ENVIRONMENT",
      "trigger_notifications": true,
      "comment": "Deploy via API"
    },
    "noDefaults": false,
    "rejectUnauthorized": true,
    "responseTemplate": "{{id}}",
    "responseTopic": null
  }

// This #include statement was automatically added by the Particle IDE.
#include "application.h"
#include "Modulo.h"

// Declare callback functions for knob and display
void onKnobPressed(KnobModulo &k);
void onKnobTurned(KnobModulo &k);
void onButtonPress(DisplayModulo &d, int button);

// Create an object that represents the knob
KnobModulo knob;

// Create an object that represents the display
DisplayModulo display;

const char *builds[] = {"Console", "Website", "Docs" };
int buildsLength = 3;
int sections = 360/buildsLength;
int currentIndex;

int turnOffInterval = 12000;
int timeToTurnOff = turnOffInterval;

enum UserState {
    Toggling,
    Confirmation,
    WaitingForID,
    WaitingForBuild,
    BuildDone
};
UserState state = Toggling;
String buildState;

void setState(UserState newState) {
    state = newState;
    switch (state) {
        case Toggling:
            display.clear();
            display.refresh();
            knob.setHSV(0, 0, 0);
            break;
        case Confirmation:
            char confirmString[36];
            sprintf(confirmString,"deploy %s?",builds[currentIndex]);
            display.clear();
            display.println("Are you sure you");
            display.println("want to build and");
            display.println(confirmString);
            display.println("");
            display.println("");
            display.println("");
            display.println("Yes           No");
            display.refresh();
            break;
        case WaitingForID:
            display.clear();
            display.setTextColor(0,255,0);
            display.println("Building!");
            char pubString[60];
            sprintf(pubString,"BuildDeployBot%s",builds[currentIndex]);
            Particle.publish(pubString, PRIVATE);
//            Particle.publish("hook-response/BuildDeployBotConsole/0", String(5175198));
            break;
        case WaitingForBuild:
            break;
        case BuildDone:
            display.clear();
            display.refresh();
            if (buildState == "failed") {
                knob.setColor(255,0,0);
                display.setTextColor(255,0,0);
                display.println("  FAILED!");
            } else if (buildState == "success") {
                knob.setColor(0,255,0);
                display.setTextColor(0,255,0);
                display.println("  SUCCESS!");
            } else if (buildState == "skipped") {
                knob.setColor(255,255,0);
                display.setTextColor(255,255,0);
                display.println("  SKIPPED!");
            }
            display.refresh();
            delay(8000);
            setState(Toggling);
            break;
    }

}

String buildID;
void buildCallHandler(const char *event, const char *data) {
    // Handle the webhook response
    buildID = String(data);
    setState(WaitingForBuild);
}

void buildGetHandler(const char *event, const char *data) {
    // Handle the webhook response
    buildState = String(data);
}

// The setup function is run once, when the program starts
void setup() {
    pinMode(D7, OUTPUT);
    //Callbacks for build webhooks
    Particle.subscribe("hook-response/BuildDeployBot", buildCallHandler, MY_DEVICES);

    //Callbacks for get status webhooks
    Particle.subscribe("hook-response/GetDeployBot", buildGetHandler, MY_DEVICES);

    // Attach the callback function to the knob and display
    knob.setButtonPressCallback(onKnobPressed);
    knob.setPositionChangeCallback(onKnobTurned);

    display.setButtonPressCallback(onButtonPress);

    // Run the callback once to set the initial text
    onKnobTurned(knob);
}

int hue = 0;
int hueIncr = 0.05;
int publishIncr = 5;
// The loop function is run constantly
void loop() {
    // Always call Modulo.loop() at the top of the loop function. It's
    // communicates with the modulos and executes callbacks if any events
    // have occured.
    Modulo.loop();

    if (millis() > timeToTurnOff && state < WaitingForID) {
        setState(Toggling);
    }

    if (state == WaitingForBuild) {
        knob.setHSV(hue, 0, 1.0);
        hue+=hueIncr;
        if (hue >= 360) {hue = 0;}
        delay(200);
        if (buildState == "failed" || buildState == "success" || buildState == "skipped") {
            setState(BuildDone);
        }
        if (publishIncr++ > 4) {
            publishIncr = 0;
            char pubString[60];
            sprintf(pubString,"GetDeployBot%s",builds[currentIndex]);
            Particle.publish(pubString, buildID, PRIVATE);
        }
    }

    System.sleep(SLEEP_MODE_CPU);
}

bool testRange(int numberToCheck, int bottom, int top)
{
    return (numberToCheck >= bottom && numberToCheck <= top);
}

int findIndex(int num) {
    for (int i = 0; i < buildsLength; i++) {
        if (testRange(num, i*sections, (i+1)*sections)) {
            return i;
        }
    }
    return 0;
}

void onKnobPressed(KnobModulo &k) {

    if (millis() > timeToTurnOff) {
        //if the screen was off, just turn it back on for 6 seconds
        timeToTurnOff = millis() + turnOffInterval;
    } else {
        //if the screen was on, move to the next stage
        switch (state) {
            case Toggling:
                setState(Confirmation);
                break;
            case Confirmation:
                break;
        }
    }
}

// This is our callback function. It will run when the knob is presed or turned.
void onKnobTurned(KnobModulo &k) {
    if (state != Toggling) {
        return;
    }

    // Get the angle of the knob. The angle is between 0 and 360
    float angle = k.getAngle();
    display.clear();
    int index = findIndex(angle);
    display.println(builds[index]);
    currentIndex = index;
    display.refresh();

    // Convert the angle (between 0 and 360) to a hue (between 0 and 1)
    float hue = angle/360.0;

    // The saturation is 0 if the button is pressed and 1 otherwise.
    float saturation = 1-k.getButton();

    // Set the knob's color
    k.setHSV(hue, saturation, 1.0);

    timeToTurnOff = millis() + turnOffInterval;
}

void onButtonPress(DisplayModulo &d, int button) {
    if (state != Confirmation) {
        return;
    }

    // Draw different text, in a different color, based on which button is pressed.
    switch (button) {
        case 0:
            setState(WaitingForID);
            break;
        case 2:
            //They pressed no
            setState(Toggling);
            break;
    }

    // Nothing will actually show up on the display until you call refresh.
    display.refresh();
}
