The Smart Wiring Watchdog is a high-utility diagnostic tool designed for technicians, loom builders, and panel wiremen. It replaces the tedious "multimeter beep test" with a smart, visual, and secure interface that identifies pins, logs them into a live diary, and monitors them for intermittent failures.

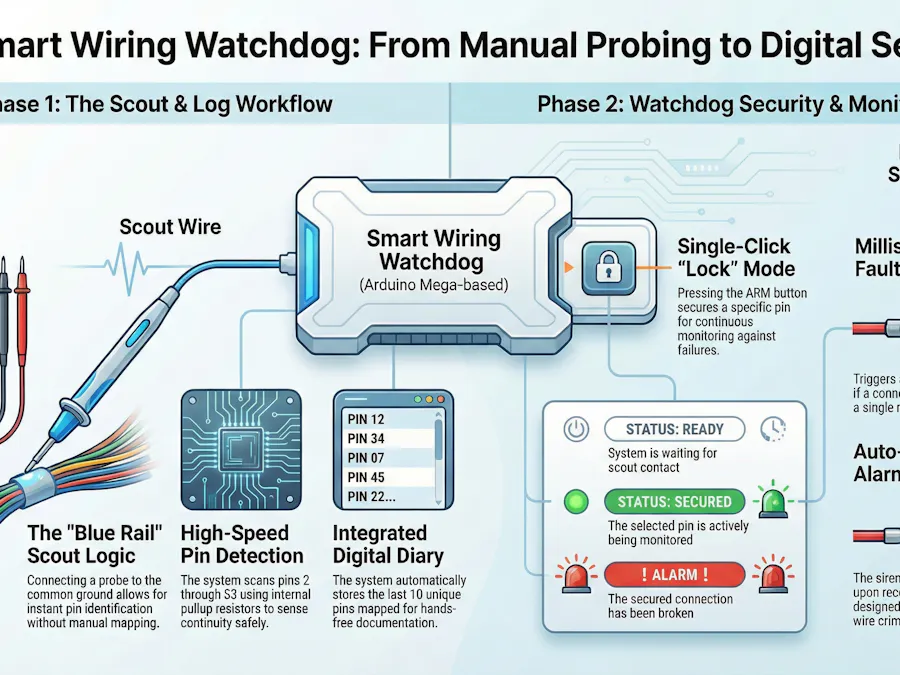

The Core Concept: The "Blue Rail" ScoutThe power of this system lies in the Common Ground (Blue Rail) logic. By connecting a single "Scout Wire" to the breadboard's blue ground rail, you create a mobile probe.
- Touch a wire: The system completes a circuit through the Scout Wire back to the Arduino.
- Result: The OLED instantly identifies the exact pin number, eliminating the need for manual mapping or guessing.
- ⚡ Live Pin Detection: Scans pins 2 through 53. Touch any wire to the Scout Probe to see its port number in high-contrast text.
- 🛡️ Watchdog Mode: "Lock" a pin into security mode. If the connection breaks for even a millisecond, the system triggers a Red Alert.
- 🔊 Auto-Reset Alarm: The siren screams if a wire is pulled but silences immediately if reconnected—perfect for testing "loose" crimps.
- 📔 Wiring Library (RAM Diary): Automatically remembers the last 10 pins you successfully mapped.
- 🔐 Triple-Click Hidden Menu: Rapidly press the ARM button three times to lock the screen on the Wiring Library—allowing you to document the loom hands-free.
Component
Pin
Function
Buzzer
41
Audible Siren & Feedback
Red LED
49
ALARM: Connection Broken
Yellow LED
47
DETECTED: Scouting Pin
Green LED
43
SECURE: System Idle / Armed
Button 1
50
ARM: Single-click (Lock) / Triple-click (Library)
Button 2
48
CLEAR: Disarm / Exit Library / Reset Scan
OLED Screen
20, 21
I2C Display (128x64 SSD1306)
Installation & Use- Flash the Script: Upload the Master Script to an Arduino Mega 2560.
- Common Ground: Connect the Arduino GND to the breadboard's Blue Rail. Plug your Scout Wire into this rail.
- Scout: Touch the probe to any wire in your loom. The screen will display PORT #XX.
- Lock: Press the ARM (50) button. The light turns Green. The port is now "Guarded."
- Test: Shake or pull the wire. If the connection is bad, the Red LED and Buzzer will trigger.
- Review: Triple-click ARM (50) to see the Wiring Library of all pins mapped in this session.
- Reset: Press CLEAR (48) to wipe the current guard and return to scouting.
This system utilizes the Mega’s internal INPUT_PULLUP resistors. The pins are held at a logical HIGH (5V) internally. The Scout Wire (connected to the Blue Rail/GND) pulls the pin LOW when touched. This is the safest and most reliable way to sense continuity without external interference.
The "Scout Wire" ExplainedUsing the Blue Rail as the home base for your scout wire is the "secret sauce" that makes this whole system work. In electronics, we call this a Common Ground.
- Setup: Run a jumper from Arduino GND to the Blue Rail (minus '-' sign) on your breadboard. Plug your Scout Wire into this rail.
- Why: The Scout Wire completes the circuit, allowing the Arduino to detect which pin is being touched. Without it, the system cannot "see" your wires.
- Speed: Instead of using a multimeter, you simply tap each wire with the Scout Wire—turning a 30-minute labeling job into a 30-second walkthrough.
"The Scout Wire is the 'Return Path.' By connecting the component to the Blue Rail (GND), you complete the circuit. This allows the Arduino to detect the specific pin number and log it into the Wiring Diary instantly. It is the fastest way to verify a wiring loom without using a multimeter."
"The Scout Wire is the 'Return Path.' By connecting the component to the Blue Rail (GND), you complete the circuit. This allows the Arduino to detect the specific pin number and log it into the Wiring Diary instantly. It is the fastest way to verify a wiring loom without using a multimeter."Customizing Hardware Pin Assignments
You can set the hardware (LEDs, buzzer, buttons) to whatever pins you want—just change the pin numbers in the script:
const int RED = 49, YEL = 47, GRN = 43, BZ = 41;
const int BTN_ARM = 50, BTN_DISARM = 48;- Update these values to match your wiring setup.
- Make sure your chosen pins are not used for I2C (20, 21) or other reserved functions.
- After changing the pin numbers, upload the script to your Arduino Mega.
This flexibility allows you to adapt the tool to different hardware layouts or custom panel designs.
Additional Details & ClarificationsPin Scanning- Only digital pins 2–53 are scanned, except those reserved for hardware (20, 21 for I2C, 41 for buzzer, 43 for green LED, 47 for yellow LED, 48 for clear button, 49 for red LED, 50 for arm button).
- Analog pins (A0–A15) are not scanned because the script is designed for digital continuity detection using INPUT_PULLUP. Analog pins on the Mega are not true digital pins and do not support INPUT_PULLUP in the same way, so they cannot reliably detect continuity with this method.
- The Wiring Diary keeps the last 10 unique pins mapped during your session.
- Pressing CLEAR (Button 48) resets the current guard and alarm, but does not erase the Wiring Diary.
- Triple-clicking the ARM button (50) triggers two tones for audible feedback and locks the display on the Wiring Library.
The OLED cycles between three pages: Monitor, Library, and Registry.
- Monitor: Shows status messages (READY, FOUND, SECURED, ALARM) and pin numbers.
- Library: Displays the last 10 mapped pins.
- Registry: Shows hardware pin assignments and the currently active pin.
- The OLED cycles between three pages: Monitor, Library, and Registry.Monitor: Shows status messages (READY, FOUND, SECURED, ALARM) and pin numbers.Library: Displays the last 10 mapped pins.Registry: Shows hardware pin assignments and the currently active pin.
- The buzzer alternates tone when the alarm is active.
- Entering the Wiring Library triggers a chirp for confirmation.
The display shows:
- STATUS: READY when idle
- STATUS: FOUND when a pin is detected
- STATUS: SECURED when a pin is locked
- ! ALARM ! when a secured pin is removed
- The display shows:STATUS: READY when idleSTATUS: FOUND when a pin is detectedSTATUS: SECURED when a pin is locked! ALARM ! when a secured pin is removed
Important: The Scout Wire is a diagnostic tool to help you identify and verify the correct pin for each wire in your harness or project. After using the Scout Wire to find and confirm a pin:
- You still need to wire your actual component (switch, sensor, relay, etc.) to the identified pin on the Arduino Mega.
- The Scout Wire is for testing and mapping only—it does not replace the final wiring step.
- Once you know which pin corresponds to your wire, you can update the script to document the new pin assignment and its function.
- Repeat this process for each wire/component until your project is fully mapped and connected.
This workflow ensures every wire is correctly identified, mapped, and documented before final assembly, reducing errors and making troubleshooting easier.
TroubleshootingButton Always "Active" (The Leg Trap)
- Cause: Most 4-pin tactile pushbuttons are connected in pairs. You may have the wires on legs that are "always connected."
- Fix: Rotate the button 90 degrees or move your wire to the diagonal leg. The system expects a LOW signal only when the button is physically pressed.
- Button Always "Active" (The Leg Trap)Cause: Most 4-pin tactile pushbuttons are connected in pairs. You may have the wires on legs that are "always connected."Fix: Rotate the button 90 degrees or move your wire to the diagonal leg. The system expects a LOW signal only when the button is physically pressed.
OLED Screen is Blank
- Cause: I2C Address mismatch or wiring.
- Fix: Ensure your SDA/SCL wires are on pins 20 and 21. If it still doesn't light up, check the code line
display.begin(SSD1306_SWITCHCAPVCC, 0x3C);. Some screens use address 0x3D. - OLED Screen is BlankCause: I2C Address mismatch or wiring.Fix: Ensure your SDA/SCL wires are on pins 20 and 21. If it still doesn't light up, check the code line
display.begin(SSD1306_SWITCHCAPVCC, 0x3C);. Some screens use address 0x3D.
No Detection on Scout Wire
- Cause: Floating Ground.
- Fix: Ensure the Blue Rail is physically connected to one of the GND pins on the Arduino Mega.
- No Detection on Scout WireCause: Floating Ground.Fix: Ensure the Blue Rail is physically connected to one of the GND pins on the Arduino Mega.
"Ghost" Detections
- Cause: Static or long unshielded wires.
- Fix: The script uses INPUT_PULLUP to minimize noise, but if you are in a very "noisy" electrical environment, ensure your scout wire is making a solid, clean contact.
- "Ghost" DetectionsCause: Static or long unshielded wires.Fix: The script uses INPUT_PULLUP to minimize noise, but if you are in a very "noisy" electrical environment, ensure your scout wire is making a solid, clean contact.
Pro-Tip: The system is programmed to give a short audio chirp when a pin is successfully "Locked." If you hear the chirp but the light doesn't change, check your LED polarity (Long leg = Positive/Pin, Short leg = GND).
Final GitHub Checklist- The Code: Paste your "Master Script" into a file named Wiring_Watchdog.ino.
- The Images: If you have photos of your build, upload them to an images folder in your repo.
- The License: Most people use the MIT License—it basically says "Anyone can use this, just don't sue me if you wire something wrong."
- Developer: [Your Name/GitHub Name]
- Platform: Arduino Mega 2560
- Display: SSD1306 OLED via I2C
- Libraries: Adafruit_SSD1306, Adafruit_GFX
