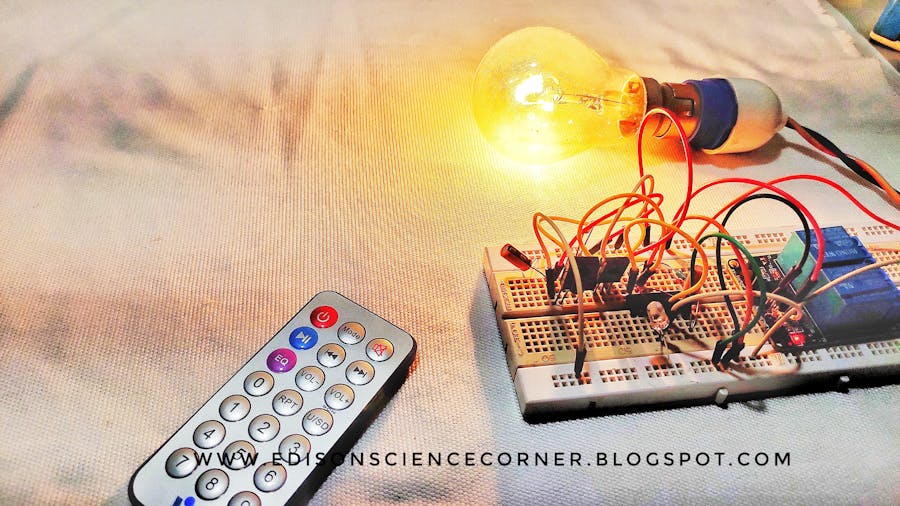

in this tutorial I am going to show you how to make simple home automation using tv remote
Step 1: Componets Needed
- BC547B
- Transistor BD140
- 1N4007
- 1K resistor
- CD4017
- TSOP RELAY
- 100UF capacitor
Step 2: Circuit Diagram
Step 3: Working
this circuit uses a TSOP1738 IR receiver module in normal condition, the output pin of the IR module is High, which means the transistor (bd140 PNP) is at logic Low. but when ir signal fall to tsop sensor the output of tsop goes low and transistor will turn on. the output of the transistor is connected to a toggle switch constructed with cd 4017 counter ic
Step 4: Happy Making
comment your doubts below
