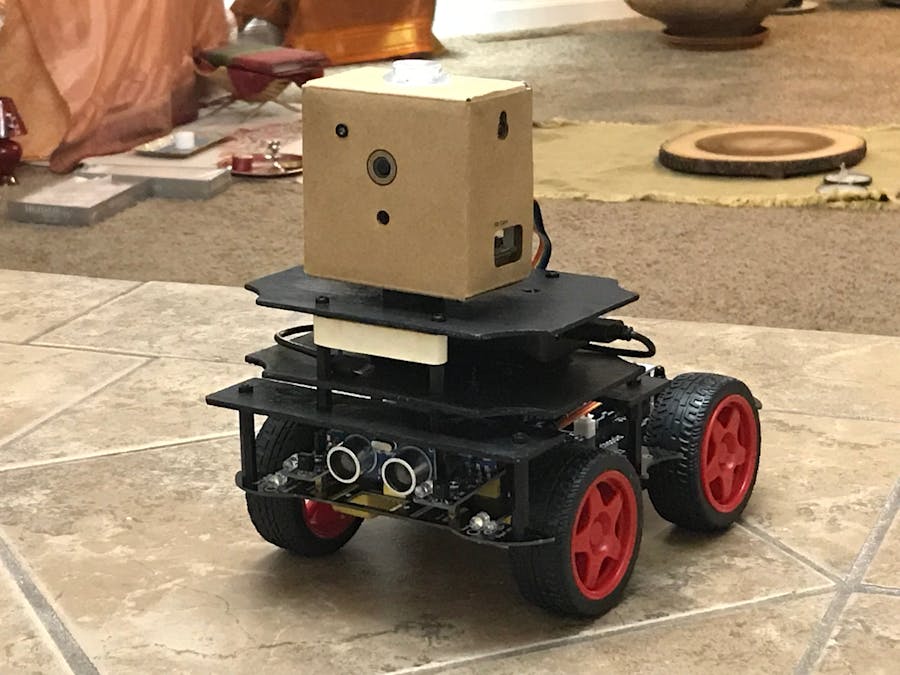

Autonomous Rover - Google Vision AIY Kit on Wheels

#include <PinChangeInterrupt.h>
#include <IRremote.h>

//==============================
int RECV_PIN = 2; // Set Infrared Remote port
IRrecv irrecv(RECV_PIN);
decode_results results; // Store infrared remote decode data
unsigned long last = millis();
#define run_car     '1'//key go
#define back_car    '2'//key back
#define left_car    '3'//key left
#define right_car   '4'//key right
#define stop_car    '0'//key stop
//===============================================
/*Car running status enumeration*/
//============================================
enum {
  enSTOP = 0,
  enRUN,
  enBACK,
  enLEFT,
  enRIGHT,
  enTLEFT,
  enTRIGHT
} enCarState;


//==============================
//==============================
//Speed control
//==============================
int control = 150;//PWM control speed
#define level1  0x08//Speed level flag
#define level2  0x09
#define level3  0x0A
#define level4  0x0B
#define level5  0x0C
#define level6  0x0D
#define level7  0x0E
#define level8  0x0F

//==============================
//==============================
int Left_motor_back=9;
int Left_motor_go=8;

int Right_motor_go=6;
int Right_motor_back=7;

int Right_motor_en=5;
int Left_motor_en=10;

/*Set Button port*/
int KEY = 13;
/*Set right & left LED port*/
int right_led=4;
int left_led=3;

/*Set Ultrasonic Sensor*/
int Echo = A1;  // Set Echo port
int Trig = A0; // Set Trig port
int Distance = 0;
const int SensorRight_2 = A4;     // Right Tracking Infrared sensor
const int SensorLeft_2 = A5;     // Left Tracking Infrared sensor
int SL_2;    // State of Left Tracking Infrared sensor
int SR_2;    // State of Right Tracking Infrared sensor


//State
int g_carstate = enSTOP; //  1:front 2:back 3:left 4:right 0:stop // State of vehicle running state
int g_modeSelect = 0;  // 0:remote control mode(default); 1:line walking mode ; 2: obsracle avoidance mode; 3: tracking
int g_modeComunication = 0; // 0:Infrared remote control 1:Bluetooth remote control
int g_AllState = 0;  // 0: Busying; 1:Mode selection
//int g_IRRealse = 0; //Remote control buttons loosen detection

/*
 * Define pins used to provide RC PWM signal to Arduino
 * Pins 8, 9 and 10 are used since they work on both ATMega328 and
 * ATMega32u4 board. So this code will work on Uno/Mini/Nano/Micro/Leonardo
 * See PinChangeInterrupt documentation for usable pins on other boards
 */

// Mapping of Gooogle AIY kit pins to Ardunion pins (connected via logic level converter):
//------------------------------------------------------------------------------------------------------------------------------------------------------------------
// Google AIY pin  |  Arduino pin  | gpiozero function |                                 Purpose                                                                   |
//------------------------------------------------------------------------------------------------------------------------------------------------------------------
//    pin_A        |      11       |       PWMLED      | Sends "angle between robot pose and direction to face" from Google AIY to Arduino                         |
//    pin_B        |      12       |       PWMLED      | Sends "distance to face" in inches from Google AIY to Arduino                                             |
//    pin_C        |      A3       |       PWMLED      | Sends clock_frame from AIY to Arduino (frame counter used to check if face detector is running)           |
//    pin_D        |      A2       |       Button      | Set HIGH when Arduino is powered - used to automatically shutdown Google AIY when Arduino is powered down |
//------------------------------------------------------------------------------------------------------------------------------------------------------------------

const byte channel_pin[] = {11, 12, A3};             /* Arduino pins assigned to (PWMLED) channels PIN_A, PIN_B and PIN_C of Google Vision AIY kit) */
volatile unsigned long rising_start[] = {0, 0, 0};
volatile long channel_length[] = {0, 0, 0};          /* Time spans in microsecond between LOW-to-HIGH and HIGH-to-LOW for channels PIN_A, PIN_B and PIN_C of Google Vision AIY kit) */
const int x_center = 820;                            /* location of the horizontal center of teh camera in pixels (horizontal resolution 1640 /2 */
const int focal_length  = 1320;                      /* focal length of PiCamera in pixels (estimated by calibration) */
float min_angle = - atan2(x_center,focal_length);    /* min angle between direction the robot faces and direction to the detected face */
float max_angle = atan2(x_center,focal_length);      /* max angle between direction the robot faces and direction to the detected face */
const int min_distance = 20;                         /* min distance to face in inches */
const int max_distance = 200;                        /* max distance to face in inches */
float a = (0.9 - 0.2)/(max_distance - min_distance); /* coefficient for coding/decoding of distance (PIN_B) */
float b = 0.9 - a * max_distance;                    /* coefficient for coding/decoding of distance (PIN_B) */
const int gpiozero_pwmled_freq_in_hz = 100;          /* default base frequency of gpiozero library's PWMLED function (refer to documentation) */
String print_output = "short";                       /* How to print output. Options: "long" = detailed output, "short" = one-line summary, "none" (or any other) = no output */

float angle = 0.;
float angle_raw = 0.;
float distance_to_face = 0.;
float clock_frame = 0.;
float clock_frame_prev = 0.;
int face_detected_on_prev_frame = 0;
int dir_of_last_detected_face = 1; /* determines the direction of robot's rotation to search for faces 1 = To the RIGHT, 0 = to the LEFT */

void setup() {
  Serial.begin(9600);

  //Initialize motor drive for output mode
  pinMode(Left_motor_go, OUTPUT);
  pinMode(Left_motor_back, OUTPUT);
  pinMode(Right_motor_go, OUTPUT);
  pinMode(Right_motor_back, OUTPUT);
  pinMode(Right_motor_en, OUTPUT);
  pinMode(Left_motor_en, OUTPUT);
  pinMode(left_led, OUTPUT);//Set led as output
  pinMode(right_led, OUTPUT);//Set led as output
  pinMode(KEY, INPUT_PULLUP);// Set button as input and internal pull-up mode

  pinMode(Echo, INPUT);    // Set Ultrasonic echo port as input
  pinMode(Trig, OUTPUT);   // Set Ultrasonic trig port as input

  pinMode(SensorRight_2, INPUT); //Set Right  Infrared sensor as input
  pinMode(SensorLeft_2, INPUT); //Set left Infrared sensor as input

  digitalWrite(Left_motor_en, HIGH); // set left motor enble
  digitalWrite(Right_motor_en, HIGH); // set right motor enble

 //Initialize state
  g_carstate = enSTOP;    // stop
  g_modeComunication = 0; // Infrared Remote Control
  g_modeSelect = 0;       // remote mode

  //Initialize Infrared decode
  irrecv.enableIRIn();
  pinMode(RECV_PIN, INPUT_PULLUP);

  pinMode(channel_pin[0], INPUT);
  pinMode(channel_pin[1], INPUT);
  pinMode(channel_pin[2], INPUT);
  pinMode(channel_pin[3], INPUT);
  pinMode(A2, OUTPUT);
  digitalWrite(A2, HIGH);

  attachPinChangeInterrupt(digitalPinToPinChangeInterrupt(channel_pin[0]), onRising0, CHANGE);
  attachPinChangeInterrupt(digitalPinToPinChangeInterrupt(channel_pin[1]), onRising1, CHANGE);
  attachPinChangeInterrupt(digitalPinToPinChangeInterrupt(channel_pin[2]), onRising2, CHANGE);
}

void processPin(byte pin) {
  uint8_t trigger = getPinChangeInterruptTrigger(digitalPinToPCINT(channel_pin[pin]));

  if(trigger == RISING) {
    rising_start[pin] = micros();
  } else if(trigger == FALLING) {
    channel_length[pin] = micros() - rising_start[pin];
  }
}

void onRising0(void) {
  processPin(0);
}

void onRising1(void) {
  processPin(1);
}

void onRising2(void) {
  processPin(2);
}

// Ultrasonic sensor
void Distance_test()   // Measuring front distance
{
  digitalWrite(Trig, LOW);   // set trig port low level for 2s
  delayMicroseconds(2);
  digitalWrite(Trig, HIGH);  // set trig port high level for 10s(at least 10s)
  delayMicroseconds(10);
  digitalWrite(Trig, LOW);    // set trig port low level
  float Fdistance = pulseIn(Echo, HIGH);  // Read echo port high level time(unit:s)
  Fdistance = Fdistance / 58;    // Distance(m) =(time(s) * 344(m/s)) / 2     /****** The speed of sound is 344m/s.*******/
                                 //  ==> 2*Distance(cm) = time(s) * 0.0344(cm/s)
                                 // ==> Distance(cm) = time(s) * 0.0172 = time(s) / 58
  Distance = Fdistance;
}

void run2()     // Advance
{
  digitalWrite(Left_motor_en,HIGH);  // Left motor enable
  analogWrite(Left_motor_en,157);
  digitalWrite(Right_motor_en,HIGH);  // Right motor enable
  digitalWrite(Right_motor_go,HIGH);  // right motor go ahead
  digitalWrite(Right_motor_back,LOW);
  analogWrite(Right_motor_go,210);//PWM--Pulse Width Modulation(0~255). right motor go speed is 255. 210
  analogWrite(Right_motor_back,0);
  digitalWrite(Left_motor_go,HIGH);  // set left motor go ahead
  digitalWrite(Left_motor_back,LOW);
  analogWrite(Left_motor_go,210);//PWM--Pulse Width Modulation(0~255).left motor go speed is 135. 130
  analogWrite(Left_motor_back,0);
  digitalWrite(left_led, LOW);
  digitalWrite(right_led, LOW);
  //delay(time * 100);   //Running time can be adjusted
}

void run1()     // Advance (test)
{
  digitalWrite(Left_motor_en,HIGH);  // Left motor enable
  analogWrite(Left_motor_en,157);
  digitalWrite(Right_motor_en,HIGH);  // Right motor enable
  digitalWrite(Right_motor_go,HIGH);  // right motor go ahead
  digitalWrite(Right_motor_back,LOW);
  analogWrite(Right_motor_go,170);//PWM--Pulse Width Modulation(0~255). right motor go speed is 255. 210
  analogWrite(Right_motor_back,0);
  digitalWrite(Left_motor_go,HIGH);  // set left motor go ahead
  digitalWrite(Left_motor_back,LOW);
  analogWrite(Left_motor_go,140);//PWM--Pulse Width Modulation(0~255).left motor go speed is 135. 130
  analogWrite(Left_motor_back,0);
  digitalWrite(left_led, LOW);
  digitalWrite(right_led, LOW);
  //delay(1000);   //Running time can be adjusted
}

void brake()         //Stop
{
  digitalWrite(Left_motor_back, LOW);
  digitalWrite(Left_motor_go, LOW);
  digitalWrite(Right_motor_go, LOW);
  digitalWrite(Right_motor_back, LOW);
  digitalWrite(left_led, HIGH);
  digitalWrite(right_led, HIGH);

}

void left()         //Turn left
{
  digitalWrite(Right_motor_go,HIGH);  // right motor go ahead
  digitalWrite(Right_motor_back,LOW);
  analogWrite(Right_motor_go,250); // PWM--Pulse Width Modulation(0~255) control speedright motor go speed is 255.
  analogWrite(Right_motor_back,0);
  digitalWrite(Left_motor_go,LOW);   // left motor stop
  digitalWrite(Left_motor_back,LOW);
  analogWrite(Left_motor_go,0);
  analogWrite(Left_motor_back,0);
  digitalWrite(left_led, HIGH);
  digitalWrite(right_led, LOW);
}

void spin_left()         //Left rotation
{
  digitalWrite(Right_motor_go,HIGH);// right motor go ahead
  digitalWrite(Right_motor_back,LOW);
  analogWrite(Right_motor_go,200);// PWM--Pulse Width Modulation(0~255) control speed ,right motor go speed is 200.
  analogWrite(Right_motor_back,0);
  digitalWrite(Left_motor_go,LOW);   // left motor back off
  digitalWrite(Left_motor_back,HIGH);
  analogWrite(Left_motor_go,0);
  analogWrite(Left_motor_back,200);// PWM--Pulse Width Modulation(0~255) control speed,left motor back speed is 200.
  digitalWrite(left_led, HIGH);
  digitalWrite(right_led, LOW);
  delay(100);
}

void right()        //turn right
{
  digitalWrite(Right_motor_go,LOW);   // right motor stop
  digitalWrite(Right_motor_back,LOW);
  analogWrite(Right_motor_go,0);
  analogWrite(Right_motor_back,0);
  digitalWrite(Left_motor_go,HIGH);// left motor go ahead
  digitalWrite(Left_motor_back,LOW);
  analogWrite(Left_motor_go,250);// PWM--Pulse Width Modulation(0~255) control speed ,left motor go speed is 255.
  analogWrite(Left_motor_back,0);
  digitalWrite(left_led, LOW);
  digitalWrite(right_led, HIGH);
}

void spin_right()        //Right rotation
{
  digitalWrite(Right_motor_go,LOW);  // right motor back off
  digitalWrite(Right_motor_back,HIGH);
  analogWrite(Right_motor_go,0);
  analogWrite(Right_motor_back,200);// PWM--Pulse Width Modulation(0~255) control speed
  digitalWrite(Left_motor_go,HIGH);// left motor go ahead
  digitalWrite(Left_motor_back,LOW);
  analogWrite(Left_motor_go,200);// PWM--Pulse Width Modulation(0~255) control speed
  analogWrite(Left_motor_back,0);
  digitalWrite(left_led, LOW);
  digitalWrite(right_led, HIGH);
  delay(100);
}

void back()          //back off
{
  digitalWrite(Right_motor_go,LOW); //right motor back off
  digitalWrite(Right_motor_back,HIGH);
  analogWrite(Right_motor_go,0);
  analogWrite(Right_motor_back,150);// PWM--Pulse Width Modulation(0~255) control speed
  analogWrite(Right_motor_en,165);
  digitalWrite(Left_motor_go,LOW);  //left motor back off
  digitalWrite(Left_motor_back,HIGH);
  analogWrite(Left_motor_go,0);
  analogWrite(Left_motor_back,140);// PWM--Pulse Width Modulation(0~255) control speed
  digitalWrite(left_led, HIGH);
  digitalWrite(right_led, HIGH);
  //led();
}

void Key_Scan(void)
{
  int val;
  while (!digitalRead(KEY)) // When the button is pressed
  {
    delay(10);
    val = digitalRead(KEY);// Reads the button ,the level value assigns to val
    if (val == LOW) //Double check the button is pressed
    {
      if (g_modeComunication == 0)// In Infrared remote control
      {
        g_modeComunication = 1; // Switch to search_and_approach
      }
      else    //In  search_and_approach
      {
        g_modeComunication = 0; //Switch to Infrared remote control
      }
      while (!digitalRead(KEY));  //Determine if the button is released or not
    }
  }
}

void IR_Deal()
{
  if (irrecv.decode(&results)) //Infrared received result
  {
    //Serial.println(results.value, HEX);

    //if (((results.value >> 16) & 0x0000ffff) == 0x00ff)
    //{
    //printf("$AR,HSX,%08lX#\n", results.value);
    //According to the different values to perform different operations
    //  00FD10EF   7  mode off
    //  00FDA05F   5  NC
    //  00FD609F   6  NC
    //  00FD50AF   9  mode play
    //  00FD906F   8   NC
    //  00FDB04F   0  beep
    //  00FD8877   up  Advance
    //  00FD28D7   <   Turn left
    //  00FDA857   ok   Stop
    //  00FD6897   >   Turn right
    //  00FD9867   DW  Back
    //  00FD30CF   *  Left rotation
    //  00FD708F   #  right rotation

    //  00FD00FF   1    remote control mode  1
    //  00FD807F   2    obstacle avoidance mode  2
    //  00FD40BF   3    line walking mode  3
    //  00FD20DF   4    tacking mode  4
    switch (results.value)
    {
      case 0x00FD10EF: g_carstate = enSTOP; g_AllState = 0; g_modeSelect = 0; break; // 7 mode off
      case 0x00FD50AF: g_carstate = enSTOP; g_AllState = 0; break;                   // 9 mode play
      case 0x00FD00FF: g_AllState = 1; g_modeSelect = 0;  break;                     // 1 remote control mode
      case 0x00FD807F: g_AllState = 1; g_modeSelect = 2;  break;                     // 2 obstacle avoidance mode
      case 0x00FD40BF: g_AllState = 1; g_modeSelect = 1;  break;                     // 3 line walking mode
      case 0x00FD20DF: g_AllState = 1; g_modeSelect = 3;  break;                     // 4 tacking mode

      default: break;
    }
    if (g_modeSelect == 0 && g_AllState == 0)
    {
      switch (results.value)
      {

        //case 0x00FF02FD: control += 50; if (control > 255) control = 255; break;
        //case 0x00FF9867: control -= 50; if (control < 50) control = 100; break;

        case 0x00FDB04F: ; break;  //   0  beep  OFF/ON
        case 0x00FD8877:  g_carstate = enRUN; break;    // up  Advance
        case 0x00FD28D7:  g_carstate = enLEFT; break;   // <   Turn left
        case 0x00FDA857:  g_carstate = enSTOP; break;   // ok   Stop
        case 0x00FD6897:  g_carstate = enRIGHT; break;  // >   Turn right
        case 0x00FD9867:  g_carstate = enBACK; break;   //  DW  Back
        case 0x00FD30CF:  g_carstate = enTLEFT; break;  // *  Left rotation
        case 0x00FD708F:  g_carstate = enTRIGHT; break; // #  right rotation
        default: break; //Stay the same

      }
    }
    //}
    last = millis();
    irrecv.resume(); // received next Infrared decode
  }
  else if (millis() - last > 120)
  {
    g_carstate = enSTOP;
    last = millis();
  }
}


//Car running control
void CarControl()
{
  if (g_modeSelect != 2 )
  {
    switch (g_carstate)
    {
      case enSTOP: brake(); break;
      case enRUN: run1(); break;
      case enLEFT: left(); break;
      case enRIGHT: right(); break;
      case enBACK: back(); break;
      case enTLEFT: spin_left(); break;
      case enTRIGHT: spin_right(); break;
      default: brake(); break;
    }

  }
}

// Ultrasonic sensor (avoid obstacles)
void ultrason_obstacle_avoiding()
{
  Distance_test();// Measuring front distance

  if (Distance < 38) ////The value is the distance that meets the obstacle, and can be set according to the actual situation
  {
    delay(10);
    Distance_test();////Measuring front distance
    while (Distance < 38)  //Determine whether there is an obstruction again.If there is obstacle , turn the direction and determine again
    {

      spin_right();//Right rotation for 400ms
      delay(400);
      brake();//stop
      Distance_test();////Measuring front distance
    }
  }
  else
    run1();//There is nothing obstacled. Go  Advance
    delay(700);
    brake();//stop
    delay(500);
}

// Infrared follow-object mode
void Infrared_follow()
{
 /**************************************************************************************
  Infrared signal back means there is something obstacled ,returns low level and led lights up.
  Infrared signal gone means there is nothing obstacled ,returns high level and led lights off.
  **************************************************************************************/
  SR_2 = digitalRead(SensorRight_2);//Right infrared sensor detects the obstacle,then LED[L5] light illuminates and otherwise it goes off.
  SL_2 = digitalRead(SensorLeft_2);//Left infrared sensor detects the obstacle,then LED[L4] light illuminates and otherwise it goes off.
  if (SL_2 == LOW && SR_2 == LOW)//There is something obstacled ,goes and follow it.
    g_carstate = enRUN;
  else if (SL_2 == HIGH & SR_2 == LOW)// There is something obstacled on the right then LED[L4] light illuminates,turns right and follow.
    g_carstate = enRIGHT;
  else if (SR_2 == HIGH & SL_2 == LOW)// There is something obstacled on the left then LED[L4] light illuminates,turns left and follow.
    g_carstate = enLEFT;
  else // There is nothing obstacled , stop.
    g_carstate = enSTOP;
}


// Printing state of the robot
void print_robot_state(String is_face_detected,String robot_action)
{
  String direction_to_rotate = "Right";
  if (dir_of_last_detected_face == 0)
  {
    direction_to_rotate = "Left";
  }

  if (print_output == "long")
  {
    Serial.print("Face detected = ");
    Serial.println(is_face_detected);
    Serial.print("Action = ");
    Serial.println(robot_action);
    Serial.print("PIN_A (Angle to goal in grads) = ");
    Serial.println(angle);
    Serial.print("PIN_B (Disctance to face in inches) = ");
    Serial.println(distance_to_face);
    Serial.print("PIN_C (Frame ID) = ");
    Serial.println(clock_frame);
    Serial.print("Previous Frame ID = ");
    Serial.println(clock_frame_prev);
    Serial.print("Direction to rotate next time = ");
    Serial.println(direction_to_rotate);
    Serial.print("Distance to obstacle in inches (ultrasonic sensor) = ");
    Serial.println(Distance);
    Serial.println("---------------------------------------------------------------------");
  }
  else if (print_output == "short")
  {
    Serial.print("Face = ");
    Serial.print(is_face_detected);
    Serial.print(" | Action: ");
    Serial.print(robot_action);
    Serial.print(" | Angle =  ");
    Serial.print(angle);
    Serial.print(" | Distance = ");
    Serial.print(distance_to_face);
    Serial.print(" | Frame = ");
    Serial.print(clock_frame);
    Serial.print(" | Prev Frame = ");
    Serial.print(clock_frame_prev);
    Serial.print(" | Next Rotation  = ");
    Serial.print(direction_to_rotate);
    Serial.println("");
  }
}


// Autonomous driving more - robot is searching for and approaching human faces ot their images
// Warning: Don't put your face too close to the robot and don't let little children play with it without supervision!
void search_and_approach()
{
  Distance_test(); /* engage ultrasonic sensor (work-in-progress) */

  // Read anc decode angle between direction the robot faces and the direction to the detected face (from PIN_A of Google Vision AIY kit)
  angle_raw = (channel_length[0]*gpiozero_pwmled_freq_in_hz/1000000. - 0.1)/0.8;
  angle = angle_raw * (max_angle - min_angle) + min_angle;

  // Read anc decode a distance from robot to the detected face in inches (from PIN_B of Google Vision AIY kit)
  // If this value is less than 20 then no face is detected.
  distance_to_face = (channel_length[1]*gpiozero_pwmled_freq_in_hz/1000000. - b)/a;

  // Read anc decode the number of frame used to check if the arrived data is new (from PIN_C of Google Vision AIY kit)
  clock_frame = 100. * channel_length[2]*gpiozero_pwmled_freq_in_hz/1000000.;
  delay(100);

  if (abs(clock_frame - clock_frame_prev)> 1) /* check if the data from Google Vision AIY kit are new (updated) */
  {
    if (distance_to_face < 15) /* no face detected => search for face */
    {
      if (face_detected_on_prev_frame == 1) /* step to increase robustnes - if robot missed the face by accident it gets the second chance */
      {
         brake();
         delay(1500);
         face_detected_on_prev_frame = 0;
      }
      else
      {
        if (dir_of_last_detected_face == 1) /* searching for faces by rotating in the direction of the most recently detected face */
        {
          spin_right();
          delay(50);
          print_robot_state("No","Spin right");

        }
        else
        {
          spin_left();
          delay(50);
          print_robot_state("No","Spin left");

        }
        brake();
        delay(750);
      }
    }
    else if (angle > min_angle && angle < max_angle) /* robot's actions when face is detected */
    {
      face_detected_on_prev_frame = 1;
      if (angle > 0.3)  /* adjust robot pose by spinning to the right */
      {
        spin_right();
        delay(2);
        brake();
        delay(500);
        dir_of_last_detected_face = 1;
        print_robot_state("Yes","Spin right");
      }
      else if(angle < -0.3)  /* adjust robot pose by spinning to the left */
      {
        spin_left();
        delay(2);
        brake();
        delay(500);
        dir_of_last_detected_face = 0;
        print_robot_state("Yes","Spin left");
      }
      else /* approach the target */
      {
        run1();
        delay(1000);
        brake();
        delay(500);
        /* update/correct the "direction to the last detected face" if the angle is different from zero */
        if (angle > 0.03)
        {
          dir_of_last_detected_face = 1;
        }
        else if (angle < -0.03)
        {
          dir_of_last_detected_face = 0;
        }
        print_robot_state("Yes","Go forward");
      }
    }
  }
  clock_frame_prev = clock_frame; /* update the clock */
}


void loop()
{
  /*Check button press*/
  Key_Scan();

  if (g_modeComunication == 0) //Infrared Remote Control mode
  {
    IR_Deal();
  }
  else //search and approach mode
  {
    search_and_approach();
  }

  // Switch different mode
  if (g_AllState == 0)
  {
    switch (g_modeSelect)
    {
      case 1: ultrason_obstacle_avoiding(); break;// Obstacle avoidance mode
      case 2: Infrared_follow(); break;// Tracking mode
    }
  }
  CarControl();
}

#!/usr/bin/env python3

"""
This script runs continuous face detection on the Vision Bonnet and sends face parameters to Arduino robot car via
GPIO expansion pins of Vision Bonnet.

PIN_A is used to send to Arduino the coded angle between the direction the robot faces and direction to the detected face
PIN_B is used to send to Arduino the coded distance in inches to the detected face (coded to the interval between 0.2 and 0.9)
      If value of 0.1 is sent it means no face is detected on the frame
PIN_C is used to send to Arduino the coded frame number used to check if face detector is running
PIN_D monitors if Arduino is powered up and is used for safe shutdown of Google Visin AIY kit

"""
import argparse
import os
import RPi.GPIO as GPIO

from aiy.vision.inference import CameraInference
from aiy.vision.models import face_detection
from picamera import PiCamera

from time import sleep
from math import atan2
from gpiozero import PWMLED
from gpiozero import LED
from gpiozero import Button

from aiy.leds import Leds
from aiy.pins import PIN_A
from aiy.pins import PIN_B
from aiy.pins import PIN_C
from aiy.pins import PIN_D

# Colors for LED
RED = (0xFF, 0x00, 0x00)
GREEN = (0x00, 0xFF, 0x00)
BLUE = (0x00, 0x00, 0xFF)
YELLOW = (0xFF, 0xFF, 0x00)
PURPLE = (0xFF, 0x00, 0xFF)
CYAN = (0x00, 0xFF, 0xFF)
WHITE = (0xFF, 0xFF, 0xFF)

# Initialize the GPIO pins A,B,C,D
pin_A = PWMLED(PIN_A)
pin_B = PWMLED(PIN_B)
pin_C = PWMLED(PIN_C)
pin_D = Button(PIN_D)

# Initialize LED (in the button on the top of AIY Google Vision box)
leds = Leds()

# Blink LED (color, period in seconds, n_blinks)
def blink_led(color=RED,period=1,n_blinks=3):
    for blink in range(n_blinks):
        leds.update(Leds.rgb_off())
        sleep(period/2)
        leds.update(Leds.rgb_on(color))
        sleep(period/2)
    leds.update(Leds.rgb_off())

def shut_aiy_kit_down():
    print('Terinating session...')
    blink_led(color=RED,period=0.5,n_blinks=10)
    sleep(0.5)
    GPIO.cleanup()
    sleep(3)
    os.system("sudo shutdown -h now")

# Select the face with the largest width (others will be ignored)
def select_face(faces):
    if len(faces) > 0:
        max_width = 0
        for face in faces:
            width = face.bounding_box[2]
            if width > max_width:
                max_width = width
                face_selected = face
        return face_selected
    else:
        return None

def main():
    """Face detection camera inference example."""

    parser = argparse.ArgumentParser()
    parser.add_argument(
        '--num_frames',
        '-n',
        type=int,
        dest='num_frames',
        default=-1,
        help='Sets the number of frames to run for, otherwise runs forever.')
    args = parser.parse_args()

    blink_led(color=BLUE,period=0.5,n_blinks=10)

    # Initialize variables for automatic shutdown
    shuttdown_flag = False
    min_frames_w_arduino_power = 10
    max_frames_w_no_arduino_power = 10
    counter_frames_w_power = 0
    counter_frames_w_no_power = 0

    focal_length = 1320                             # focal length in pixels for 1640 x 1232 resolution - found by calibration
    camera_resolution = (1640, 1232)
    x_center = int(camera_resolution[0] / 2)
    real_face_width_inch = 11                       # width/height of bounding box of human face in inches
    min_angle = atan2(-x_center,focal_length)       # min angle where face can be detected (leftmost area) in radians
    max_angle = atan2(x_center,focal_length)        # max angle where face can be detected (rightmost area) in radians
    min_distance = 20                               # min distance to detected face in inches
    max_distance = 200                              # max distance to detected face in inches
    face_detected_on_prev_frame = False             # Flag indicated if face was detected on the previous frame
    a = (0.9 - 0.2) / (max_distance - min_distance) # Coefficient a (slope) for coding distance value from range [min_distance, max_distance] to [0.2, 0.9]
    b = 0.9 - a * max_distance                      # Coefficient b (intercept) for coding distance value from range [min_distance, max_distance] to [0.2, 0.9]

    with PiCamera() as camera:
        # Forced sensor mode, 1640x1232, full FoV. See:
        # https://picamera.readthedocs.io/en/release-1.13/fov.html#sensor-modes
        # This is the resolution inference run on.
        camera.sensor_mode = 4

        # Scaled and cropped resolution. If different from sensor mode implied
        # resolution, inference results must be adjusted accordingly. This is
        # true in particular when camera.start_recording is used to record an
        # encoded h264 video stream as the Pi encoder can't encode all native
        # sensor resolutions, or a standard one like 1080p may be desired.
        camera.resolution = camera_resolution

        # Start the camera stream.
        camera.framerate = 30
        #camera.start_preview()

        # Calculate face data (x_mean, y_mean, width, height).
        def face_data(face):
            x, y, width, height = face.bounding_box
            x_mean = int(x + width/2)
            angle = atan2(x_mean - x_center,focal_length)
            distance = 0
            if width > 0:
                distance = focal_length * real_face_width_inch / width
            return angle, distance

        with CameraInference(face_detection.model()) as inference:
            for i, result in enumerate(inference.run()):
                if i == args.num_frames:
                    break
                faces = face_detection.get_faces(result)
                face = select_face(faces)
                if face:
                    if face_detected_on_prev_frame:
                        angle, distance = face_data(face)
                        if angle < min_angle:
                            angle = min_angle
                        if angle > max_angle:
                            angle = max_angle
                        angle_to_send = (angle - min_angle)/(max_angle - min_angle)
                        pin_A.value = 0.8 * angle_to_send + 0.1
                        if distance < min_distance:
                            distance = min_distance
                        if distance > max_distance:
                            distance = max_distance
                        pin_B.value = a * distance + b
                        leds.update(Leds.rgb_on(GREEN))
                    face_detected_on_prev_frame = True
                else:
                    if not face_detected_on_prev_frame:
                        pin_A.value = 0.5
                        pin_B.value = 0.1
                        leds.update(Leds.rgb_off())
                    face_detected_on_prev_frame = False
                clock = i % 80 + 11
                pin_C.value = clock/100
                print('Iteration #', str(i), ' A=', str(pin_A.value), ' B=', str(pin_B.value), ' C=', str(pin_C.value), ' D=', str(pin_D.value))
                print('face_detected_on_prev_frame = ',face_detected_on_prev_frame)

                if pin_D.is_pressed:
                    counter_frames_w_no_power += 1
                else:
                    counter_frames_w_power += 1
                print('released, shuttdown_flag = ',shuttdown_flag,' frames with power=',str(counter_frames_w_power))
                print('pressed,  shuttdown_flag = ',shuttdown_flag,' frames with no power=',str(counter_frames_w_no_power))
                if counter_frames_w_power >= min_frames_w_arduino_power and not shuttdown_flag:
                    shuttdown_flag = True
                    counter_frames_w_no_power = 0
                if counter_frames_w_no_power >= max_frames_w_no_arduino_power and shuttdown_flag:
                    shut_aiy_kit_down()
                sleep(0.1)

        #camera.stop_preview()

if __name__ == '__main__':
    main()
