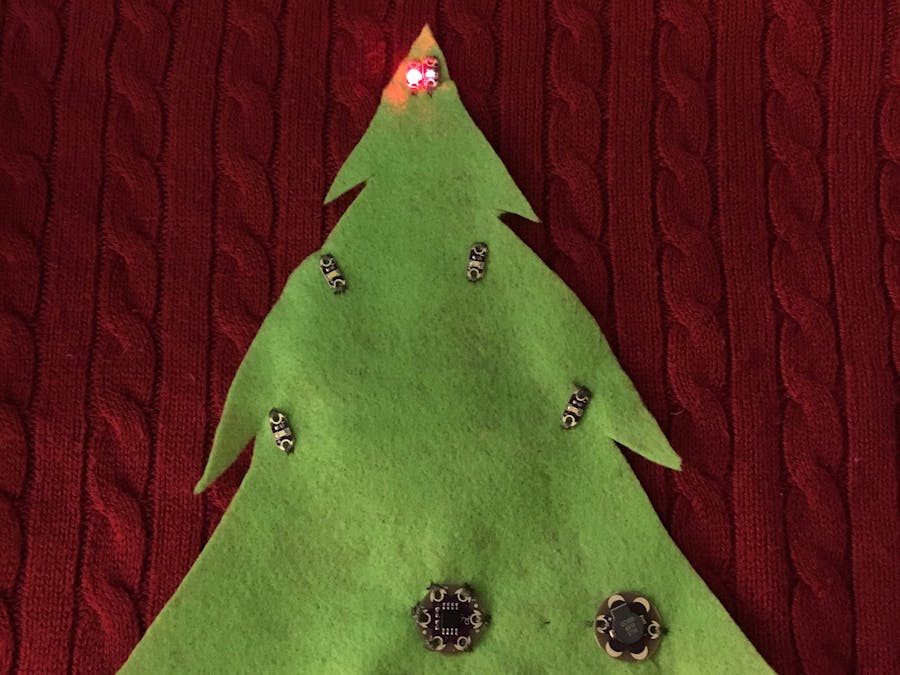

Musical, Light-up Sweater Decal With LilyTiny/LilyTwinkle

/* Play Melody
 * -----------
 *
 * Program to play a simple melody
 *
 * Tones are created by quickly pulsing a speaker on and off
 *   using PWM, to create signature frequencies.
 *
 * Each note has a frequency, created by varying the period of
 *  vibration, measured in microseconds. We'll use pulse-width
 *  modulation (PWM) to create that vibration.

 * We calculate the pulse-width to be half the period; we pulse
 *  the speaker HIGH for 'pulse-width' microseconds, then LOW
 *  for 'pulse-width' microseconds.
 *  This pulsing creates a vibration of the desired frequency.
 *
 * (cleft) 2005 D. Cuartielles for K3
 * Refactoring and comments 2006 clay.shirky@nyu.edu
 * See NOTES in comments at end for possible improvements
 */

// TONES  ==========================================
// Start by defining the relationship between
//       note, period, &  frequency.
int  c4  =   3830;    // 261 Hz
int  d4  =   3401;     // 294 Hz
int  e4  =   3038;    // 329 Hz
int  f4  =   2864;    // 349 Hz
int  g4  =   2550;    // 392 Hz
int  a4  =   2272;    // 440 Hz
int  b4  =   2028;    // 493 Hz
int  c5  =   1912;    // 523 Hz
// Define a special note, 'R', to represent a rest
int  R  =   0;

// SETUP ============================================
// Set up speaker on a PWM pin (digital 9, 10 or 11)
int speakerOut = 0;
// Do we want debugging on serial out? 1 for yes, 0 for no
int DEBUG = 0;

void setup() {
  pinMode(speakerOut, OUTPUT);
  pinMode(1, OUTPUT);
  pinMode(2, OUTPUT);
  pinMode(3, OUTPUT);

}

// MELODY and TIMING  =======================================
//  melody[] is an array of notes, accompanied by beats[],
//  which sets each note's relative length (higher #, longer note)
int melody[] = {  g4,  a4,  g4,  e4,  c5,   a4,  g4,  g4,  a4,  g4, a4, g4,  c5,  b4,  f4,  g4,  f4,  d4, b4, a4, g4, g4, a4, g4, a4, g4, a4,  e4,  R};
int beats[]  = { 16, 16, 32,  32,  32,  32, 96, 16, 16, 16, 16, 32, 32, 128, 16, 16, 32, 32, 32, 32, 96, 16, 16, 16, 16, 32, 32, 128, 128};

// pin numbers of corresponding lights, or "4" if no light
int lights[] = { 3, 1, 2, 1, 2, 3, 2, 3, 1, 2, 3, 1, 2, 1, 3, 2, 3, 1, 2, 3, 1, 3, 2, 1, 3, 2, 1, 2, 4};
int MAX_COUNT = sizeof(melody) / 2; // Melody length, for looping.

// Set overall tempo
long tempo = 15000;
// Set length of pause between notes
int pause = 1000;
// Loop variable to increase Rest length
int rest_count = 100; //<-BLETCHEROUS HACK; See NOTES

// Initialize core variables
int tone_ = 0;
int beat = 0;
long duration  = 0;

// PLAY TONE  ==============================================
// Pulse the speaker to play a tone for a particular duration
void playTone() {
  long elapsed_time = 0;
  if (tone_ > 0) { // if this isn't a Rest beat, while the tone has
    //  played less long than 'duration', pulse speaker HIGH and LOW
    while (elapsed_time < duration) {

      digitalWrite(speakerOut,HIGH);
      delayMicroseconds(tone_ / 2);

      // DOWN
      digitalWrite(speakerOut, LOW);
      delayMicroseconds(tone_ / 2);

      // Keep track of how long we pulsed
      elapsed_time += (tone_);
    }
  }
  else { // Rest beat; loop times delay
    for (int j = 0; j < rest_count; j++) { // See NOTE on rest_count
      delayMicroseconds(duration);
    }
  }
}

// LET THE WILD RUMPUS BEGIN =============================
void loop() {
  // Set up a counter to pull from melody[] and beats[]
  for (int i=0; i<MAX_COUNT; i++) {
    tone_ = melody[i];
    beat = beats[i];

    duration = beat * tempo; // Set up timing
    if(lights[i] != 4)
    {
      digitalWrite(lights[i],HIGH);
    }
    playTone();
    if(lights[i] != 4)
    {
      digitalWrite(lights[i],LOW);
    }
    // A pause between notes...
    delayMicroseconds(pause);


  }
}

/* Notes for FROSTY THE SNOWMAN
int melody[] = { g4, e4, f4, g4, c5, b4, c5, d5, c5, b4, a4, g4, b4, c5, d5, c5, b4, a4, a4, g4, c5, e4, g4, a4, g4, f4, e4, f4, g4, R};
int beats[]  = { 64, 48, 16, 32, 64, 16, 16, 32, 32, 32, 32, 96, 16, 16, 32, 32, 32, 16, 16, 32, 32, 32, 16, 16, 32, 32, 32, 32, 128, 128 };

// pin numbers of corresponding lights, or "4" if no light
int lights[] = {1, 3, 2, 3, 1, 2, 3, 1, 2, 1, 3, 2, 1, 2, 3, 2, 1, 3, 2, 3, 1, 2, 1, 3, 2, 1, 3, 1, 2, 4 };
int MAX_COUNT = sizeof(melody) / 2; // Melody length, for looping.

// Set overall tempo
long tempo = 10000;
*/

/* Notes for JINGLE BELLS
int melody[] = {  e4,  e4,  e4,  e4,  e4,   e4,  e4,  g4,  c4,  d4, e4, f4,  f4,  f4,  f4,  f4,  e4,  e4, e4, e4, e4, d4, d4, e4, d4, g4,
                  e4,  e4,  e4,  e4,  e4,   e4,  e4,  g4,  c4,  d4, e4, f4,  f4,  f4,  f4,  f4,  e4,  e4, e4, e4, g4, g4, f4, d4, c4, R,};
int beats[]  = { 16, 16, 32,  16,  16,  32, 16, 16, 24, 8, 64, 16, 16, 24, 8, 16, 16, 16, 8, 8, 16, 16, 16, 16, 32, 32,
                  16, 16, 32,  16,  16,  32, 16, 16, 24, 8, 64, 16, 16, 24, 8, 16, 16, 16, 8, 8, 16, 16, 16, 16, 64, 128};
// pin numbers of corresponding lights, or "4" if no light
int lights[] = { 1,   2,  3,  1,  2,  3,  1, 2, 3, 1, 3, 1, 2, 3, 2, 1, 3, 1, 2, 3, 2, 1, 2, 3, 1, 3,
                 1,   2,  3,  1,  2,  3,  1, 2, 3, 1, 3, 1, 2, 3, 2, 1, 3, 1, 2, 3, 2, 1, 2, 3, 1, 4,};
int MAX_COUNT = sizeof(melody) / 2; // Melody length, for looping.

// Set overall tempo
long tempo = 15000;
*/
