DIY ESP32 BLE Wireless Touchscreen Keyboard

DIY ESP32 BLE Wireless Touchscreen Keyboard

This project demonstrates how to build a fully functional, battery-efficient wireless keyboard for a PC using an ESP32 and an ILI9341 touch display. By utilizing the Bluetooth Low Energy (BLE) protocol, this device offers low power consumption and reliable connectivity.

Video Tutorial

Build your own following the step-by-step guide!

🛠 Features

• BLE Connectivity: Connects directly to a PC as a standard HID device.
• Touch Interface: Full QWERTY keyboard with multi-page support for special characters.
• Low Power: Optimized for battery operation, making it a truly portable peripheral.

🔌 Hardware Requirements

• Microcontroller: ESP32-S3 (or any BLE-supported ESP32 board).
• Display: ILI9341 Touch Display.
• Miscellaneous: Breadboard and jumper cables.

Wiring Information

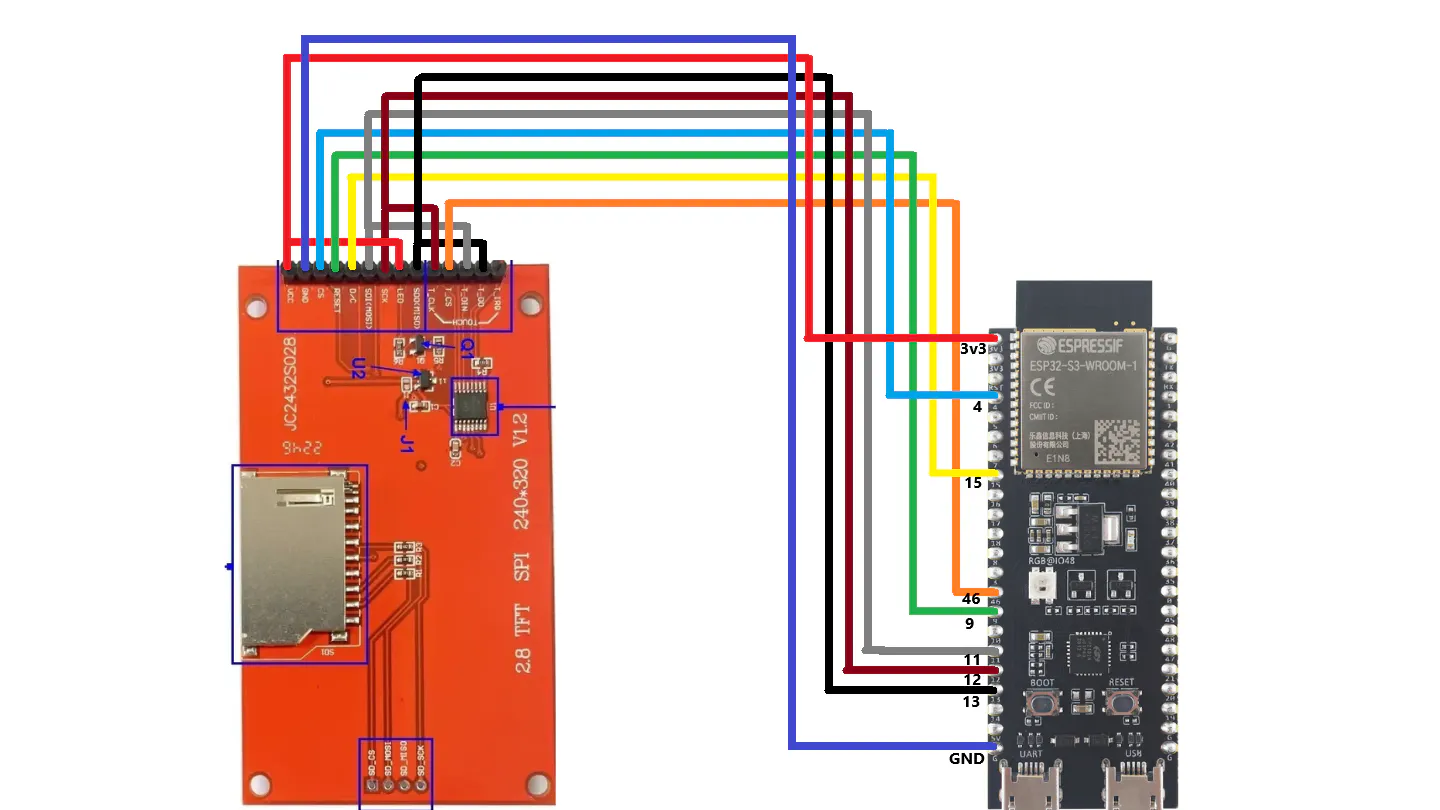

The touch interface and the display share the same SPI pins, with the exception of the CS (Chip Select) pin, which is used to toggle between controlling the display and the touch panel.

💻 Software Setup

1. Arduino IDE Configuration

• IDE Version: 2.3.8 or later.
• Board Manager: Install the ESP32 board package (v3.3.7 recommended).
• Libraries: * TFT_eSPI (v2.5.43): Install via Library Manager and configure your User_Setup.h according to your specific wiring and display model.

2. Touch Calibration

Before running the main script, you must calibrate your touchscreen:

• Open the touch_calibrate example.
• Set the display rotation (Landscape mode is typically setting 3).
• Upload the script, open the Serial Monitor (115200 baud), and follow the on-screen prompts to touch the corners.
• Copy the resulting calibration values.

3. Main Script Installation

• Open the wireless_keyboard project.
• Paste your calibration values into the setup section of the code.
• Ensure the rotation setting matches your calibration.
• Upload the code to your ESP32.

⌨️ How to Use

• Pairing: Turn on Bluetooth on your PC and search for "Dsn wireless KB".
• Interaction: Once paired, the keyboard becomes clickable. You can switch between two different pages of keys for full functionality.
• Troubleshooting: If you see a white screen, press the Reset button on the ESP32 or double-check your SPI wiring and User_Setup file.
