Description
FreeEEG32 + alpha1.5 version: https://hackaday.io/project/166893-freeeeg32-alpha15
Details
to produce use gerber, bom. assembly files, connect in configuration that you need.
list of pcb&pcba with components https://docs.google.com/spreadsheets/d/1kesq1XXx1iv3tl-mmWqGlSoi6JrNICaZL0DwDcNThMk/edit#gid=103632355
estimation on components
1 layer PCB
Files

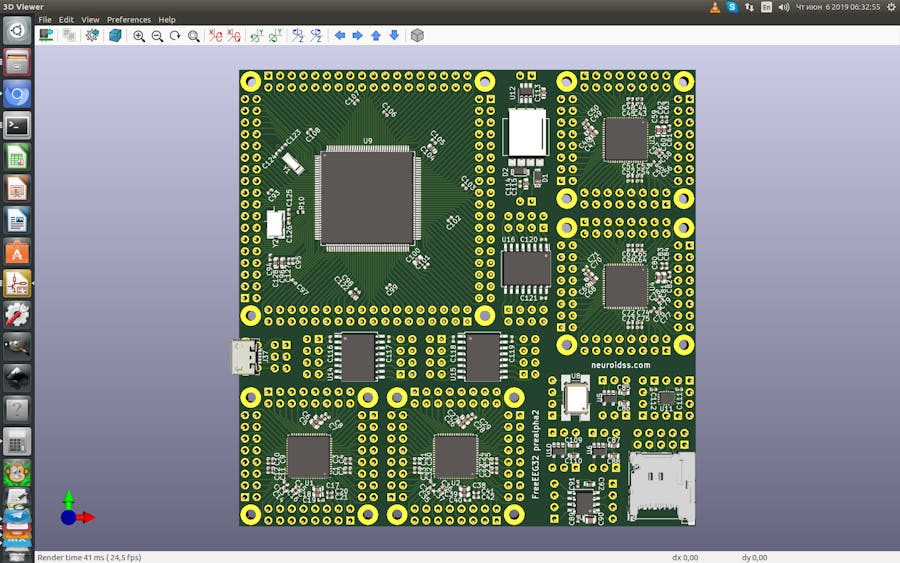

SeeedStudio BOM FreeEEG32-prealpha2 32B0H743.csv: 4xAD7770ACPZ 32 kSPS, ADR4525BRZ 2.5V REF +-0.02%, STM32H743ZIT6 MCU 1027 DMIPS TFT LCD
SeeedStudio BOM FreeEEG32-prealpha2 32B0F767.csv: 4xAD7770ACPZ 32 kSPS, ADR4525BRZ 2.5V REF +-0.02%, STM32F767ZIT6 MCU 462 DMIPS TFT LCD
SeeedStudio BOM FreeEEG32-prealpha2 32B0F765.csv: 4xAD7770ACPZ 32 kSPS, ADR4525BRZ 2.5V REF +-0.02%, STM32F765ZIT6 MCU 462 DMIPS
