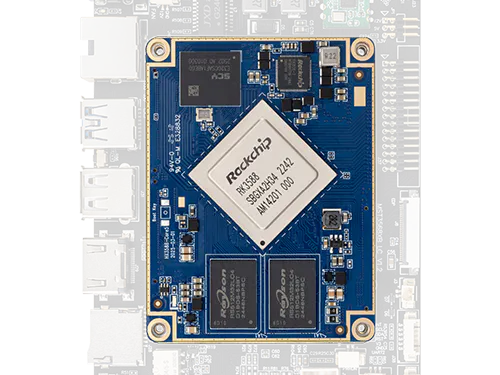

As edge computing demands grow more complex, developers and product engineers need compute modules that can keep up — without compromising on I/O flexibility, thermal performance, or multimedia capability. The MST35885 from DIT (Hunan Display Innovation Technology) is a System-on-Module (SOM) built around the powerful Rockchip RK3588 octa-core processor, bringing enterprise-grade computing power to a compact, board-ready form factor.
Whether you're building a smart kiosk, a computer vision node, a server cluster endpoint, or an industrial display terminal, the MST35885 is worth a serious look.
What Is a SOM?A System-on-Module (SOM) integrates the core computing elements — processor, memory, storage, and key interfaces — onto a single compact PCB. Paired with a custom carrier board, it dramatically reduces hardware development time. Engineers can design their product-specific I/O and form factor on the carrier while relying on a certified, production-ready compute module for the "brain."
The MST35885 follows this philosophy perfectly.
Processor: Rockchip RK3588 Octa-CoreAt the heart of the MST35885 is the Rockchip RK3588, one of the most capable application processors available for embedded and edge applications today.
The RK3588 features a dual-cluster CPU architecture:
- 4x ARM Cortex-A76 high-performance cores
- 4x ARM Cortex-A55 efficiency cores
This big.LITTLE design allows the system to dynamically balance compute-intensive tasks with energy-efficient background workloads — ideal for applications that need both responsiveness and low idle power.
The GPU is an ARM Mali-G610 MC4, supporting:
- OpenGL ES 1.1 / 2.0 / 3.1 / 3.2
- Vulkan 1.1 and 1.2
- OpenCL 1.1, 1.2, 2.0
The RK3588 also includes a High Performance NPU (Neural Processing Unit), making it capable of running AI inference workloads locally — an essential feature for computer vision and on-device ML pipelines.
The MST35885 ships with 4GB LPDDR4 RAM, upgradeable to a maximum of 32GB, providing headroom for memory-intensive applications like multi-stream video processing or large inference models.
Storage starts at 32GB eMMC, expandable up to 256GB. The eMMC 5.1 interface ensures fast sequential read/write performance compared to older storage standards.
Operating System SupportThe MST35885 supports:
- Android 12
- Ubuntu 20.04 (with Euler access support)
This dual OS support makes it versatile across both consumer-style touchscreen applications and Linux-based industrial deployments.
Display and Multimedia: Where the MST35885 ShinesOne of the most compelling aspects of the MST35885 is its rich display and multimedia capabilities, powered by the RK3588's integrated media processor.
Display Output- Multi-screen support up to 4096×2160 resolution
- Dual-channel MIPI-DSI (4 lanes per channel) or CPHY 1.1
- 2× HDMI/eDP TX supporting HDMI 2.0 (up to 6Gbps), HDMI 1.4b, HDCP 2.3 and 1.4
- eDP at 4K@60Hz with HDCP 2.3 and DSC 1.1/1.2a
- DP 1.4 supporting up to 7680×4320@30Hz
The onboard media engine handles:
- H.265 / H.264 at 8K@60fps
- AV1 at 4K@60fps
- VP9 / AVS2 at 8K@30fps
- MPEG-2/-1 / VC-1 / VP8 at 1080P@60fps
This makes the MST35885 an excellent choice for digital signage, video surveillance aggregation, and professional display terminals.
Connectivity and InterfacesThe MST35885 is loaded with connectivity options, all exposed through its board-to-board connectors:
- Interface
- Details
- MIPI CSI
- 4× camera inputs, DPHY V1.2, 2.5Gbps/lane
- MIPI DSI
- 2× outputs, DPHY V2.0 (4.5Gbps) or CPHY V1.1
- PCIe 3.0
- RC/EP dual mode, 8Gbps per lane
- PCIe 2.0
- Up to 5Gbps per lane
- USB
- USB 3.0 ×1, USB 2.0 Host ×2, USB 2.0 OTG ×2
- SATA
- eSATA, 6Gbps
- Ethernet
- 2× Gigabit Ethernet (GMAC)
- UART
- 6× UART, up to 4Mbps baud rate
- I2C
- 5× I2C, standard (100Kbps) and fast (400Kbps) mode
- SPI
- 6× SPI controllers
- I2S / TDM
- 2× I2S, up to 50MHz clocks
- ADC
- 4-channel 12-bit SAR-ADC, 1MS/s
- PWM
- 16× on-chip PWM
- CAN
- CAN bus support
- GPIO
- General purpose I/O
- SD Card
- SDMMC interface
The 4× MIPI CSI camera inputs are particularly noteworthy for computer vision builds — you can connect multiple cameras simultaneously for multi-angle capture, stereo vision, or parallel inference pipelines.
Connector SystemThe MST35885 uses a high-density BTB (Board-to-Board) connector system:
- 3× 80-pin Male BTB connectors (DF12NA(3.0)-80DS-0.5V series)
- 1× 100-pin Male BTB connector (DF40C-100DP-0.4V series)
This connector layout distributes all high-speed signals (PCIe, HDMI, MIPI) cleanly across dedicated connectors, reducing signal crosstalk and simplifying carrier board design.
- Parameter
- Value
- Typical Input Voltage
- 4V
- Supply Current (typical)
- 250mA
- Supply Current (maximum)
- 3000mA
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 85°C
- Operating / Storage Humidity
- 10–90% RH (no condensation)
The wide -40°C to 85°C operating temperature range qualifies the MST35885 for commercial and light industrial grade deployments, even in environments with significant thermal variation.
Physical DimensionsThe MST35885 measures 50mm × 66mm with a height of 5.80mm (connector side). This compact footprint makes it suitable for space-constrained enclosures while still offering the full connectivity of a much larger board.
Target ApplicationsThe MST35885 is well-suited for:
- Computer Vision Systems — Multi-camera AI inference, real-time object detection, facial recognition terminals
- Commercial All-in-One Displays — High-resolution kiosks, digital signage, interactive panels
- Industrial-Grade Devices — Ruggedized controllers, HMI panels, edge gateways
- Server Clusters — Lightweight compute nodes in distributed AI or media processing pipelines
- Edge AI Platforms — NPU-accelerated local inference for smart city, retail, and logistics applications
DIT (Hunan Display Innovation Technology) designs SOM and display solutions focused on high-performance, production-ready hardware for integrators and OEM partners. The MST35885 is designed to pair with DIT's ecosystem of carrier boards and display modules, enabling rapid product development without starting from silicon.
More information, technical documentation, and inquiry support are available at www.ditlcm.com.
SummaryThe MST35885 brings a compelling combination of compute power, multimedia depth, and interface breadth to the SOM market. Anchored by the Rockchip RK3588 and backed by DIT's hardware ecosystem, it's a strong candidate for developers building the next generation of smart displays, vision systems, and industrial edge platforms.
If you're working on a project that demands 8K video, multi-camera input, AI inference, and wide-temperature reliability in a 50×66mm package — the MST35885 is worth evaluating.
