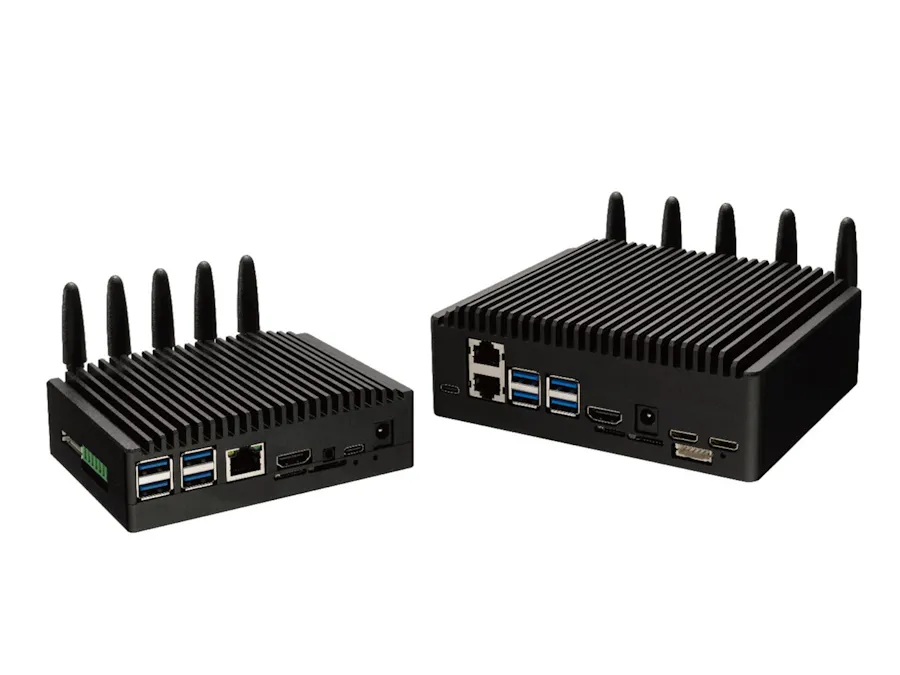

If you're building a rugged industrial system, an edge AI node, an autonomous drone controller, or a compact robotics brain, chances are you've been hunting for a single-board or mini PC solution that doesn't compromise on performance, connectivity, or reliability. The MST3588XB NANO Industrial Mini PC from DIT (Hunan Display Innovation Technology) is exactly that — a palm-sized powerhouse built around the formidable Rockchip RK3588 octa-core processor.
In this article, we'll do a deep dive into everything the MST3588XB NANO offers: its hardware specs, I/O capabilities, operating environment, and what kinds of projects it's best suited for.
The MST3588XB NANO is a compact industrial-grade Mini PC designed and manufactured by DIT. It targets engineers and developers who need serious computing power in a small enclosure that can survive the demands of real-world industrial environments.
At its heart is the Rockchip RK3588 — one of the most capable ARM SoCs currently available, featuring a dual-cluster octa-core CPU, a powerful GPU, a dedicated NPU for AI workloads, and robust multimedia processing. Surrounding it is a carefully selected set of interfaces tailored for industrial and embedded applications.
Processor: Rockchip RK3588 — The Star of the ShowThe RK3588 is not just any ARM chip. It is a dual-cluster design:
- 4× ARM Cortex-A76 high-performance cores (up to 2.4 GHz)
- 4× ARM Cortex-A55 efficiency cores
This big.LITTLE architecture means the MST3588XB NANO can intelligently balance maximum throughput for compute-heavy tasks and low power draw for lighter workloads.
Beyond the CPU, the RK3588 also integrates:
- GPU: Mali-G610 MP4 — capable of OpenGL ES 3.2, Vulkan 1.1, and OpenCL 2.0
- High-Performance NPU — 6 TOPS of AI inference compute for on-device machine learning
- 8K Video Encoder/Decoder — supports H.265, H.264, VP9, and more
- JPEG Encoder/Decoder
- Image Signal Processor (ISP) — for camera-based applications
- Rockchip RK3588 (Quad Cortex-A76 + Quad Cortex-A55)
- Up to 2.4 GHz
- LPDDR4, 4GB (Up to 32GB)
- Storage: eMMC, 32GB (Up to 256GB)
- GPU: Mali-G610 MP4
- OS Support: Android 12 / Ubuntu 20.04 / Debian 11 / Buildroot / NeoKylin
- Power Input: DC 12V
- Max Power Consumption: 8.5W
- Operating Temperature: 0°C ~ +70°C (Optional: -20°C ~ +70°C / -40°C ~ +85°C)
The MST3588XB NANO ships with 4GB LPDDR4 RAM and 32GB eMMC storage as standard, but can be configured with up to 32GB RAM and 256GB eMMC — more than enough for running complex industrial applications, Docker containers, lightweight AI models, or full Linux desktop environments.
The eMMC storage (as opposed to traditional mechanical drives or even slower NAND solutions) ensures fast boot times, reliable read/write operations, and resilience against vibration — critical for mobile or field-deployed industrial systems.
Additionally, a TF (MicroSD) card slot is available for expanded storage or easy OS flashing
I/O Interfaces: Industrial-Grade ConnectivityOne of the MST3588XB NANO's strongest selling points is its comprehensive I/O suite. Here's a full breakdown:
Networking- 1× Gigabit Ethernet (1000M RJ45) — reliable, high-speed wired networking for industrial control systems and edge computing nodes
- 4× USB 3.0 Type-A — for connecting peripherals, storage, cameras, dongles, and more
- 1× USB Type-C — used for firmware download and debug (great for developers)
- 1× HDMI OUT — supports up to 4K (3840×2160) resolution with dual-screen independent display capability via the RK3588's dual-display pipeline
- Wi-Fi: 802.11 b/g/n (optional upgrade to 802.11 ac/ax for faster speeds)
- Bluetooth: BT4.2
- 1× Composite Serial Port (RS-232 / RS-485) — essential for industrial field bus communication, PLCs, sensors, and legacy industrial devices
- TF Card Slot — for external storage or alternative OS boot
- SIM Card Slot — for cellular connectivity in IoT or remote monitoring applications
- Expansion Port — additional GPIO/peripheral expansion for custom integration
The MST3588XB NANO is fully compatible with a wide range of operating systems:
- Android 12 — ideal for HMI panels, kiosk systems, and touch-based interfaces
- Ubuntu 20.04 — popular Linux distro for developers and ROS-based robotics
- Debian 11 — lightweight and stable for headless deployments
- Buildroot — for ultra-lean custom embedded Linux images
- NeoKylin — China's domestic Linux OS, supporting compliance-critical deployments
This multi-OS flexibility makes the MST3588XB NANO uniquely adaptable to virtually any industrial software ecosystem.
Physical Form FactorThe MST3588XB NANO lives up to its "NANO" name. The compact enclosure measures approximately 315mm × 88.66mm × 25mm (based on engineering drawings), making it easy to mount in control cabinets, embed in machinery, or install in space-constrained drone or robotics frames.
It uses 1.25mm and 2.0mm pitch wire-to-board connectors — a hallmark of industrial-grade compact electronics designed for vibration resistance and reliable long-term connections.
AccessoriesThe MST3588XB NANO ships with a power adapter included in the package. An optional Wi-Fi/BT antenna is available separately for wireless-enabled deployments.
Why Choose the MST3588XB NANO Over Other Mini PCs?There are many ARM mini PCs on the market, but the MST3588XB NANO distinguishes itself in several ways:
- True industrial-grade build — not a hobbyist board; designed for long-term deployment in harsh environments
- RK3588 compute headroom — the A76 cores at 2.4GHz outperform many competing platforms in single-thread workloads
- Flexible OS support — Android, Linux distros, and Buildroot all officially supported
- Serial port built-in — RS-232/RS-485 without needing USB adapters that can fail
- SIM card slot — built-in 4G/5G capability (with appropriate module) for remote deployments
- Dual 4K display — the RK3588's dual-display pipeline is rare at this form factor and price class
- Expandability — the expansion port allows custom peripheral integration via GPIO
The MST3588XB NANO from DIT is a seriously capable industrial Mini PC that punches well above its size. The Rockchip RK3588's octa-core architecture, supported by up to 32GB LPDDR4 RAM, 256GB eMMC, 4K dual-display output, industrial serial ports, cellular connectivity, and a wide operating temperature range, makes it one of the most versatile compact computing platforms available for industrial, robotics, drone, and healthcare applications.
Whether you're a hardware engineer looking for a reliable embedded compute module, a systems integrator building an edge AI solution, or a maker pushing the boundaries of what a mini PC can do — the MST3588XB NANO deserves serious consideration.
