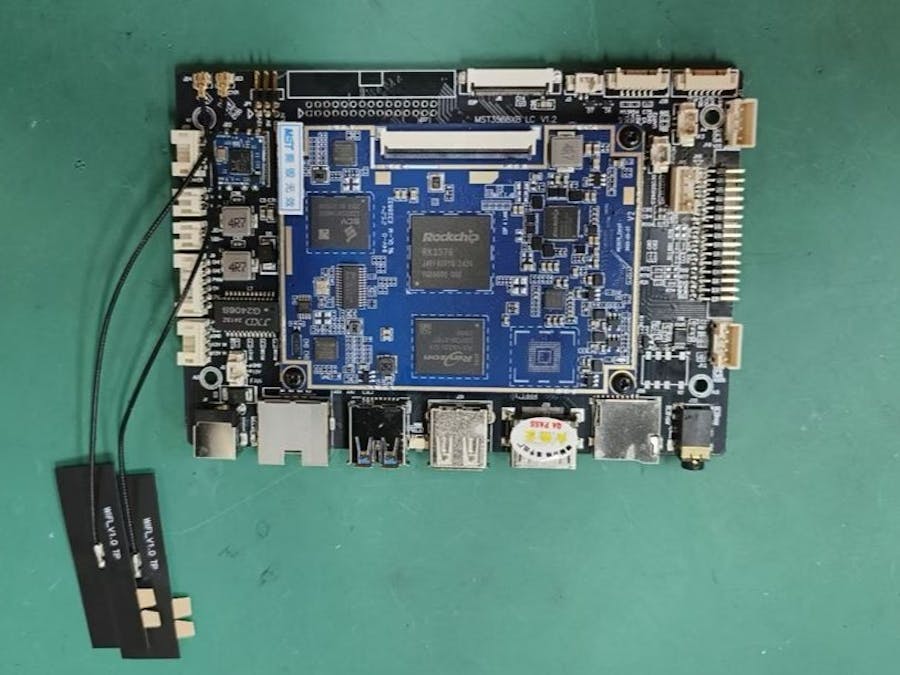

In this project, I’m showcasing the MST3576 XB motherboard, a high-performance industrial embedded board based on the Rockchip RK3576 octa-core processor. This board is designed for demanding applications such as industrial control, automation, robotics, healthcare systems, and smart terminals where performance, stability, and rich I/O are critical.
The goal of this project is to demonstrate how the MST3576 XB can serve as a robust core platform for building scalable and future-ready embedded systems.
Modern industrial and smart systems require more than just computing power. They demand reliable connectivity, multi-display support, industrial interfaces, and long-term stability. The MST3576 XB board addresses these requirements by combining:
- High-performance ARM architecture
- Rich multimedia interfaces
- Industrial-grade I/O
- Flexible OS support
This makes it suitable for both prototype development and mass production.
Core Specifications- Processor: Rockchip RK3576
- Quad-core ARM Cortex-A72
- Quad-core ARM Cortex-A53
- Up to 2.2 GHz
- Memory: LPDDR5 (4GB / 8GB / 16GB)
- Storage: eMMC (32GB up to 256GB)
- Operating Systems:
- Android 14
- Ubuntu 22.04
- Power Input: DC 12V
- Max Power Consumption: 8.4W
One of the biggest strengths of the MST3576 XB is its extensive I/O support, making it ideal for industrial and commercial deployments.
- Network & Wireless
- Dual Gigabit Ethernet (RJ45 ×2)
- Wi-Fi 802.11 b/g/n
- Bluetooth 4.2 (Optional 5.0 / 5.2)
- Mini-PCIe for 4G / 5G modules
- Nano SIM slot
- USB 3.0 Type-A ×1
- USB 2.0 Type-A ×1
- USB 2.0 headers ×3
- USB Debug interface
- RS232 ×1
- RS485 ×1
- CAN ×2
- GPIO (3-channel)
- MST3576 XB Motherboard
- Power Adapter (12V)
- HDMI / LVDS / eDP Display (for testing)
- USB Keyboard & Mouse
- Ethernet Connection
- Optional: USB Camera, Speaker, Wi-Fi / 4G Antenna
The MST3576 XB is well-suited for:
- Industrial control panels
- Automation systems
- Robotics controllers
- Medical equipment terminals
- Smart kiosks and HMIs
- AI edge devices with multi-display output
Its balance of performance and interface flexibility makes it a strong alternative to traditional industrial PCs.
The MST3576 XB motherboard is a powerful and scalable embedded solution for engineers and system integrators looking for long-term reliability and rich hardware support. Whether you’re building a prototype or preparing for mass deployment, this board offers an excellent foundation for modern industrial applications. www.ditlcm.com
