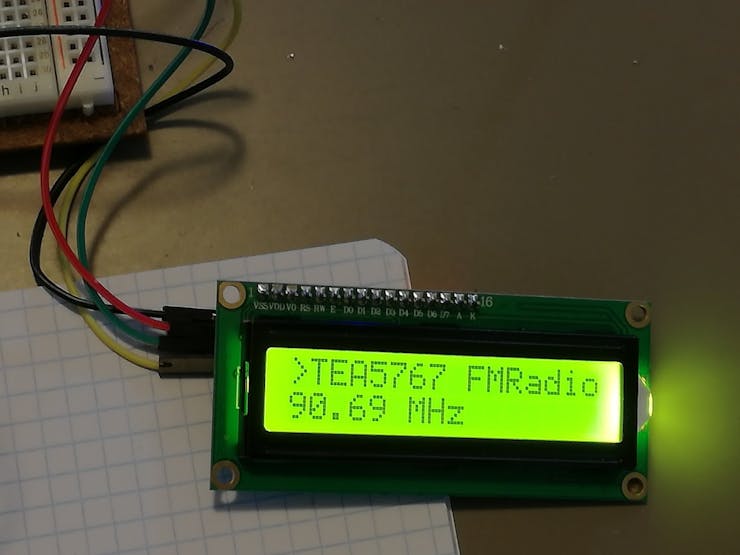

New TEA5767 Sketches to Make an FM Radio with Arduino

Library & sketches to control the TEA5767 FM radio module, using Arduino and an I2C LCD display. Release 02.00.00 is an arduino library.

EasyShowcase (no instructions)2,667
New TEA5767 Sketches to Make an FM Radio with Arduino

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
The Arduino UNO manages the settings of TEA5767 but the module is autonomous
×1
NXP TEA5767 FM Stereo Radio | Mit Antenne | DIY Starter Kit
I have buyed the chip on eBay e.g. Ampario in Germany
×1
Arduino Keypad 4x4
×1
Resistor 1k ohm
Resistor 1k ohm
connected between VCC 5V and output A1 to limit current when potientometer is low
×1
Rotary potentiometer (generic)
Rotary potentiometer (generic)
I have used a generic 10K to manage FM frequency change
×1

Software apps and online services

Arduino IDE
Arduino IDE
I have written sketckes with Arduino IDE on Linux 64bit (Linux from scratch version 8.2)

Story

Read more

Schematics

Simple schemtic

List of parts and comments on how to connect (see notes!). The schematic is not complete because I am learning Fritzing
Radiofm1 bb kvsdinwr6w

Code

Github repository

Repository where you can download the sketches and the library. NEW: version 02.00.00!
