DC Voltmeter On Your Desktop Using ThingsIO.AI Platform

#include <SoftwareSerial.h>
SoftwareSerial mySerial(12, 13); // RX, TX

#include <ESP8266WiFi.h>          //https://github.com/esp8266/Arduino
#include <DNSServer.h>
#include <ESP8266WebServer.h>
#include "WiFiManager.h"          //https://github.com/tzapu/WiFiManager

const float referenceVolts = 3.0; // the default reference on a 5-volt board

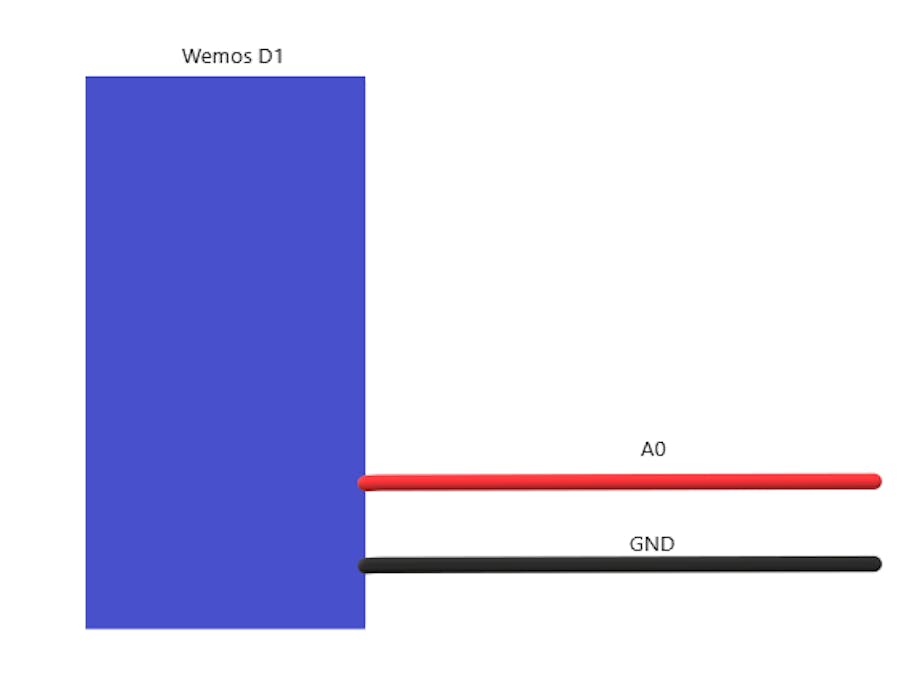

const int batteryPin = A0;  // battery is connected to analog pin 0
int yesno = 0;

int count=0,i,m,j,k;


//////////////////////////////////////// ALL DECLARATIONS for CLOUD //////////////////////////////
const char* host = "api.thingsio.ai";                                 // OR host = devapi2.thethingscloud.com
const char* post_url = "/devices/deviceData";       // OR /api/v2/thingscloud2/_table/data_ac
const char* time_server = "baas.thethingscloud.com";             //this is to convert timestamp
const int httpPort = 80;

char timestamp[10];

WiFiClient client;



/////////////////////////////////////////////////////////////////////////////////////////////////////////
void configModeCallback (WiFiManager *myWiFiManager)
{
  Serial.println("Entered config mode");             //*-*-*-*-*-*-*-*-*-*-*-*-*-*if control enters this function then net is not connected
  Serial.println(WiFi.softAPIP());                  // "WiFi.softAPIP() is for AP" , "WiFi.localIP() is for STA",

  Serial.println(myWiFiManager->getConfigPortalSSID());             //if you used auto generated SSID, print it
}
/////////////////////////////////////// TIMESTAMP CALCULATION function///////////////////////////////////////
int GiveMeTimestamp()
{
  unsigned long timeout = millis();

  while (client.available() == 0)
  {
    if (millis() - timeout > 50000)
    {
      client.stop();
      return 0;
    }
  }

while (client.available())
      {
        String line = client.readStringUntil('\r');                    //indexOf() is a funtion to search for smthng , it returns -1 if not found
        int pos = line.indexOf("\"timestamp\"");                       //search for "\"timestamp\"" from beginning of response got and copy all data after that , it'll be your timestamp
        if (pos >= 0)
        {
          int j = 0;
          for(j=0;j<10;j++)
          {
            timestamp[j] = line[pos + 12 + j];
          }
        }
      }
}
////////////////////////////////////////////////////////////////////////////////////////////////////////

void setup()
{
  Serial.begin(115200);     //(19200,SERIAL_8E1) - data size = 8 bits , parity = Even , stop bit =  1bit
  mySerial.begin(115200);
  WiFiManager wifiManager;

  wifiManager.setAPCallback(configModeCallback);

  if(!wifiManager.autoConnect("DDIK Makadia","kidd123456789"))                   //wifiManager.autoConnect("AP-NAME", "AP-PASSWORD"); (OR) wifiManager.autoConnect("AP-NAME"); only ID no password (OR) wifiManager.autoConnect(); this will generate a ID by itself
  {
    Serial.println("failed to connect and hit timeout");     //control comes here after long time of creating Access point "NodeMCU" by NodeMCU and still it has not connected
    //reset and try again, or maybe put it to deep sleep
    ESP.reset();
    delay(1000);
  }

  //if you come here you have connected to the WiFi
  Serial.println("connected...");

}

void loop()
{

/////////////////////////////////////// SEND THE QUERY AND RECEIVE THE RESPONSE///////////////////////
  int val = analogRead(batteryPin); // read the value from the sensor
  float volts = (val / 1023.0) * referenceVolts; // calculate the ratio
  Serial.println(volts); // print the value in volts
  delay(100);
  if(volts<1.0)
  {
    yesno=0;
  }
  else
  {
    yesno=1;
  }


  Serial.println("connecting to ");
  Serial.println(host);                          //defined upside :- host = devapi2.thethingscloud.com or 139.59.26.117

///////////////////////////////////// TIMESTAMP CODE SNIPPET /////////////////////////
  Serial.println("inside get timestamp\n");
  if (!client.connect(time_server, httpPort))
  {
    return;                                                        //*-*-*-*-*-*-*-*-*-*
  }

  client.println("GET /api/timestamp HTTP/1.1");                            //Whats this part doing, i didnt get
  client.println("Host: baas.thethingscloud.com");
  client.println("Cache-Control: no-cache");
  client.println("Postman-Token: ea3c18c6-09ba-d049-ccf3-369a22a284b8");
  client.println();

  GiveMeTimestamp();                        //it'll call the function which will get the timestamp response from the server
  Serial.println("timestamp receieved");
  Serial.println(timestamp);
///////////////////////////////////////////////////////////////////////////////

// Use WiFiClient class to create TCP connections
  if (!client.connect(host, httpPort))            //host = devapi2.thethingscloud.com , port = 80
  {
    Serial.println("connection failed");                  // *-*-*-*-*-*--*-*-*-*-*-*-*-*-*-*-*-*-
    return;
  }

  client.print("Content-Length: ");
  client.println();

  unsigned long timeout = millis();
  while (client.available() == 0)
  {
    if (millis() - timeout > 50000)
    {
      Serial.println(">>> Client Timeout !");
      client.stop();
      return;
    }
  }

  Serial.println("***********************************************");
  Serial.println();
  Serial.println("closing connection");

  Serial.println("inside ThingsCloudPost");
  int timestamp1 =0;
  timestamp1 = 1542800778;

  String PostValue = "{\"device_id\":  xxxxxxx, \"slave_id\": 1";
  PostValue = PostValue + ",\"dts\":" +timestamp;
  PostValue = PostValue +",\"data\":{\"Voltage\":" + volts +",\"Connect Yes=1/No=0\":" + yesno +"}"+"}";

  Serial.println(PostValue);

//////////////////////////////// try to connect to server again and POST the data on the cloud //////////////////////////
  if (!client.connect(host, httpPort))
  {
    return;
  }

  client.print("POST ");
  client.print(post_url);               /// POST api/device-datas         HTTP/1.1     Host: baas.thethingscloud.com      Content-Type: application/json        Cache-Control: no-cache
  client.println(" HTTP/1.1");           //Authorization:          Content-Length:
  client.print("Host: ");
  client.println(host);
  client.println("Content-Type: application/json");
  client.println("Cache-Control: no-cache");
  client.print("Authorization: Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.IjViZTc5ZjRiNDAyYjlkNGI5MDdiZGRmZCI.hBa2XTagbf56p_E83PeMZHaoJO4EUrbwGcmWTU0j0-w");
  client.println();
  client.print("Content-Length: ");
  client.println(PostValue.length());
  client.println();
  client.println(PostValue);

//////////////////////////////////POSTING the data on to the cloud is done and now get the response form cloud server//////////////////
  while (client.available() == 0)
  {
    if (millis() - timeout > 50000)
    {
      Serial.println(">>> Client Timeout !");
      client.stop();
      return;
    }
  }

  Serial.println("Response From Server");
  while(client.available())
  {
    String line2 = client.readStringUntil('\r');
    Serial.print(line2);

  }

  Serial.println("//////////////////////    THE END     /////////////////////");
  delay(3000);

}
