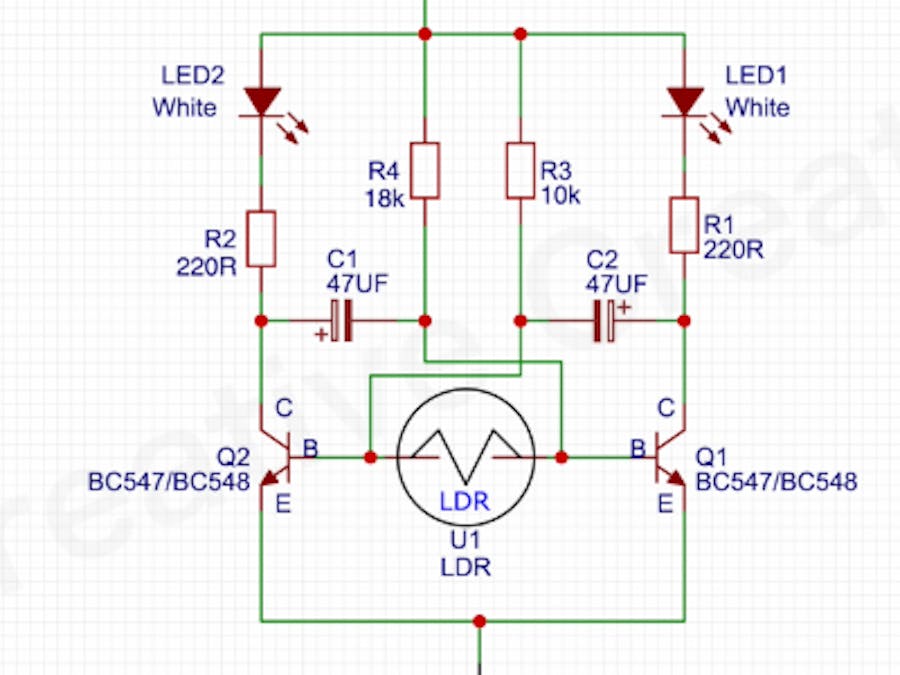

LED Flasher Circuit with LDR

Introduction:

Hello guys, today during this article we are getting to discuss the way to make a led Flasher circuit with LDR. So, certainly, you'll change the blink speed with the LDR candlepower.

So this is often an excellent circuit for a hobbyist. Easy to form. you'll not need any PCBs for creating the Circuit. you'll just solder all the components easily and make the circuit.

This type of oscillation circuit is usually referred to as Stable multivariate. These circuits don't need the other outer or other oscillation for running. The oscillation is made through the Transistor's and therefore the capacitors and the waveform are only squired wave, as a result, the results are going to be pretty great. This circuit doesn't need any outer oscillation.

Here the Transistor is crossly coupled. and therefore the capacitors have two different states. If one capacitor is on then another capacitor is going to be off. The circuit works with a feedback network. that's why it's also called Free Running Multivariator.

Watch Video:

Here is that the Video form Creative Creator YouTube Channel and you'll watch the video to the top to know every step that I even have wiped out the project.

How does the circuit work?

This is basically a modified astable multivibrator circuit. it's very easy. The LDR creates a potential divider.

When the LDR and therefore the resistors create a potential divider. Then the intensity of the sunshine is higher then the LDR resistor value is going to be lower. And when the intensity is lower then the standard then the LDR acts as an infinite resistor.

Here to capacitors are connected they work alternatively. If capacitor 1 is charged on just one occasion then Capacitor 2 is going to be discharged. This works sort of a flip flop configuration.

The capacitor 1 discharges through transistor 2 and therefore the capacitor 2 discharges through transistor 1. When one capacitor charges then other capacitor discharges. this is often sort of a sequential manner.

Note:

You shouldn't short-circuit any of the Transistors.

Connect the Transistor's pins as shown within the picture. If you create any mistakes then there'll be a high possibility of Magic Smoke.

No one likes smokes from the circuit. So take care while making the circuit.

Conclusion:

All in all, LED Flasher Circuit with LDR may be a great project for beginners. and therefore the circuit is straightforward to construct. And with all basic all components anyone can make the circuit within the home. So that's why the circuit is extremely helpful for Hobbyists.

You can also read another article about Simple Inverter Circuit this is often also very easy to construct.
