In this project, we explore how to create a robust LoRa-based mesh communication system using Seeed Studio’s T1000E and Wio SX1262 (with XIAO ESP32S3), demonstrating zonal forwarding to extend connectivity without relying on Wi-Fi or cellular networks.

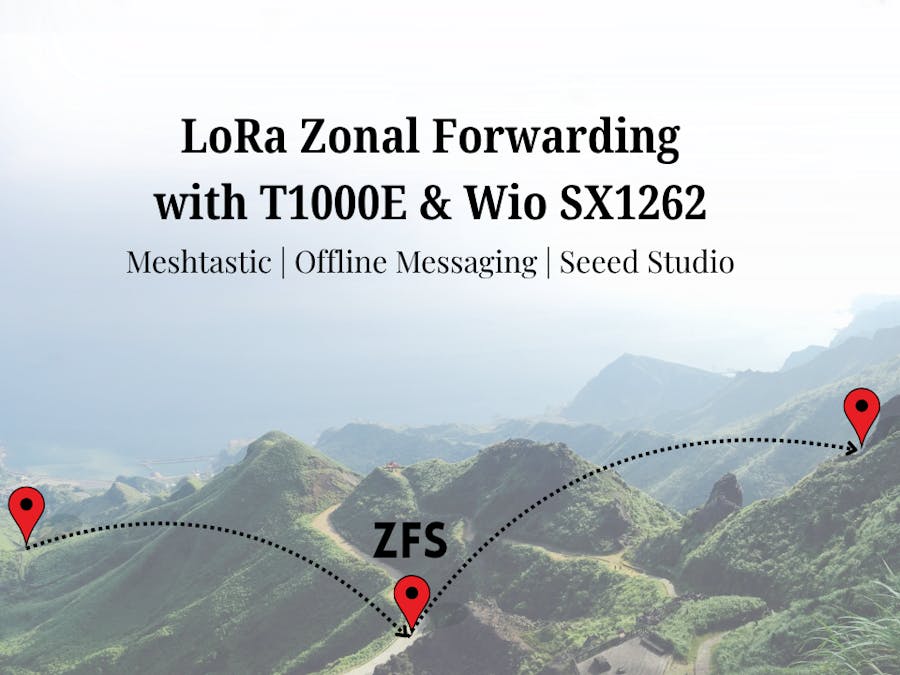

What is Zonal Forwarding?Zonal Forwarding is a mesh technique where an intermediate node — the Zonal Forwarding Station (ZFS) — relays packets between nodes that cannot directly reach each other. This node bridges coverage gaps, ensuring uninterrupted communication in areas with obstacles or long-range deployments.
This method is highly effective in:
- Forest trails where line-of-sight is interrupted by trees
- Disaster recovery zones where infrastructure is down
- Agricultural fields with wide spacing between sensor stations
- Off-grid hiking or trekking expeditions where reliable GPS location sharing is crucial
Watch how the Wio SX1262 + XIAO ESP32S3 communicates with the Seeed T1000E using the Meshtastic app for offline LoRa messaging.
This demo shows real-time message exchange and lays the groundwork for more advanced Zonal Forwarding applications.
Hardware Used- Seeed Studio T1000E
- Seeed Wio SX1262 + XIAO ESP32S3
- Android phone with Meshtastic app
Flash latest Meshtastic firmware to both:
- T1000E
- Wio SX1262 + XIAO ESP32S3
Set both devices to same region and modem preset to ensure legal and compatible communication.
Step 3: Test Bi-directional CommunicationConnected both devices to the Meshtastic app, sent messages from:
- T1000E to Wio SX1262
- Wio SX1262 to T1000E
- Verified through the app's DM log panel
Place the Wio SX1262 in between devices that are otherwise out of range. It acts as a passive ZFS node, relaying packets to extend communication.
The Wio SX1262 device now acts as a Zone Forwarding Station, positioned between nodes to extend range and hop messages.
ConclusionBy leveraging the Seeed T1000E and Wio SX1262 + XIAO ESP32S3 combo, we created a decentralized LoRa mesh that can adapt to different terrains and mission profiles. Zonal forwarding ensures messages are delivered even when devices are out of direct range — proving the power of distributed communication.
