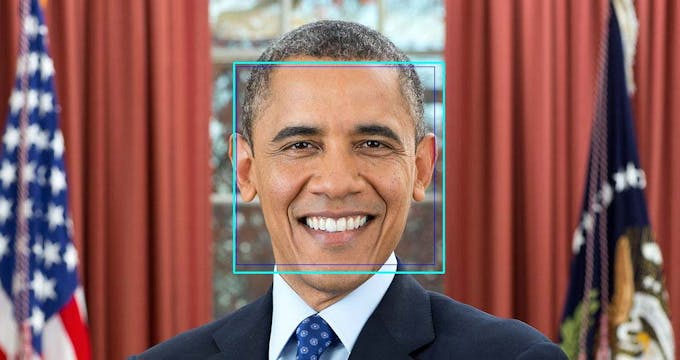

In this project we are using OpenCv in Raspberry pi. This project is used to detect the human Face with the help of OpenCv tool. In order to do object detection with cascade files, you first need cascade files. For the extremely popular tasks, these file already exist.
1.Raspian OS:
This is the recommended os for raspberry pi. You can also installed other OS from third party. Raspbian OS is debian based OS. We can install it from noobs installer. you can get the link from here
2.Putty:
PuTTY is an SSH and telnet client, developed originally by Simon Tatham for the Windows platform. PuTTY is open source software that is available with source code and is developed and supported by a group of volunteers. Here we are using putty for accessing our raspberry pi remotely.
You can download PuTTY here
3.OpenCv:
OpenCV (Open Source Computer Vision Library) is an open source computer vision and machine learning software library. OpenCV was built to provide a common infrastructure for computer vision applications and to accelerate the use of machine perception in the commercial products. Being a BSD-licensed product, OpenCV makes it easy for businesses to utilize and modify the code. The library has more than 2500 optimized algorithms, which includes a comprehensive set of both classic and state-of-the-art computer vision and machine learning algorithms. These algorithms can be used to detect and recognize faces, identify objects, classify human actions in videos, track camera movements, track moving objects and extract 3D models of objects.
You only need two hardware here:

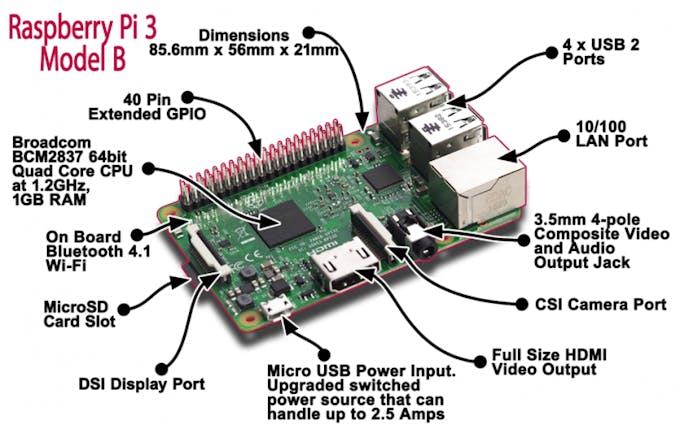

1. Raspberry Pi:
This is the latest version of raspberry pi. In this we have inbuilt Bluetooth and wi-fi, unlike previously we have to use Wi-Fi dongle in one of its usb port. There are total 40 pins in RPI3. Of the 40 pins, 26 are GPIO pins and the others are power or ground pins (plus two ID EEPROM pins.) There are 4 USB Port and 1 Ethernet slot, one HDMI port, 1 audio output port and 1 micro usb port and also many other things you can see the diagram on right side. And also we have one micro sd card slot wherein we have to installed the recommended Operating system on micro sd card. There are two ways to interact with your raspberry pi. Either you can interact directly through HDMI port by connecting HDMI to VGA cable, and keyboard and mouse or else you can interact from any system through SSH(Secure Shell). (For example in windows you can interact from putty ssh.) Figure is given above.

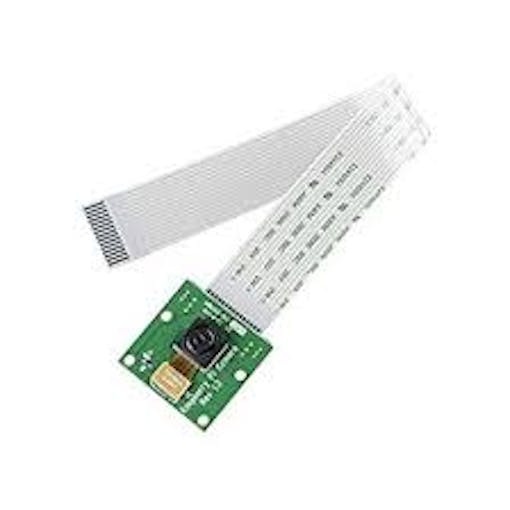

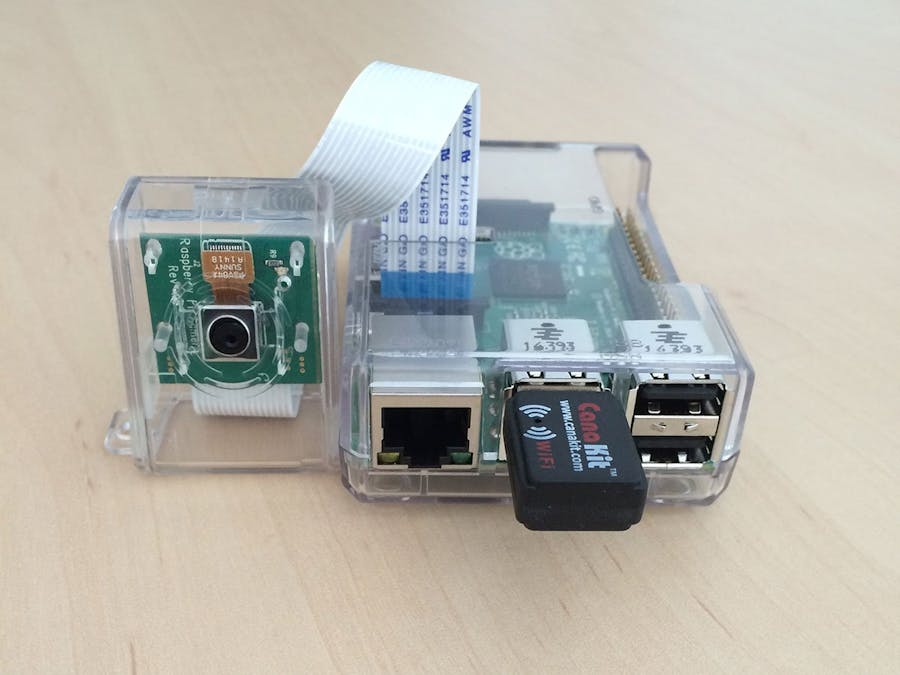

2. Raspberry Pi Camera:
The Raspberry Pi camera module can be used to take high-definition video, as well as stills photographs. It’s easy to use for beginners, but has plenty to offer advanced users if you’re looking to expand your knowledge. There are lots of examples online of people using it for time-lapse, slow-motion and other video cleverness. You can also use the libraries we bundle with the camera to create effects.
1) sudo apt-get update
2) sudo apt-get upgrade
3) sudo apt-get install build-essential
4) sudo apt-get install cmake git libgtk2.0-dev pkg-config libavcodec-dev libavformat-dev libswscale-dev
5)sudo apt-get install python-dev python-numpy libtbb2 libtbb-dev libjpeg-dev libpng-dev libtiff-dev libjasper-dev libdc1394-22-dev
6) sudo apt-get install python-opencv
7) sudo apt-get install python-matplotlib

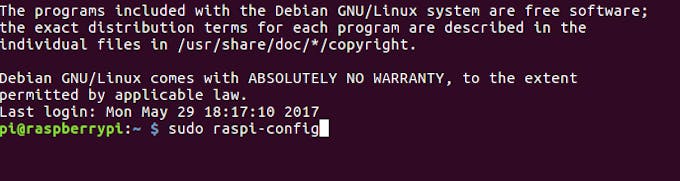

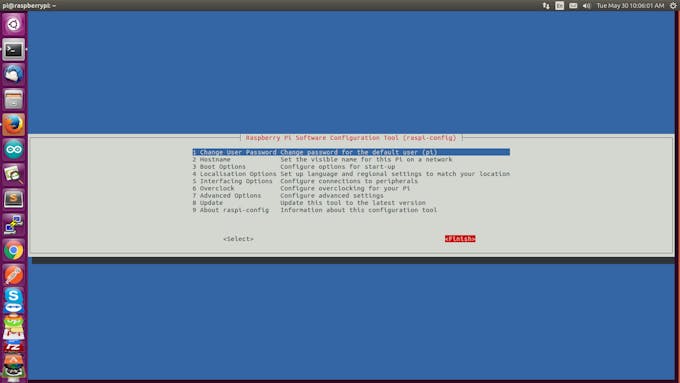

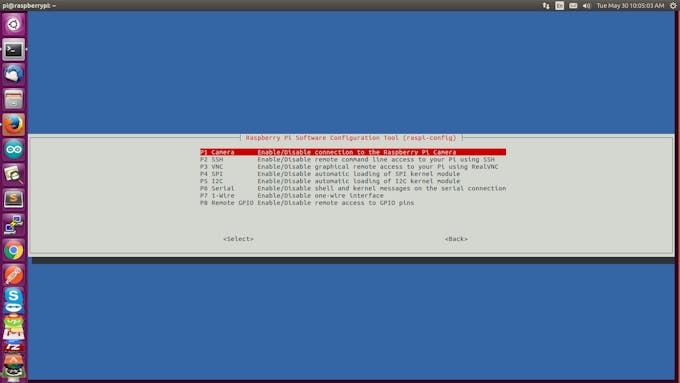

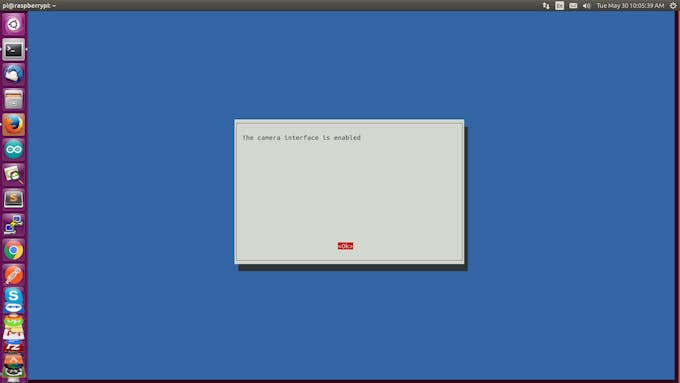

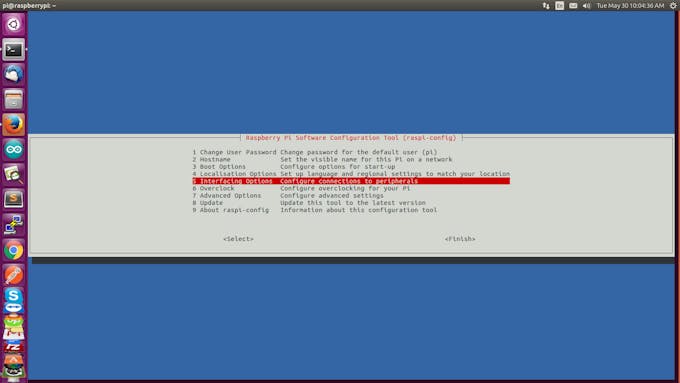

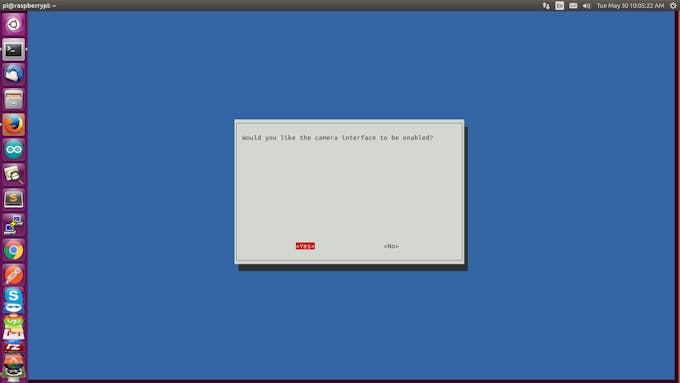

Configure and Enable CameraFor Face Detection you have to Configure PiCamera. We have shown all the Steps description for enablingcamera are given below:
After following these Steps first you want Check Camera is enable or not. by taking one picture for this command:
sudo raspistill -o filename.jpg
If camera is enabled successfully then you get the picture in the same directory.
All the best. You have finished your face detection Project.
