Have you ever built a nice project, only to be frustrated by constantly changing batteries, hunting for a wall outlet, and dealing with ugly, tangled cables on your desk? I have the solution!
Imagine running your projects for months - energy-independent and completely off the grid. In this guide, we are going to tap into the power of the sun and create a tiny, self-sustaining "power plant" for your electronics.
To keep circuit simple, we will build a classic: an independent weather station using an Arduino Nano. While a weather station might be a bit cliché, it is the perfect simple project to help us focus on power management. Let’s dive in!
🛠️ What You Will NeedBefore we start wiring things together, let's gather our components.
- Yoursystem: arbitrary, I used an Arduino Nano with built-in sensors, but feel free to use any board you want (even Raspberry Pi!)
- Solar Panel: - For low-energy systems (5-10mA): A tiny 2V panel- For medium systems (a couple hundred mA): Medium panel. (We will use this one for our guide) (5V Solar Panel)- For heavy tools (>0.5A): Larger, high-capacity panels.
- Backup Battery: A standard 18650 cell (the same kind used in electric vehicles) but you can literally reuse an old vape battery.

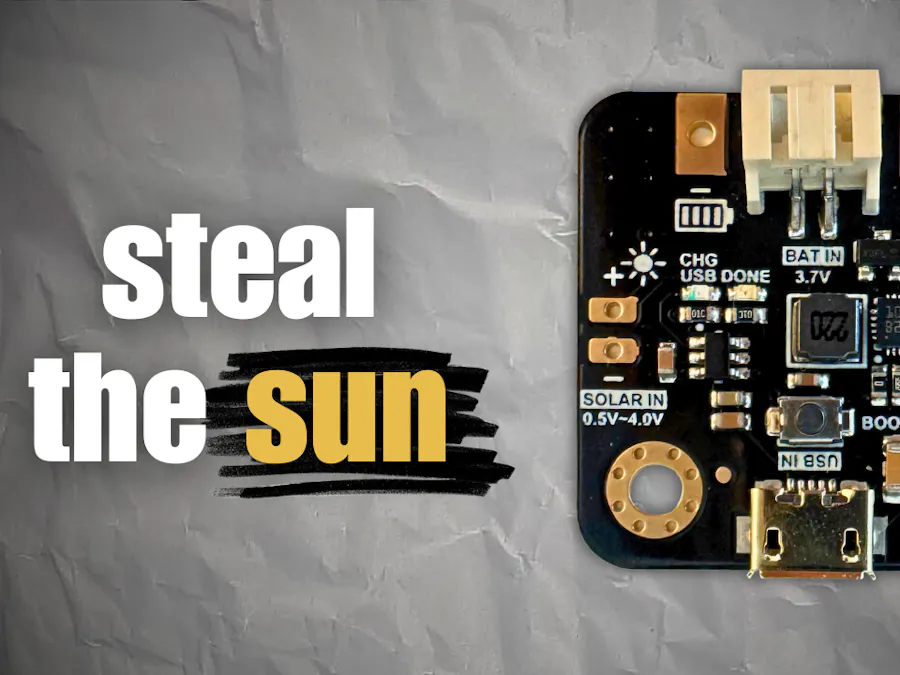

- Solar Power Manager: A power orchestrator board. I'm using a DF Robot 5V Solar Manager
If you already have a solar panel, you might be tempted to hook it straight to your Arduino. Don't do it. Here is why:
- Voltage Mismatch: Depending on the panel's parameters, the board might not wake up at all, or worse, it could get fried by a voltage spike.
- The Cloud Problem: Even if the voltage matches perfectly, the moment a cloud blocks the sun for a single second, your entire system shuts down.
To solve this, we need a "middleman" system.
📊 Testing the SystemOnce assembled, upload your code to the Arduino. In our weather station example, the Arduino is programmed to broadcast temperature and humidity data every 10 seconds.
Using the Chrome Web Bluetooth API on a laptop, you can immediately find the Arduino, pair it, and watch the data stream in - all powered by the sun!
💡 The Numbers: Is It Worth It?How much power can you actually generate? This depends on your location, temperature, solar-beam angle and many other factors (you can check sites like globalsolaratlas.info for regional estimates). However, let's look at the math for our setup:
- Consumption: With sleep optimization, the Arduino setup draws about 20mA on average.
- Production: On a sunny day, the 5V panel produces over 300mA per hour.
This means less than 2 hours of sun exposure provides enough energy to fulfill the system's entire daily demand!
Worth to mention - panels still generate electricity (just proportionally less) even when it is cloudy.
Cost vs ValueA setup like this costs a dozen or so dollars. For that money, you could easily pay for 5 years of wall-outlet electricity for an Arduino. So why bother?
It comes down to location. If you need to monitor a greenhouse, a balcony, or a treehouse, running extension cords is impractical or dangerous. That is the perfect use case for solar energy.
ConclusionSolar panels are a unique source of power. They don't smoke, they don't spin, and they don't make noise. While a tiny setups like this have bunch of limitations, experimenting with solar energy for IoT projects is incredibly rewarding and a ton of fun.
Give it a try, and enjoy your new, energy-independent systems!
