QR Code Redirection Engine with IoT support

This is a quick guide introducing PrismQR, a custom-built dynamic QR code engine that allows you to change a QR code’s destination URL in real-time based on external triggers like physical movement or voice commands (or just plain http request if you wish). The project is fully open-source, free to use, and demonstrates how to bridge IoT devices with web redirection logic. Unlike standard URL shorteners, this engine is optimized for high-performance scenarios, supporting IoT integration and large-scale marketing campaigns where redirect targets may need to change instantly without updating the physical QR code.

Why Build a Custom Redirect Platform?

Using third-party services like Bitly or generic QR generators often comes with monthly fees, rate limits, and data privacy concerns. By hosting this open-source URL shortener yourself, you gain:

• Full Data Ownership: Keep your click analytics and user data private.
• Unlimited Redirections: No caps on how many times a link can be scanned or clicked.
• Custom Domain Authority: Serve links from your own domain to boost your brand’s trust.
• IoT Flexibility: Ideal for manufacturing and smart packaging where static QR codes need to point to dynamic, updateable resources (e.g., driver downloads or manuals).

Use Cases

• Dynamic marketing campaigns
• QR code tracking and analytics
• URL shortening
• IoT device integration
• Multi-device redirection management

Overview

In this project, I explore the limitations of standard “Static” QR codes—once printed, their destination is permanent—and present a solution called PrismqQR. This is a dynamic redirection engine I built from scratch to allow physical printed papers to react to digital signals, enabling you to orchestrate destination changes via phones, Arduinos, Raspberries, or thousands of IoT devices.

Static vs. Dynamic QR Theory

To understand the build, we first have to distinguish the types of codes:

Static QR: The black and white dots directly encode the final URL (e.g., your Wi-Fi password or a direct website link). To change the destination, you must reprint the code.

Dynamic QR: The code points to a “redirection engine” (in this case, prismqr.com or your self-hosted domain). This engine acts as a fast transfer station (taking roughly 2ms) that looks up the current intended destination and forwards the user there. This allows for real-time changes, visit charts, and custom business logic without changing the physical print.

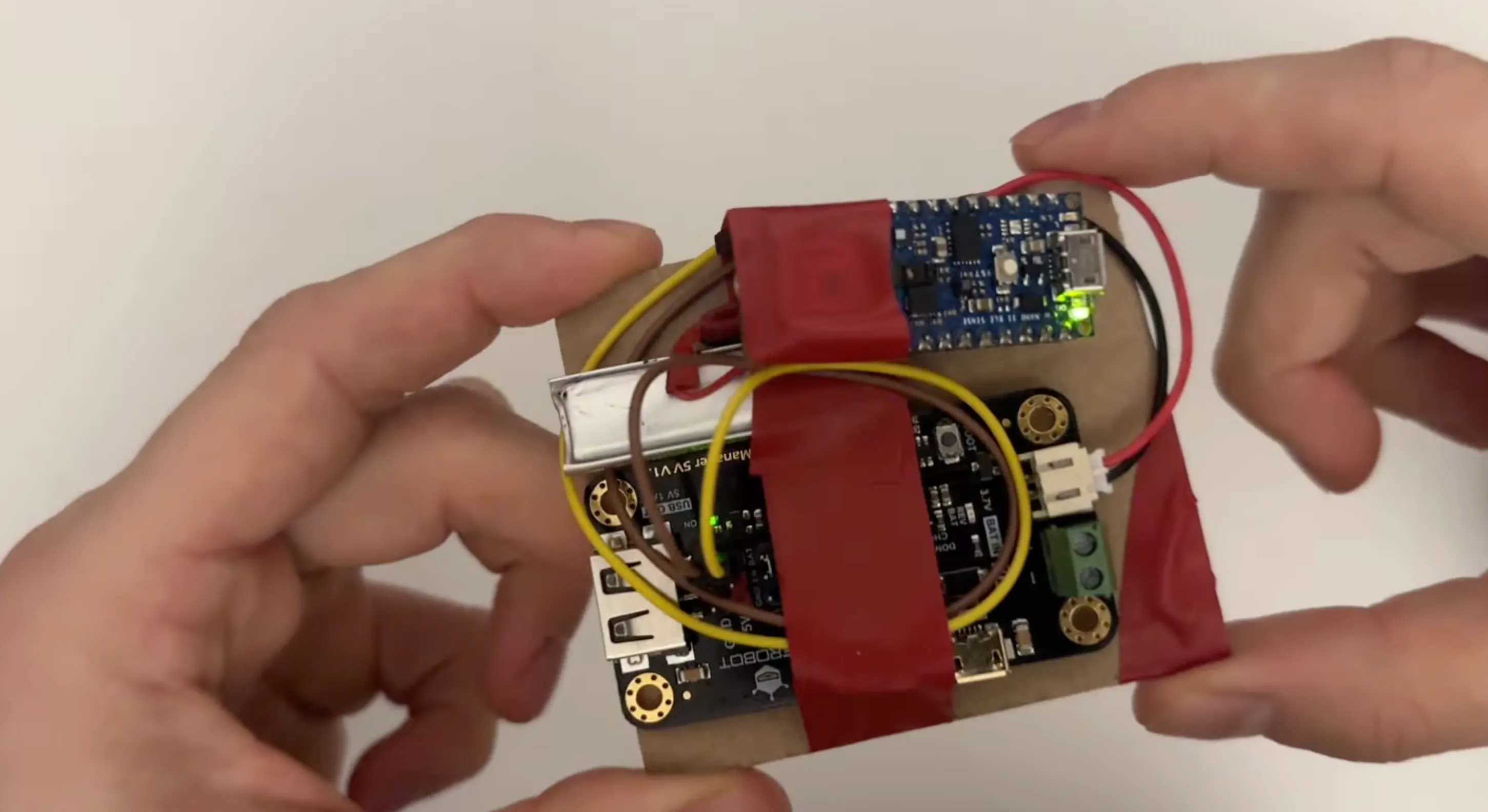

To demonstrate the power of the API, I built a tiny black box containing an Arduino Nano, a gyroscope, and a battery.

The logic flow is as follows:

Event Detection: The Arduino’s gyroscope detects a “shake” event.

• Event Detection: The Arduino’s gyroscope detects a “shake” event.

Transmission: It sends a message via Low Energy Bluetooth (BLE) to a listener script on a computer.

• Transmission: It sends a message via Low Energy Bluetooth (BLE) to a listener script on a computer.

API Request: The computer immediately sends a secure HTTP request to the Prismqer public engine using a private API key.

• API Request: The computer immediately sends a secure HTTP request to the Prismqer public engine using a private API key.

Switch: The QR code’s destination instantly switches from my YouTube channel to Wikipedia.

• Switch: The QR code’s destination instantly switches from my YouTube channel to Wikipedia.

For those uncomfortable with electronics, the system is designed to be abstract. You can use a Raspberry Pi (which has built-in Wi-Fi) or even iOS Shortcuts to have Siri change your QR destination via voice command.

Privacy and Analytics

A major feature of this engine is the analytics dashboard. Because every scan passes through the engine, it aggregates data on location, language, and scan frequency in real-time. Regarding privacy, unlike many paid services that might inject ads or suffer security vulnerabilities, this project is protected by cryptographically strong API keys and is fully open-source, meaning you can host it on your own private server if you don’t trust the public cloud.

Technologies Used

• Frontend (Next.js): A responsive, server-side rendered dashboard for managing links, viewing analytics, and generating QR codes.
• Backend (NestJS + MongoDB): A scalable Node.js architecture using MongoDB for flexible schema design, ensuring fast write operations for analytics logs.
• Performance System: Implements caching on every important step and request throttling to prevent abuse and ensure sub-millisecond response times.
• IoT & API Security: Features secure API key authentication, making it the perfect backend for smart devices that need to query dynamic configuration URLs.

Key Features

• Dynamic QR code and link redirection
• High-performance caching layer
• Request throttling for stability
• Event-driven architecture with event emitters
• RESTful API with key-based authentication
• IoT device integration support
• MongoDB for flexible data storage
• Fully open-source

Conclusion

PrismQR proves that QR codes don’t have to be static, boring links to a single website. By exposing a secure API, we can turn a piece of paper into a dynamic interface that reacts to weather, stock prices, voice commands, or physical movement. Whether you use the hosted version or run the open-source code yourself, this project offers a sustainable, free alternative to subscription-based dynamic link services.
