In this project, we will design a boost converter using the XL6019E chip, capable of stepping up input voltage to as high as 48V with a maximum current output of 2A. A boost converter is essential for various applications, including LED lighting, battery management systems, and high-power electronics. We will walk through designing and fabricating a custom PCB for this boost converter, with JLCPCB as our trusted PCB manufacturer. Their top-notch service ensures precise and high-quality PCBs for our DIY projects.
Get your PCB made with JLCPCB: https://jlcpcb.com/HAR
Supplies- Inductor: 68µH, rated for at least 2A
- Schottky Diode: SS34 or equivalent
- Capacitors:
- Input: 470µF, 25V electrolytic
- Output: 470µF, 50V electrolytic
- Ceramic: 0.1µF
- Resistors:
- Feedback voltage divider (see Step 3 for calculation)
- Connectors: Screw terminals or pin headers
- PCB (custom-designed, ordered from JLCPCB
The XL6019E operates as a boost converter by switching rapidly, transferring energy to an inductor, and stepping up the voltage. Below is the basic schematic:
- Input Power Supply: Provide 5V to 36V as input. Ensure the input capacitor can handle the ripple current.
- Inductor: The inductor’s value (68µH) determines the energy storage capability. Select one rated for at least 2A to avoid saturation.
- Diode: The Schottky diode ensures current flow during the off-switching phase. A low forward voltage drop diode is essential to maximize efficiency.
- Feedback Network: Two resistors form a voltage divider to set the output voltage.
- Output Capacitor: A higher voltage capacitor ensures smooth output.
Design your circuit in a PCB CAD software like KiCAD or EasyEDA.
Step 2: Calculating Feedback ResistorsThe XL6019E regulates output voltage using a feedback pin. The formula to set the output voltage is shown in the datasheet. Calculate R1 and R2 accordingly for 48V or higher

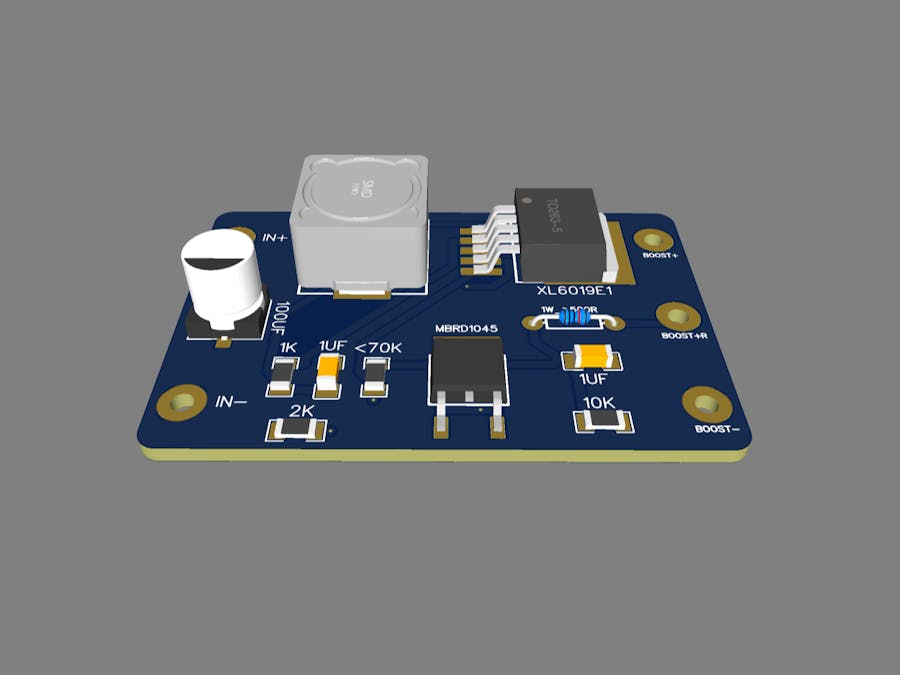

Step 3: PCB DesignDesign a compact PCB layout, ensuring:
- Wide traces for high current paths.
- Proper placement of input/output capacitors close to the XL6019E.
- Thermal vias under the IC for heat dissipation.
Upload your design to https://jlcpcb.com/HAR for fabrication. JLCPCB offers competitive pricing, quick turnaround, and exceptional quality.
Step 4: AssemblyOnce your PCB arrives, solder the components in the following order:
- SMD components, starting with the XL6019E.
- Through-hole components, such as the inductor and capacitors.
- Connectors for input and output.
Applications
- Powering LED strips.
- Charging high-voltage batteries.
- Laboratory experiments.
Building a boost converter with the XL6019E is an excellent way to learn about DC-DC power conversion. Ordering PCBs from JLCPCB ensures high reliability and precision. Show your support by sharing this project with others and trying out JLCPCB’s service for your next design.
