Ball and Plate

LQ control of Ball and Plate system controlled by Arduino MEGA 2560.

AdvancedShowcase (no instructions)35,359

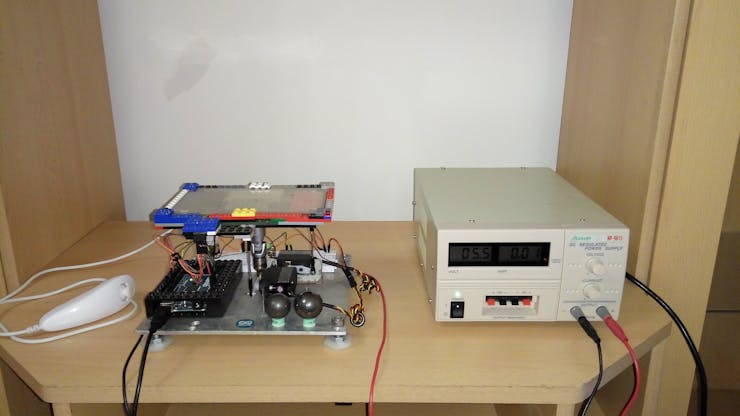

Ball and Plate

Things used in this project

Story

Read more

Schematics

Scheme

Code

Code

Arduino
Code for PID control
/////////Ball and Plate///////////////////////////////
/*
BALL AND PLATE PID CONTROL
*/
//////////////////////////////////////////////////////
///Libraries///
#include <PID_v1.h>
#include <stdint.h>
#include "TouchScreen.h"
#include <SPI.h>
#include <Wire.h>
#include <wiinunchuk.h>
#include<Servo.h>
// Definitions TOUCH PINS
#define YP A0 //0
#define XM A1 //1
#define YM 3  //3
#define XP 4 //4
TouchScreen ts = TouchScreen(XP, YP, XM, YM, 300);
int buttonPushCounter = 1;   // counter for the number of button presses
int lastButtonState = 0;     // previous state of the button
int flag , flagZ ;


float xVal , yVal ;
int cCount=0;
int flagC=0;
int flagK=0;
float kk=0;
int fl=0;
double l =0.00;
unsigned int noTouchCount = 0; //viariable for noTouch
double  k=0;
// PID values
double Setpoint, Input, Output; //for X
double Setpoint1, Input1, Output1; //for Y
//
int Modulo;
long lastcas=0;
// servos variables
Servo servo1; //X axis
Servo servo2; //Y axis

uint16_t homeX = 550;            // raw data value for center of touchscreen
uint16_t homeY = 550;            // raw data value for center of touchscreen

float convertX = 151.0 / 955.0;  // converts raw x values to mm. found through manual calibration
float convertY = 91.0 / 927.0;   // converts raw y values to mm. found through manual calibration
/////TIME SAMPLE
int Ts = 50;
unsigned long Stable=0;
//PID const
float Kp = 0.3;
float Ki = 0.03;
float Kd = 0.13;

float Kp1 = 0.3;
float Ki1 = 0.08;
float Kd1 = 0.13;
long cas=0;
//INIT PID
PID myPID(&Input, &Output, &Setpoint, Kp, Ki, Kd, DIRECT);
PID myPID1(&Input1, &Output1, &Setpoint1,Kp1,Ki1,Kd1, DIRECT);

void setup()
{
  servo1.attach(5);
  servo2.attach(6);
  Output=95;
  Output1=95;
  servo1.write(Output);
  servo2.write(Output1);

  //init NUN
  nunchuk_setpowerpins();
  nunchuk_init();
  nunchuk_get_data();

  //INIT PINS
  pinMode(9, OUTPUT);
  pinMode(8, OUTPUT);
  digitalWrite(9,LOW); //LED INIT
  digitalWrite(8,LOW);

  Serial.begin(115200);

  //INIT OF TOUSCHSCREEN
   TSPoint p = ts.getPoint();
 Input=120;
 Input1=65;
  //INIT SETPOINT
  Setpoint=120;
  Setpoint1=65;
  //// Make plate flat
  servo1.attach(5);
  servo2.attach(6);
  Output=95;
  Output1=95;
  servo1.write(Output);
  servo2.write(Output1);

  //Zapnutie PID
  myPID.SetMode(AUTOMATIC);
  myPID.SetOutputLimits(20, 160);
  myPID1.SetMode(AUTOMATIC);
  myPID1.SetOutputLimits(20, 160);
  // TIME SAMPLE
  myPID1.SetSampleTime(Ts);
  myPID.SetSampleTime(Ts);
  /////
  delay(100);


  ///
 }

void loop()
{
  while(Stable<125) //REGULATION LOOP
  {
   TSPoint p = ts.getPoint();   //measure pressure on plate
   if (p.z > ts.pressureThreshhold) //ball is on plate
   {
      servo1.attach(5); //connect servos
      servo2.attach(6);
      setDesiredPosition();
      noTouchCount = 0;
      TSPoint p = ts.getPoint(); // measure actual position
      Input=(p.x * convertX);  // read and convert X coordinate
      Input1=(p.y * convertY); // read and convert Y coordinate

          if((Input>Setpoint-2 && Input<Setpoint+2 && Input1>Setpoint1-2 && Input1<Setpoint1+2))//if ball is close to setpoint
          {
              Stable=Stable+1; //increment STABLE
              digitalWrite(9,HIGH);

          }
          else
          {
              digitalWrite(9,LOW);
          }
       myPID.Compute();  //action control X compute
       myPID1.Compute(); //   action control  Y compute

  }
   else //if there is no ball on plate
  {
    noTouchCount++; //increment no touch count

    if(noTouchCount == 75)
    {
     noTouchCount++;
     Output=95; //make plate flat
     Output=93;
     servo1.write(Output);
     servo2.write(Output1);
    }
    if(noTouchCount == 150) //if there is no ball on plate longer
    {
     servo1.detach(); //detach servos
     servo2.detach();

    }
  }
  servo1.write(Output);//control
  servo2.write(Output1);//control
  Serial.print(Setpoint);   Serial.print(",");  Serial.print(Setpoint1);  Serial.print(",");  Serial.print(Input);Serial.print(","); Serial.println(Input1);

}////END OF REGULATION LOOP///

  servo1.detach();//detach servos
  servo2.detach();

 ///KONTROLA STABILITY////
 while(Stable==125)//if is stable
 { //still measure actual postiion
    setDesiredPosition();
    TSPoint p = ts.getPoint();
     Input=(p.x * convertX);  //read X
      Input1=(p.y * convertY); //read Y
    if(Input<Setpoint-2 || Input>Setpoint+2 || Input1>Setpoint1+2 || Input1<Setpoint1-2  ) //if ball isnt close to setpoint
    {
      servo1.attach(5); //again attach servos
      servo2.attach(6);
      digitalWrite(9,LOW);
      Stable=0; //change STABLE state
    }

  }//end of STABLE LOOP
}//loop end

////////////////////////Functions//////////////////
///// DESIRED POSITION
void setDesiredPosition()
{


 nunchuk_get_data();
 //if zbutton is pressed, zero positions

 int c = nunchuk_zbutton();
 if (c != lastButtonState) {
    // if the state has changed, increment the counter
  if (c == HIGH && digitalRead(11)==0 ) {
      // if the current state is HIGH then the button
      // wend from off to on:
      buttonPushCounter++;
    }
  }
   lastButtonState =c;

   switch (buttonPushCounter)
   {
    case 1:
    Setpoint=120;
    Setpoint1=70;
    fl=1;
    break;
    case 2:
    Setpoint=52;
    Setpoint1=70;
    fl=2;
    break;
    case 3:
    Setpoint=52;
    Setpoint1=40;
    fl=3;
    break;
    case 4:
    Setpoint=120;
    Setpoint1=40;
    buttonPushCounter=0;
    fl=4;
    break;
   }
    if (nunchuk_cbutton()&&fl==1)///LEMNISCATE TRAJECOTRY
  {
    Setpoint = 85+ (50*cos(k))/(1+sin(k)*sin(k));
    Setpoint1 = 55+ (50*sin(k)*cos(k))/(1+sin(k)*sin(k));
    buttonPushCounter=0;
    k=k+0.008;
  }
  if (nunchuk_cbutton()&&fl==2)// CIRCLE TRAJECTORY
  {
    Setpoint = 85+ 25*cos(k);
    Setpoint1 = 55+ 25*sin(k);
    buttonPushCounter=0;
    k=k-0.02;
  }
  if (nunchuk_cbutton()&&fl==3)/// ELLIPSE TRAJECORY
  {
    Setpoint = 85+ 40*cos(k);
    Setpoint1 = 55+ 25*sin(k);
    buttonPushCounter=0;
    k=k-0.02;
  }
  if (nunchuk_cbutton()&&fl==4) //PENTAGRAM TRAJECOTRY
  {
    Setpoint =85+  18*cos(k)+12*cos(k*150);//
    Setpoint1 =55+ 18*sin(k)-12*sin(k*150);//
    buttonPushCounter=0;
    k=k+0.01;
  }
}
