Original TV
1 / 2 • front
Initial disassembly:
1 / 2 • guts
1 / 2 • New "tuner"
I fixed the tuner to channel 3, which is what my TV Modulator supported, unmounted it and fixed it to the bottom of the TV.
The new "Tuner" will be connected to the Pi's GPIOs to select the channels.
Wired "Tuner"
1 / 4 • mounted pi with cardboard for insulation
finished product

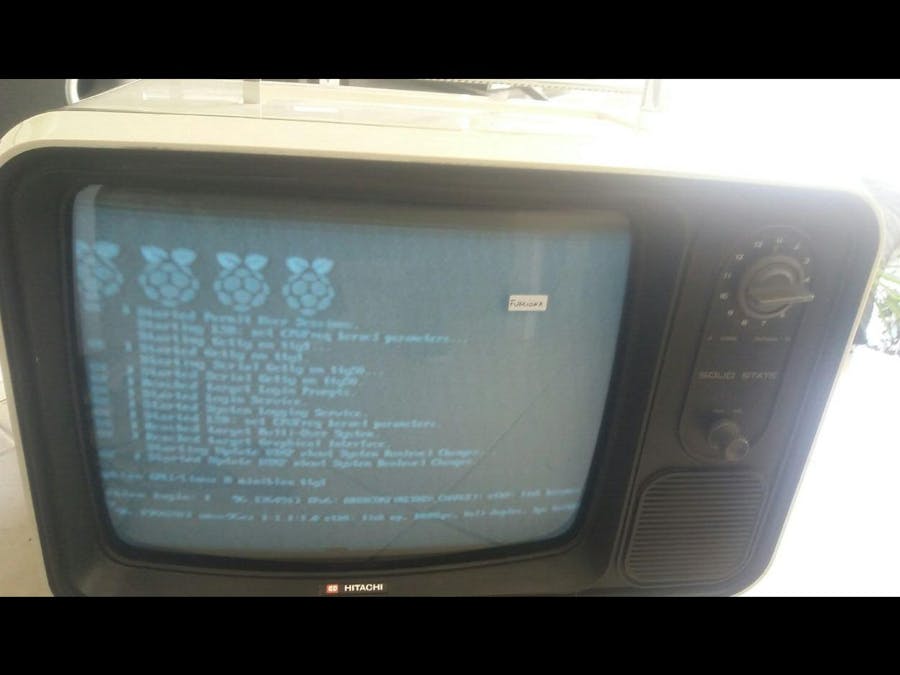

The TV boots to linux. See the demo below. I don't know why my phone has problems recording the screen, it looks great.
