Doorth Vader, The Lego Star Wars WiFi Door Sensor

The latest tinker for the Give your Hardware a Home Challenge!

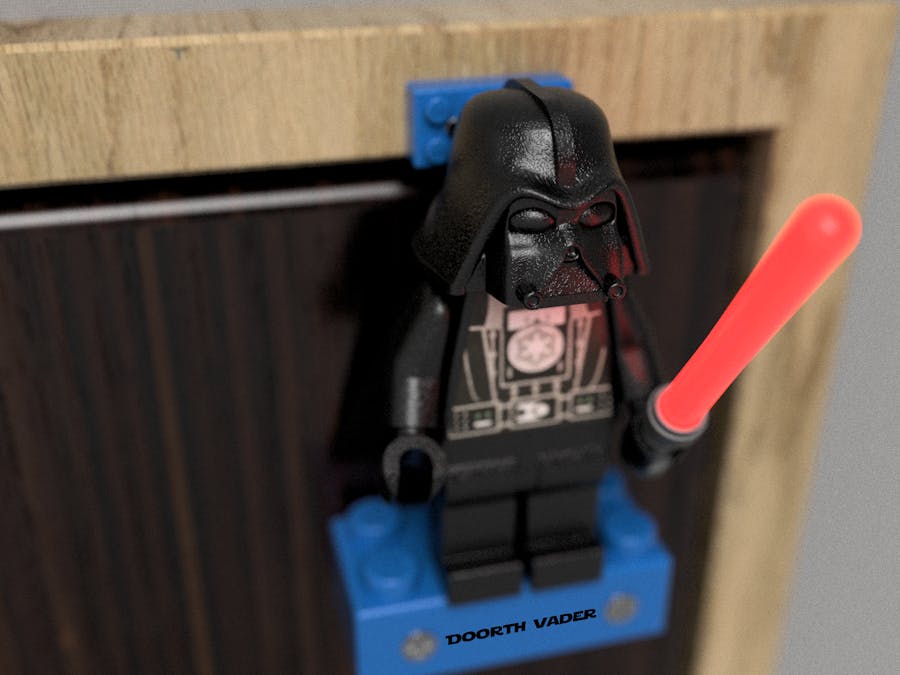

This is Doorth Vader, The Lego Star Wars Wifi Door detector. This is an enclosure for the TinyDuino Wifi Door Detector

The Battery and TinyDuino stack are contained within the body, the reed switch is in the head.

Both Doorth Vader and the Magnet are mounted on or in Lego pieces, screwed to the door and door frame.

The enclosure is completely press fit or snap fit for easy assembly and maintenance.. The Light Sabre is just for decoration :)

He's a big boy, standing at 15cm tall, so he could be used as a free standing sensor anywhere in the home.

Hope you have fun

The file can be downloaded here

Cheers

Dave
