Things used in this project

Hardware components:

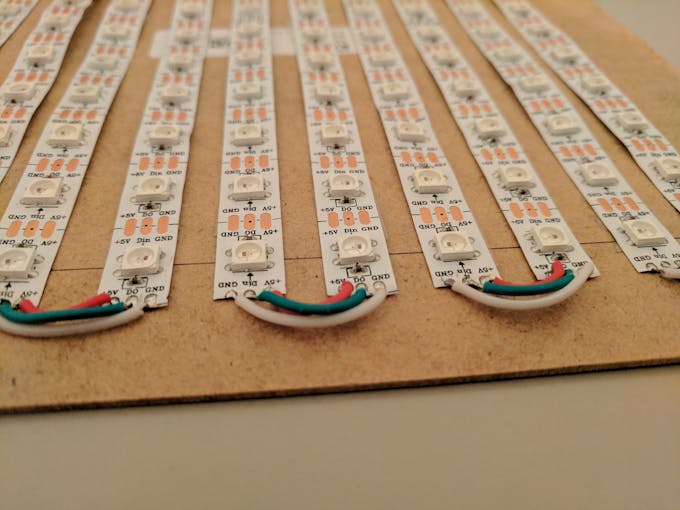

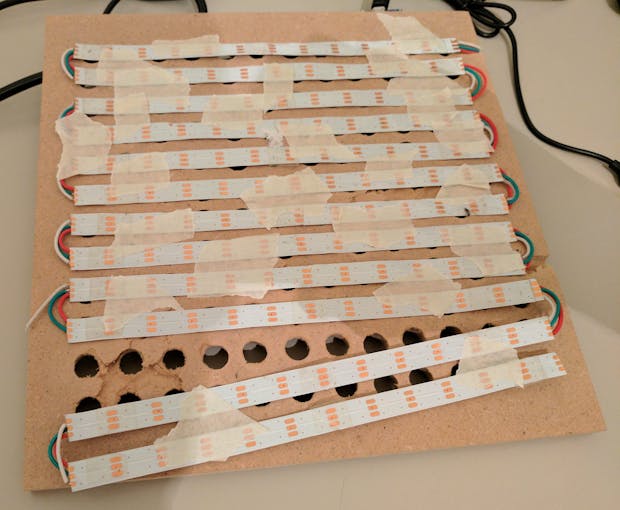

Neopixel strip
NeoPixel strip
×1
13711 01
SparkFun ESP8266 Thing - Dev Board
×1
Picture frame
×1
Laser-cut letters layout
×1

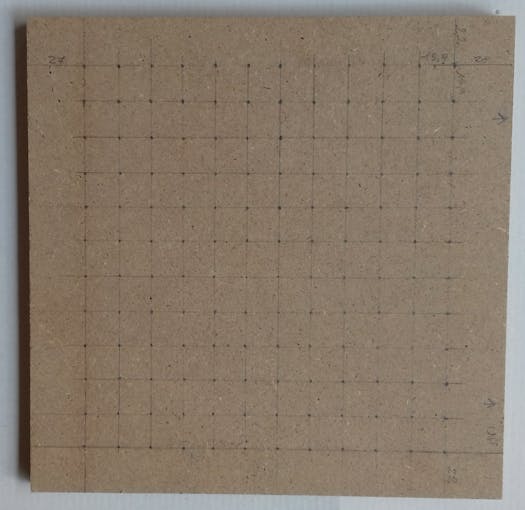

Extra piece of wood (same size of the layout)
×1
Software apps and online services:
Ide web
Arduino IDE
Cayenne logo hi
myDevices Cayenne

Schematics

Schematics
Connect 5V power, Ground and a digital output from the ESP8266 Thing Dev board to the WS2812B LEDs strip
schematics_uEXYzq6dXR.fzz

Code

Github
Create an MQTT project on cayenne.mydevices.com and add the needed information to the file specified in the repo before compiling the app and uploading it to the ESP8266 Thing Dev board.
