CRS Robot Arm Impedance Control

ME446 final project demonstrating impedance control inserting a peg in a hole, through a curved slot, and pushing on an egg

IntermediateShowcase (no instructions)97

Story

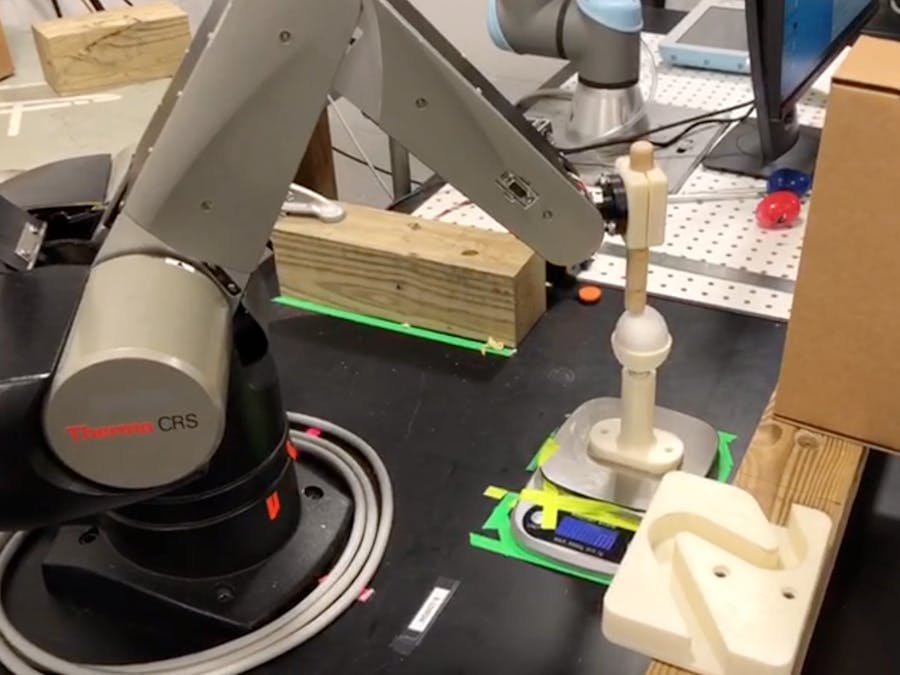

In the final project, we were tasked with programming a CRS robot to go through an obstacle course which included inserting a peg into a hole, going through a zigzag, and applying a specific force onto an egg while avoiding obstacles.

In order to program our robot to do this, we used task space PD control with added impedance control in order to account for small errors in our robots trajectory. We first went about finding the different points in our trajectory by using our inverse kinematics and simply moving our robot to our desired positions throughout the obstacle course. Once we had all of our task space points defined, we were able to traverse through them in order. However, we would run into problems when attempting to put the peg at our end effector into a hole as well as going through the zigzag due to minor errors in position tracking. For example, when attempting to insert our peg into the hole, if our peg wasn't aligned perfectly vertically it would hit the inner edge of the intrusion and our robot would stop due to its safety limitations. To account for this we added impedance control, allowing our robot to give in to minor pushes in different directions. In the case of inserting the peg into the hole, this resulted in us making the impedance weaker in the xy-plane, so that our robot would be able to essentially be guided down the hole by the chamfer in the wooden block until it reached our desired height, or z-position. We went about going through our zigzag trajectory in a similar fashion. We again made our xy-plane impedance weak, and defined multiple points throughout the zigzag so that our robot would maintain the same height, but as it moved from one end of the zigzag to the other, any inaccuracies of the waypoints positions would be negated because the robot would not try too hard to drive itself into the wall. Instead, the normal force from the walls would overcome the weak effort in the XY direction and guide the peg through the zigzag. We tuned the PD gains in the X and Y axes to be weak enough to not trigger the overcurrent protection in the arm, yet is strong enough to move the peg to our desired speed.

The next part of our obstacle course was to apply a force equivalent to between 500 and 1000 grams onto an egg, which was difficult because the friction compensation with. We found that by defining a point right at our egg's position, the weight of the arm freely resting on the egg was nearly 2000 grams without any impedance control. So, we needed to apply some upwards force to counteract some of the arm’s weight. We defined a waypoint slightly above our egg, then reduced our z-impedance in order to essentially damp how heavily our robot arm was freely falling onto the egg. Through some trial and error, we were able to modify our z-coordinate impedance to have the robot's end effector apply between 500 and 1000 grams worth of force onto our egg for two seconds, before finally ending at a final position. The force on the egg was not explicitly calculated or measured, so it varied between runs, though most were within the 500-1000 gram range.

To define our task space trajectory, we defined our waypoints as structs containing information about position, the time it should take to traverse to the position, and a mode. In mode 0, the end effector is stiff in all directions and is ideal for fast movements in free space without any resistance. Mode 1 is stiff only in z, which is used for the peg insertion and zigzag. Mode 2 sets particular impedance constants in the z direction to apply the desired force at the end. Additionally, we included the possibility of adjusting the angle of the X and Y axes of the impedance control for the angled tracks of the zigzag, but we found enough success with keeping the X and Y impedance the same. To travel between waypoints, we used a linear interpolation that depended on the time allotted for each waypoint, which are globally scaled by some time scale. This approach made it very easy to modify our speed at each point in the trajectory, as well as overall speed at which we traversed our obstacle course once we had better tuned position and impedance values. As a result we were able to go through the obstacle in an official class record time of about 6 seconds, and unofficial record time of about 5 seconds as shown in the videos below.

Right to left: Ian Xu, Christopher Xu, Ivan Solis

final_project.c

#include "math.h"
#include "F28335Serial.h"

#define PI          3.1415926535897932384626433832795
#define TWOPI       6.283185307179586476925286766559
#define HALFPI      1.5707963267948966192313216916398
#define GRAV        9.81
#define NUMPOINTS 19

// These two offsets are only used in the main file user_CRSRobot.c  You just need to create them here and find the correct offset and then these offset will adjust the encoder readings
float offset_Enc2_rad = -22.95*PI/180.0;
float offset_Enc3_rad = 12.85*PI/180.0;

void cubic(float t, float *th1, float *th1d, float *th1dd);

typedef struct point_tag {
    float xb;
    float yb;
    float zb;
    float thetaz;
    int mode; //mode 0, stiff in all directions, mode 1 stiff only in z, mode 2 = apply force
    int time;
} point;

/** Defining all of the waypoints in our obstacle course trajectory. Each waypoint includes (x,y,z) coordinates
as well as an angle we can rotate about to change impedance in different directions, a mode which defines what directions
we want high or low impedance, and a time in miliseconds that we give our robot to get from one point to the next.
*/
point waypoints[NUMPOINTS] = {
  {.15, 0, .43, 0, 0, 500},
  {.25, 0, .51, 0, 0, 1000}, //first point
  {.034, .36, .25, 0, 0, 1200}, //slightly above hole
  {.034, .36, .12, 0, 1, 1200}, //inside hole
  {.034, .36, .12, 0, 1, 500},
  {.034, .36, .4, 0, 1, 500}, //raise outside hole
  {.19, .12, .36, 0, 0, 500}, //avoid obstacle
  {.399, .090, .207, 0, 1, 250},//zigzag entrance
  {.425, .036, .207,0, 1, 250},//first zigzag turn
  {.404, .030, .207,0, 1, 250},
  {.338, .037, .207,0, 1, 300}, //second zigzag turn
  {.330, .017, .207,0, 1, 300},
  {.358, -.015, .207, 0, 1, 300},
  {.406, -.090, .207,0, 1, 350}, //zigzag exit
  {.323, -.037, .32, 0, 0, 350},
  {.252, .179, .29, 0, 2, 200}, //above egg
  {.252, .179, .32, 0, 2, 10000}, //.322
  {.252, .179, .32, 0, 0, 500},
  {.254, 0, .508, 0 ,0, 500} //end point

};

typedef struct steptraj_s {
    long double b[4];
    long double a[4];
    long double xk[4];
    long double yk[4];
    float qd_old;
    float qddot_old;
    int size;
} steptraj_t;

steptraj_t trajectory2 = {9.7059014792764445e-07L,2.9117704437829331e-06L,2.9117704437829331e-06L,9.7059014792764445e-07L,
                        1.0000000000000000e+00L,-2.9405940594059405e+00L,2.8823644740711698e+00L,-9.4176264994404557e-01L,
                        0,0,0,0,
                        0,0,0,0,
                        0,
                        0,
                        4};

steptraj_t trajectory3 = {9.7059014792764445e-07L,2.9117704437829331e-06L,2.9117704437829331e-06L,9.7059014792764445e-07L,
                        1.0000000000000000e+00L,-2.9405940594059405e+00L,2.8823644740711698e+00L,-9.4176264994404557e-01L,
                        0,0,0,0,
                        0,0,0,0,
                        0,
                        0,
                        4};

// this function must be called every 1ms.
void implement_discrete_tf(steptraj_t *traj, float step, float *qd, float *qd_dot, float *qd_ddot) {
    int i = 0;

    traj->xk[0] = step;
    traj->yk[0] = traj->b[0]*traj->xk[0];
    for (i = 1;i<traj->size;i++) {
        traj->yk[0] = traj->yk[0] + traj->b[i]*traj->xk[i] - traj->a[i]*traj->yk[i];
    }

    for (i = (traj->size-1);i>0;i--) {
        traj->xk[i] = traj->xk[i-1];
        traj->yk[i] = traj->yk[i-1];
    }

    *qd = traj->yk[0];
    *qd_dot = (*qd - traj->qd_old)*1000;  //0.001 sample period
    *qd_ddot = (*qd_dot - traj->qddot_old)*1000;

    traj->qd_old = *qd;
    traj->qddot_old = *qd_dot;
}



// Your global varialbes.

long mycount = 0;

#pragma DATA_SECTION(whattoprint, ".my_vars")
float whattoprint = 0.0;

#pragma DATA_SECTION(theta1array, ".my_arrs")
float theta1array[100];

#pragma DATA_SECTION(print2, ".my_vars")
float print2 = 12345678.9;

#pragma DATA_SECTION(theta2array, ".my_arrs")
float theta2array[100];

long arrayindex = 0;
int UARTprint = 0;

float printtheta1motor = 0;
float printtheta2motor = 0;
float printtheta3motor = 0;

float x = 0;
float y = 0;
float z = 0;
float pi = PI;
float L1 = 0.254;
float L2 = 0.254;
float L3 = 0.254;

//variables for inverse kinematics
float invk_th1_dh = 0;
float invk_th2_dh = 0;
float invk_th3_dh = 0;
float invk_th1_m = 0;
float invk_th2_m = 0;
float invk_th3_m = 0;

float tau1print = 0;
float tau2print = 0;
float tau3print = 0;

//Friction compensation:
float errorBound = .05;

float minV1 = 0.1;
float steep1 = 3.6;
float viscousP1 = 0.1;
float coulombP1 = 0.3637;
float viscousN1 = 0.1;
float coulombN1 = -0.2948;

float minV2 = 0.05;
float steep2 = 9.;
float viscousP2 = 0.2;
float coulombP2 = 0.2;
float viscousN2 = 0.2;
float coulombN2 = -0.4;

float minV3 = 0.05;
float steep3 = 2;
float viscousP3 = 0.05;
float coulombP3 = 0.3;
float viscousN3 = 0.05;
float coulombN3 = -0.3;

//friction compensation scale factor
float ffactor1 = 1;
float ffactor2 = 1;
float ffactor3 = 1;

//variables for calculating joint angular velocity using IIR filter
float Theta1_old = 0;
float Omega1_old1 = 0;
float Omega1_old2 = 0;
float Omega1 = 0;

float Theta2_old = 0;
float Omega2_old1 = 0;
float Omega2_old2 = 0;
float Omega2 = 0;

float Theta3_old = 0;
float Omega3_old1 = 0;
float Omega3_old2 = 0;
float Omega3 = 0;



// Assign these float to the values you would like to plot in Simulink
float Simulink_PlotVar1 = 0;
float Simulink_PlotVar2 = 0;
float Simulink_PlotVar3 = 0;
float Simulink_PlotVar4 = 0;



//PD gains without inverse dynamics:
float Kp_x = 500;
float Kd_x = 25;
float Kp_y = 500;
float Kd_y = 25;
float Kp_z = 500;
float Kd_z = 25;

//variables used for impedance control
float thetaz = 0; // atan(0.4/0.4) = pi/4 = 0.785 is the angle to rotate about z, make PDx gains weak
float thetax = 0;
float thetay = 0;

float cosq1 = 0;
float sinq1 = 0;
float cosq2 = 0;
float sinq2 = 0;
float cosq3 = 0;
float sinq3 = 0;
float JT_11 = 0;
float JT_12 = 0;
float JT_13 = 0;
float JT_21 = 0;
float JT_22 = 0;
float JT_23 = 0;
float JT_31 = 0;
float JT_32 = 0;
float JT_33 = 0;
float cosz = 0;
float sinz = 0;
float cosx = 0;
float sinx = 0;
float cosy = 0;
float siny = 0;

float R11 = 0;
float R12 = 0;
float R13 = 0;
float R21 = 0;
float R22 = 0;
float R23 = 0;
float R31 = 0;
float R32 = 0;
float R33 = 0;
float RT11 = 0;
float RT12 = 0;
float RT13 = 0;
float RT21 = 0;
float RT22 = 0;
float RT23 = 0;
float RT31 = 0;
float RT32 = 0;
float RT33 = 0;

//variables used for task space PD control

//task space position variables
float x_a = 0;
float x_a_old = 0;
float y_a = 0;
float y_a_old = 0;
float z_a = 0;
float z_a_old = 0;

//task space velocity
float x_ad = 0;
float x_ad_old1 = 0;
float x_ad_old2 = 0;

float y_ad = 0;
float y_ad_old1 = 0;
float y_ad_old2 = 0;

float z_ad = 0;
float z_ad_old1 = 0;
float z_ad_old2 = 0;

//our desired task space position
float x_des = 0.25;
float y_des = 0.25;
float z_des = 0.4;

//desired task space velocity
float x_ddes = 0;
float y_ddes = 0;
float z_ddes = 0;

//desired force applied at end effector (Newtons)
float Fx_des = 0;
float Fy_des = 0;
float Fz_des = 0;

/**
float Kp_z_input = 0;
float Kd_z_input = 0;
float Fz_des_input = 0;
*/
//variables used to transform forces into different frames of references
float Fx_n = 0;
float Fy_n = 0;
float Fz_n = 0;
float Fx_w = 0;
float Fy_w = 0;
float Fz_w = 0;

//scale factor for force applied at end effector
float K_t = 6.0;

//variable used to determine how much time robot takes to get from one waypoint to the next (ms)
long total_time = 1500;
float progress = 0;

//desired endpoints to follow a line trajectory
float x_des1 = 0;
float y_des1 = 0.4;
float z_des1 = 0.3;
float x_des2 = 0.4;
float y_des2 = 0.0;
float z_des2 = 0.3;

//counter to keep track of current waypoint
int targetWayPoint = 0;

//variable to scale speed of all waypoints in our trajectory
float speed_scale = .5;

// This function is called every 1 ms
void lab(float theta1motor,float theta2motor,float theta3motor,float *tau1,float *tau2,float *tau3, int error) {

//    //Forward Kinematics
    x = cos(theta1motor)*(L2*cos(pi/2 - theta2motor) + L3*cos(theta3motor));
    y = sin(theta1motor)*(L2*cos(pi/2 - theta2motor) + L3*cos(theta3motor));
    z = L1 + L2*sin(pi/2 - theta2motor) - L3*sin(theta3motor);

    //inverse kinematics
    invk_th1_dh = atan2(y, x);
    invk_th3_dh = acos(((z-L1)*(z-L1) + x*x + y*y - 2*L1*L1) / (2*L1*L1));
    invk_th2_dh = -atan2(z-L1, sqrt(x*x + y*y)) - invk_th3_dh/2;
//
    invk_th1_m = invk_th1_dh;
    invk_th2_m = invk_th2_dh + pi/2;
    invk_th3_m = invk_th3_dh + invk_th2_m - pi/2;


    // Rotation zxy and its Transpose
    cosz = cos(thetaz);
    sinz = sin(thetaz);
    cosx = cos(thetax);
    sinx = sin(thetax);
    cosy = cos(thetay);
    siny = sin(thetay);
    //R changes from N frame to world frame
    //RT changes from world frame to N frame
    RT11 = R11 = cosz*cosy-sinz*sinx*siny;
    RT21 = R12 = -sinz*cosx;
    RT31 = R13 = cosz*siny+sinz*sinx*cosy;
    RT12 = R21 = sinz*cosy+cosz*sinx*siny;
    RT22 = R22 = cosz*cosx;
    RT32 = R23 = sinz*siny-cosz*sinx*cosy;
    RT13 = R31 = -cosx*siny;
    RT23 = R32 = sinx;
    RT33 = R33 = cosx*cosy;
    // Jacobian Transpose
    cosq1 = cos(theta1motor);
    sinq1 = sin(theta1motor);
    cosq2 = cos(theta2motor);
    sinq2 = sin(theta2motor);
    cosq3 = cos(theta3motor);
    sinq3 = sin(theta3motor);
    JT_11 = -0.254*sinq1*(cosq3 + sinq2);
    JT_12 = 0.254*cosq1*(cosq3 + sinq2);
    JT_13 = 0;
    JT_21 = 0.254*cosq1*(cosq2 - sinq3);
    JT_22 = 0.254*sinq1*(cosq2 - sinq3);
    JT_23 = -0.254*(cosq3 + sinq2);
    JT_31 = -0.254*cosq1*sinq3;
    JT_32 = -0.254*sinq1*sinq3;
    JT_33 = -0.254*cosq3;

    //actual robot position
    x_a = 0.254*cosq1*(cosq3+sinq2);
    y_a = 0.254*sinq1*(cosq3+sinq2);
    z_a = 0.254*(1+cosq2-sinq3);

    //actual robot velocity using IIR filter
    x_ad = (x_a - x_a_old)/0.001;
    x_ad = (x_ad + x_ad_old1 + x_ad_old2)/3.0;
    x_a_old = x_a;
    x_ad_old2 = x_ad_old1;
    x_ad_old1 = x_ad;

    y_ad = (y_a - y_a_old)/0.001;
    y_ad = (y_ad + y_ad_old1 + y_ad_old2)/3.0;
    y_a_old = y_a;
    y_ad_old2 = y_ad_old1;
    y_ad_old1 = y_ad;

    z_ad = (z_a - z_a_old)/0.001;
    z_ad = (z_ad + z_ad_old1 + z_ad_old2)/3.0;
    z_a_old = z_a;
    z_ad_old2 = z_ad_old1;
    z_ad_old1 = z_ad;



    //determines time allowed for robot to go from current point to next waypoint
    total_time = waypoints[targetWayPoint].time;
    total_time = total_time * speed_scale;

    //variable that allows our robot to begin at one point and slowly 'progress' to the next waypoint
    // takes values between [0, 1]
    progress = (float)(mycount % (total_time)) / (float)total_time;

    //rboot starting point
    x_des1 = waypoints[targetWayPoint].xb;
    y_des1 = waypoints[targetWayPoint].yb;
    z_des1 = waypoints[targetWayPoint].zb;

    //next robot waypoint
    x_des2 = waypoints[targetWayPoint + 1].xb;
    y_des2 = waypoints[targetWayPoint + 1].yb;
    z_des2 = waypoints[targetWayPoint + 1].zb;

    //when progress is reset -> endpoint reached move on to next target waypoint
    if(progress == 0){
        //progress = 0 ;
        targetWayPoint += 1;
    }

    if (targetWayPoint >= NUMPOINTS) {
        //once all waypoints are reached set desired posiiton to end position
        x_des = .254;
        y_des = 0;
        z_des = .508;
    } else {
        if (targetWayPoint == NUMPOINTS - 1) {
            //final waypoint
            x_des2 =   .254;
            y_des2 = 0;
            z_des2 = .508;
        }

        //if waypoint mode == 2 we want it to apply a force onto the egg so we modify our Z-impedance gain
        if (waypoints[targetWayPoint].mode == 2) {
            Fz_des = 0;
            Kp_z = 31; //speedscale = .75
            Kd_z = 15;
        } else if (waypoints[targetWayPoint].mode == 1) {
            //if waypoint mode is 1 we want robot more stiff in x and y plane
            //this is so that it is better guided through our zigzag trajectory
            Kp_x = 200;
            Kp_y = 200;
            Kd_x = 15;
            Kd_y = 15;
        } else{
            //default parameters for impedances in all other cases
            Fz_des = 0;
            Kp_z = 500;
            Kd_z = 25;
            Kp_x = 500;
            Kp_y = 500;
            Kd_x = 25;
            Kd_y = 25;
        }
        //our current desired position begins at our start point (x_des1) and as progress approaches 1, then our current
        //desired position will become x_des2. When progress is 0, then our current desired position is x_des1
        x_des = x_des1 + progress * (x_des2 - x_des1);
        y_des = y_des1 + progress * (y_des2 - y_des1);
        z_des = z_des1 + progress * (z_des2 - z_des1);
    }




    //converts world errors to N frame errors
    float x_error = RT11*(x_des - x_a) + RT12*(y_des - y_a) + RT13*(z_des - z_a);
    float y_error = RT21*(x_des - x_a) + RT22*(y_des - y_a) + RT23*(z_des - z_a);
    float z_error = RT31*(x_des - x_a) + RT32*(y_des - y_a) + RT33*(z_des - z_a);

    float x_derror = RT11*(x_ddes - x_ad) + RT12*(y_ddes - y_ad) + RT13*(z_ddes - z_ad);
    float y_derror = RT21*(x_ddes - x_ad) + RT22*(y_ddes - y_ad) + RT23*(z_ddes - z_ad);
    float z_derror = RT31*(x_ddes - x_ad) + RT32*(y_ddes - y_ad) + RT33*(z_ddes - z_ad);

    Fx_n = Kp_x * x_error + Kd_x * x_derror;
    Fy_n = Kp_y * y_error + Kd_y * y_derror;
    Fz_n = Kp_z * z_error + Kd_z * z_derror;

    Fx_w = R11 * Fx_n + R12 * Fy_n + R13 * Fz_n       + Fx_des/K_t;
    Fy_w = R21 * Fx_n + R22 * Fy_n + R23 * Fz_n       + Fy_des/K_t;
    Fz_w = R31 * Fx_n + R32 * Fy_n + R33 * Fz_n       + Fz_des/K_t;


    //task space PD
    *tau1 = JT_11 * Fx_w + JT_12 * Fy_w + JT_13 * Fz_w;
    *tau2 = JT_21 * Fx_w + JT_22 * Fy_w + JT_23 * Fz_w;
    *tau3 = JT_31 * Fx_w + JT_32 * Fy_w + JT_33 * Fz_w;



    //friction compensation and calc angular velocities using IIR filter
     Omega1 = (theta1motor - Theta1_old)/0.001;
     Omega1 = (Omega1 + Omega1_old1 + Omega1_old2)/3.0;
     Theta1_old = theta1motor;
     Omega1_old2 = Omega1_old1;
     Omega1_old1 = Omega1;

     Omega2 = (theta2motor - Theta2_old)/0.001;
     Omega2 = (Omega2 + Omega2_old1 + Omega2_old2)/3.0;
     Theta2_old = theta2motor;
     Omega2_old2 = Omega2_old1;
     Omega2_old1 = Omega2;

     Omega3 = (theta3motor - Theta3_old)/0.001;
     Omega3 = (Omega3 + Omega3_old1 + Omega3_old2)/3.0;
     Theta3_old = theta3motor;
     Omega3_old2 = Omega3_old1;
     Omega3_old1 = Omega3;

    //friction compensation depending on motor operating regime
    float u_fric1;
    float u_fric2;
    float u_fric3;
    if (Omega1 > minV1) {
        u_fric1 = viscousP1*Omega1 + coulombP1;
    } else if (Omega1 < -minV1) {
        u_fric1 = viscousN1*Omega1 + coulombN1;
    } else {
        u_fric1 = steep1*Omega1;
    }
    if (Omega2 > minV2) {
            u_fric2 = viscousP2*Omega2 + coulombP2;
        } else if (Omega2 < -minV2) {
            u_fric2 = viscousN2*Omega2 + coulombN2;
        } else {
            u_fric2 = steep2*Omega2;
        }
    if (Omega3 > minV3) {
            u_fric3 = viscousP3*Omega3 + coulombP3;
        } else if (Omega3 < -minV3) {
            u_fric3 = viscousN3*Omega3 + coulombN3;
        } else {
            u_fric3 = steep3*Omega3;
        }

    //adding friction compensation times its scale factor (default 1) to our current task space PD control
    *tau1 += u_fric1 * ffactor1;
    *tau2 += u_fric2 * ffactor2;
    *tau3 += u_fric3 * ffactor3;


    //save motor angles for plotting
   if ((mycount%50)==0) {
       theta1array[arrayindex] = theta1motor;
       theta2array[arrayindex] = theta2motor;
       if (arrayindex >= 100) {
           arrayindex = 0;
       } else {
           arrayindex++;
       }
   }

   printtheta1motor = theta1motor*180/PI;
   printtheta2motor = theta2motor*180/PI;
   printtheta3motor = theta3motor*180/PI;
   //tau1print = *tau1;
   //tau2print = *tau2;
   //tau3print = *tau3;
   Simulink_PlotVar1 = x_a;
   Simulink_PlotVar2 = x_des;
   Simulink_PlotVar3 = y_a;
   Simulink_PlotVar4 = y_des;

   //LED
   if ((mycount%500)==0) {
       UARTprint = 1;
       GpioDataRegs.GPBTOGGLE.bit.GPIO34 = 1; // Blink LED on Control Card
       GpioDataRegs.GPBTOGGLE.bit.GPIO60 = 1; // Blink LED on Emergency Stop Box
   }


    mycount++;
}


void printing(void){


    float th1_m = 0;
    float th2_m = 0;
    float th3_m = 0;
    float th1_dh = th1_m;
    float th2_dh = th2_m - pi/2;
    float th3_dh = -th2_m + th3_m + pi/2;

    th1_m = invk_th1_m;
    th2_m = invk_th2_m;
    th3_m = invk_th3_m;

    th1_m = fmod(th1_m + pi, 2*pi) - pi;
    th2_m = fmod(th2_m + pi, 2*pi) - pi;
    th3_m = fmod(th3_m + pi, 2*pi) - pi;

    serial_printf(&SerialA, "%d (%.3f %.3f, %.3f) (%.2f %.2f, %.2f) (%.2f %.2f, %.2f)  \n\r", targetWayPoint, x,y,z, x_des1, y_des1, z_des1, x_des2, y_des2, z_des2);
    //serial_printf(&SerialA, "%.2f (%.2f %.2f, %.2f)    (%.2f %.2f, %.2f)  (%.2f, %.2f, %.2f)\n\r", t, printtheta1motor,printtheta2motor,printtheta3motor, th1_des,th2_des,th3_des,  tau1print,tau2print,tau3print);
}

Credits

Christopher Xu

1 project • 0 followers

Thanks to Ivan Solis and Ian Xu.

CRS Robot Arm Impedance Control

Story

Code

final_project.c

Github

Credits

Christopher Xu

Comments

Embed the widget on your own site

CRS Robot Arm Impedance Control

CRS Robot Arm Impedance Control

Story

Code

final_project.c

Github

Credits

Christopher Xu

Comments

Related channels and tags
