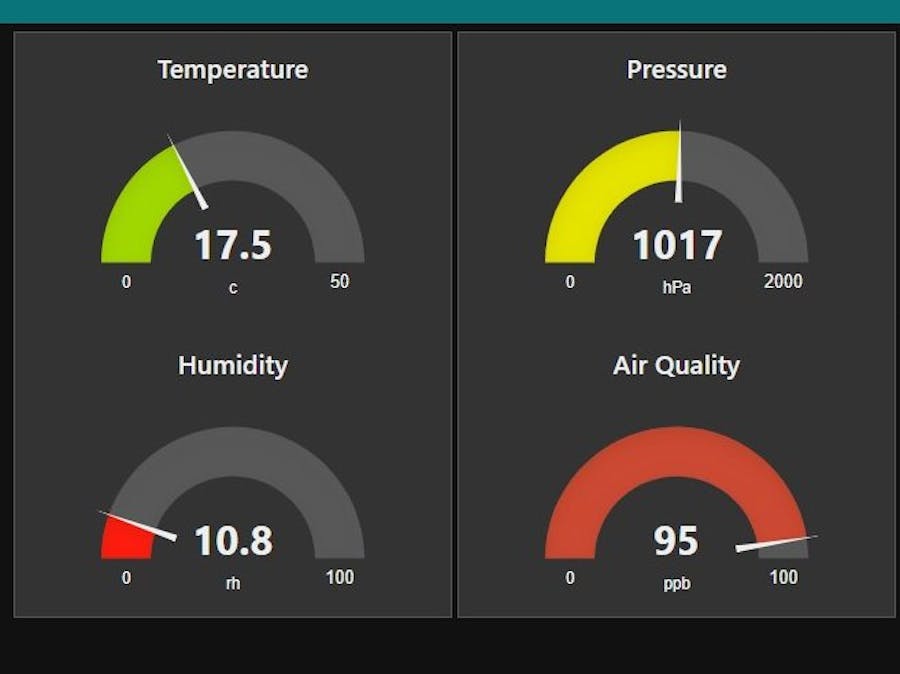

Mini Home Automation Control Panel

I would be nice to have a device that could be easily programmed to interface my home automation system.

EasyFull instructions provided4 hours15

Things used in this project

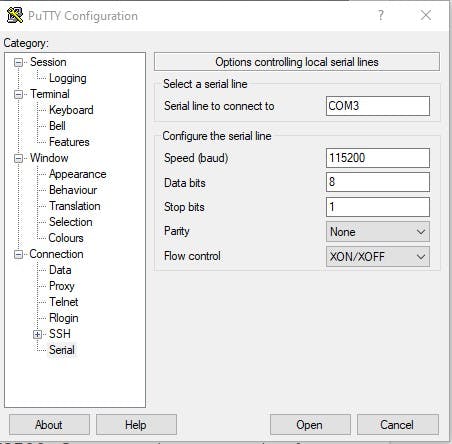

Story

Read more

Code

NXP Studio code

JSON
this is the contents of the atmo file. that can be imported into NXP Studio.
{
  "name": "Rapid IoT Weather Station",
  "createVersion": "2017-08-12",
  "description": "Demonstrates reading of weather related sensors such as temperature, humidity, pressure, ambient light, and air quality. Demonstrates basic BLE Characteristic writing and reading as well as cloud storage.",
  "lastModified": "2018-02-13T00:39:19.386Z",
  "created": "2018-02-13T00:39:19.386Z",
  "meta": {
    "projectTypeName": "NXP Rapid IoT",
    "projectTypeId": "NxpRpk"
  },
  "planes": {
    "NXP Rapid IoT": {
      "type": "mcuxpresso",
      "compilerVersion": "latest",
      "variants": [
        "NxpRpk"
      ],
      "meta": {},
      "elements": [
        {
          "name": "AirQualityCharacteristic",
          "type": "EmbeddedBLECharacteristicCustom",
          "variants": [
            "embedded",
            "triggers",
            "abilities",
            "properties",
            "variables",
            "ble"
          ],
          "properties": {
            "errorData": {},
            "code": {
              "trigger": "\treturn ATMO_Status_Success;",
              "setup": "\n\tATMO_BLE_GATTSAddService(\n\t\tATMO_PROPERTY(AirQualityCharacteristic, instance),\n\t\t&ATMO_VARIABLE(AirQualityCharacteristic, bleServiceHandle), \n\t\tATMO_PROPERTY(AirQualityCharacteristic, bleServiceUuid));\n\t\n\tuint8_t property = 0;\n\tuint8_t permission = 0;\n\t\n\tproperty |= ATMO_PROPERTY(AirQualityCharacteristic, read) ? ATMO_BLE_Property_Read : 0;\n\tproperty |= ATMO_PROPERTY(AirQualityCharacteristic, write) ? ATMO_BLE_Property_Write : 0;\n\tproperty |= ATMO_PROPERTY(AirQualityCharacteristic, notify) ? ATMO_BLE_Property_Notify : 0;\n\n\tpermission |= ATMO_PROPERTY(AirQualityCharacteristic, read) ? ATMO_BLE_Permission_Read : 0;\n\tpermission |= ATMO_PROPERTY(AirQualityCharacteristic, write) ? ATMO_BLE_Permission_Write : 0;\n\n\tATMO_DATATYPE types[3] = {ATMO_PROPERTY(AirQualityCharacteristic, writeDataType), ATMO_PROPERTY(AirQualityCharacteristic, readDataType), ATMO_PROPERTY(AirQualityCharacteristic, notifyDataType)};\n\t\n\tATMO_BLE_GATTSAddCharacteristic(\n\t\tATMO_PROPERTY(AirQualityCharacteristic, instance),\n\t\t&ATMO_VARIABLE(AirQualityCharacteristic, bleCharacteristicHandle), \n\t\tATMO_VARIABLE(AirQualityCharacteristic, bleServiceHandle), \n\t\tATMO_PROPERTY(AirQualityCharacteristic, bleCharacteristicUuid), \n\t\tproperty, permission, ATMO_GetMaxValueSize(3, 64, types));\n\t\n\tATMO_BLE_GATTSRegisterCharacteristicAbilityHandle(\n\t\tATMO_PROPERTY(AirQualityCharacteristic, instance),\n\t\tATMO_VARIABLE(AirQualityCharacteristic, bleCharacteristicHandle), \n\t\tATMO_BLE_Characteristic_Written, \n\t\tATMO_ABILITY(AirQualityCharacteristic, written));\n\t\n\treturn ATMO_Status_Success;\n\t",
              "setValue": "\n\t\n\t// Convert to the desired write data type\n\tATMO_Value_t convertedValue;\n\tATMO_InitValue(&convertedValue);\n\tATMO_CreateValueConverted(&convertedValue, ATMO_PROPERTY(AirQualityCharacteristic, readDataType), in);\n\n\tATMO_BLE_GATTSSetCharacteristic(\n\t\tATMO_PROPERTY(AirQualityCharacteristic, instance),\n\t\tATMO_VARIABLE(AirQualityCharacteristic, bleCharacteristicHandle),\n\t\tconvertedValue.size, \n\t\t(uint8_t *)convertedValue.data,\n\t\tNULL);\n\t\n\tATMO_FreeValue(&convertedValue);\n\t\t\n\treturn ATMO_Status_Success;\n\t",
              "written": "\n\tATMO_CreateValueConverted(out, ATMO_PROPERTY(AirQualityCharacteristic, writeDataType), in);\n\treturn ATMO_Status_Success;\n\t",
              "subscibed": "\treturn ATMO_Status_Success;",
              "unsubscribed": "\treturn ATMO_Status_Success;"
            },
            "variables": {
              "bleServiceHandle": {
                "type": "ATMO_BLE_Handle_t"
              },
              "bleCharacteristicHandle": {
                "type": "ATMO_BLE_Handle_t"
              }
            },
            "embeddedPropertyConversions": {
              "bleServiceUuid": "string",
              "bleCharacteristicUuid": "string"
            },
            "codeUserChanged": {
              "setup": false,
              "setValue": false,
              "written": false,
              "subscibed": false,
              "unsubscribed": false
            },
            "instance": "ATMO_DRIVERINSTANCE_BLE_BLE1",
            "bleServiceUuid": "1493dd8e-8c3e-4e74-a4ff-6f0cd50005f9",
            "bleCharacteristicUuid": "1493dd8e-8c3e-4e75-a4ff-6f0cd50005f9",
            "read": true,
            "write": true,
            "notify": true,
            "readDataType": "ATMO_DATATYPE_UNSIGNED_INT",
            "writeDataType": "ATMO_DATATYPE_UNSIGNED_INT",
            "notifyDataType": "ATMO_DATATYPE_UNSIGNED_INT"
          },
          "meta": {
            "editorX": 282.50006103515625,
            "editorY": 473,
            "lastTrigger": "written"
          },
          "triggers": {
            "triggered": [],
            "written": [],
            "subscibed": [],
            "unsubscribed": []
          },
          "interruptAbilities": {
            "trigger": false,
            "setup": false,
            "setValue": "valueSet",
            "written": true,
            "subscibed": true,
            "unsubscribed": true
          },
          "abilities": [
            {
              "name": "trigger",
              "triggers": [
                "triggered"
              ]
            },
            {
              "name": "setup",
              "triggers": []
            },
            {
              "name": "setValue",
              "triggers": []
            },
            {
              "name": "written",
              "triggers": [
                "written"
              ]
            },
            {
              "name": "subscibed",
              "triggers": [
                "subscibed"
              ]
            },
            {
              "name": "unsubscribed",
              "triggers": [
                "unsubscribed"
              ]
            }
          ]
        },
        {
          "name": "TemperatureCharacteristic",
          "type": "EmbeddedBLECharacteristicCustom",
          "variants": [
            "embedded",
            "triggers",
            "abilities",
            "properties",
            "variables",
            "ble"
          ],
          "properties": {
            "errorData": {},
            "code": {
              "trigger": "\treturn ATMO_Status_Success;",
              "setup": "\n\tATMO_BLE_GATTSAddService(\n\t\tATMO_PROPERTY(TemperatureCharacteristic, instance),\n\t\t&ATMO_VARIABLE(TemperatureCharacteristic, bleServiceHandle), \n\t\tATMO_PROPERTY(TemperatureCharacteristic, bleServiceUuid));\n\t\n\tuint8_t property = 0;\n\tuint8_t permission = 0;\n\t\n\tproperty |= ATMO_PROPERTY(TemperatureCharacteristic, read) ? ATMO_BLE_Property_Read : 0;\n\tproperty |= ATMO_PROPERTY(TemperatureCharacteristic, write) ? ATMO_BLE_Property_Write : 0;\n\tproperty |= ATMO_PROPERTY(TemperatureCharacteristic, notify) ? ATMO_BLE_Property_Notify : 0;\n\n\tpermission |= ATMO_PROPERTY(TemperatureCharacteristic, read) ? ATMO_BLE_Permission_Read : 0;\n\tpermission |= ATMO_PROPERTY(TemperatureCharacteristic, write) ? ATMO_BLE_Permission_Write : 0;\n\n\tATMO_DATATYPE types[3] = {ATMO_PROPERTY(TemperatureCharacteristic, writeDataType), ATMO_PROPERTY(TemperatureCharacteristic, readDataType), ATMO_PROPERTY(TemperatureCharacteristic, notifyDataType)};\n\t\n\tATMO_BLE_GATTSAddCharacteristic(\n\t\tATMO_PROPERTY(TemperatureCharacteristic, instance),\n\t\t&ATMO_VARIABLE(TemperatureCharacteristic, bleCharacteristicHandle), \n\t\tATMO_VARIABLE(TemperatureCharacteristic, bleServiceHandle), \n\t\tATMO_PROPERTY(TemperatureCharacteristic, bleCharacteristicUuid), \n\t\tproperty, permission, ATMO_GetMaxValueSize(3, 64, types));\n\t\n\tATMO_BLE_GATTSRegisterCharacteristicAbilityHandle(\n\t\tATMO_PROPERTY(TemperatureCharacteristic, instance),\n\t\tATMO_VARIABLE(TemperatureCharacteristic, bleCharacteristicHandle), \n\t\tATMO_BLE_Characteristic_Written, \n\t\tATMO_ABILITY(TemperatureCharacteristic, written));\n\t\n\treturn ATMO_Status_Success;\n\t",
              "setValue": "\n\t\n\t// Convert to the desired write data type\n\tATMO_Value_t convertedValue;\n\tATMO_InitValue(&convertedValue);\n\tATMO_CreateValueConverted(&convertedValue, ATMO_PROPERTY(TemperatureCharacteristic, readDataType), in);\n\n\tATMO_BLE_GATTSSetCharacteristic(\n\t\tATMO_PROPERTY(TemperatureCharacteristic, instance),\n\t\tATMO_VARIABLE(TemperatureCharacteristic, bleCharacteristicHandle),\n\t\tconvertedValue.size, \n\t\t(uint8_t *)convertedValue.data,\n\t\tNULL);\n\t\n\tATMO_FreeValue(&convertedValue);\n\t\t\n\treturn ATMO_Status_Success;\n\t",
              "written": "\n\tATMO_CreateValueConverted(out, ATMO_PROPERTY(TemperatureCharacteristic, writeDataType), in);\n\treturn ATMO_Status_Success;\n\t",
              "subscibed": "\treturn ATMO_Status_Success;",
              "unsubscribed": "\treturn ATMO_Status_Success;"
            },
            "variables": {
              "bleServiceHandle": {
                "type": "ATMO_BLE_Handle_t"
              },
              "bleCharacteristicHandle": {
                "type": "ATMO_BLE_Handle_t"
              }
            },
            "embeddedPropertyConversions": {
              "bleServiceUuid": "string",
              "bleCharacteristicUuid": "string"
            },
            "codeUserChanged": {
              "setup": false,
              "setValue": false,
              "written": false,
              "subscibed": false,
              "unsubscribed": false
            },
            "instance": "ATMO_DRIVERINSTANCE_BLE_BLE1",
            "bleServiceUuid": "1493dd8e-8c3e-4e74-a4ff-6f0cd50005f9",
            "bleCharacteristicUuid": "1493dd8e-8c3e-4e76-a4ff-6f0cd50005f9",
            "read": true,
            "write": true,
            "notify": true,
            "readDataType": "ATMO_DATATYPE_FLOAT",
            "writeDataType": "ATMO_DATATYPE_FLOAT",
            "notifyDataType": "ATMO_DATATYPE_FLOAT"
          },
          "meta": {
            "editorX": 607.5000610351562,
            "editorY": 6,
            "lastTrigger": "written"
          },
          "triggers": {
            "triggered": [],
            "written": [],
            "subscibed": [],
            "unsubscribed": []
          },
          "interruptAbilities": {
            "trigger": false,
            "setup": false,
            "setValue": "valueSet",
            "written": true,
            "subscibed": true,
            "unsubscribed": true
          },
          "abilities": [
            {
              "name": "trigger",
              "triggers": [
                "triggered"
              ]
            },
            {
              "name": "setup",
              "triggers": []
            },
            {
              "name": "setValue",
              "triggers": []
            },
            {
              "name": "written",
              "triggers": [
                "written"
              ]
            },
            {
              "name": "subscibed",
              "triggers": [
                "subscibed"
              ]
            },
            {
              "name": "unsubscribed",
              "triggers": [
                "unsubscribed"
              ]
            }
          ]
        },
        {
          "name": "HumidityCharacteristic",
          "type": "EmbeddedBLECharacteristicCustom",
          "variants": [
            "embedded",
            "triggers",
            "abilities",
            "properties",
            "variables",
            "ble"
          ],
          "properties": {
            "errorData": {},
            "code": {
              "trigger": "\treturn ATMO_Status_Success;",
              "setup": "\n\tATMO_BLE_GATTSAddService(\n\t\tATMO_PROPERTY(HumidityCharacteristic, instance),\n\t\t&ATMO_VARIABLE(HumidityCharacteristic, bleServiceHandle), \n\t\tATMO_PROPERTY(HumidityCharacteristic, bleServiceUuid));\n\t\n\tuint8_t property = 0;\n\tuint8_t permission = 0;\n\t\n\tproperty |= ATMO_PROPERTY(HumidityCharacteristic, read) ? ATMO_BLE_Property_Read : 0;\n\tproperty |= ATMO_PROPERTY(HumidityCharacteristic, write) ? ATMO_BLE_Property_Write : 0;\n\tproperty |= ATMO_PROPERTY(HumidityCharacteristic, notify) ? ATMO_BLE_Property_Notify : 0;\n\n\tpermission |= ATMO_PROPERTY(HumidityCharacteristic, read) ? ATMO_BLE_Permission_Read : 0;\n\tpermission |= ATMO_PROPERTY(HumidityCharacteristic, write) ? ATMO_BLE_Permission_Write : 0;\n\n\tATMO_DATATYPE types[3] = {ATMO_PROPERTY(HumidityCharacteristic, writeDataType), ATMO_PROPERTY(HumidityCharacteristic, readDataType), ATMO_PROPERTY(HumidityCharacteristic, notifyDataType)};\n\t\n\tATMO_BLE_GATTSAddCharacteristic(\n\t\tATMO_PROPERTY(HumidityCharacteristic, instance),\n\t\t&ATMO_VARIABLE(HumidityCharacteristic, bleCharacteristicHandle), \n\t\tATMO_VARIABLE(HumidityCharacteristic, bleServiceHandle), \n\t\tATMO_PROPERTY(HumidityCharacteristic, bleCharacteristicUuid), \n\t\tproperty, permission, ATMO_GetMaxValueSize(3, 64, types));\n\t\n\tATMO_BLE_GATTSRegisterCharacteristicAbilityHandle(\n\t\tATMO_PROPERTY(HumidityCharacteristic, instance),\n\t\tATMO_VARIABLE(HumidityCharacteristic, bleCharacteristicHandle), \n\t\tATMO_BLE_Characteristic_Written, \n\t\tATMO_ABILITY(HumidityCharacteristic, written));\n\t\n\treturn ATMO_Status_Success;\n\t",
              "setValue": "\n\t\n\t// Convert to the desired write data type\n\tATMO_Value_t convertedValue;\n\tATMO_InitValue(&convertedValue);\n\tATMO_CreateValueConverted(&convertedValue, ATMO_PROPERTY(HumidityCharacteristic, readDataType), in);\n\n\tATMO_BLE_GATTSSetCharacteristic(\n\t\tATMO_PROPERTY(HumidityCharacteristic, instance),\n\t\tATMO_VARIABLE(HumidityCharacteristic, bleCharacteristicHandle),\n\t\tconvertedValue.size, \n\t\t(uint8_t *)convertedValue.data,\n\t\tNULL);\n\t\n\tATMO_FreeValue(&convertedValue);\n\t\t\n\treturn ATMO_Status_Success;\n\t",
              "written": "\n\tATMO_CreateValueConverted(out, ATMO_PROPERTY(HumidityCharacteristic, writeDataType), in);\n\treturn ATMO_Status_Success;\n\t",
              "subscibed": "\treturn ATMO_Status_Success;",
              "unsubscribed": "\treturn ATMO_Status_Success;"
            },
            "variables": {
              "bleServiceHandle": {
                "type": "ATMO_BLE_Handle_t"
              },
              "bleCharacteristicHandle": {
                "type": "ATMO_BLE_Handle_t"
              }
            },
            "embeddedPropertyConversions": {
              "bleServiceUuid": "string",
              "bleCharacteristicUuid": "string"
            },
            "codeUserChanged": {
              "setup": false,
              "setValue": false,
              "written": false,
              "subscibed": false,
              "unsubscribed": false
            },
            "instance": "ATMO_DRIVERINSTANCE_BLE_BLE1",
            "bleServiceUuid": "1493dd8e-8c3e-4e74-a4ff-6f0cd50005f9",
            "bleCharacteristicUuid": "1493dd8e-8c3e-4e77-a4ff-6f0cd50005f9",
            "read": true,
            "write": true,
            "notify": true,
            "readDataType": "ATMO_DATATYPE_FLOAT",
            "writeDataType": "ATMO_DATATYPE_FLOAT",
            "notifyDataType": "ATMO_DATATYPE_FLOAT"
          },
          "meta": {
            "editorX": 308.50006103515625,
            "editorY": 90,
            "lastTrigger": "written"
          },
          "triggers": {
            "triggered": [],
            "written": [],
            "subscibed": [],
            "unsubscribed": []
          },
          "interruptAbilities": {
            "trigger": false,
            "setup": false,
            "setValue": "valueSet",
            "written": true,
            "subscibed": true,
            "unsubscribed": true
          },
          "abilities": [
            {
              "name": "trigger",
              "triggers": [
                "triggered"
              ]
            },
            {
              "name": "setup",
              "triggers": []
            },
            {
              "name": "setValue",
              "triggers": []
            },
            {
              "name": "written",
              "triggers": [
                "written"
              ]
            },
            {
              "name": "subscibed",
              "triggers": [
                "subscibed"
              ]
            },
            {
              "name": "unsubscribed",
              "triggers": [
                "unsubscribed"
              ]
            }
          ]
        },
        {
          "name": "PressureCharacteristic",
          "type": "EmbeddedBLECharacteristicCustom",
          "variants": [
            "embedded",
            "triggers",
            "abilities",
            "properties",
            "variables",
            "ble"
          ],
          "properties": {
            "errorData": {},
            "code": {
              "trigger": "\treturn ATMO_Status_Success;",
              "setup": "\n\tATMO_BLE_GATTSAddService(\n\t\tATMO_PROPERTY(PressureCharacteristic, instance),\n\t\t&ATMO_VARIABLE(PressureCharacteristic, bleServiceHandle), \n\t\tATMO_PROPERTY(PressureCharacteristic, bleServiceUuid));\n\t\n\tuint8_t property = 0;\n\tuint8_t permission = 0;\n\t\n\tproperty |= ATMO_PROPERTY(PressureCharacteristic, read) ? ATMO_BLE_Property_Read : 0;\n\tproperty |= ATMO_PROPERTY(PressureCharacteristic, write) ? ATMO_BLE_Property_Write : 0;\n\tproperty |= ATMO_PROPERTY(PressureCharacteristic, notify) ? ATMO_BLE_Property_Notify : 0;\n\n\tpermission |= ATMO_PROPERTY(PressureCharacteristic, read) ? ATMO_BLE_Permission_Read : 0;\n\tpermission |= ATMO_PROPERTY(PressureCharacteristic, write) ? ATMO_BLE_Permission_Write : 0;\n\n\tATMO_DATATYPE types[3] = {ATMO_PROPERTY(PressureCharacteristic, writeDataType), ATMO_PROPERTY(PressureCharacteristic, readDataType), ATMO_PROPERTY(PressureCharacteristic, notifyDataType)};\n\t\n\tATMO_BLE_GATTSAddCharacteristic(\n\t\tATMO_PROPERTY(PressureCharacteristic, instance),\n\t\t&ATMO_VARIABLE(PressureCharacteristic, bleCharacteristicHandle), \n\t\tATMO_VARIABLE(PressureCharacteristic, bleServiceHandle), \n\t\tATMO_PROPERTY(PressureCharacteristic, bleCharacteristicUuid), \n\t\tproperty, permission, ATMO_GetMaxValueSize(3, 64, types));\n\t\n\tATMO_BLE_GATTSRegisterCharacteristicAbilityHandle(\n\t\tATMO_PROPERTY(PressureCharacteristic, instance),\n\t\tATMO_VARIABLE(PressureCharacteristic, bleCharacteristicHandle), \n\t\tATMO_BLE_Characteristic_Written, \n\t\tATMO_ABILITY(PressureCharacteristic, written));\n\t\n\treturn ATMO_Status_Success;\n\t",
              "setValue": "\n\t\n\t// Convert to the desired write data type\n\tATMO_Value_t convertedValue;\n\tATMO_InitValue(&convertedValue);\n\tATMO_CreateValueConverted(&convertedValue, ATMO_PROPERTY(PressureCharacteristic, readDataType), in);\n\n\tATMO_BLE_GATTSSetCharacteristic(\n\t\tATMO_PROPERTY(PressureCharacteristic, instance),\n\t\tATMO_VARIABLE(PressureCharacteristic, bleCharacteristicHandle),\n\t\tconvertedValue.size, \n\t\t(uint8_t *)convertedValue.data,\n\t\tNULL);\n\t\n\tATMO_FreeValue(&convertedValue);\n\t\t\n\treturn ATMO_Status_Success;\n\t",
              "written": "\n\tATMO_CreateValueConverted(out, ATMO_PROPERTY(PressureCharacteristic, writeDataType), in);\n\treturn ATMO_Status_Success;\n\t",
              "subscibed": "\treturn ATMO_Status_Success;",
              "unsubscribed": "\treturn ATMO_Status_Success;"
            },
            "variables": {
              "bleServiceHandle": {
                "type": "ATMO_BLE_Handle_t"
              },
              "bleCharacteristicHandle": {
                "type": "ATMO_BLE_Handle_t"
              }
            },
            "embeddedPropertyConversions": {
              "bleServiceUuid": "string",
              "bleCharacteristicUuid": "string"
            },
            "codeUserChanged": {
              "setup": false,
              "setValue": false,
              "written": false,
              "subscibed": false,
              "unsubscribed": false
            },
            "instance": "ATMO_DRIVERINSTANCE_BLE_BLE1",
            "bleServiceUuid": "1493dd8e-8c3e-4e74-a4ff-6f0cd50005f9",
            "bleCharacteristicUuid": "1493dd8e-8c3e-4e78-a4ff-6f0cd50005f9",
            "read": true,
            "write": true,
            "notify": true,
            "readDataType": "ATMO_DATATYPE_UNSIGNED_INT",
            "writeDataType": "ATMO_DATATYPE_UNSIGNED_INT",
            "notifyDataType": "ATMO_DATATYPE_UNSIGNED_INT"
          },
          "meta": {
            "editorX": 483.50006103515625,
            "editorY": 316,
            "lastTrigger": "written"
          },
          "triggers": {
            "triggered": [],
            "written": [],
            "subscibed": [],
            "unsubscribed": []
          },
          "interruptAbilities": {
            "trigger": false,
            "setup": false,
            "setValue": "valueSet",
            "written": true,
            "subscibed": true,
            "unsubscribed": true
          },
          "abilities": [
            {
              "name": "trigger",
              "triggers": [
                "triggered"
              ]
            },
            {
              "name": "setup",
              "triggers": []
            },
            {
              "name": "setValue",
              "triggers": []
            },
            {
              "name": "written",
              "triggers": [
                "written"
              ]
            },
            {
              "name": "subscibed",
              "triggers": [
                "subscibed"
              ]
            },
            {
              "name": "unsubscribed",
              "triggers": [
                "unsubscribed"
              ]
            }
          ]
        },
        {
          "name": "AmbientLightCharacteristic",
          "type": "EmbeddedBLECharacteristicCustom",
          "variants": [
            "embedded",
            "triggers",
            "abilities",
            "properties",
            "variables",
            "ble"
          ],
          "properties": {
            "errorData": {},
            "code": {
              "trigger": "\treturn ATMO_Status_Success;",
              "setup": "\n\tATMO_BLE_GATTSAddService(\n\t\tATMO_PROPERTY(AmbientLightCharacteristic, instance),\n\t\t&ATMO_VARIABLE(AmbientLightCharacteristic, bleServiceHandle), \n\t\tATMO_PROPERTY(AmbientLightCharacteristic, bleServiceUuid));\n\t\n\tuint8_t property = 0;\n\tuint8_t permission = 0;\n\t\n\tproperty |= ATMO_PROPERTY(AmbientLightCharacteristic, read) ? ATMO_BLE_Property_Read : 0;\n\tproperty |= ATMO_PROPERTY(AmbientLightCharacteristic, write) ? ATMO_BLE_Property_Write : 0;\n\tproperty |= ATMO_PROPERTY(AmbientLightCharacteristic, notify) ? ATMO_BLE_Property_Notify : 0;\n\n\tpermission |= ATMO_PROPERTY(AmbientLightCharacteristic, read) ? ATMO_BLE_Permission_Read : 0;\n\tpermission |= ATMO_PROPERTY(AmbientLightCharacteristic, write) ? ATMO_BLE_Permission_Write : 0;\n\n\tATMO_DATATYPE types[3] = {ATMO_PROPERTY(AmbientLightCharacteristic, writeDataType), ATMO_PROPERTY(AmbientLightCharacteristic, readDataType), ATMO_PROPERTY(AmbientLightCharacteristic, notifyDataType)};\n\t\n\tATMO_BLE_GATTSAddCharacteristic(\n\t\tATMO_PROPERTY(AmbientLightCharacteristic, instance),\n\t\t&ATMO_VARIABLE(AmbientLightCharacteristic, bleCharacteristicHandle), \n\t\tATMO_VARIABLE(AmbientLightCharacteristic, bleServiceHandle), \n\t\tATMO_PROPERTY(AmbientLightCharacteristic, bleCharacteristicUuid), \n\t\tproperty, permission, ATMO_GetMaxValueSize(3, 64, types));\n\t\n\tATMO_BLE_GATTSRegisterCharacteristicAbilityHandle(\n\t\tATMO_PROPERTY(AmbientLightCharacteristic, instance),\n\t\tATMO_VARIABLE(AmbientLightCharacteristic, bleCharacteristicHandle), \n\t\tATMO_BLE_Characteristic_Written, \n\t\tATMO_ABILITY(AmbientLightCharacteristic, written));\n\t\n\treturn ATMO_Status_Success;\n\t",
              "setValue": "\n\t\n\t// Convert to the desired write data type\n\tATMO_Value_t convertedValue;\n\tATMO_InitValue(&convertedValue);\n\tATMO_CreateValueConverted(&convertedValue, ATMO_PROPERTY(AmbientLightCharacteristic, readDataType), in);\n\n\tATMO_BLE_GATTSSetCharacteristic(\n\t\tATMO_PROPERTY(AmbientLightCharacteristic, instance),\n\t\tATMO_VARIABLE(AmbientLightCharacteristic, bleCharacteristicHandle),\n\t\tconvertedValue.size, \n\t\t(uint8_t *)convertedValue.data,\n\t\tNULL);\n\t\n\tATMO_FreeValue(&convertedValue);\n\t\t\n\treturn ATMO_Status_Success;\n\t",
              "written": "\n\tATMO_CreateValueConverted(out, ATMO_PROPERTY(AmbientLightCharacteristic, writeDataType), in);\n\treturn ATMO_Status_Success;\n\t",
              "subscibed": "\treturn ATMO_Status_Success;",
              "unsubscribed": "\treturn ATMO_Status_Success;"
            },
            "variables": {
              "bleServiceHandle": {
                "type": "ATMO_BLE_Handle_t"
              },
              "bleCharacteristicHandle": {
                "type": "ATMO_BLE_Handle_t"
              }
            },
            "embeddedPropertyConversions": {
              "bleServiceUuid": "string",
              "bleCharacteristicUuid": "string"
            },
            "codeUserChanged": {
              "setup": false,
              "setValue": false,
              "written": false,
              "subscibed": false,
              "unsubscribed": false
            },
            "instance": "ATMO_DRIVERINSTANCE_BLE_BLE1",
            "bleServiceUuid": "1493dd8e-8c3e-4e74-a4ff-6f0cd50005f9",
            "bleCharacteristicUuid": "1493dd8e-8c3e-4e79-a4ff-6f0cd50005f9",
            "read": true,
            "write": true,
            "notify": true,
            "readDataType": "ATMO_DATATYPE_UNSIGNED_INT",
            "writeDataType": "ATMO_DATATYPE_UNSIGNED_INT",
            "notifyDataType": "ATMO_DATATYPE_UNSIGNED_INT"
          },
          "meta": {
            "editorX": 303.50006103515625,
            "editorY": 351,
            "lastTrigger": "written"
          },
          "triggers": {
            "triggered": [],
            "written": [],
            "subscibed": [],
            "unsubscribed": []
          },
          "interruptAbilities": {
            "trigger": false,
            "setup": false,
            "setValue": "valueSet",
            "written": true,
            "subscibed": true,
            "unsubscribed": true
          },
          "abilities": [
            {
              "name": "trigger",
              "triggers": [
                "triggered"
              ]
            },
            {
              "name": "setup",
              "triggers": []
            },
            {
              "name": "setValue",
              "triggers": []
            },
            {
              "name": "written",
              "triggers": [
                "written"
              ]
            },
            {
              "name": "subscibed",
              "triggers": [
                "subscibed"
              ]
            },
            {
              "name": "unsubscribed",
              "triggers": [
                "unsubscribed"
              ]
            }
          ]
        },
        {
          "name": "SX9500Touch",
          "type": "EmbeddedSX9500",
          "variants": [
            "embedded",
            "triggers",
            "abilities",
            "properties",
            "variables"
          ],
          "properties": {
            "errorData": {},
            "code": {
              "trigger": "\treturn ATMO_Status_Success;",
              "setup": "\tATMO_SX9500_Config_t config;\n\tconfig.address = ATMO_PROPERTY(SX9500Touch, i2cAddress);\n\tconfig.i2cDriverInstance = ATMO_PROPERTY(SX9500Touch, i2cInstance);\n\tconfig.gpioDriverInstance = ATMO_PROPERTY(SX9500Touch, gpioInstance);\n\tconfig.interruptEnabled = ATMO_PROPERTY(SX9500Touch, interruptEnabled);\n\tconfig.interruptPin = ATMO_PROPERTY(SX9500Touch, interruptGpio);\n\tATMO_SX9500_Init(&config);\n\tATMO_SX9500_RegisterTouchedAbilityHandle(SX9500_Touched_Up, ATMO_ABILITY(SX9500Touch, pressUp));\n\tATMO_SX9500_RegisterTouchedAbilityHandle(SX9500_Touched_Down, ATMO_ABILITY(SX9500Touch, pressDown));\n\tATMO_SX9500_RegisterTouchedAbilityHandle(SX9500_Touched_Left, ATMO_ABILITY(SX9500Touch, pressLeft));\n\tATMO_SX9500_RegisterTouchedAbilityHandle(SX9500_Touched_Right, ATMO_ABILITY(SX9500Touch, pressRight));\n\treturn ATMO_Status_Success;",
              "getTouchData": "",
              "pressUp": "SX9500_TouchState_t touchState;\nATMO_GetBinary(in, &touchState, sizeof(touchState));\nATMO_CreateValueBinary(out, &touchState, sizeof(touchState));\nreturn ATMO_Status_Success;",
              "pressDown": "SX9500_TouchState_t touchState;\nATMO_GetBinary(in, &touchState, sizeof(touchState));\nATMO_CreateValueBinary(out, &touchState, sizeof(touchState));\nreturn ATMO_Status_Success;",
              "pressLeft": "SX9500_TouchState_t touchState;\nATMO_GetBinary(in, &touchState, sizeof(touchState));\nATMO_CreateValueBinary(out, &touchState, sizeof(touchState));\nreturn ATMO_Status_Success;",
              "pressRight": "SX9500_TouchState_t touchState;\nATMO_GetBinary(in, &touchState, sizeof(touchState));\nATMO_CreateValueBinary(out, &touchState, sizeof(touchState));\nreturn ATMO_Status_Success;"
            },
            "variables": {},
            "embeddedPropertyConversions": {},
            "codeUserChanged": {
              "setup": false,
              "getTouchData": false,
              "pressUp": false,
              "pressDown": false,
              "pressLeft": false,
              "pressRight": false
            },
            "i2cInstance": "ATMO_DRIVERINSTANCE_I2C_I2C2",
            "gpioInstance": "ATMO_DRIVERINSTANCE_GPIO_GPIO1",
            "interruptEnabled": true,
            "interruptGpio": "PTA9",
            "i2cAddress": "0x28"
          },
          "meta": {
            "editorX": 1079.33349609375,
            "editorY": 33,
            "lastTrigger": "rightPressed"
          },
          "triggers": {
            "triggered": [],
            "touchDataRead": [],
            "upPressed": [
              {
                "mapping": {},
                "targetOrder": [],
                "targetElement": "EmbeddedPageController",
                "targetAbility": "navigateUp"
              }
            ],
            "downPressed": [
              {
                "mapping": {},
                "targetOrder": [],
                "targetElement": "EmbeddedPageController",
                "targetAbility": "navigateDown"
              }
            ],
            "leftPressed": [
              {
                "mapping": {},
                "targetOrder": [],
                "targetElement": "EmbeddedPageController",
                "targetAbility": "navigateLeft"
              }
            ],
            "rightPressed": [
              {
                "mapping": {},
                "targetOrder": [],
                "targetElement": "EmbeddedPageController",
                "targetAbility": "navigateRight"
              }
            ]
          },
          "interruptAbilities": {
            "trigger": false,
            "setup": false,
            "getTouchData": false,
            "pressUp": false,
            "pressDown": false,
            "pressLeft": false,
            "pressRight": false
          },
          "abilities": [
            {
              "name": "trigger",
              "triggers": [
                "triggered"
              ]
            },
            {
              "name": "setup",
              "triggers": []
            },
            {
              "name": "getTouchData",
              "triggers": [
                "touchDataRead"
              ]
            },
            {
              "name": "pressUp",
              "triggers": [
                "upPressed",
                "touchDataRead"
              ]
            },
            {
              "name": "pressDown",
              "triggers": [
                "downPressed",
                "touchDataRead"
              ]
            },
            {
              "name": "pressLeft",
              "triggers": [
                "leftPressed",
                "touchDataRead"
              ]
            },
            {
              "name": "pressRight",
              "triggers": [
                "rightPressed",
                "touchDataRead"
              ]
            }
          ]
        },
        {
          "name": "Temperature_P",
          "type": "EmbeddedIconLabelDisplay",
          "variants": [
            "embedded",
            "triggers",
            "abilities",
            "properties",
            "variables",
            "rpk"
          ],
          "properties": {
            "errorData": {},
            "code": {
              "trigger": "\treturn ATMO_Status_Success;",
              "displayPage": "\n\tATMO_UI_Page_DisplayPageByCoord(ATMO_PROPERTY(Temperature_P, x), ATMO_PROPERTY(Temperature_P, y), false);\n\treturn ATMO_Status_Success;\n\t",
              "onDisplayed": "\n\treturn ATMO_Status_Success;\n    ",
              "topRightButtonPressed": "\n\treturn ATMO_Status_Success;\n\t",
              "bottomRightButtonPressed": "\n\treturn ATMO_Status_Success;\n\t",
              "topLeftButtonPressed": "\n\treturn ATMO_Status_Success;\n\t",
              "bottomLeftButtonPressed": "\n\treturn ATMO_Status_Success;\n\t",
              "setup": "\n    ATMO_UI_PAGE_Config_t config;\n\tconfig.hidden = ATMO_PROPERTY(Temperature_P, pageHidden);\n\tconfig.textColor = ATMO_PROPERTY(Temperature_P, textColor);\n    config.activeButtons = ATMO_UI_Page_GetButtonMask(ATMO_PROPERTY(Temperature_P, topRightButtonEnabled),\n    ATMO_PROPERTY(Temperature_P,bottomRightButtonEnabled), ATMO_PROPERTY(Temperature_P, topLeftButtonEnabled), ATMO_PROPERTY(Temperature_P, bottomLeftButtonEnabled));\n\tconfig.x = ATMO_PROPERTY(Temperature_P, x);\n    config.x = ATMO_PROPERTY(Temperature_P, x);\n    config.y = ATMO_PROPERTY(Temperature_P, y);\n\tstrncpy(config.topLeftButtonLabel, ATMO_PROPERTY(Temperature_P, topLeftButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);\n\tstrncpy(config.topRightButtonLabel, ATMO_PROPERTY(Temperature_P, topRightButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);\n\tstrncpy(config.bottomLeftButtonLabel, ATMO_PROPERTY(Temperature_P, bottomLeftButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);\n\tstrncpy(config.bottomRightButtonLabel, ATMO_PROPERTY(Temperature_P, bottomRightButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);\n    config.spanX = ATMO_PROPERTY(Temperature_P, spanX);\n\tconfig.spanY = ATMO_PROPERTY(Temperature_P, spanY);\n    config.title = ATMO_PROPERTY(Temperature_P, pageTitle);\n    config.titleHidden = ATMO_PROPERTY(Temperature_P, titleHidden);\n\tATMO_UI_SINGLEICONTEXT_Init(&config);\n\tATMO_VARIABLE(Temperature_P, pageHandle) = config.templateInstance;\n    ATMO_UI_SINGLEICONTEXT_SetMainText(config.templateInstance, ATMO_PROPERTY(Temperature_P, label));\n    ATMO_UI_SINGLEICONTEXT_SetIcon(config.templateInstance, ATMO_PROPERTY(Temperature_P, icon));\n    ATMO_UI_SINGLEICONTEXT_RegisterOnDisplayedAbilityHandle(ATMO_VARIABLE(Temperature_P,pageHandle), ATMO_ABILITY(Temperature_P, onDisplayed));\n    ATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Temperature_P,pageHandle), 1, ATMO_ABILITY(Temperature_P, topRightButtonPressed));\n\tATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Temperature_P,pageHandle), 2, ATMO_ABILITY(Temperature_P, bottomRightButtonPressed));\n\tATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Temperature_P,pageHandle), 3, ATMO_ABILITY(Temperature_P, topLeftButtonPressed));\n    ATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Temperature_P,pageHandle), 4, ATMO_ABILITY(Temperature_P, bottomLeftButtonPressed));\n    ATMO_UI_SINGLEICONTEXT_RegisterOnLeaveAbilityHandle(config.templateInstance, ATMO_ABILITY(Temperature_P, onLeave));\n\treturn ATMO_Status_Success;\n    ",
              "onLeave": "\n\treturn ATMO_Status_Success;\n\t",
              "setLabel": "\n    char label[32];\n    if(ATMO_GetString(in, label, 32) == ATMO_Status_Success)\n    {\n        ATMO_UI_SINGLEICONTEXT_SetMainText(ATMO_VARIABLE(Temperature_P,pageHandle), label);\n    }\n    else\n    {\n        return ATMO_Status_Fail;\n    }\n\n    return ATMO_Status_Success;\n    "
            },
            "variables": {
              "pageHandle": {
                "type": "ATMO_DriverInstanceHandle_t"
              }
            },
            "embeddedPropertyConversions": {
              "pageTitle": "string",
              "topRightButtonLabel": "string",
              "bottomRightButtonLabel": "string",
              "topLeftButtonLabel": "string",
              "bottomLeftButtonLabel": "string",
              "label": "string"
            },
            "codeUserChanged": {
              "onDisplayed": false,
              "topRightButtonPressed": false,
              "bottomRightButtonPressed": false,
              "topLeftButtonPressed": false,
              "bottomLeftButtonPressed": false,
              "setup": false,
              "onLeave": false,
              "setLabel": false
            },
            "textColor": "GUI_BLACK",
            "pageTitle": "Temperature",
            "titleHidden": false,
            "pageHidden": false,
            "topRightButtonLabel": "",
            "topRightButtonEnabled": false,
            "bottomRightButtonLabel": "",
            "bottomRightButtonEnabled": false,
            "topLeftButtonLabel": "",
            "topLeftButtonEnabled": false,
            "bottomLeftButtonLabel": "",
            "bottomLeftButtonEnabled": false,
            "x": 0,
            "y": 0,
            "spanX": 1,
            "spanY": 1,
            "icon": "icon_applications_thermostat",
            "label": "N/A"
          },
          "meta": {
            "editorX": 663.33349609375,
            "editorY": 137,
            "lastTrigger": "onDisplayed"
          },
          "triggers": {
            "triggered": [],
            "onDisplayed": [],
            "topRightButtonPressed": [],
            "bottomRightButtonPressed": [],
            "topLeftButtonPressed": [],
            "bottomLeftButtonPressed": [],
            "onLeave": []
          },
          "interruptAbilities": {
            "trigger": false,
            "displayPage": false,
            "onDisplayed": false,
            "topRightButtonPressed": false,
            "bottomRightButtonPressed": false,
            "topLeftButtonPressed": false,
            "bottomLeftButtonPressed": false,
            "setup": false,
            "onLeave": false,
            "setLabel": false
          },
          "abilities": [
            {
              "name": "trigger",
              "triggers": [
                "triggered"
              ]
            },
            {
              "name": "displayPage",
              "triggers": []
            },
            {
              "name": "onDisplayed",
              "triggers": [
                "onDisplayed"
              ]
            },
            {
              "name": "topRightButtonPressed",
              "triggers": [
                "topRightButtonPressed"
              ]
            },
            {
              "name": "bottomRightButtonPressed",
              "triggers": [
                "bottomRightButtonPressed"
              ]
            },
            {
              "name": "topLeftButtonPressed",
              "triggers": [
                "topLeftButtonPressed"
              ]
            },
            {
              "name": "bottomLeftButtonPressed",
              "triggers": [
                "bottomLeftButtonPressed"
              ]
            },
            {
              "name": "setup",
              "triggers": []
            },
            {
              "name": "onLeave",
              "triggers": [
                "onLeave"
              ]
            },
            {
              "name": "setLabel",
              "triggers": []
            }
          ]
        },
        {
          "name": "EmbeddedPageController",
          "type": "EmbeddedPageController",
          "variants": [
            "embedded",
            "triggers",
            "abilities",
            "properties",
            "variables",
            "rpk"
          ],
          "properties": {
            "errorData": {},
            "code": {
              "trigger": "\treturn ATMO_Status_Success;",
              "setup": "\n\tATMO_UI_PAGE_CONTROLLER_Config_t config;\n\tconfig.enableUpDownNavLabels = ATMO_PROPERTY(EmbeddedPageController, upDownNavigationLabelsEnabled);\n\tconfig.enableLeftRightNavLabels = ATMO_PROPERTY(EmbeddedPageController, leftRightNavigationLabelsEnabled);\n\tATMO_UI_Page_SetConfiguration(&config);\n    return ATMO_Status_Success;\n\t",
              "displayRootPage": "\n\t\n\tATMO_UI_Page_DisplayRootPage();\n\treturn ATMO_Status_Success;\n\t",
              "navigateUp": "\n\tATMO_UI_Page_ProcessNavButton(ATMO_UI_PAGE_NAV_UP);\n\treturn ATMO_Status_Success;\n\t",
              "navigateDown": "\n\tATMO_UI_Page_ProcessNavButton(ATMO_UI_PAGE_NAV_DOWN);\n\treturn ATMO_Status_Success;\n\t",
              "navigateLeft": "\n\tATMO_UI_Page_ProcessNavButton(ATMO_UI_PAGE_NAV_LEFT);\n\treturn ATMO_Status_Success;\n\t",
              "navigateRight": "\n\tATMO_UI_Page_ProcessNavButton(ATMO_UI_PAGE_NAV_RIGHT);\n\treturn ATMO_Status_Success;\n\t",
              "processTopRightButton": "\n\tATMO_UI_Page_ProcessUserButton(1);\n\treturn ATMO_Status_Success;\n\t",
              "processBottomRightButton": "\n\tATMO_UI_Page_ProcessUserButton(2);\n\treturn ATMO_Status_Success;\n\t",
              "processTopLeftButton": "\n\tATMO_UI_Page_ProcessUserButton(3);\n\treturn ATMO_Status_Success;\n\t",
              "processBottomLeftButton": "\n\tATMO_UI_Page_ProcessUserButton(4);\n\treturn ATMO_Status_Success;\n\t"
            },
            "variables": {},
            "embeddedPropertyConversions": {},
            "codeUserChanged": {
              "setup": false,
              "displayRootPage": false,
              "navigateUp": false,
              "navigateDown": false,
              "navigateLeft": false,
              "navigateRight": false,
              "processTopRightButton": false,
              "processBottomRightButton": false,
              "processTopLeftButton": false,
              "processBottomLeftButton": false
            },
            "upDownNavigationLabelsEnabled": true,
            "leftRightNavigationLabelsEnabled": true
          },
          "meta": {
            "editorX": 1222.33349609375,
            "editorY": 29,
            "lastTrigger": "triggered"
          },
          "triggers": {
            "triggered": [],
            "navigateUp": [],
            "navigateDown": [],
            "navigateLeft": [],
            "navigateRight": [],
            "processTopRightButton": [],
            "processBottomRightButton": [],
            "processTopLeftButton": [],
            "processBottomLeftButton": []
          },
          "interruptAbilities": {
            "trigger": false,
            "setup": false,
            "displayRootPage": false,
            "navigateUp": false,
            "navigateDown": false,
            "navigateLeft": false,
            "navigateRight": false,
            "processTopRightButton": false,
            "processBottomRightButton": false,
            "processTopLeftButton": false,
            "processBottomLeftButton": false
          },
          "abilities": [
            {
              "name": "trigger",
              "triggers": [
                "triggered"
              ]
            },
            {
              "name": "setup",
              "triggers": []
            },
            {
              "name": "displayRootPage",
              "triggers": []
            },
            {
              "name": "navigateUp",
              "triggers": [
                "navigateUp"
              ]
            },
            {
              "name": "navigateDown",
              "triggers": [
                "navigateDown"
              ]
            },
            {
              "name": "navigateLeft",
              "triggers": [
                "navigateLeft"
              ]
            },
            {
              "name": "navigateRight",
              "triggers": [
                "navigateRight"
              ]
            },
            {
              "name": "processTopRightButton",
              "triggers": [
                "processTopRightButton"
              ]
            },
            {
              "name": "processBottomRightButton",
              "triggers": [
                "processBottomRightButton"
              ]
            },
            {
              "name": "processTopLeftButton",
              "triggers": [
                "processTopLeftButton"
              ]
            },
            {
              "name": "processBottomLeftButton",
              "triggers": [
                "processBottomLeftButton"
              ]
            }
          ]
        },
        {
          "name": "Humidity_Pag",
          "type": "EmbeddedIconLabelDisplay",
          "variants": [
            "embedded",
            "triggers",
            "abilities",
            "properties",
            "variables",
            "rpk"
          ],
          "properties": {
            "errorData": {},
            "code": {
              "trigger": "\treturn ATMO_Status_Success;",
              "displayPage": "\n\tATMO_UI_Page_DisplayPageByCoord(ATMO_PROPERTY(Humidity_Pag, x), ATMO_PROPERTY(Humidity_Pag, y), false);\n\treturn ATMO_Status_Success;\n\t",
              "onDisplayed": "\n\treturn ATMO_Status_Success;\n    ",
              "topRightButtonPressed": "\n\treturn ATMO_Status_Success;\n\t",
              "bottomRightButtonPressed": "\n\treturn ATMO_Status_Success;\n\t",
              "topLeftButtonPressed": "\n\treturn ATMO_Status_Success;\n\t",
              "bottomLeftButtonPressed": "\n\treturn ATMO_Status_Success;\n\t",
              "setup": "\n    ATMO_UI_PAGE_Config_t config;\n\tconfig.hidden = ATMO_PROPERTY(Humidity_Pag, pageHidden);\n\tconfig.textColor = ATMO_PROPERTY(Humidity_Pag, textColor);\n    config.activeButtons = ATMO_UI_Page_GetButtonMask(ATMO_PROPERTY(Humidity_Pag, topRightButtonEnabled),\n    ATMO_PROPERTY(Humidity_Pag,bottomRightButtonEnabled), ATMO_PROPERTY(Humidity_Pag, topLeftButtonEnabled), ATMO_PROPERTY(Humidity_Pag, bottomLeftButtonEnabled));\n\tconfig.x = ATMO_PROPERTY(Humidity_Pag, x);\n    config.x = ATMO_PROPERTY(Humidity_Pag, x);\n    config.y = ATMO_PROPERTY(Humidity_Pag, y);\n\tstrncpy(config.topLeftButtonLabel, ATMO_PROPERTY(Humidity_Pag, topLeftButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);\n\tstrncpy(config.topRightButtonLabel, ATMO_PROPERTY(Humidity_Pag, topRightButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);\n\tstrncpy(config.bottomLeftButtonLabel, ATMO_PROPERTY(Humidity_Pag, bottomLeftButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);\n\tstrncpy(config.bottomRightButtonLabel, ATMO_PROPERTY(Humidity_Pag, bottomRightButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);\n    config.spanX = ATMO_PROPERTY(Humidity_Pag, spanX);\n\tconfig.spanY = ATMO_PROPERTY(Humidity_Pag, spanY);\n    config.title = ATMO_PROPERTY(Humidity_Pag, pageTitle);\n    config.titleHidden = ATMO_PROPERTY(Humidity_Pag, titleHidden);\n\tATMO_UI_SINGLEICONTEXT_Init(&config);\n\tATMO_VARIABLE(Humidity_Pag, pageHandle) = config.templateInstance;\n    ATMO_UI_SINGLEICONTEXT_SetMainText(config.templateInstance, ATMO_PROPERTY(Humidity_Pag, label));\n    ATMO_UI_SINGLEICONTEXT_SetIcon(config.templateInstance, ATMO_PROPERTY(Humidity_Pag, icon));\n    ATMO_UI_SINGLEICONTEXT_RegisterOnDisplayedAbilityHandle(ATMO_VARIABLE(Humidity_Pag,pageHandle), ATMO_ABILITY(Humidity_Pag, onDisplayed));\n    ATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Humidity_Pag,pageHandle), 1, ATMO_ABILITY(Humidity_Pag, topRightButtonPressed));\n\tATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Humidity_Pag,pageHandle), 2, ATMO_ABILITY(Humidity_Pag, bottomRightButtonPressed));\n\tATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Humidity_Pag,pageHandle), 3, ATMO_ABILITY(Humidity_Pag, topLeftButtonPressed));\n    ATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Humidity_Pag,pageHandle), 4, ATMO_ABILITY(Humidity_Pag, bottomLeftButtonPressed));\n    ATMO_UI_SINGLEICONTEXT_RegisterOnLeaveAbilityHandle(config.templateInstance, ATMO_ABILITY(Humidity_Pag, onLeave));\n\treturn ATMO_Status_Success;\n    ",
              "onLeave": "\n\treturn ATMO_Status_Success;\n\t",
              "setLabel": "\n    char label[32];\n    if(ATMO_GetString(in, label, 32) == ATMO_Status_Success)\n    {\n        ATMO_UI_SINGLEICONTEXT_SetMainText(ATMO_VARIABLE(Humidity_Pag,pageHandle), label);\n    }\n    else\n    {\n        return ATMO_Status_Fail;\n    }\n\n    return ATMO_Status_Success;\n    "
            },
            "variables": {
              "pageHandle": {
                "type": "ATMO_DriverInstanceHandle_t"
              }
            },
            "embeddedPropertyConversions": {
              "pageTitle": "string",
              "topRightButtonLabel": "string",
              "bottomRightButtonLabel": "string",
              "topLeftButtonLabel": "string",
              "bottomLeftButtonLabel": "string",
              "label": "string"
            },
            "codeUserChanged": {
              "onDisplayed": false,
...

This file has been truncated, please download it to see its full contents.

structure

C/C++
A variable for each sensor used should be placed in here.
struct Sensors
{
    float temperature;
    float humidity;
    int pressure;
    int light;
    int airquality;
} stSensorValues ;

data2struct function

C/C++

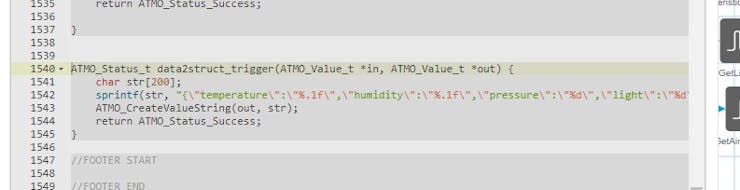

This code will create the JSON file that is sent over to Node Red.
ATMO_Status_t data2struct_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
    char str[200];
	sprintf(str, "{\"temperature\":\"%.1f\",\"humidity\":\"%.1f\",\"pressure\":\"%d\",\"light\":\"%d\",\"airquality\":\"%d\"}", stSensorValues.temperature,stSensorValues.humidity,stSensorValues.pressure,stSensorValues.light,stSensorValues.airquality);
	ATMO_CreateValueString(out, str);
	return ATMO_Status_Success;
}

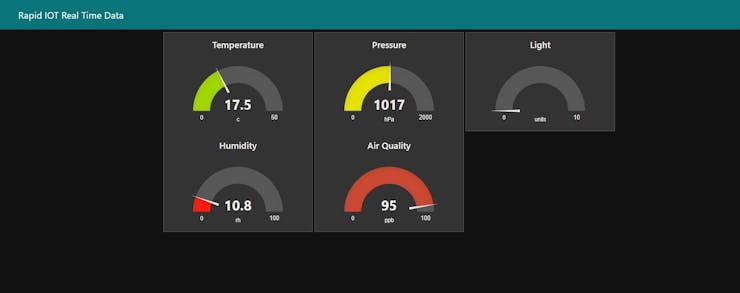

node red export

JSON

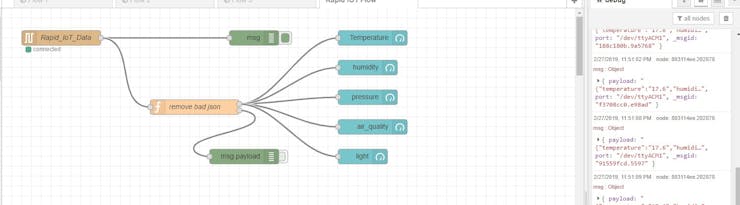

This is the node red export of my flow.
[
    {
        "id": "ea5c8b1c.b1e198",
        "type": "serial in",
        "z": "df6cd362.35517",
        "name": "Rapid_IoT_Data",
        "serial": "77f4d891.d1e2d8",
        "x": 120,
        "y": 60,
        "wires": [
            [
                "803114ee.202878",
                "7a5bc090.653cd"
            ]
        ]
    },
    {
        "id": "ffe63b12.2f2b78",
        "type": "ui_gauge",
        "z": "df6cd362.35517",
        "name": "Temperature",
        "group": "8c6578fb.c89ee8",
        "order": 1,
        "width": 0,
        "height": 0,
        "gtype": "gage",
        "title": "Temperature",
        "label": "c",
        "format": "{{temperature}}",
        "min": 0,
        "max": "50",
        "colors": [
            "#00b500",
            "#e6e600",
            "#ca3838"
        ],
        "seg1": "",
        "seg2": "",
        "x": 750,
        "y": 60,
        "wires": []
    },
    {
        "id": "803114ee.202878",
        "type": "debug",
        "z": "df6cd362.35517",
        "name": "",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "true",
        "x": 510,
        "y": 60,
        "wires": []
    },
    {
        "id": "7a5bc090.653cd",
        "type": "function",
        "z": "df6cd362.35517",
        "name": "remove bad json",
        "func": "var payload = msg.payload;\n\npayload = payload.replace('\\u0000', '');\n\nif (payload.length > 5){\n    msg.payload = payload;\n    msg = JSON.parse(msg.payload);\n    return [msg,null];\n}else\n    return [null,msg];",
        "outputs": 2,
        "noerr": 0,
        "x": 390,
        "y": 200,
        "wires": [
            [
                "ffe63b12.2f2b78",
                "10186ade.9631e5",
                "53fe0f23.db676",
                "85a1ba97.dcdab8",
                "f1d22356.e31b8"
            ],
            [
                "71c1aab2.7eeb54"
            ]
        ]
    },
    {
        "id": "71c1aab2.7eeb54",
        "type": "debug",
        "z": "df6cd362.35517",
        "name": "",
        "active": false,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "false",
        "x": 490,
        "y": 300,
        "wires": []
    },
    {
        "id": "10186ade.9631e5",
        "type": "ui_gauge",
        "z": "df6cd362.35517",
        "name": "pressure",
        "group": "f870ec7e.ead88",
        "order": 3,
        "width": 0,
        "height": 0,
        "gtype": "gage",
        "title": "Pressure",
        "label": "hPa",
        "format": "{{pressure}}",
        "min": 0,
        "max": "2000",
        "colors": [
            "#00b500",
            "#e6e600",
            "#ca3838"
        ],
        "seg1": "",
        "seg2": "",
        "x": 740,
        "y": 180,
        "wires": []
    },
    {
        "id": "53fe0f23.db676",
        "type": "ui_gauge",
        "z": "df6cd362.35517",
        "name": "air_quality",
        "group": "f870ec7e.ead88",
        "order": 4,
        "width": 0,
        "height": 0,
        "gtype": "gage",
        "title": "Air Quality",
        "label": "ppb",
        "format": "{{airquality}}",
        "min": 0,
        "max": "100",
        "colors": [
            "#00b500",
            "#e6e600",
            "#ca3838"
        ],
        "seg1": "",
        "seg2": "",
        "x": 750,
        "y": 240,
        "wires": []
    },
    {
        "id": "85a1ba97.dcdab8",
        "type": "ui_gauge",
        "z": "df6cd362.35517",
        "name": "humidity",
        "group": "8c6578fb.c89ee8",
        "order": 6,
        "width": 0,
        "height": 0,
        "gtype": "gage",
        "title": "Humidity",
        "label": "rh",
        "format": "{{humidity}}",
        "min": 0,
        "max": "100",
        "colors": [
            "#ff0000",
            "#ff8040",
            "#00ff00"
        ],
        "seg1": "",
        "seg2": "",
        "x": 740,
        "y": 120,
        "wires": []
    },
    {
        "id": "f1d22356.e31b8",
        "type": "ui_gauge",
        "z": "df6cd362.35517",
        "name": "light",
        "group": "9f3b7827.fc0188",
        "order": 6,
        "width": 0,
        "height": 0,
        "gtype": "gage",
        "title": "Light",
        "label": "units",
        "format": "{{light}}",
        "min": 0,
        "max": 10,
        "colors": [
            "#000000",
            "#808080",
            "#ffffff"
        ],
        "seg1": "",
        "seg2": "",
        "x": 730,
        "y": 300,
        "wires": []
    },
    {
        "id": "77f4d891.d1e2d8",
        "type": "serial-port",
        "z": "",
        "serialport": "/dev/ttyACM1",
        "serialbaud": "115200",
        "databits": "8",
        "parity": "none",
        "stopbits": "1",
        "newline": "\\n",
        "bin": "false",
        "out": "char",
        "addchar": true,
        "responsetimeout": "10000"
    },
    {
        "id": "8c6578fb.c89ee8",
        "type": "ui_group",
        "z": "",
        "name": "Group 1",
        "tab": "18ca30b6.f31c0f",
        "order": 1,
        "disp": false,
        "width": "6",
        "collapse": false
    },
    {
        "id": "f870ec7e.ead88",
        "type": "ui_group",
        "z": "",
        "name": "Group 2",
        "tab": "18ca30b6.f31c0f",
        "order": 2,
        "disp": false,
        "width": "6",
        "collapse": false
    },
    {
        "id": "9f3b7827.fc0188",
        "type": "ui_group",
        "z": "",
        "name": "Group 3",
        "tab": "18ca30b6.f31c0f",
        "order": 3,
        "disp": false,
        "width": "6",
        "collapse": false
    },
    {
        "id": "18ca30b6.f31c0f",
        "type": "ui_tab",
        "z": "",
        "name": "Rapid IOT Real Time Data",
        "icon": "dashboard",
        "order": 1,
        "disabled": false,
        "hidden": false
    }
]

Credits

Dana Mah

Dana Mah

10 projects • 14 followers
I'm a hobbyist interested in microcontroller solutions to simple problems.

Comments
