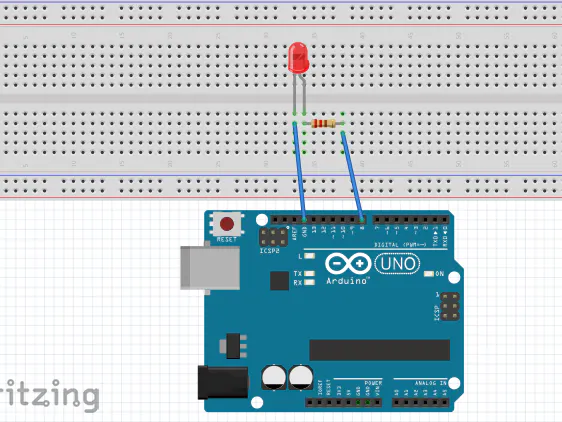

Led project

This is a led project if your new to arduino projects.

BeginnerShowcase (no instructions)30 minutes10
Led project

Things used in this project

Hardware components

LED (generic)
LED (generic)
×1
Male/Male Jumper Wires
×2
Resistor 220 ohm
Resistor 220 ohm
×1
Arduino UNO
Arduino UNO
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Custom parts and enclosures

led diagram

this is the diagram

Schematics

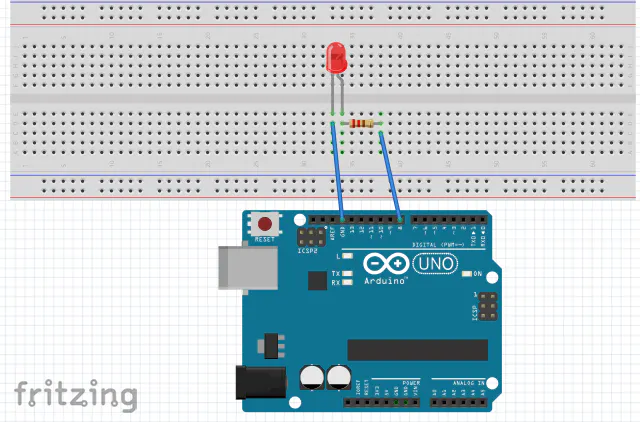

led diagram

this is the diagram

Code

led code

JavaScript
this is the code
// Project 1 - LED Flasher
int ledPin = 8;
void setup() {
 pinMode(ledPin, OUTPUT);
}
void loop() {
 digitalWrite(ledPin, HIGH);
 delay(1000);
 digitalWrite(ledPin, LOW);
 delay(1000);
}
