Adam Radjabov
Published © GPL3+

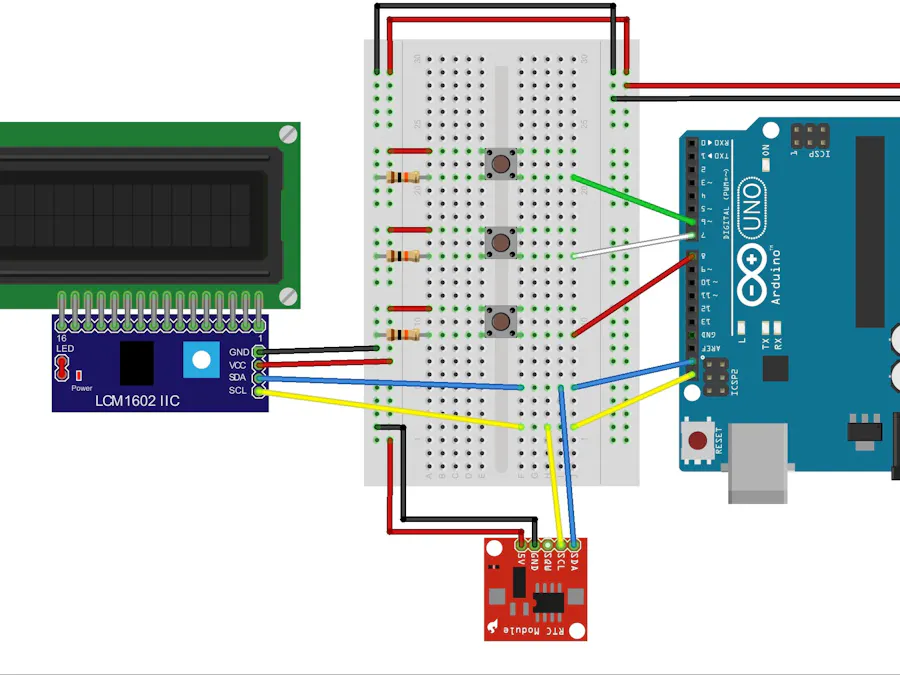

Clock set time

This is a clock project where you can set the time.

BeginnerShowcase (no instructions)1 hour35
Clock set time

Things used in this project

Story

Read more

Custom parts and enclosures

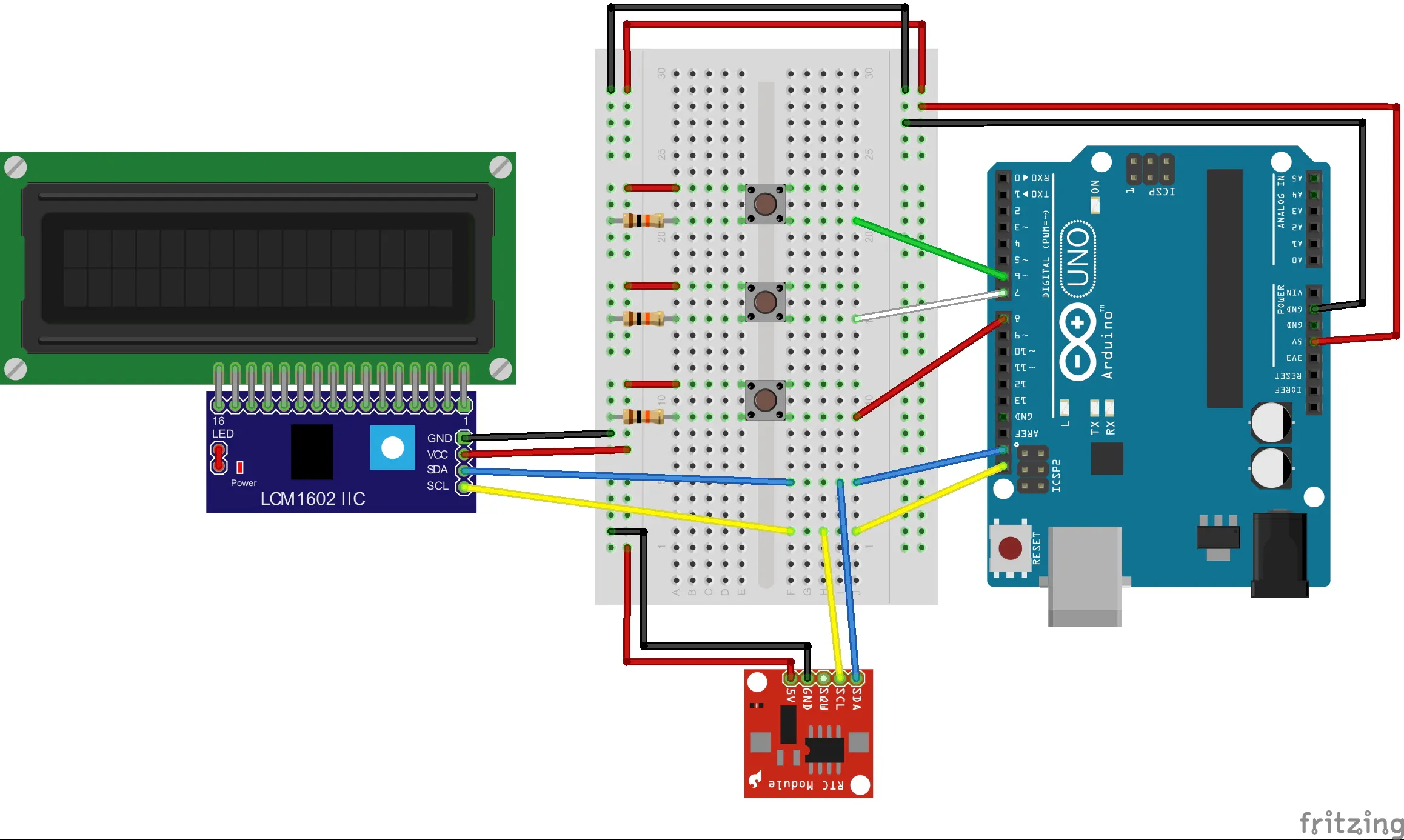

clock diagram

this is the diagram

Schematics

clock diagram

this is the diagram

Code

clock code

JavaScript
this is the code
/*
:Project:Clock_Set_Date_Time
:Author: Tiziano Bianchettin
:Date: 13/01/2017
:Revision: 1
:License: Public Domain
thanks to:
  http://arduinoenonsolo.blogspot.it/2012/12/orologio-con-arduino-e-il-ds1307.html
  http://www.mauroalfieri.it/
  http://www.danielealberti.it/
  http://www.maffucci.it/
  My electronics laboratory professor "Perito Carli"
*/
//************libraries**************//
#include <Wire.h>
#include <RTClib.h>
#include <LiquidCrystal_I2C.h>

//************************************//
LiquidCrystal_I2C lcd(0x3F,16,2); // Display  I2C 16 x 2
RTC_DS1307 RTC;

//************Button*****************//
int P1=6; // Button SET MENU'
int P2=7; // Button +
int P3=8; // Button -

//************Variables**************//
int hourupg;
int minupg;
int yearupg;
int monthupg;
int dayupg;
int menu =0;

void setup()
{

  lcd.begin();
  lcd.backlight();
  lcd.clear();

  pinMode(P1,INPUT);
  pinMode(P2,INPUT);
  pinMode(P3,INPUT);

  Serial.begin(9600);
  Wire.begin();
  RTC.begin();

  if (! RTC.isrunning()) {
    Serial.println("RTC is NOT running!");
    // Set the date and time at compile time
    RTC.adjust(DateTime(__DATE__, __TIME__));
  }
  // RTC.adjust(DateTime(__DATE__, __TIME__)); //removing "//" to adjust the time
    // The default display shows the date and time
  int menu=0;
}

void loop()
{

// check if you press the SET button and increase the menu index
  if(digitalRead(P1))
  {
   menu=menu+1;
  }
// in which subroutine should we go?
  if (menu==0)
    {
     DisplayDateTime(); // void DisplayDateTime

    }
  if (menu==1)
    {
    DisplaySetHour();
    }
  if (menu==2)
    {
    DisplaySetMinute();
    }
  if (menu==3)
    {
    DisplaySetYear();
    }
  if (menu==4)
    {
    DisplaySetMonth();
    }
  if (menu==5)
    {
    DisplaySetDay();
    }
  if (menu==6)
    {
    StoreAgg();
    delay(500);
    menu=0;
    }
    delay(100);
}

void DisplayDateTime ()
{
// We show the current date and time
  DateTime now = RTC.now();

  lcd.setCursor(0, 1);
  lcd.print("Hour:");
  if (now.hour()<=9)
  {
    lcd.print("0");
  }
  lcd.print(now.hour(), DEC);
  hourupg=now.hour();
  lcd.print(":");
  if (now.minute()<=9)
  {
    lcd.print("0");
  }
  lcd.print(now.minute(), DEC);
  minupg=now.minute();
  lcd.print(":");
  if (now.second()<=9)
  {
    lcd.print("0");
  }
  lcd.print(now.second(), DEC);

  lcd.setCursor(0, 0);
  lcd.print("Date: ");
  if (now.day()<=9)
  {
    lcd.print("0");
  }
  lcd.print(now.day(), DEC);
  dayupg=now.day();
  lcd.print("/");
  if (now.month()<=9)
  {
    lcd.print("0");
  }
  lcd.print(now.month(), DEC);
  monthupg=now.month();
  lcd.print("/");
  lcd.print(now.year(), DEC);
  yearupg=now.year();
}

void DisplaySetHour()
{
// time setting
  lcd.clear();
  DateTime now = RTC.now();
  if(digitalRead(P2)==HIGH)
  {
    if(hourupg==23)
    {
      hourupg=0;
    }
    else
    {
      hourupg=hourupg+1;
    }
  }
   if(digitalRead(P3)==HIGH)
  {
    if(hourupg==0)
    {
      hourupg=23;
    }
    else
    {
      hourupg=hourupg-1;
    }
  }
  lcd.setCursor(0,0);
  lcd.print("Set time:");
  lcd.setCursor(0,1);
  lcd.print(hourupg,DEC);
  delay(200);
}

void DisplaySetMinute()
{
// Setting the minutes
  lcd.clear();
  if(digitalRead(P2)==HIGH)
  {
    if (minupg==59)
    {
      minupg=0;
    }
    else
    {
      minupg=minupg+1;
    }
  }
   if(digitalRead(P3)==HIGH)
  {
    if (minupg==0)
    {
      minupg=59;
    }
    else
    {
      minupg=minupg-1;
    }
  }
  lcd.setCursor(0,0);
  lcd.print("Set Minutes:");
  lcd.setCursor(0,1);
  lcd.print(minupg,DEC);
  delay(200);
}

void DisplaySetYear()
{
// setting the year
  lcd.clear();
  if(digitalRead(P2)==HIGH)
  {
    yearupg=yearupg+1;
  }
   if(digitalRead(P3)==HIGH)
  {
    yearupg=yearupg-1;
  }
  lcd.setCursor(0,0);
  lcd.print("Set Year:");
  lcd.setCursor(0,1);
  lcd.print(yearupg,DEC);
  delay(200);
}

void DisplaySetMonth()
{
// Setting the month
  lcd.clear();
  if(digitalRead(P2)==HIGH)
  {
    if (monthupg==12)
    {
      monthupg=1;
    }
    else
    {
      monthupg=monthupg+1;
    }
  }
   if(digitalRead(P3)==HIGH)
  {
    if (monthupg==1)
    {
      monthupg=12;
    }
    else
    {
      monthupg=monthupg-1;
    }
  }
  lcd.setCursor(0,0);
  lcd.print("Set Month:");
  lcd.setCursor(0,1);
  lcd.print(monthupg,DEC);
  delay(200);
}

void DisplaySetDay()
{
// Setting the day
  lcd.clear();
  if(digitalRead(P2)==HIGH)
  {
    if (dayupg==31)
    {
      dayupg=1;
    }
    else
    {
      dayupg=dayupg+1;
    }
  }
   if(digitalRead(P3)==HIGH)
  {
    if (dayupg==1)
    {
      dayupg=31;
    }
    else
    {
      dayupg=dayupg-1;
    }
  }
  lcd.setCursor(0,0);
  lcd.print("Set Day:");
  lcd.setCursor(0,1);
  lcd.print(dayupg,DEC);
  delay(200);
}

void StoreAgg()
{
// Variable saving
  lcd.clear();
  lcd.setCursor(0,0);
  lcd.print("SAVING IN");
  lcd.setCursor(0,1);
  lcd.print("PROGRESS");
  RTC.adjust(DateTime(yearupg,monthupg,dayupg,hourupg,minupg,0));
  delay(200);
}
