LED Light "Beat Flasher"

A LED flashes then it stops, then another LED does the same thing, then another LED does the same thing. Then it goes back to the first LED.

BeginnerFull instructions provided1 hour154

Things used in this project

Hardware components

5 mm LED: Red

Arduino UNO

5 mm LED: Green

LED, Blue

Resistor 220 ohm

Software apps and online services

Arduino IDE

Story

One LED flashes, then stops. After that, another LED flashes, then stops. Next, a third LED flashes, then stops. Finally, it goes back to the first LED and repeats the sequence.

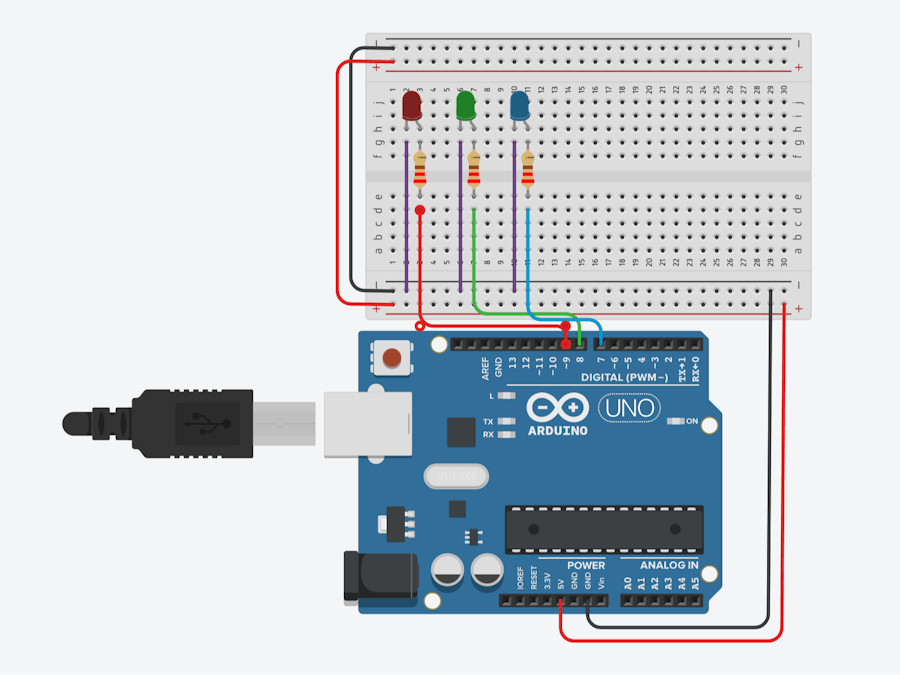

The Scheme

Install the Arduino software:

To install Arduino software on your computer, follow these steps:

For Windows

1. Download the Installer:

Go to the [Arduino Software page] (https://www.arduino.cc/en/software).
Click on "Windows Win 7 and newer" to download the installer.

2. Run the Installer:

Once the download is complete, open the installer file.
Follow the on-screen instructions. You can usually proceed with the default options.

3. Install Drivers:

- During the installation process, you might be prompted to install drivers. Make sure to allow this, as it's necessary for your computer to communicate with Arduino boards.

4. Finish Installation:

- Complete the installation process. Once done, you should have the Arduino IDE (Integrated Development Environment) installed on your computer.

For macOS

1. Download the Installer:

Go to the [Arduino Software page] (https://www.arduino.cc/en/software).
Click on "Mac OS X 10.10 or newer" to download the disk image file.

2. Install the Software:

Open the downloaded `.dmg` file.
Drag the Arduino application into your Applications folder.

3. Run Arduino IDE:

- Open your Applications folder and double-click on the Arduino icon to launch the software.

For Linux

1. Download the Installer:

Go to the [Arduino Software page] (https://www.arduino.cc/en/software).
Choose the appropriate version for your Linux distribution (32-bit, 64-bit, or ARM).

2. Extract the Archive:

Open a terminal and navigate to the directory where you downloaded the file.
Extract the downloaded file using a command like:

sh

Then,

tar -xvf arduino-1.8.19-linux64.tar.xz

3. Install the Software:

- Navigate to the extracted directory:

sh

Then,

cd arduino-1.8.1

- Run the install script:

sh

Then,

sudo ./install.sh

4. Run Arduino IDE:

- You can now run the Arduino IDE by typing Arduino in the terminal or by searching for it in your applications menu.

Additional Steps

1. Connect Your Arduino Board:

- Connect your Arduino board to your computer using a USB cable.

2. Select the Board and Port:

Open the Arduino IDE.
Go to `Tools > Board` and select your Arduino board model.
Go to `Tools > Port` and select the port to which your Arduino board is connected.

3. Start Coding:

- You can now write your Arduino sketches (programs) and upload them to your board.

If you encounter any issues, the [Arduino official website](https://www.arduino.cc/en/Guide) has detailed installation guides and troubleshooting tips for each operating system.

Code

#define LED 9
#define LEDD 8
#define LEDDD 7
// LED pin digitale 13
void setup() {
  pinMode(LED, OUTPUT);
  pinMode(LEDD, OUTPUT);// output
  pinMode(LEDDD, OUTPUT);
}
void loop() {
  digitalWrite(LED, HIGH);
  delay(1000);
  digitalWrite(LED, LOW);
  delay(1000);
   digitalWrite(LEDD, HIGH);
  delay(1000);
  digitalWrite(LEDD, LOW);
  delay(1000);
   digitalWrite(LEDDD, HIGH);
  delay(1000);
  digitalWrite(LEDDD, LOW);
  delay(1000);
}
