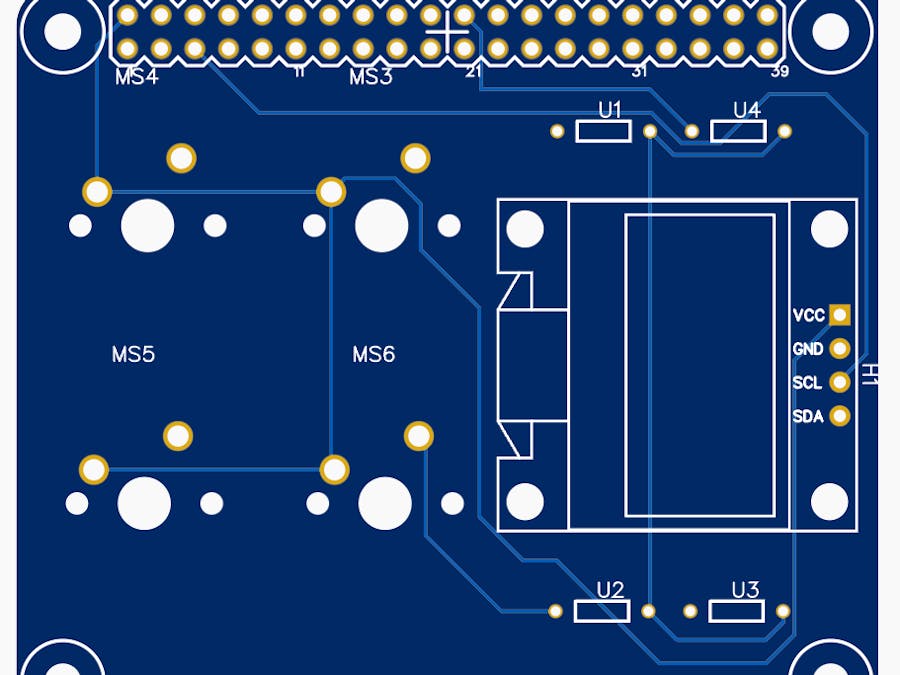

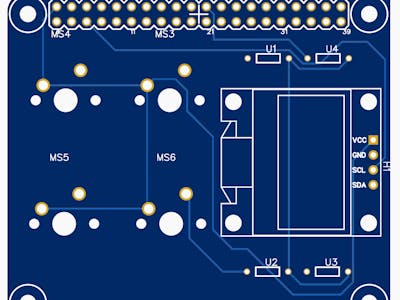

Raspberry Pi 4 mechanic switches and OLED screen shield

Raspberry Pi 4 mechanic switches and OLED screen shield.

Raspberry Pi 4 mechanic switches and OLED screen shield.

Building the Shield:

Materials:

4x 10 Ohm Resistors.

4x Mechanical keyboard switches.

1x Raspberry Pi 3B

40x Generic pins. (Skip this part if your board has pins)

1x OLED Display

Steps:

1- Solder the resistors to the resistor sockets located on the sides of the shield

2- Solder the Switches to the sockets

3- Solder the OLED Display to the socket.

4- Program the board.

If you want to order the board or download the Gerber, feel free to visit the project on pcbway.com

https://www.pcbway.com/project/shareproject/Raspberry_Pi_4_mechanic_switches_and_OLED_screen_shield_57b2fb94.html
